Huawei Technologies Co., Ltd FusionServer CH121 V3 ssj_ops@100% = 3,080,748
ssj_ops@100% per JVM = 192,547
Test Sponsor: Huawei Technologies Co., Ltd SPEC License #: 3175 Test Method: Multi Node
Tested By: Huawei Technologies Co., Ltd Test Location: Shenzhen, Guangdong, China Test Date: Sep 18, 2016
Hardware Availability: Mar-2016 Software Availability: Jan-2015 Publication: Dec 21, 2016
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     3,114,385
Calibration 2     3,087,044
Calibration 3     3,090,708
ssj_ops@calibrated=3,088,876
100% 99.7% 3,088,876 3,080,748
90% 90.0% 2,779,988 2,779,455
80% 79.9% 2,471,101 2,468,720
70% 69.9% 2,162,213 2,159,671
60% 60.2% 1,853,325 1,858,151
50% 49.9% 1,544,438 1,541,445
40% 40.0% 1,235,550 1,236,801
30% 29.9% 926,663 922,509
20% 20.0% 617,775 618,806
10% 10.1% 308,888 310,795
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 8
Comment: None
Hardware
Hardware Vendor: Huawei Technologies Co., Ltd
Model: FusionServer CH121 V3
Form Factor: 12U
CPU Name: Intel Xeon E5-2683 V4
CPU Characteristics: 16-Core, 2.1GHz, 40MB L3 Cache (Intel Turbo Boost Technology up to 3.0GHz)
CPU Frequency (MHz): 2100
CPU(s) Enabled: 32 cores, 2 chips, 16 cores/chip
Hardware Threads: 64 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 40 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 512
# and size of DIMM: 16 x 32 GB
Memory Details: 32GB 2Rx4 PC4-2400T ECC RDIMM;slots DIMM000, DIMM001, DIMM010, DIMM011, DIMM020, DIMM021, DIMM030, DIMM030, DIMM100, DIMM101, DIMM110, DIMM111, DIMM120, DIMM121, DIMM130, and DIMM131 populated
Power Supply Quantity and Rating (W): 6 x 3000
Power Supply Details: Shared
Disk Drive: 2 x 300GB HDD 2.5" SAS Huawei P/N 02311EXX
Disk Controller: LSI 3008
# and type of Network Interface Cards (NICs) Installed: 1 x Quad-port 10Gigabit Ethernet controller CNA Mezzanine Card Huawei P/N 03022ATY
NICs Enabled in Firmware / OS / Connected: 4/4/1
Network Speed (Mbit): 10000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power Saver Mode enabled in OS
Operating System (OS): Microsoft Windows Server 2012 R2 Datacenter
OS Version: Version 6.3 (Build 9600)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmn1400m -Xms1575m -Xmx1575m -XX:SurvivorRatio=60 -XX:TargetSurvivorRatio=90 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=4 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC -XX:-UseAdaptiveSizePolicy
JVM Affinity: start /affinity [F,F0,F00,F000,F0000,F00000,F000000,F0000000,F00000000,F000000000,F0000000000,F00000000000,F000000000000,F0000000000000,F00000000000000,F000000000000000]
JVM Instances: 16
JVM Initial Heap (MB): 1575
JVM Maximum Heap (MB): 1575
JVM Address Bits: 64
Boot Firmware Version: 3.26
Management Firmware Version: 2.08
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: none
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-5C8S426S2RU.001 194,692
WIN-5C8S426S2RU.002 194,376
WIN-5C8S426S2RU.003 195,615
WIN-5C8S426S2RU.004 195,955
WIN-5C8S426S2RU.005 192,032
WIN-5C8S426S2RU.006 193,070
WIN-5C8S426S2RU.007 188,837
WIN-5C8S426S2RU.008 187,896
WIN-5C8S426S2RU.009 194,649
WIN-5C8S426S2RU.010 192,073
WIN-5C8S426S2RU.011 192,160
WIN-5C8S426S2RU.012 192,884
WIN-5C8S426S2RU.013 192,773
WIN-5C8S426S2RU.014 191,942
WIN-5C8S426S2RU.015 193,637
WIN-5C8S426S2RU.016 188,156
ssj_ops@100% 3,080,748
ssj_ops@100% per JVM 192,547

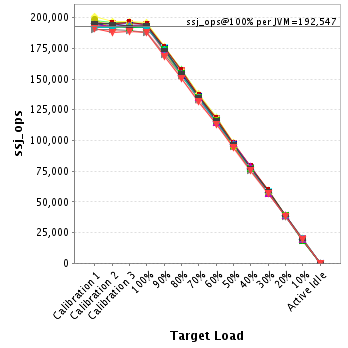

Graph of per-instance results
JVM 'WIN-5C8S426S2RU.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     195,955
Calibration 2     195,013
Calibration 3     194,992
ssj_ops@calibrated=195,002
100% 99.8% 195,002 194,692
90% 90.2% 175,502 175,834
80% 80.4% 156,002 156,853
70% 69.3% 136,501 135,145
60% 60.4% 117,001 117,828
50% 50.2% 97,501 97,811
40% 39.8% 78,001 77,695
30% 29.9% 58,501 58,242
20% 20.0% 39,000 39,075
10% 10.2% 19,500 19,925
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

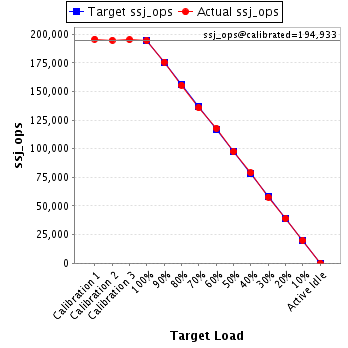

JVM 'WIN-5C8S426S2RU.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     195,667
Calibration 2     194,736
Calibration 3     195,131
ssj_ops@calibrated=194,933
100% 99.7% 194,933 194,376
90% 90.1% 175,440 175,711
80% 79.7% 155,947 155,399
70% 69.7% 136,453 135,805
60% 60.5% 116,960 117,931
50% 50.0% 97,467 97,459
40% 40.5% 77,973 78,910
30% 29.7% 58,480 57,822
20% 20.1% 38,987 39,113
10% 10.3% 19,493 20,035
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-5C8S426S2RU.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     197,673
Calibration 2     195,840
Calibration 3     196,420
ssj_ops@calibrated=196,130
100% 99.7% 196,130 195,615
90% 89.7% 176,517 175,952
80% 80.3% 156,904 157,482
70% 70.0% 137,291 137,375
60% 60.4% 117,678 118,538
50% 49.7% 98,065 97,573
40% 39.9% 78,452 78,322
30% 30.2% 58,839 59,235
20% 20.0% 39,226 39,222
10% 10.2% 19,613 19,977
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-5C8S426S2RU.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     201,063
Calibration 2     196,774
Calibration 3     196,517
ssj_ops@calibrated=196,646
100% 99.6% 196,646 195,955
90% 89.6% 176,981 176,211
80% 80.0% 157,317 157,312
70% 70.1% 137,652 137,893
60% 60.5% 117,987 119,011
50% 49.9% 98,323 98,164
40% 40.1% 78,658 78,867
30% 29.5% 58,994 57,916
20% 19.9% 39,329 39,111
10% 9.9% 19,665 19,374
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

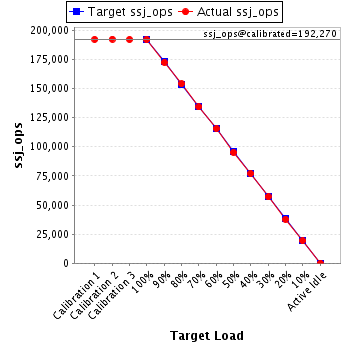

JVM 'WIN-5C8S426S2RU.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     192,230
Calibration 2     192,390
Calibration 3     192,151
ssj_ops@calibrated=192,270
100% 99.9% 192,270 192,032
90% 89.7% 173,043 172,435
80% 80.1% 153,816 153,981
70% 69.8% 134,589 134,194
60% 60.1% 115,362 115,607
50% 49.5% 96,135 95,182
40% 40.0% 76,908 76,911
30% 29.6% 57,681 56,979
20% 19.7% 38,454 37,789
10% 10.0% 19,227 19,291
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-5C8S426S2RU.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     195,037
Calibration 2     193,249
Calibration 3     192,841
ssj_ops@calibrated=193,045
100% 100.0% 193,045 193,070
90% 91.2% 173,740 176,031
80% 80.0% 154,436 154,344
70% 70.1% 135,131 135,247
60% 60.0% 115,827 115,845
50% 50.0% 96,522 96,568
40% 40.1% 77,218 77,438
30% 30.1% 57,913 58,167
20% 19.9% 38,609 38,431
10% 10.1% 19,304 19,585
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-5C8S426S2RU.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     190,593
Calibration 2     189,264
Calibration 3     189,037
ssj_ops@calibrated=189,151
100% 99.8% 189,151 188,837
90% 90.1% 170,236 170,448
80% 79.7% 151,321 150,708
70% 69.3% 132,406 131,035
60% 60.2% 113,490 113,841
50% 49.5% 94,575 93,654
40% 39.6% 75,660 74,873
30% 29.7% 56,745 56,149
20% 20.4% 37,830 38,519
10% 9.8% 18,915 18,581
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

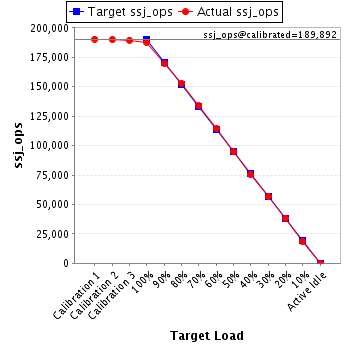

JVM 'WIN-5C8S426S2RU.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     190,500
Calibration 2     190,114
Calibration 3     189,669
ssj_ops@calibrated=189,892
100% 98.9% 189,892 187,896
90% 89.4% 170,902 169,772
80% 80.6% 151,913 153,138
70% 70.4% 132,924 133,702
60% 60.2% 113,935 114,222
50% 49.9% 94,946 94,802
40% 39.9% 75,957 75,733
30% 29.9% 56,967 56,690
20% 20.1% 37,978 38,144
10% 10.0% 18,989 18,912
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-5C8S426S2RU.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     194,458
Calibration 2     195,016
Calibration 3     195,827
ssj_ops@calibrated=195,422
100% 99.6% 195,422 194,649
90% 90.1% 175,880 176,072
80% 80.1% 156,337 156,576
70% 70.0% 136,795 136,857
60% 60.4% 117,253 118,028
50% 49.7% 97,711 97,211
40% 40.2% 78,169 78,523
30% 30.2% 58,627 58,946
20% 19.8% 39,084 38,731
10% 10.0% 19,542 19,474
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-5C8S426S2RU.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     195,164
Calibration 2     192,497
Calibration 3     193,658
ssj_ops@calibrated=193,077
100% 99.5% 193,077 192,073
90% 90.6% 173,769 174,869
80% 79.1% 154,462 152,803
70% 70.1% 135,154 135,408
60% 59.9% 115,846 115,669
50% 50.1% 96,539 96,787
40% 40.1% 77,231 77,371
30% 29.8% 57,923 57,454
20% 20.2% 38,615 38,994
10% 9.9% 19,308 19,203
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-5C8S426S2RU.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     194,188
Calibration 2     193,094
Calibration 3     192,356
ssj_ops@calibrated=192,725
100% 99.7% 192,725 192,160
90% 90.2% 173,453 173,867
80% 80.2% 154,180 154,615
70% 69.8% 134,908 134,585
60% 60.5% 115,635 116,557
50% 49.8% 96,363 96,020
40% 39.8% 77,090 76,796
30% 30.0% 57,818 57,842
20% 20.0% 38,545 38,591
10% 9.7% 19,273 18,770
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-5C8S426S2RU.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     198,648
Calibration 2     191,508
Calibration 3     193,973
ssj_ops@calibrated=192,740
100% 100.1% 192,740 192,884
90% 89.6% 173,466 172,744
80% 79.4% 154,192 153,090
70% 70.0% 134,918 135,012
60% 60.1% 115,644 115,889
50% 49.3% 96,370 95,110
40% 39.9% 77,096 76,979
30% 29.5% 57,822 56,922
20% 20.2% 38,548 39,008
10% 10.1% 19,274 19,533
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-5C8S426S2RU.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     194,644
Calibration 2     192,619
Calibration 3     193,896
ssj_ops@calibrated=193,258
100% 99.7% 193,258 192,773
90% 89.5% 173,932 172,907
80% 79.8% 154,606 154,239
70% 70.0% 135,280 135,279
60% 59.5% 115,955 114,992
50% 50.5% 96,629 97,687
40% 40.6% 77,303 78,398
30% 29.6% 57,977 57,162
20% 20.1% 38,652 38,750
10% 10.0% 19,326 19,381
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-5C8S426S2RU.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     191,854
Calibration 2     191,820
Calibration 3     192,569
ssj_ops@calibrated=192,195
100% 99.9% 192,195 191,942
90% 90.5% 172,975 174,002
80% 79.7% 153,756 153,139
70% 70.2% 134,536 134,959
60% 59.6% 115,317 114,573
50% 50.3% 96,097 96,751
40% 39.8% 76,878 76,434
30% 30.0% 57,658 57,566
20% 19.9% 38,439 38,227
10% 10.2% 19,219 19,671
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-5C8S426S2RU.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     195,461
Calibration 2     194,879
Calibration 3     192,781
ssj_ops@calibrated=193,830
100% 99.9% 193,830 193,637
90% 89.8% 174,447 173,997
80% 79.9% 155,064 154,793
70% 69.9% 135,681 135,493
60% 60.0% 116,298 116,287
50% 49.9% 96,915 96,723
40% 40.1% 77,532 77,651
30% 30.2% 58,149 58,485
20% 20.1% 38,766 38,929
10% 10.1% 19,383 19,642
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-5C8S426S2RU.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     191,249
Calibration 2     188,232
Calibration 3     188,889
ssj_ops@calibrated=188,560
100% 99.8% 188,560 188,156
90% 89.4% 169,704 168,603
80% 79.7% 150,848 150,249
70% 69.8% 131,992 131,682
60% 60.1% 113,136 113,334
50% 49.8% 94,280 93,943
40% 40.3% 75,424 75,901
30% 30.2% 56,568 56,932
20% 20.2% 37,712 38,173
10% 10.3% 18,856 19,441
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
