H3C UIS R390x G2 SPECpower_ssj2008 = 11,654 overall ssj_ops/watt
Test Sponsor: H3C SPEC License #: 9066 Test Method: Single Node
Tested By: H3C Test Location: Hangzhou, ZheJiang, China Test Date: Jul 27, 2016
Hardware Availability: Jul-2016 Software Availability: Apr-2015 Publication: Aug 24, 2016
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 246 24.3
Calibration 2 254 24.3
Calibration 3 255 24.4
100% 252 24.6
90% 230 24.8
80% 204 24.9
70% 174 25.0
60% 158 25.1
50% 144 25.1
40% 129 25.0
30% 115 24.9
20% 102 24.8
10% 88.0 24.8
Active Idle 40.1 24.6

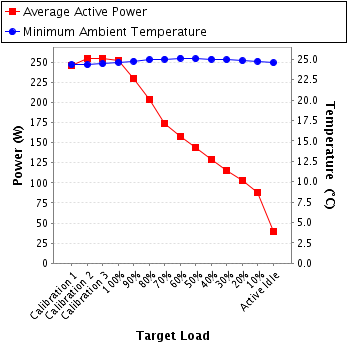

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: CHROMA
Model: 66202
Serial Number: 662022005360
Connectivity: GPIB
Input Connection: Default
Metrology Institute: CNAS (China National Accreditation Service for Conformity Assessment)
Accredited by: Calibration and Testing Center of CEPREI
Calibration Label: JZ16-0072-0004
Date of Calibration: 18-Jan-2016
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.8.0-efc0c004-20160120
Setup Description: Connected to PSU 1
Temperature Sensor temp1
Hardware Vendor: DIGI.
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: placed in front the main airflow inlet of the SUT less than 50mm.
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 237 300.0 1.12 2.0 0.929 246 0.3%
Calibration 2 237 300.0 1.15 2.0 0.931 254 0.3%
Calibration 3 237 300.0 1.15 2.0 0.932 255 0.3%
100% 237 300.0 1.14 2.0 0.931 252 0.3%
90% 237 300.0 1.04 2.0 0.928 230 0.4%
80% 237 300.0 0.932 2.0 0.920 204 0.4%
70% 238 300.0 0.808 2.0 0.909 174 0.4%
60% 238 300.0 0.736 2.0 0.902 158 0.5%
50% 238 300.0 0.676 2.0 0.897 144 0.5%
40% 238 300.0 0.609 2.0 0.890 129 0.6%
30% 238 300.0 0.550 2.0 0.883 115 0.6%
20% 238 300.0 0.494 2.0 0.872 102 0.7%
10% 238 300.0 0.431 2.0 0.858 88.0 0.8%
Active Idle 238 300.0 0.213 0.4 0.789 40.1 0.4%
Power details for pwr1
