SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2016 Standard Performance Evaluation Corporation
| Quanta Computer Inc. QuantaGrid D51B-2U | SPECpower_ssj2008 = 11,568 overall ssj_ops/watt | ||||
| Test Sponsor: | Quanta Computer Inc. | SPEC License #: | 9050 | Test Method: | Single Node |
| Tested By: | Quanta Computer Inc. | Test Location: | Taoyuan, TW, R.O.C | Test Date: | May 20, 2016 |
| Hardware Availability: | Mar-2016 | Software Availability: | Apr-2015 | Publication: | Jun 8, 2016 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

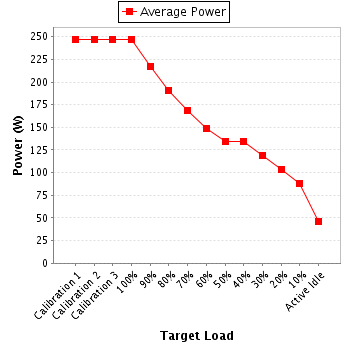

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 247 | 25.5 |
| Calibration 2 | 247 | 25.6 |
| Calibration 3 | 247 | 25.6 |
| 100% | 247 | 25.6 |
| 90% | 217 | 25.6 |
| 80% | 191 | 25.7 |
| 70% | 169 | 25.8 |
| 60% | 149 | 25.7 |
| 50% | 135 | 25.6 |
| 40% | 134 | 25.6 |
| 30% | 119 | 25.6 |
| 20% | 104 | 25.6 |
| 10% | 87.7 | 25.6 |
| Active Idle | 46.6 | 25.4 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Meters and Instruments Corporation |
| Model: | WT310 |
| Serial Number: | C2QD24017V |
| Connectivity: | USB |
| Input Connection: | Default |
| Metrology Institute: | NML (National Measurement Laboratory) |
| Accredited by: | Electronics Testing Center,Taiwan |
| Calibration Label: | Q10680081 |
| Date of Calibration: | 03-Mar-2016 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.8.0-efc0c004-20160120 |
| Setup Description: | Connected to power supply |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/T |
| Driver Version: | 5.70.105.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 25 mm in front of SUT main airflow intake |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 223 | 300.0 | 1.15 | 2.0 | 0.966 | 247 | 0.4% |
| Calibration 2 | 223 | 300.0 | 1.15 | 2.0 | 0.966 | 247 | 0.4% |
| Calibration 3 | 223 | 300.0 | 1.15 | 2.0 | 0.966 | 247 | 0.4% |
| 100% | 223 | 300.0 | 1.14 | 2.0 | 0.966 | 247 | 0.4% |
| 90% | 220 | 300.0 | 1.03 | 2.0 | 0.959 | 217 | 0.4% |
| 80% | 219 | 300.0 | 0.904 | 2.0 | 0.963 | 191 | 0.5% |
| 70% | 219 | 300.0 | 0.806 | 1.0 | 0.957 | 169 | 0.3% |
| 60% | 219 | 300.0 | 0.714 | 1.0 | 0.950 | 149 | 0.4% |
| 50% | 219 | 300.0 | 0.652 | 1.0 | 0.944 | 135 | 0.4% |
| 40% | 219 | 300.0 | 0.655 | 1.0 | 0.936 | 134 | 0.4% |
| 30% | 219 | 300.0 | 0.592 | 1.0 | 0.921 | 119 | 0.4% |
| 20% | 219 | 300.0 | 0.520 | 1.0 | 0.908 | 104 | 0.5% |
| 10% | 220 | 300.0 | 0.447 | 1.0 | 0.894 | 87.7 | 0.5% |
| Active Idle | 220 | 300.0 | 0.269 | 0.5 | 0.788 | 46.6 | 0.5% |
