Fujitsu FUJITSU Server PRIMERGY RX1330 M2 SPECpower_ssj2008 = 7,809 overall ssj_ops/watt
Test Sponsor: Fujitsu SPEC License #: 19 Test Method: Single Node
Tested By: Fujitsu Test Location: Paderborn, NRW, Germany Test Date: Nov 20, 2015
Hardware Availability: Feb-2016 Software Availability: Jan-2015 Publication: Dec 15, 2015
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 47.8 21.8
Calibration 2 48.0 21.9
Calibration 3 47.9 21.8
100% 47.7 21.2
90% 43.6 21.1
80% 39.0 21.4
70% 35.2 21.6
60% 31.2 21.8
50% 28.4 21.9
40% 26.2 22.0
30% 24.1 22.1
20% 22.3 22.2
10% 20.1 21.6
Active Idle 16.0 21.3

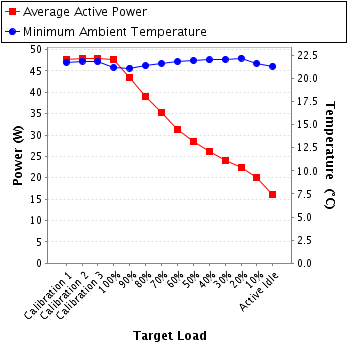

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: ZES Zimmer Electronic Systems GmbH
Model: LMG95
Serial Number: 11210802
Connectivity: RS-232
Input Connection: Default (20A)
Metrology Institute: PTB (Physikalisch Technische Bundesanstalt)
Accredited by: Atlas Copco Tools Central Europe GmbH
Calibration Label: W14113561
Date of Calibration: 21-Nov-2014
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.7.1-6ff11330-20150212
Setup Description: Connected to PSU 1
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: Watchport Virtual Port 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm in front of SUT main air intake
Notes
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 231 250.0 0.264 0.3 0.783 47.8 0.1%
Calibration 2 231 250.0 0.265 0.3 0.785 48.0 0.1%
Calibration 3 231 250.0 0.265 0.3 0.784 47.9 0.1%
100% 231 250.0 0.264 0.3 0.783 47.7 0.1%
90% 231 250.0 0.251 0.3 0.751 43.6 0.1%
80% 231 250.0 0.236 0.3 0.714 39.0 0.1%
70% 231 250.0 0.223 0.3 0.680 35.2 0.1%
60% 231 250.0 0.210 0.3 0.644 31.2 0.1%
50% 231 250.0 0.201 0.3 0.613 28.4 0.1%
40% 231 250.0 0.193 0.3 0.586 26.2 0.2%
30% 231 250.0 0.187 0.3 0.559 24.1 0.2%
20% 231 250.0 0.181 0.3 0.535 22.3 0.2%
10% 231 250.0 0.174 0.3 0.500 20.1 0.2%
Active Idle 231 250.0 0.160 0.3 0.435 16.0 0.2%
Power details for pwr1
