Fujitsu FUJITSU Server PRIMERGY TX1320 M2 SPECpower_ssj2008 = 8,944 overall ssj_ops/watt
Test Sponsor: Fujitsu SPEC License #: 19 Test Method: Single Node
Tested By: Fujitsu Test Location: Paderborn, NRW, Germany Test Date: Nov 6, 2015
Hardware Availability: Feb-2016 Software Availability: Jan-2015 Publication: Nov 25, 2015
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Active Power (W)
100% 100.2% 478,512 44.7 10,713
90% 90.0% 429,767 40.2 10,692
80% 80.4% 383,866 35.8 10,722
70% 69.9% 333,825 31.4 10,622
60% 60.6% 289,162 28.1 10,303
50% 50.0% 238,762 25.0 9,536
40% 40.0% 191,219 22.6 8,458
30% 30.1% 143,580 20.4 7,032
20% 19.9% 94,862 18.4 5,163
10% 10.1% 48,106 16.0 3,002
Active Idle 0 11.6 0
∑ssj_ops / ∑power = 8,944

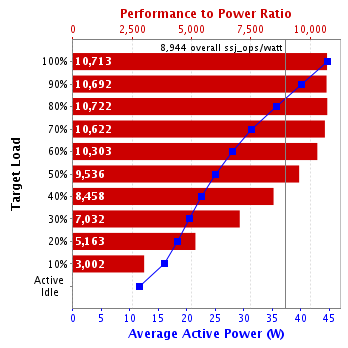

Graph of results
System Under Test
Set: 'TX1320 M2'
Set Identifier: TX1320 M2
Set Description: System Under Test
# of Identical Nodes: 1
Comment: Single Node
Hardware
Hardware Vendor: Fujitsu
Model: FUJITSU Server PRIMERGY TX1320 M2
Form Factor: Tower
CPU Name: Intel Xeon E3-1260L v5
CPU Characteristics: 4-Core, 2.90GHz, 8MB L3 Cache
CPU Frequency (MHz): 2900
CPU(s) Enabled: 4 cores, 1 chip, 4 cores/chip
Hardware Threads: 8 (2 / core)
CPU(s) Orderable: 1 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 8 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 16
# and size of DIMM: 2 x 8192 MB
Memory Details: 8 GB DDR4, unbuffered, ECC, 2133 MHz, PC4-2133U, DIMM, 2Rx8; slots 1A, 1B populated
Power Supply Quantity and Rating (W): 1 x 250
Power Supply Details: Fujitsu Technology Solutions S26113-E564-V71-01
Disk Drive: 1 x SSD SATA 6G 64GB DOM N H-P, S26361-F5522-E64
Disk Controller: Integrated SATA Controller
# and type of Network Interface Cards (NICs) Installed: 2 x Intel I210 Gigabit Network Connection (onboard)
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled ("Fujitsu Enhanced Power Settings" power plan)
Operating System (OS): Microsoft Windows Server 2012 R2 Standard
OS Version: Version 6.3.9600 Build 9600
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmn2300m -Xms2750m -Xmx2750m -XX:SurvivorRatio=60 -XX:TargetSurvivorRatio=90 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=2 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC -XX:-UseAdaptiveSizePolicy
JVM Affinity: start /AFFINITY [0x3,0xC,0x30,0xC0]
JVM Instances: 4
JVM Initial Heap (MB): 2750
JVM Maximum Heap (MB): 2750
JVM Address Bits: 64
Boot Firmware Version: R1.3.0
Management Firmware Version: 8.04A
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Controller System
Hardware
Hardware Vendor: Fujitsu
Model: PRIMERGY RX200 S6
CPU Description: Intel Xeon X5680
Memory amount (GB): 48
Software
Operating System (OS): Microsoft Windows Server 2008 R2 Enterprise SP1
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 25.25-b02, mixed mode)
CCS Version: 1.2.6
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: ZES Zimmer Electronic Systems GmbH
Model: LMG95
Serial Number: 11210802
Connectivity: RS-232
Input Connection: Default (20A)
Metrology Institute: PTB (Physikalisch Technische Bundesanstalt)
Accredited by: Atlas Copco Tools Central Europe GmbH
Calibration Label: W14113561
Date of Calibration: 21-Nov-2014
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.7.1-6ff11330-20150212
Setup Description: Connected to PSU 1
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: Watchport Virtual Port 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm in front of SUT main air intake
Notes
Aggregate Electrical and Environmental Data
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
100% 44.7 21.4
90% 40.2 21.6
80% 35.8 21.9
70% 31.4 22.1
60% 28.1 22.2
50% 25.0 22.3
40% 22.6 21.9
30% 20.4 21.5
20% 18.4 21.6
10% 16.0 22.0
Active Idle 11.6 22.3
Line Standard Minimum Temperature (°C) Elevation (m)
230V / 50 Hz / 1 phase / 2 wires 21.4 117
Aggregate Performance Data
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     471,490
Calibration 2     476,717
Calibration 3     478,296
ssj_ops@calibrated=477,506
100% 100.2% 477,506 478,512
90% 90.0% 429,756 429,767
80% 80.4% 382,005 383,866
70% 69.9% 334,254 333,825
60% 60.6% 286,504 289,162
50% 50.0% 238,753 238,762
40% 40.0% 191,003 191,219
30% 30.1% 143,252 143,580
20% 19.9% 95,501 94,862
10% 10.1% 47,751 48,106
Active Idle   0 0

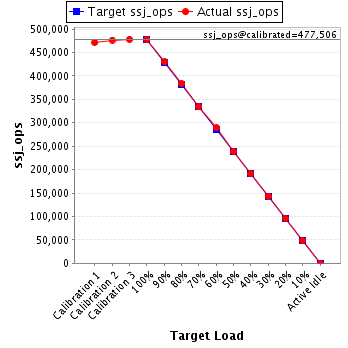

Graph of results
