Dell Inc. PowerEdge FC630 (Intel Xeon E5-2699 v3 2.30 GHz) ssj_ops@100% = 3,242,798
ssj_ops@100% per JVM = 90,078
Test Sponsor: Dell Inc. SPEC License #: 55 Test Method: Multi Node
Tested By: Dell Inc. Test Location: Round Rock, TX, USA Test Date: Jul 10, 2015
Hardware Availability: Jun-2015 Software Availability: Jun-2013 Publication: Aug 6, 2015
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     3,020,099
Calibration 2     3,238,033
Calibration 3     3,239,459
ssj_ops@calibrated=3,238,746
100% 100.1% 3,238,746 3,242,798
90% 90.9% 2,914,871 2,944,523
80% 80.0% 2,590,997 2,590,559
70% 70.1% 2,267,122 2,270,213
60% 60.0% 1,943,248 1,944,136
50% 50.0% 1,619,373 1,619,564
40% 40.1% 1,295,498 1,298,701
30% 29.9% 971,624 969,152
20% 20.0% 647,749 648,671
10% 9.9% 323,875 322,225
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: FC630
# of Identical Nodes: 4
Comment: SUT
Hardware
Hardware Vendor: Dell Inc.
Model: PowerEdge FC630 (Intel Xeon E5-2699 v3 2.30 GHz)
Form Factor: 2U
CPU Name: Intel Xeon E5-2699 v3 2.30 GHz
CPU Characteristics: 18 core, 2.30 GHz, 45 MB L3 Cache
CPU Frequency (MHz): 2300
CPU(s) Enabled: 36 cores, 2 chips, 18 cores/chip
Hardware Threads: 72 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 45 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 64
# and size of DIMM: 8 x 8 GB
Memory Details: 8GB 2Rx8 PC4-2133P ECC; slots A1-4, B1-4 populated Dell P/N H8PGM
Power Supply Quantity and Rating (W): None
Power Supply Details: N/A
Disk Drive: 1 x 120GB SATA SSD Dell P/N XRD5Y
Disk Controller: Embedded SATA
# and type of Network Interface Cards (NICs) Installed: 1 x Intel 520-k Dual Port 10 Gb Ethernet, Dell P/N JVFVR
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power Saver power plan in OS (see SUT Notes)
Operating System (OS): Microsoft Windows Server 2008 R2 Enterprise SP1
OS Version: Version 6.1.7601 Service Pack 1 Build 7601
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.6,JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120322_106209 (JIT enabled,AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xmn825m -Xms975m -Xmx975 -XlockReservation -Xnoloa -XtlhPrefetch -Xlp -Xconcurrentlevel0 -Xthr:minimizeusercpu -Xgcthreads2 -Xgcpolicy:gencon
JVM Affinity: /NODE [0,1,2,3] /AFFINITY[0x3,0xC,0x30,0xC0,0x300,0xC00,0x3000,0xC000,0x30000]
JVM Instances: 36
JVM Initial Heap (MB): 975
JVM Maximum Heap (MB): 975
JVM Address Bits: 64
Boot Firmware Version: 1.2.5
Management Firmware Version: iDRAC 2.15.10.10
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: IBM WebSphere Application Server V8.5.0.0, Microsoft Hotfix for Windows (KB2510206)
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
FC630-01.001 90,521
FC630-01.002 90,836
FC630-01.003 90,123
FC630-01.004 90,315
FC630-01.005 85,528
FC630-01.006 89,617
FC630-01.007 90,024
FC630-01.008 90,642
FC630-01.009 90,786
FC630-01.010 89,233
FC630-01.011 89,692
FC630-01.012 90,759
FC630-01.013 90,229
FC630-01.014 86,805
FC630-01.015 91,253
FC630-01.016 91,780
FC630-01.017 91,590
FC630-01.018 91,467
FC630-01.019 87,963
FC630-01.020 89,621
FC630-01.021 89,914
FC630-01.022 91,286
FC630-01.023 91,364
FC630-01.024 88,885
FC630-01.025 89,253
FC630-01.026 90,436
FC630-01.027 90,287
FC630-01.028 87,848
FC630-01.029 90,319
FC630-01.030 90,591
FC630-01.031 90,884
FC630-01.032 91,532
FC630-01.033 89,160
FC630-01.034 90,984
FC630-01.035 90,361
FC630-01.036 90,914
ssj_ops@100% 3,242,798
ssj_ops@100% per JVM 90,078

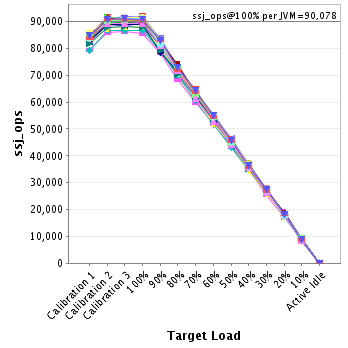

Graph of per-instance results
JVM 'FC630-01.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,579
Calibration 2     90,453
Calibration 3     90,564
ssj_ops@calibrated=90,508
100% 100.0% 90,508 90,521
90% 90.8% 81,458 82,217
80% 79.3% 72,407 71,769
70% 69.9% 63,356 63,273
60% 59.7% 54,305 54,066
50% 49.9% 45,254 45,120
40% 40.4% 36,203 36,583
30% 29.7% 27,153 26,922
20% 20.0% 18,102 18,075
10% 10.0% 9,051 9,008
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-01.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,540
Calibration 2     90,778
Calibration 3     90,355
ssj_ops@calibrated=90,566
100% 100.3% 90,566 90,836
90% 92.2% 81,509 83,519
80% 80.6% 72,453 73,022
70% 70.2% 63,396 63,543
60% 60.0% 54,340 54,357
50% 50.1% 45,283 45,354
40% 39.9% 36,226 36,147
30% 29.4% 27,170 26,662
20% 19.8% 18,113 17,966
10% 9.9% 9,057 8,937
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-01.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,185
Calibration 2     90,379
Calibration 3     90,054
ssj_ops@calibrated=90,216
100% 99.9% 90,216 90,123
90% 91.3% 81,195 82,370
80% 79.5% 72,173 71,726
70% 70.6% 63,151 63,705
60% 60.1% 54,130 54,178
50% 50.2% 45,108 45,267
40% 39.7% 36,087 35,787
30% 30.0% 27,065 27,108
20% 20.0% 18,043 18,079
10% 10.0% 9,022 9,017
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-01.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,435
Calibration 2     90,216
Calibration 3     90,313
ssj_ops@calibrated=90,265
100% 100.1% 90,265 90,315
90% 91.1% 81,238 82,219
80% 80.6% 72,212 72,723
70% 69.0% 63,185 62,310
60% 60.5% 54,159 54,633
50% 50.9% 45,132 45,972
40% 39.7% 36,106 35,868
30% 30.4% 27,079 27,404
20% 20.2% 18,053 18,204
10% 9.6% 9,026 8,699
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

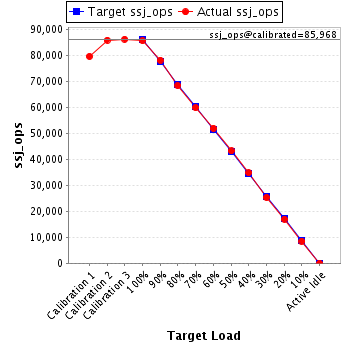

JVM 'FC630-01.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     79,550
Calibration 2     85,796
Calibration 3     86,141
ssj_ops@calibrated=85,968
100% 99.5% 85,968 85,528
90% 90.9% 77,371 78,106
80% 79.4% 68,775 68,295
70% 69.5% 60,178 59,780
60% 60.4% 51,581 51,885
50% 50.2% 42,984 43,167
40% 40.4% 34,387 34,744
30% 29.4% 25,790 25,287
20% 19.7% 17,194 16,971
10% 9.9% 8,597 8,491
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

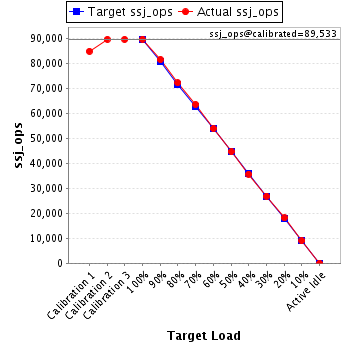

JVM 'FC630-01.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,802
Calibration 2     89,552
Calibration 3     89,514
ssj_ops@calibrated=89,533
100% 100.1% 89,533 89,617
90% 91.0% 80,579 81,462
80% 80.5% 71,626 72,117
70% 71.0% 62,673 63,533
60% 60.2% 53,720 53,913
50% 49.9% 44,766 44,643
40% 39.9% 35,813 35,691
30% 30.0% 26,860 26,893
20% 20.2% 17,907 18,116
10% 10.1% 8,953 9,025
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-01.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,830
Calibration 2     90,117
Calibration 3     90,072
ssj_ops@calibrated=90,095
100% 99.9% 90,095 90,024
90% 90.5% 81,085 81,560
80% 78.9% 72,076 71,102
70% 70.0% 63,066 63,031
60% 60.1% 54,057 54,125
50% 50.2% 45,047 45,209
40% 39.6% 36,038 35,641
30% 29.8% 27,028 26,877
20% 20.0% 18,019 18,044
10% 10.1% 9,009 9,121
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-01.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,009
Calibration 2     90,653
Calibration 3     90,447
ssj_ops@calibrated=90,550
100% 100.1% 90,550 90,642
90% 91.2% 81,495 82,575
80% 80.8% 72,440 73,150
70% 70.4% 63,385 63,726
60% 59.6% 54,330 54,007
50% 50.0% 45,275 45,236
40% 40.3% 36,220 36,523
30% 30.1% 27,165 27,288
20% 19.6% 18,110 17,742
10% 10.1% 9,055 9,104
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

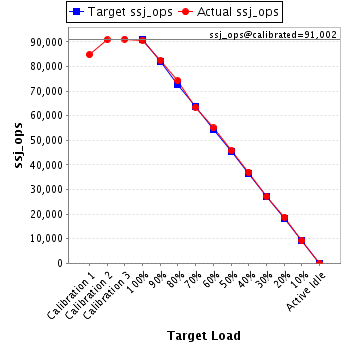

JVM 'FC630-01.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,802
Calibration 2     90,863
Calibration 3     91,141
ssj_ops@calibrated=91,002
100% 99.8% 91,002 90,786
90% 90.6% 81,902 82,469
80% 81.5% 72,802 74,168
70% 69.8% 63,702 63,550
60% 60.5% 54,601 55,036
50% 50.3% 45,501 45,786
40% 40.6% 36,401 36,946
30% 29.8% 27,301 27,142
20% 20.6% 18,200 18,708
10% 10.0% 9,100 9,141
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-01.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,742
Calibration 2     88,758
Calibration 3     88,580
ssj_ops@calibrated=88,669
100% 100.6% 88,669 89,233
90% 90.7% 79,802 80,421
80% 79.9% 70,935 70,859
70% 70.3% 62,068 62,336
60% 59.7% 53,201 52,900
50% 49.6% 44,334 44,020
40% 40.4% 35,467 35,779
30% 30.5% 26,601 27,032
20% 20.0% 17,734 17,708
10% 10.4% 8,867 9,242
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-01.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,115
Calibration 2     89,226
Calibration 3     89,725
ssj_ops@calibrated=89,476
100% 100.2% 89,476 89,692
90% 91.0% 80,528 81,426
80% 80.1% 71,580 71,653
70% 70.4% 62,633 62,970
60% 60.2% 53,685 53,841
50% 50.1% 44,738 44,826
40% 40.1% 35,790 35,885
30% 29.7% 26,843 26,534
20% 19.4% 17,895 17,360
10% 10.0% 8,948 8,946
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-01.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,180
Calibration 2     90,910
Calibration 3     90,503
ssj_ops@calibrated=90,706
100% 100.1% 90,706 90,759
90% 90.7% 81,636 82,282
80% 78.7% 72,565 71,342
70% 70.0% 63,494 63,529
60% 60.8% 54,424 55,144
50% 50.2% 45,353 45,502
40% 41.0% 36,283 37,190
30% 29.9% 27,212 27,124
20% 19.9% 18,141 18,056
10% 9.9% 9,071 9,017
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-01.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,193
Calibration 2     90,157
Calibration 3     89,853
ssj_ops@calibrated=90,005
100% 100.2% 90,005 90,229
90% 91.2% 81,004 82,102
80% 79.1% 72,004 71,166
70% 69.9% 63,003 62,887
60% 59.7% 54,003 53,750
50% 49.8% 45,002 44,847
40% 40.3% 36,002 36,267
30% 29.9% 27,001 26,901
20% 20.8% 18,001 18,757
10% 9.6% 9,000 8,596
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-01.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     79,384
Calibration 2     86,496
Calibration 3     86,660
ssj_ops@calibrated=86,578
100% 100.3% 86,578 86,805
90% 91.0% 77,920 78,788
80% 80.6% 69,262 69,815
70% 69.9% 60,605 60,550
60% 59.8% 51,947 51,807
50% 49.9% 43,289 43,232
40% 39.9% 34,631 34,583
30% 30.4% 25,973 26,316
20% 20.9% 17,316 18,119
10% 9.9% 8,658 8,583
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-01.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,562
Calibration 2     90,791
Calibration 3     90,955
ssj_ops@calibrated=90,873
100% 100.4% 90,873 91,253
90% 90.5% 81,785 82,196
80% 79.9% 72,698 72,578
70% 69.9% 63,611 63,488
60% 60.2% 54,524 54,731
50% 49.6% 45,436 45,113
40% 40.6% 36,349 36,886
30% 30.3% 27,262 27,525
20% 20.3% 18,175 18,459
10% 10.1% 9,087 9,162
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-01.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,037
Calibration 2     91,324
Calibration 3     91,019
ssj_ops@calibrated=91,172
100% 100.7% 91,172 91,780
90% 91.3% 82,054 83,219
80% 79.4% 72,937 72,422
70% 70.8% 63,820 64,547
60% 59.0% 54,703 53,760
50% 50.5% 45,586 46,012
40% 40.2% 36,469 36,665
30% 30.1% 27,351 27,422
20% 20.0% 18,234 18,275
10% 10.1% 9,117 9,216
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-01.017' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,473
Calibration 2     90,854
Calibration 3     91,926
ssj_ops@calibrated=91,390
100% 100.2% 91,390 91,590
90% 90.2% 82,251 82,401
80% 80.2% 73,112 73,278
70% 69.7% 63,973 63,674
60% 60.8% 54,834 55,568
50% 49.6% 45,695 45,354
40% 40.5% 36,556 36,971
30% 30.1% 27,417 27,512
20% 19.8% 18,278 18,093
10% 9.9% 9,139 9,079
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-01.018' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,342
Calibration 2     91,519
Calibration 3     91,015
ssj_ops@calibrated=91,267
100% 100.2% 91,267 91,467
90% 91.2% 82,140 83,191
80% 79.8% 73,013 72,811
70% 69.8% 63,887 63,705
60% 60.1% 54,760 54,877
50% 49.2% 45,633 44,912
40% 40.5% 36,507 36,924
30% 29.9% 27,380 27,254
20% 20.0% 18,253 18,292
10% 9.8% 9,127 8,954
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-01.019' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,014
Calibration 2     87,469
Calibration 3     88,027
ssj_ops@calibrated=87,748
100% 100.2% 87,748 87,963
90% 91.6% 78,973 80,353
80% 80.6% 70,198 70,691
70% 69.8% 61,424 61,263
60% 59.5% 52,649 52,218
50% 50.4% 43,874 44,212
40% 39.6% 35,099 34,721
30% 29.6% 26,324 25,979
20% 19.8% 17,550 17,375
10% 10.2% 8,775 8,954
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-01.020' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,332
Calibration 2     90,198
Calibration 3     89,512
ssj_ops@calibrated=89,855
100% 99.7% 89,855 89,621
90% 91.9% 80,869 82,603
80% 80.2% 71,884 72,104
70% 70.8% 62,898 63,584
60% 59.4% 53,913 53,408
50% 50.2% 44,927 45,074
40% 39.5% 35,942 35,448
30% 29.6% 26,956 26,556
20% 19.5% 17,971 17,529
10% 9.9% 8,985 8,882
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-01.021' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,838
Calibration 2     89,845
Calibration 3     89,804
ssj_ops@calibrated=89,824
100% 100.1% 89,824 89,914
90% 90.7% 80,842 81,443
80% 78.9% 71,859 70,902
70% 70.0% 62,877 62,906
60% 59.9% 53,894 53,845
50% 49.6% 44,912 44,534
40% 40.4% 35,930 36,329
30% 30.4% 26,947 27,282
20% 19.6% 17,965 17,636
10% 9.7% 8,982 8,712
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-01.022' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,439
Calibration 2     90,918
Calibration 3     91,157
ssj_ops@calibrated=91,038
100% 100.3% 91,038 91,286
90% 91.2% 81,934 83,058
80% 79.8% 72,830 72,662
70% 70.1% 63,726 63,785
60% 59.1% 54,623 53,792
50% 49.8% 45,519 45,355
40% 40.4% 36,415 36,821
30% 29.1% 27,311 26,513
20% 19.8% 18,208 18,058
10% 9.6% 9,104 8,729
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-01.023' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,788
Calibration 2     91,163
Calibration 3     90,640
ssj_ops@calibrated=90,901
100% 100.5% 90,901 91,364
90% 90.8% 81,811 82,551
80% 81.2% 72,721 73,801
70% 69.8% 63,631 63,436
60% 60.0% 54,541 54,506
50% 50.0% 45,451 45,492
40% 39.6% 36,360 36,004
30% 30.0% 27,270 27,288
20% 20.4% 18,180 18,558
10% 10.2% 9,090 9,237
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-01.024' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,894
Calibration 2     88,837
Calibration 3     88,825
ssj_ops@calibrated=88,831
100% 100.1% 88,831 88,885
90% 88.4% 79,948 78,524
80% 80.4% 71,065 71,437
70% 70.5% 62,182 62,631
60% 59.5% 53,298 52,880
50% 50.3% 44,415 44,702
40% 40.1% 35,532 35,648
30% 30.1% 26,649 26,733
20% 20.0% 17,766 17,800
10% 9.5% 8,883 8,454
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-01.025' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,566
Calibration 2     89,173
Calibration 3     89,544
ssj_ops@calibrated=89,358
100% 99.9% 89,358 89,253
90% 91.3% 80,422 81,620
80% 80.4% 71,487 71,805
70% 70.2% 62,551 62,699
60% 60.7% 53,615 54,235
50% 49.6% 44,679 44,291
40% 39.9% 35,743 35,644
30% 30.4% 26,807 27,148
20% 19.7% 17,872 17,565
10% 10.1% 8,936 9,046
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-01.026' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,325
Calibration 2     90,242
Calibration 3     90,139
ssj_ops@calibrated=90,190
100% 100.3% 90,190 90,436
90% 90.9% 81,171 81,980
80% 81.0% 72,152 73,029
70% 69.9% 63,133 63,020
60% 60.1% 54,114 54,244
50% 49.5% 45,095 44,667
40% 40.2% 36,076 36,212
30% 30.2% 27,057 27,265
20% 20.2% 18,038 18,195
10% 10.4% 9,019 9,337
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-01.027' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,233
Calibration 2     90,193
Calibration 3     89,952
ssj_ops@calibrated=90,073
100% 100.2% 90,073 90,287
90% 91.3% 81,066 82,273
80% 80.0% 72,058 72,087
70% 70.3% 63,051 63,313
60% 60.4% 54,044 54,409
50% 50.8% 45,036 45,718
40% 39.9% 36,029 35,925
30% 29.2% 27,022 26,312
20% 20.9% 18,015 18,808
10% 10.0% 9,007 9,037
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-01.028' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,724
Calibration 2     87,860
Calibration 3     88,136
ssj_ops@calibrated=87,998
100% 99.8% 87,998 87,848
90% 90.1% 79,198 79,279
80% 79.9% 70,398 70,280
70% 70.0% 61,599 61,623
60% 60.5% 52,799 53,282
50% 50.4% 43,999 44,309
40% 40.0% 35,199 35,212
30% 30.0% 26,399 26,368
20% 20.7% 17,600 18,196
10% 10.3% 8,800 9,092
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-01.029' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,827
Calibration 2     90,195
Calibration 3     90,190
ssj_ops@calibrated=90,192
100% 100.1% 90,192 90,319
90% 90.2% 81,173 81,352
80% 79.7% 72,154 71,887
70% 69.7% 63,135 62,841
60% 59.9% 54,115 54,050
50% 49.4% 45,096 44,555
40% 40.0% 36,077 36,087
30% 30.8% 27,058 27,823
20% 20.1% 18,038 18,125
10% 10.0% 9,019 8,979
Active Idle   0 0

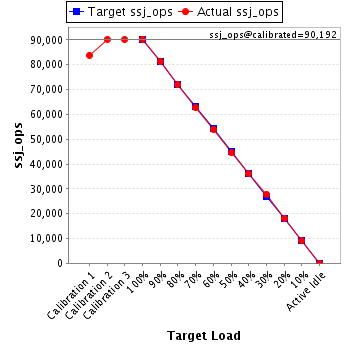

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-01.030' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,780
Calibration 2     90,831
Calibration 3     90,645
ssj_ops@calibrated=90,738
100% 99.8% 90,738 90,591
90% 92.1% 81,664 83,597
80% 79.6% 72,590 72,268
70% 70.3% 63,517 63,782
60% 60.4% 54,443 54,842
50% 51.0% 45,369 46,321
40% 40.6% 36,295 36,796
30% 30.2% 27,221 27,405
20% 20.0% 18,148 18,134
10% 10.0% 9,074 9,079
Active Idle   0 0

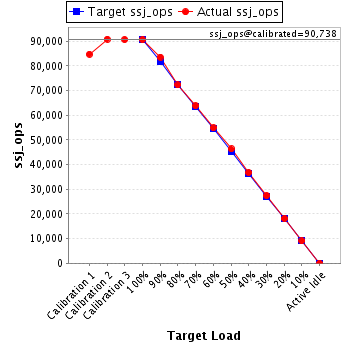

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-01.031' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,090
Calibration 2     90,532
Calibration 3     90,536
ssj_ops@calibrated=90,534
100% 100.4% 90,534 90,884
90% 90.3% 81,480 81,749
80% 80.2% 72,427 72,584
70% 69.3% 63,374 62,703
60% 60.2% 54,320 54,520
50% 49.1% 45,267 44,463
40% 40.3% 36,213 36,441
30% 29.1% 27,160 26,340
20% 20.1% 18,107 18,159
10% 10.0% 9,053 9,046
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-01.032' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,923
Calibration 2     90,550
Calibration 3     91,422
ssj_ops@calibrated=90,986
100% 100.6% 90,986 91,532
90% 91.3% 81,887 83,041
80% 78.8% 72,789 71,679
70% 70.5% 63,690 64,154
60% 60.3% 54,592 54,842
50% 50.1% 45,493 45,571
40% 40.3% 36,394 36,701
30% 29.4% 27,296 26,725
20% 19.8% 18,197 18,012
10% 9.9% 9,099 8,983
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-01.033' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,443
Calibration 2     89,370
Calibration 3     89,259
ssj_ops@calibrated=89,315
100% 99.8% 89,315 89,160
90% 90.9% 80,383 81,205
80% 80.4% 71,452 71,765
70% 68.8% 62,520 61,479
60% 59.2% 53,589 52,897
50% 49.7% 44,657 44,389
40% 39.7% 35,726 35,475
30% 29.7% 26,794 26,482
20% 19.7% 17,863 17,625
10% 9.6% 8,931 8,612
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

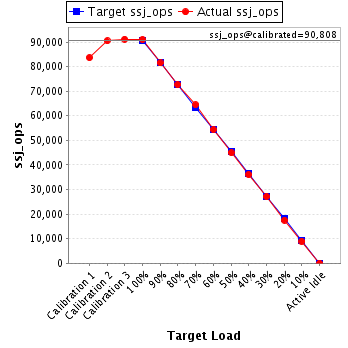

JVM 'FC630-01.034' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,612
Calibration 2     90,456
Calibration 3     91,159
ssj_ops@calibrated=90,808
100% 100.2% 90,808 90,984
90% 89.7% 81,727 81,483
80% 80.0% 72,646 72,611
70% 71.0% 63,565 64,453
60% 59.9% 54,485 54,355
50% 49.5% 45,404 44,963
40% 39.7% 36,323 36,062
30% 29.9% 27,242 27,156
20% 19.3% 18,162 17,564
10% 9.8% 9,081 8,883
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-01.035' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,832
Calibration 2     90,569
Calibration 3     90,608
ssj_ops@calibrated=90,589
100% 99.7% 90,589 90,361
90% 91.7% 81,530 83,028
80% 79.5% 72,471 72,015
70% 70.6% 63,412 63,932
60% 60.0% 54,353 54,332
50% 50.2% 45,294 45,511
40% 39.6% 36,236 35,879
30% 29.9% 27,177 27,078
20% 20.1% 18,118 18,245
10% 9.7% 9,059 8,817
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-01.036' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,677
Calibration 2     90,793
Calibration 3     91,070
ssj_ops@calibrated=90,932
100% 100.0% 90,932 90,914
90% 91.1% 81,838 82,863
80% 80.2% 72,745 72,957
70% 70.9% 63,652 64,471
60% 60.4% 54,559 54,897
50% 50.4% 45,466 45,865
40% 39.8% 36,373 36,219
30% 30.2% 27,279 27,496
20% 19.9% 18,186 18,061
10% 9.9% 9,093 9,004
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
