Dell Inc. PowerEdge C6320 (Intel Xeon E5-2699 v3 2.30 GHz) ssj_ops@100% = 3,228,395
ssj_ops@100% per JVM = 89,678
Test Sponsor: Dell Inc. SPEC License #: 55 Test Method: Multi Node
Tested By: Dell Inc. Test Location: Round Rock, TX, USA Test Date: Jun 3, 2015
Hardware Availability: Jun-2015 Software Availability: Jun-2013 Publication: Jul 28, 2015
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     3,015,106
Calibration 2     3,229,437
Calibration 3     3,228,945
ssj_ops@calibrated=3,229,191
100% 100.0% 3,229,191 3,228,395
90% 90.9% 2,906,272 2,936,318
80% 79.9% 2,583,353 2,581,311
70% 69.8% 2,260,434 2,253,008
60% 59.9% 1,937,515 1,933,376
50% 49.9% 1,614,596 1,612,641
40% 40.0% 1,291,676 1,290,870
30% 29.9% 968,757 964,414
20% 20.1% 645,838 647,991
10% 10.0% 322,919 323,026
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: Dell PE C6320
# of Identical Nodes: 4
Comment: N/A
Hardware
Hardware Vendor: Dell Inc.
Model: PowerEdge C6320 (Intel Xeon E5-2699 v3 2.30 GHz)
Form Factor: 2U
CPU Name: Intel Xeon E5-2699 v3 2.30 GHz
CPU Characteristics: 18 core, 2.30 GHz, 45 MB L3 Cache
CPU Frequency (MHz): 2300
CPU(s) Enabled: 36 cores, 2 chips, 18 cores/chip
Hardware Threads: 72 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 45 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 64
# and size of DIMM: 8 x 8196 MB
Memory Details: 8GB 2Rx8 PC4-2133P ECC; slots A1-4, B1-4 populated Dell P/N H8PGN
Power Supply Quantity and Rating (W): None
Power Supply Details: N/A
Disk Drive: 1 x 160GB SATA SSD Dell P/N PX9CC
Disk Controller: Integrated SATA Controller
# and type of Network Interface Cards (NICs) Installed: 1 x Dual-port 10GbE Intel 82559ES Integrated Ethernet Controller
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 10000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Microsoft Windows Server 2008 R2 Enterprise SP1
OS Version: Version 6.1.7601 Service Pack 1 Build 7601
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.6,JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120322_106209 (JIT enabled,AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xmn825m -Xms975m -Xmx975 -XlockReservation -Xnoloa -XtlhPrefetch -Xlp -Xconcurrentlevel0 -Xthr:minimizeusercpu -Xgcthreads2 -Xgcpolicy:gencon
JVM Affinity: /NODE [0,1,2,3] /AFFINITY[0x3,0xC,0x30,0xC0,0x300,0xC00,0x3000,0xC000,0x30000]
JVM Instances: 36
JVM Initial Heap (MB): 975
JVM Maximum Heap (MB): 975
JVM Address Bits: 64
Boot Firmware Version: 1.0.1
Management Firmware Version: iDRAC 2.05.05.05
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: IBM WebSphere Application Server V8.5.0.0, Microsoft Hotfix for Windows (KB2510206)
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
FC630-04.001 90,158
FC630-04.002 90,269
FC630-04.003 90,629
FC630-04.004 91,392
FC630-04.005 85,531
FC630-04.006 90,013
FC630-04.007 89,707
FC630-04.008 89,769
FC630-04.009 91,362
FC630-04.010 88,019
FC630-04.011 88,820
FC630-04.012 90,003
FC630-04.013 90,660
FC630-04.014 85,082
FC630-04.015 91,555
FC630-04.016 90,138
FC630-04.017 90,042
FC630-04.018 91,814
FC630-04.019 88,387
FC630-04.020 88,548
FC630-04.021 89,582
FC630-04.022 89,222
FC630-04.023 89,320
FC630-04.024 88,740
FC630-04.025 90,366
FC630-04.026 90,167
FC630-04.027 90,467
FC630-04.028 88,563
FC630-04.029 89,596
FC630-04.030 89,129
FC630-04.031 89,699
FC630-04.032 90,989
FC630-04.033 88,958
FC630-04.034 90,179
FC630-04.035 91,139
FC630-04.036 90,379
ssj_ops@100% 3,228,395
ssj_ops@100% per JVM 89,678
Graph of per-instance results
JVM 'FC630-04.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,113
Calibration 2     89,566
Calibration 3     89,775
ssj_ops@calibrated=89,671
100% 100.5% 89,671 90,158
90% 90.8% 80,704 81,441
80% 80.6% 71,736 72,231
70% 70.1% 62,769 62,842
60% 59.4% 53,802 53,235
50% 50.5% 44,835 45,309
40% 39.3% 35,868 35,240
30% 29.8% 26,901 26,737
20% 19.8% 17,934 17,750
10% 9.6% 8,967 8,629
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-04.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,836
Calibration 2     91,034
Calibration 3     91,125
ssj_ops@calibrated=91,079
100% 99.1% 91,079 90,269
90% 92.3% 81,971 84,048
80% 79.8% 72,863 72,720
70% 70.3% 63,756 64,026
60% 60.0% 54,648 54,658
50% 50.7% 45,540 46,147
40% 39.8% 36,432 36,256
30% 29.8% 27,324 27,106
20% 19.6% 18,216 17,866
10% 10.2% 9,108 9,266
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-04.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,614
Calibration 2     91,110
Calibration 3     90,866
ssj_ops@calibrated=90,988
100% 99.6% 90,988 90,629
90% 90.5% 81,890 82,334
80% 79.4% 72,791 72,237
70% 70.0% 63,692 63,672
60% 60.1% 54,593 54,656
50% 49.6% 45,494 45,121
40% 40.1% 36,395 36,503
30% 30.5% 27,297 27,742
20% 20.5% 18,198 18,608
10% 10.1% 9,099 9,159
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-04.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,938
Calibration 2     91,711
Calibration 3     91,384
ssj_ops@calibrated=91,548
100% 99.8% 91,548 91,392
90% 91.7% 82,393 83,928
80% 79.7% 73,238 73,001
70% 69.8% 64,083 63,942
60% 59.7% 54,929 54,689
50% 50.1% 45,774 45,833
40% 40.0% 36,619 36,664
30% 29.8% 27,464 27,316
20% 19.6% 18,310 17,903
10% 10.2% 9,155 9,312
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-04.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     78,963
Calibration 2     85,159
Calibration 3     85,196
ssj_ops@calibrated=85,177
100% 100.4% 85,177 85,531
90% 90.5% 76,660 77,096
80% 79.2% 68,142 67,488
70% 70.7% 59,624 60,181
60% 59.6% 51,106 50,723
50% 49.5% 42,589 42,125
40% 40.7% 34,071 34,645
30% 30.2% 25,553 25,730
20% 20.5% 17,035 17,462
10% 10.3% 8,518 8,796
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

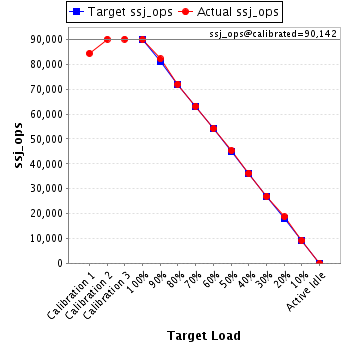

JVM 'FC630-04.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,426
Calibration 2     90,126
Calibration 3     90,158
ssj_ops@calibrated=90,142
100% 99.9% 90,142 90,013
90% 91.2% 81,128 82,231
80% 80.0% 72,114 72,080
70% 70.1% 63,100 63,213
60% 60.1% 54,085 54,167
50% 50.3% 45,071 45,373
40% 40.2% 36,057 36,237
30% 29.9% 27,043 26,965
20% 20.7% 18,028 18,703
10% 10.2% 9,014 9,158
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

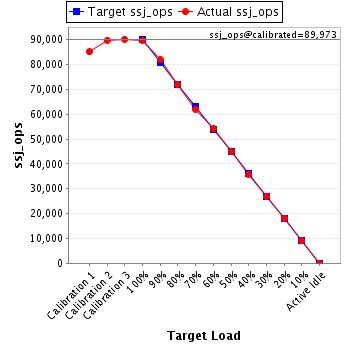

JVM 'FC630-04.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,082
Calibration 2     89,758
Calibration 3     90,189
ssj_ops@calibrated=89,973
100% 99.7% 89,973 89,707
90% 91.1% 80,976 81,934
80% 79.9% 71,979 71,849
70% 68.9% 62,981 62,026
60% 60.2% 53,984 54,185
50% 50.1% 44,987 45,051
40% 39.9% 35,989 35,923
30% 29.9% 26,992 26,889
20% 20.1% 17,995 18,119
10% 10.0% 8,997 9,029
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-04.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,681
Calibration 2     89,468
Calibration 3     89,443
ssj_ops@calibrated=89,456
100% 100.3% 89,456 89,769
90% 90.6% 80,510 81,033
80% 79.8% 71,565 71,413
70% 70.1% 62,619 62,674
60% 59.8% 53,673 53,533
50% 50.0% 44,728 44,686
40% 41.0% 35,782 36,695
30% 30.1% 26,837 26,909
20% 20.4% 17,891 18,292
10% 10.1% 8,946 9,017
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-04.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,976
Calibration 2     91,795
Calibration 3     91,846
ssj_ops@calibrated=91,820
100% 99.5% 91,820 91,362
90% 91.1% 82,638 83,672
80% 80.8% 73,456 74,168
70% 70.5% 64,274 64,764
60% 60.1% 55,092 55,167
50% 49.8% 45,910 45,731
40% 40.2% 36,728 36,931
30% 29.6% 27,546 27,166
20% 20.2% 18,364 18,563
10% 10.2% 9,182 9,337
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-04.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,299
Calibration 2     88,963
Calibration 3     88,627
ssj_ops@calibrated=88,795
100% 99.1% 88,795 88,019
90% 90.0% 79,916 79,897
80% 79.7% 71,036 70,795
70% 70.0% 62,157 62,129
60% 60.0% 53,277 53,247
50% 50.8% 44,398 45,097
40% 39.4% 35,518 35,005
30% 30.0% 26,639 26,600
20% 20.3% 17,759 18,033
10% 9.9% 8,880 8,798
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-04.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,085
Calibration 2     89,237
Calibration 3     88,952
ssj_ops@calibrated=89,095
100% 99.7% 89,095 88,820
90% 90.9% 80,185 81,012
80% 80.0% 71,276 71,302
70% 70.2% 62,366 62,539
60% 59.8% 53,457 53,291
50% 50.2% 44,547 44,716
40% 40.1% 35,638 35,764
30% 30.2% 26,728 26,892
20% 20.5% 17,819 18,227
10% 9.9% 8,909 8,808
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-04.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,565
Calibration 2     90,012
Calibration 3     89,983
ssj_ops@calibrated=89,998
100% 100.0% 89,998 90,003
90% 91.1% 80,998 81,958
80% 80.0% 71,998 71,962
70% 69.7% 62,998 62,752
60% 58.7% 53,999 52,823
50% 49.5% 44,999 44,569
40% 40.3% 35,999 36,263
30% 30.1% 26,999 27,058
20% 20.0% 18,000 17,956
10% 9.7% 9,000 8,753
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-04.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,804
Calibration 2     90,711
Calibration 3     90,899
ssj_ops@calibrated=90,805
100% 99.8% 90,805 90,660
90% 90.9% 81,725 82,572
80% 80.4% 72,644 73,019
70% 69.6% 63,564 63,193
60% 59.9% 54,483 54,401
50% 50.1% 45,403 45,486
40% 39.9% 36,322 36,264
30% 29.1% 27,242 26,446
20% 20.5% 18,161 18,627
10% 10.0% 9,081 9,046
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-04.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     80,426
Calibration 2     85,795
Calibration 3     85,133
ssj_ops@calibrated=85,464
100% 99.6% 85,464 85,082
90% 90.2% 76,917 77,082
80% 79.6% 68,371 68,036
70% 68.9% 59,825 58,883
60% 60.7% 51,278 51,840
50% 50.1% 42,732 42,787
40% 39.7% 34,186 33,942
30% 30.2% 25,639 25,792
20% 20.1% 17,093 17,216
10% 10.0% 8,546 8,512
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-04.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,401
Calibration 2     91,045
Calibration 3     91,065
ssj_ops@calibrated=91,055
100% 100.5% 91,055 91,555
90% 90.5% 81,949 82,369
80% 79.2% 72,844 72,101
70% 70.1% 63,738 63,799
60% 60.1% 54,633 54,759
50% 50.0% 45,527 45,557
40% 40.0% 36,422 36,462
30% 30.0% 27,316 27,350
20% 20.1% 18,211 18,328
10% 10.0% 9,105 9,079
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-04.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,953
Calibration 2     89,279
Calibration 3     89,970
ssj_ops@calibrated=89,625
100% 100.6% 89,625 90,138
90% 91.6% 80,662 82,124
80% 80.0% 71,700 71,739
70% 70.2% 62,737 62,958
60% 60.5% 53,775 54,181
50% 50.2% 44,812 44,964
40% 39.6% 35,850 35,499
30% 29.6% 26,887 26,553
20% 19.5% 17,925 17,475
10% 9.9% 8,962 8,829
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-04.017' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,218
Calibration 2     89,679
Calibration 3     90,334
ssj_ops@calibrated=90,007
100% 100.0% 90,007 90,042
90% 91.6% 81,006 82,445
80% 79.2% 72,005 71,304
70% 70.1% 63,005 63,106
60% 59.8% 54,004 53,788
50% 49.2% 45,003 44,264
40% 39.8% 36,003 35,813
30% 29.8% 27,002 26,794
20% 19.7% 18,001 17,724
10% 9.7% 9,001 8,728
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-04.018' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,729
Calibration 2     91,265
Calibration 3     91,278
ssj_ops@calibrated=91,271
100% 100.6% 91,271 91,814
90% 90.0% 82,144 82,128
80% 79.5% 73,017 72,549
70% 70.7% 63,890 64,520
60% 59.3% 54,763 54,099
50% 49.4% 45,636 45,092
40% 40.5% 36,509 36,980
30% 29.7% 27,381 27,076
20% 20.0% 18,254 18,228
10% 10.1% 9,127 9,199
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-04.019' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,634
Calibration 2     88,929
Calibration 3     89,357
ssj_ops@calibrated=89,143
100% 99.2% 89,143 88,387
90% 89.5% 80,229 79,812
80% 80.4% 71,314 71,664
70% 69.5% 62,400 61,996
60% 60.4% 53,486 53,814
50% 48.9% 44,572 43,610
40% 39.2% 35,657 34,912
30% 29.8% 26,743 26,561
20% 19.9% 17,829 17,746
10% 10.1% 8,914 8,987
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-04.020' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,164
Calibration 2     88,955
Calibration 3     88,140
ssj_ops@calibrated=88,547
100% 100.0% 88,547 88,548
90% 91.1% 79,692 80,696
80% 79.1% 70,838 70,025
70% 70.0% 61,983 61,981
60% 59.8% 53,128 52,919
50% 49.8% 44,274 44,072
40% 40.2% 35,419 35,597
30% 29.9% 26,564 26,500
20% 19.9% 17,709 17,637
10% 10.2% 8,855 9,054
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-04.021' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,089
Calibration 2     89,673
Calibration 3     89,330
ssj_ops@calibrated=89,501
100% 100.1% 89,501 89,582
90% 91.7% 80,551 82,093
80% 79.1% 71,601 70,768
70% 69.7% 62,651 62,420
60% 60.0% 53,701 53,727
50% 49.4% 44,751 44,189
40% 39.4% 35,801 35,299
30% 29.8% 26,850 26,692
20% 19.9% 17,900 17,767
10% 9.9% 8,950 8,866
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-04.022' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,339
Calibration 2     88,616
Calibration 3     88,464
ssj_ops@calibrated=88,540
100% 100.8% 88,540 89,222
90% 92.4% 79,686 81,831
80% 79.8% 70,832 70,661
70% 71.0% 61,978 62,876
60% 58.6% 53,124 51,860
50% 49.7% 44,270 44,044
40% 40.7% 35,416 36,013
30% 29.1% 26,562 25,729
20% 20.0% 17,708 17,687
10% 10.0% 8,854 8,821
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-04.023' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,207
Calibration 2     88,845
Calibration 3     89,078
ssj_ops@calibrated=88,961
100% 100.4% 88,961 89,320
90% 91.3% 80,065 81,244
80% 79.7% 71,169 70,911
70% 68.9% 62,273 61,279
60% 59.7% 53,377 53,129
50% 49.4% 44,481 43,988
40% 39.7% 35,584 35,333
30% 30.4% 26,688 27,018
20% 20.2% 17,792 17,984
10% 10.1% 8,896 9,020
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-04.024' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,915
Calibration 2     88,643
Calibration 3     88,155
ssj_ops@calibrated=88,399
100% 100.4% 88,399 88,740
90% 90.7% 79,559 80,178
80% 80.5% 70,719 71,203
70% 68.9% 61,879 60,900
60% 60.0% 53,039 53,063
50% 49.2% 44,200 43,535
40% 39.8% 35,360 35,160
30% 29.9% 26,520 26,416
20% 20.0% 17,680 17,640
10% 9.8% 8,840 8,674
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-04.025' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,446
Calibration 2     90,249
Calibration 3     89,984
ssj_ops@calibrated=90,116
100% 100.3% 90,116 90,366
90% 91.1% 81,105 82,109
80% 81.3% 72,093 73,233
70% 70.6% 63,082 63,615
60% 59.8% 54,070 53,874
50% 49.6% 45,058 44,700
40% 39.6% 36,047 35,648
30% 29.6% 27,035 26,712
20% 20.3% 18,023 18,253
10% 9.8% 9,012 8,874
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-04.026' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,741
Calibration 2     90,160
Calibration 3     90,057
ssj_ops@calibrated=90,109
100% 100.1% 90,109 90,167
90% 91.1% 81,098 82,124
80% 79.6% 72,087 71,738
70% 69.5% 63,076 62,591
60% 59.3% 54,065 53,459
50% 50.4% 45,054 45,380
40% 40.1% 36,043 36,146
30% 30.1% 27,033 27,121
20% 19.7% 18,022 17,739
10% 10.2% 9,011 9,154
Active Idle   0 0

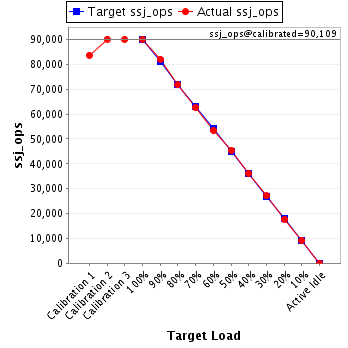

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-04.027' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,195
Calibration 2     90,438
Calibration 3     90,392
ssj_ops@calibrated=90,415
100% 100.1% 90,415 90,467
90% 91.0% 81,373 82,308
80% 79.9% 72,332 72,221
70% 69.4% 63,290 62,741
60% 60.3% 54,249 54,520
50% 50.2% 45,207 45,387
40% 39.7% 36,166 35,931
30% 29.9% 27,124 27,073
20% 20.0% 18,083 18,079
10% 10.1% 9,041 9,100
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-04.028' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,244
Calibration 2     88,762
Calibration 3     88,880
ssj_ops@calibrated=88,821
100% 99.7% 88,821 88,563
90% 91.6% 79,939 81,334
80% 80.2% 71,057 71,275
70% 69.7% 62,175 61,942
60% 59.9% 53,293 53,179
50% 50.5% 44,411 44,893
40% 40.0% 35,529 35,567
30% 29.8% 26,646 26,511
20% 20.2% 17,764 17,949
10% 9.8% 8,882 8,692
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-04.029' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,717
Calibration 2     90,049
Calibration 3     89,573
ssj_ops@calibrated=89,811
100% 99.8% 89,811 89,596
90% 89.3% 80,830 80,178
80% 79.2% 71,849 71,086
70% 69.3% 62,868 62,232
60% 60.2% 53,886 54,104
50% 50.0% 44,905 44,906
40% 39.9% 35,924 35,855
30% 29.7% 26,943 26,669
20% 19.7% 17,962 17,654
10% 9.7% 8,981 8,721
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-04.030' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,662
Calibration 2     89,788
Calibration 3     89,246
ssj_ops@calibrated=89,517
100% 99.6% 89,517 89,129
90% 91.3% 80,565 81,730
80% 79.7% 71,614 71,304
70% 69.8% 62,662 62,486
60% 59.4% 53,710 53,216
50% 49.9% 44,759 44,664
40% 40.2% 35,807 35,954
30% 29.5% 26,855 26,420
20% 20.3% 17,903 18,195
10% 10.0% 8,952 8,937
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-04.031' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,593
Calibration 2     89,483
Calibration 3     89,539
ssj_ops@calibrated=89,511
100% 100.2% 89,511 89,699
90% 91.0% 80,560 81,419
80% 80.6% 71,609 72,175
70% 70.2% 62,658 62,852
60% 60.0% 53,707 53,715
50% 51.1% 44,756 45,743
40% 39.8% 35,804 35,662
30% 29.9% 26,853 26,754
20% 20.0% 17,902 17,867
10% 10.1% 8,951 9,033
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-04.032' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,930
Calibration 2     90,924
Calibration 3     91,385
ssj_ops@calibrated=91,154
100% 99.8% 91,154 90,989
90% 89.6% 82,039 81,665
80% 80.7% 72,924 73,563
70% 68.5% 63,808 62,457
60% 59.7% 54,693 54,389
50% 49.8% 45,577 45,350
40% 39.6% 36,462 36,072
30% 30.0% 27,346 27,354
20% 19.7% 18,231 17,961
10% 10.0% 9,115 9,100
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-04.033' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,392
Calibration 2     89,386
Calibration 3     89,108
ssj_ops@calibrated=89,247
100% 99.7% 89,247 88,958
90% 91.0% 80,322 81,248
80% 79.7% 71,398 71,149
70% 68.7% 62,473 61,310
60% 60.1% 53,548 53,602
50% 50.3% 44,624 44,925
40% 39.9% 35,699 35,602
30% 29.6% 26,774 26,450
20% 20.1% 17,849 17,900
10% 9.5% 8,925 8,520
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-04.034' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,462
Calibration 2     89,946
Calibration 3     90,415
ssj_ops@calibrated=90,180
100% 100.0% 90,180 90,179
90% 90.4% 81,162 81,497
80% 79.7% 72,144 71,864
70% 68.9% 63,126 62,140
60% 60.2% 54,108 54,246
50% 50.3% 45,090 45,357
40% 39.8% 36,072 35,912
30% 30.1% 27,054 27,104
20% 20.4% 18,036 18,412
10% 10.4% 9,018 9,371
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-04.035' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,964
Calibration 2     90,313
Calibration 3     90,776
ssj_ops@calibrated=90,544
100% 100.7% 90,544 91,139
90% 92.7% 81,490 83,947
80% 81.1% 72,436 73,463
70% 69.6% 63,381 63,062
60% 60.4% 54,327 54,656
50% 49.8% 45,272 45,125
40% 40.5% 36,218 36,643
30% 29.8% 27,163 27,000
20% 20.4% 18,109 18,475
10% 10.3% 9,054 9,354
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-04.036' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,304
Calibration 2     90,567
Calibration 3     90,840
ssj_ops@calibrated=90,703
100% 99.6% 90,703 90,379
90% 90.0% 81,633 81,601
80% 80.5% 72,563 73,015
70% 69.4% 63,492 62,910
60% 60.0% 54,422 54,459
50% 49.5% 45,352 44,865
40% 40.2% 36,281 36,479
30% 30.0% 27,211 27,208
20% 19.8% 18,141 17,965
10% 10.2% 9,070 9,291
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
