Dell Inc. PowerEdge C6320 (Intel Xeon E5-2699 v3 2.30 GHz) ssj_ops@100% = 3,238,165
ssj_ops@100% per JVM = 89,949
Test Sponsor: Dell Inc. SPEC License #: 55 Test Method: Multi Node
Tested By: Dell Inc. Test Location: Round Rock, TX, USA Test Date: Jun 3, 2015
Hardware Availability: Jun-2015 Software Availability: Jun-2013 Publication: Jul 28, 2015
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     3,023,139
Calibration 2     3,234,060
Calibration 3     3,236,456
ssj_ops@calibrated=3,235,258
100% 100.1% 3,235,258 3,238,165
90% 91.2% 2,911,732 2,952,007
80% 80.0% 2,588,206 2,587,122
70% 69.8% 2,264,681 2,258,458
60% 60.0% 1,941,155 1,940,095
50% 49.9% 1,617,629 1,615,681
40% 39.9% 1,294,103 1,290,530
30% 29.9% 970,577 968,379
20% 19.9% 647,052 644,839
10% 10.0% 323,526 324,197
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: Dell PE C6320
# of Identical Nodes: 4
Comment: N/A
Hardware
Hardware Vendor: Dell Inc.
Model: PowerEdge C6320 (Intel Xeon E5-2699 v3 2.30 GHz)
Form Factor: 2U
CPU Name: Intel Xeon E5-2699 v3 2.30 GHz
CPU Characteristics: 18 core, 2.30 GHz, 45 MB L3 Cache
CPU Frequency (MHz): 2300
CPU(s) Enabled: 36 cores, 2 chips, 18 cores/chip
Hardware Threads: 72 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 45 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 64
# and size of DIMM: 8 x 8196 MB
Memory Details: 8GB 2Rx8 PC4-2133P ECC; slots A1-4, B1-4 populated Dell P/N H8PGN
Power Supply Quantity and Rating (W): None
Power Supply Details: N/A
Disk Drive: 1 x 160GB SATA SSD Dell P/N PX9CC
Disk Controller: Integrated SATA Controller
# and type of Network Interface Cards (NICs) Installed: 1 x Dual-port 10GbE Intel 82559ES Integrated Ethernet Controller
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 10000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Microsoft Windows Server 2008 R2 Enterprise SP1
OS Version: Version 6.1.7601 Service Pack 1 Build 7601
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.6,JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120322_106209 (JIT enabled,AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xmn825m -Xms975m -Xmx975 -XlockReservation -Xnoloa -XtlhPrefetch -Xlp -Xconcurrentlevel0 -Xthr:minimizeusercpu -Xgcthreads2 -Xgcpolicy:gencon
JVM Affinity: /NODE [0,1,2,3] /AFFINITY[0x3,0xC,0x30,0xC0,0x300,0xC00,0x3000,0xC000,0x30000]
JVM Instances: 36
JVM Initial Heap (MB): 975
JVM Maximum Heap (MB): 975
JVM Address Bits: 64
Boot Firmware Version: 1.0.1
Management Firmware Version: iDRAC 2.05.05.05
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: IBM WebSphere Application Server V8.5.0.0, Microsoft Hotfix for Windows (KB2510206)
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
FC630-02.001 90,796
FC630-02.002 89,585
FC630-02.003 89,801
FC630-02.004 89,739
FC630-02.005 85,701
FC630-02.006 91,194
FC630-02.007 89,607
FC630-02.008 89,687
FC630-02.009 92,644
FC630-02.010 89,741
FC630-02.011 88,712
FC630-02.012 91,191
FC630-02.013 90,677
FC630-02.014 86,304
FC630-02.015 90,784
FC630-02.016 89,756
FC630-02.017 90,599
FC630-02.018 90,608
FC630-02.019 89,578
FC630-02.020 90,118
FC630-02.021 89,705
FC630-02.022 89,858
FC630-02.023 90,362
FC630-02.024 88,384
FC630-02.025 90,272
FC630-02.026 90,840
FC630-02.027 91,010
FC630-02.028 87,890
FC630-02.029 88,328
FC630-02.030 90,776
FC630-02.031 92,381
FC630-02.032 91,379
FC630-02.033 89,396
FC630-02.034 90,801
FC630-02.035 90,254
FC630-02.036 89,714
ssj_ops@100% 3,238,165
ssj_ops@100% per JVM 89,949
Graph of per-instance results
JVM 'FC630-02.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,180
Calibration 2     90,200
Calibration 3     90,211
ssj_ops@calibrated=90,205
100% 100.7% 90,205 90,796
90% 92.2% 81,185 83,188
80% 80.4% 72,164 72,559
70% 69.6% 63,144 62,766
60% 59.8% 54,123 53,904
50% 49.2% 45,103 44,394
40% 40.1% 36,082 36,200
30% 29.6% 27,062 26,706
20% 19.7% 18,041 17,773
10% 9.6% 9,021 8,642
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-02.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,086
Calibration 2     89,525
Calibration 3     89,606
ssj_ops@calibrated=89,566
100% 100.0% 89,566 89,585
90% 89.6% 80,609 80,214
80% 80.0% 71,652 71,616
70% 70.4% 62,696 63,079
60% 60.3% 53,739 54,023
50% 49.7% 44,783 44,550
40% 39.9% 35,826 35,746
30% 29.6% 26,870 26,521
20% 20.1% 17,913 18,018
10% 9.9% 8,957 8,854
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-02.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,906
Calibration 2     89,904
Calibration 3     90,433
ssj_ops@calibrated=90,169
100% 99.6% 90,169 89,801
90% 91.9% 81,152 82,898
80% 79.8% 72,135 71,976
70% 70.4% 63,118 63,450
60% 59.3% 54,101 53,506
50% 50.2% 45,084 45,260
40% 40.0% 36,067 36,093
30% 29.4% 27,051 26,524
20% 20.6% 18,034 18,615
10% 10.0% 9,017 9,050
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-02.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,764
Calibration 2     89,143
Calibration 3     89,016
ssj_ops@calibrated=89,080
100% 100.7% 89,080 89,739
90% 90.9% 80,172 80,938
80% 80.1% 71,264 71,342
70% 68.6% 62,356 61,140
60% 60.7% 53,448 54,071
50% 49.8% 44,540 44,384
40% 39.9% 35,632 35,523
30% 30.5% 26,724 27,206
20% 20.0% 17,816 17,790
10% 9.9% 8,908 8,816
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-02.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     79,491
Calibration 2     85,919
Calibration 3     86,079
ssj_ops@calibrated=85,999
100% 99.7% 85,999 85,701
90% 91.3% 77,399 78,533
80% 78.8% 68,799 67,769
70% 69.2% 60,199 59,492
60% 60.4% 51,599 51,955
50% 50.2% 42,999 43,191
40% 39.5% 34,400 33,983
30% 29.9% 25,800 25,748
20% 19.7% 17,200 16,943
10% 10.0% 8,600 8,604
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-02.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,134
Calibration 2     90,815
Calibration 3     90,855
ssj_ops@calibrated=90,835
100% 100.4% 90,835 91,194
90% 91.6% 81,751 83,245
80% 81.2% 72,668 73,737
70% 69.4% 63,584 63,070
60% 59.3% 54,501 53,860
50% 50.8% 45,417 46,156
40% 40.5% 36,334 36,750
30% 30.3% 27,250 27,504
20% 19.9% 18,167 18,111
10% 10.3% 9,083 9,323
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-02.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,331
Calibration 2     89,457
Calibration 3     89,647
ssj_ops@calibrated=89,552
100% 100.1% 89,552 89,607
90% 89.9% 80,597 80,537
80% 79.9% 71,642 71,571
70% 69.0% 62,686 61,806
60% 60.2% 53,731 53,953
50% 49.2% 44,776 44,096
40% 39.4% 35,821 35,273
30% 30.6% 26,866 27,425
20% 20.2% 17,910 18,106
10% 10.3% 8,955 9,225
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

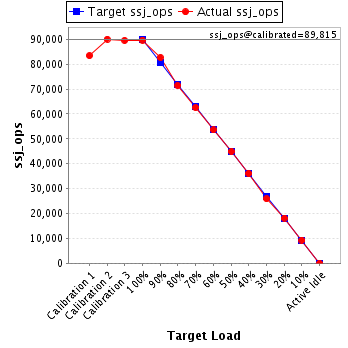

JVM 'FC630-02.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,383
Calibration 2     90,046
Calibration 3     89,585
ssj_ops@calibrated=89,815
100% 99.9% 89,815 89,687
90% 92.1% 80,834 82,685
80% 79.5% 71,852 71,447
70% 69.6% 62,871 62,538
60% 59.6% 53,889 53,553
50% 50.0% 44,908 44,914
40% 40.1% 35,926 36,059
30% 28.8% 26,945 25,866
20% 20.2% 17,963 18,185
10% 10.4% 8,982 9,317
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-02.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,533
Calibration 2     91,846
Calibration 3     92,121
ssj_ops@calibrated=91,983
100% 100.7% 91,983 92,644
90% 92.3% 82,785 84,873
80% 80.6% 73,587 74,123
70% 69.3% 64,388 63,759
60% 60.2% 55,190 55,405
50% 50.2% 45,992 46,202
40% 38.8% 36,793 35,718
30% 31.0% 27,595 28,518
20% 20.2% 18,397 18,601
10% 10.3% 9,198 9,467
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-02.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,979
Calibration 2     89,585
Calibration 3     89,644
ssj_ops@calibrated=89,614
100% 100.1% 89,614 89,741
90% 91.6% 80,653 82,097
80% 79.9% 71,691 71,585
70% 70.5% 62,730 63,139
60% 59.8% 53,769 53,546
50% 50.8% 44,807 45,520
40% 39.2% 35,846 35,117
30% 30.3% 26,884 27,144
20% 20.2% 17,923 18,069
10% 9.7% 8,961 8,729
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-02.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,403
Calibration 2     88,967
Calibration 3     89,013
ssj_ops@calibrated=88,990
100% 99.7% 88,990 88,712
90% 90.4% 80,091 80,483
80% 79.6% 71,192 70,871
70% 69.8% 62,293 62,152
60% 60.0% 53,394 53,397
50% 49.2% 44,495 43,814
40% 39.7% 35,596 35,337
30% 29.2% 26,697 26,021
20% 20.0% 17,798 17,812
10% 10.1% 8,899 8,996
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-02.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,042
Calibration 2     90,816
Calibration 3     91,247
ssj_ops@calibrated=91,031
100% 100.2% 91,031 91,191
90% 91.4% 81,928 83,188
80% 80.6% 72,825 73,353
70% 69.2% 63,722 62,954
60% 60.2% 54,619 54,835
50% 50.2% 45,516 45,687
40% 40.2% 36,413 36,553
30% 30.0% 27,309 27,348
20% 19.7% 18,206 17,898
10% 10.1% 9,103 9,153
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

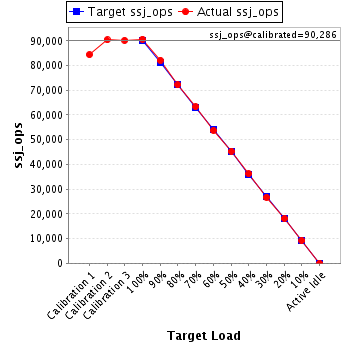

JVM 'FC630-02.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,376
Calibration 2     90,369
Calibration 3     90,202
ssj_ops@calibrated=90,286
100% 100.4% 90,286 90,677
90% 91.0% 81,257 82,170
80% 79.9% 72,228 72,181
70% 70.1% 63,200 63,314
60% 59.6% 54,171 53,786
50% 50.2% 45,143 45,311
40% 40.0% 36,114 36,158
30% 29.6% 27,086 26,726
20% 20.1% 18,057 18,116
10% 10.2% 9,029 9,187
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

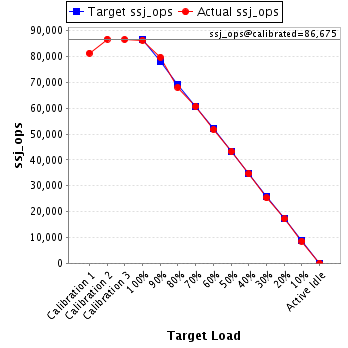

JVM 'FC630-02.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,327
Calibration 2     86,735
Calibration 3     86,615
ssj_ops@calibrated=86,675
100% 99.6% 86,675 86,304
90% 92.0% 78,008 79,715
80% 78.5% 69,340 68,064
70% 70.1% 60,673 60,760
60% 59.7% 52,005 51,773
50% 49.9% 43,338 43,242
40% 39.9% 34,670 34,617
30% 29.2% 26,003 25,325
20% 19.8% 17,335 17,137
10% 9.9% 8,668 8,571
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-02.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,333
Calibration 2     90,641
Calibration 3     90,673
ssj_ops@calibrated=90,657
100% 100.1% 90,657 90,784
90% 90.1% 81,591 81,669
80% 79.7% 72,526 72,247
70% 69.9% 63,460 63,358
60% 59.9% 54,394 54,327
50% 49.6% 45,329 44,952
40% 39.9% 36,263 36,203
30% 29.9% 27,197 27,136
20% 19.9% 18,131 18,040
10% 10.1% 9,066 9,112
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-02.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,081
Calibration 2     89,974
Calibration 3     90,121
ssj_ops@calibrated=90,047
100% 99.7% 90,047 89,756
90% 91.8% 81,043 82,640
80% 79.4% 72,038 71,513
70% 69.0% 63,033 62,097
60% 59.7% 54,028 53,758
50% 49.6% 45,024 44,697
40% 39.7% 36,019 35,717
30% 29.4% 27,014 26,449
20% 20.0% 18,009 17,983
10% 10.2% 9,005 9,158
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-02.017' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,484
Calibration 2     90,796
Calibration 3     91,079
ssj_ops@calibrated=90,937
100% 99.6% 90,937 90,599
90% 91.3% 81,844 83,017
80% 80.0% 72,750 72,715
70% 69.8% 63,656 63,497
60% 60.0% 54,562 54,605
50% 50.5% 45,469 45,931
40% 40.5% 36,375 36,788
30% 30.8% 27,281 27,996
20% 20.0% 18,187 18,190
10% 10.0% 9,094 9,071
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-02.018' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,174
Calibration 2     90,429
Calibration 3     90,732
ssj_ops@calibrated=90,581
100% 100.0% 90,581 90,608
90% 91.7% 81,523 83,047
80% 79.6% 72,464 72,067
70% 69.8% 63,406 63,206
60% 59.5% 54,348 53,919
50% 49.8% 45,290 45,130
40% 39.4% 36,232 35,679
30% 30.8% 27,174 27,854
20% 20.2% 18,116 18,332
10% 9.9% 9,058 8,991
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-02.019' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,595
Calibration 2     89,126
Calibration 3     88,963
ssj_ops@calibrated=89,044
100% 100.6% 89,044 89,578
90% 90.8% 80,140 80,896
80% 79.9% 71,236 71,154
70% 68.5% 62,331 60,971
60% 60.5% 53,427 53,910
50% 49.7% 44,522 44,295
40% 41.1% 35,618 36,634
30% 30.0% 26,713 26,690
20% 19.9% 17,809 17,679
10% 9.5% 8,904 8,446
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-02.020' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,422
Calibration 2     88,992
Calibration 3     89,469
ssj_ops@calibrated=89,231
100% 101.0% 89,231 90,118
90% 92.1% 80,307 82,186
80% 79.7% 71,384 71,094
70% 69.8% 62,461 62,295
60% 60.5% 53,538 53,966
50% 49.6% 44,615 44,249
40% 40.1% 35,692 35,826
30% 29.8% 26,769 26,582
20% 19.2% 17,846 17,145
10% 10.0% 8,923 8,912
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-02.021' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,826
Calibration 2     89,808
Calibration 3     89,715
ssj_ops@calibrated=89,761
100% 99.9% 89,761 89,705
90% 91.5% 80,785 82,175
80% 79.9% 71,809 71,705
70% 69.9% 62,833 62,743
60% 59.3% 53,857 53,273
50% 49.6% 44,881 44,521
40% 39.2% 35,905 35,168
30% 29.9% 26,928 26,870
20% 20.0% 17,952 17,917
10% 10.1% 8,976 9,091
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-02.022' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,306
Calibration 2     89,730
Calibration 3     89,783
ssj_ops@calibrated=89,756
100% 100.1% 89,756 89,858
90% 90.6% 80,781 81,321
80% 80.7% 71,805 72,403
70% 70.8% 62,829 63,513
60% 60.1% 53,854 53,911
50% 50.8% 44,878 45,623
40% 40.4% 35,903 36,229
30% 29.5% 26,927 26,487
20% 19.7% 17,951 17,660
10% 9.6% 8,976 8,599
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-02.023' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,791
Calibration 2     90,064
Calibration 3     90,444
ssj_ops@calibrated=90,254
100% 100.1% 90,254 90,362
90% 90.7% 81,228 81,891
80% 79.6% 72,203 71,806
70% 70.0% 63,178 63,168
60% 59.7% 54,152 53,864
50% 49.6% 45,127 44,782
40% 39.9% 36,102 36,015
30% 29.9% 27,076 27,014
20% 20.3% 18,051 18,351
10% 10.2% 9,025 9,225
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-02.024' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,720
Calibration 2     88,749
Calibration 3     88,470
ssj_ops@calibrated=88,609
100% 99.7% 88,609 88,384
90% 90.1% 79,748 79,838
80% 79.8% 70,888 70,733
70% 70.6% 62,027 62,585
60% 60.8% 53,166 53,882
50% 50.4% 44,305 44,633
40% 40.6% 35,444 35,971
30% 30.1% 26,583 26,662
20% 19.2% 17,722 17,046
10% 10.1% 8,861 8,965
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-02.025' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,049
Calibration 2     90,523
Calibration 3     90,374
ssj_ops@calibrated=90,449
100% 99.8% 90,449 90,272
90% 92.6% 81,404 83,766
80% 79.6% 72,359 72,021
70% 70.4% 63,314 63,656
60% 59.8% 54,269 54,066
50% 49.5% 45,224 44,759
40% 39.9% 36,180 36,071
30% 30.0% 27,135 27,111
20% 19.7% 18,090 17,782
10% 10.2% 9,045 9,237
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-02.026' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,739
Calibration 2     90,901
Calibration 3     90,261
ssj_ops@calibrated=90,581
100% 100.3% 90,581 90,840
90% 91.8% 81,523 83,195
80% 81.0% 72,465 73,356
70% 70.0% 63,407 63,413
60% 60.1% 54,349 54,476
50% 49.8% 45,291 45,089
40% 39.2% 36,233 35,516
30% 30.2% 27,174 27,348
20% 19.9% 18,116 18,015
10% 9.9% 9,058 8,941
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-02.027' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,505
Calibration 2     90,694
Calibration 3     90,943
ssj_ops@calibrated=90,818
100% 100.2% 90,818 91,010
90% 92.1% 81,736 83,671
80% 80.1% 72,655 72,709
70% 70.2% 63,573 63,776
60% 59.7% 54,491 54,185
50% 49.0% 45,409 44,486
40% 40.4% 36,327 36,724
30% 29.9% 27,245 27,124
20% 20.2% 18,164 18,302
10% 10.1% 9,082 9,188
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-02.028' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,887
Calibration 2     87,339
Calibration 3     88,195
ssj_ops@calibrated=87,767
100% 100.1% 87,767 87,890
90% 90.4% 78,990 79,362
80% 80.1% 70,213 70,258
70% 69.4% 61,437 60,897
60% 59.9% 52,660 52,582
50% 50.4% 43,883 44,242
40% 39.8% 35,107 34,936
30% 29.4% 26,330 25,765
20% 20.3% 17,553 17,808
10% 10.0% 8,777 8,750
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-02.029' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,455
Calibration 2     88,293
Calibration 3     88,130
ssj_ops@calibrated=88,212
100% 100.1% 88,212 88,328
90% 90.0% 79,390 79,404
80% 80.0% 70,569 70,559
70% 69.4% 61,748 61,253
60% 60.3% 52,927 53,171
50% 50.0% 44,106 44,132
40% 39.8% 35,285 35,081
30% 30.3% 26,463 26,769
20% 20.0% 17,642 17,667
10% 10.1% 8,821 8,933
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-02.030' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,237
Calibration 2     90,754
Calibration 3     90,595
ssj_ops@calibrated=90,675
100% 100.1% 90,675 90,776
90% 91.6% 81,607 83,053
80% 80.1% 72,540 72,590
70% 69.7% 63,472 63,168
60% 60.1% 54,405 54,487
50% 50.2% 45,337 45,492
40% 39.4% 36,270 35,730
30% 29.7% 27,202 26,957
20% 20.0% 18,135 18,102
10% 9.9% 9,067 8,932
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-02.031' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,525
Calibration 2     91,915
Calibration 3     92,035
ssj_ops@calibrated=91,975
100% 100.4% 91,975 92,381
90% 92.0% 82,777 84,594
80% 81.0% 73,580 74,474
70% 69.7% 64,382 64,101
60% 59.6% 55,185 54,851
50% 49.5% 45,987 45,539
40% 39.6% 36,790 36,425
30% 30.1% 27,592 27,659
20% 19.7% 18,395 18,121
10% 10.1% 9,197 9,250
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-02.032' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,036
Calibration 2     90,671
Calibration 3     91,085
ssj_ops@calibrated=90,878
100% 100.6% 90,878 91,379
90% 91.1% 81,790 82,793
80% 80.5% 72,702 73,147
70% 70.7% 63,615 64,218
60% 60.7% 54,527 55,163
50% 50.5% 45,439 45,910
40% 39.5% 36,351 35,941
30% 29.7% 27,263 27,010
20% 19.6% 18,176 17,805
10% 9.9% 9,088 9,025
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-02.033' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,192
Calibration 2     89,533
Calibration 3     89,210
ssj_ops@calibrated=89,371
100% 100.0% 89,371 89,396
90% 90.4% 80,434 80,756
80% 80.1% 71,497 71,591
70% 69.9% 62,560 62,496
60% 59.9% 53,623 53,496
50% 50.5% 44,686 45,137
40% 40.2% 35,748 35,920
30% 30.5% 26,811 27,248
20% 20.0% 17,874 17,875
10% 9.8% 8,937 8,779
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-02.034' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,171
Calibration 2     91,419
Calibration 3     91,308
ssj_ops@calibrated=91,364
100% 99.4% 91,364 90,801
90% 91.2% 82,227 83,360
80% 80.1% 73,091 73,187
70% 70.4% 63,954 64,322
60% 59.7% 54,818 54,505
50% 49.7% 45,682 45,428
40% 39.5% 36,545 36,127
30% 30.0% 27,409 27,427
20% 19.7% 18,273 18,024
10% 10.3% 9,136 9,370
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-02.035' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,886
Calibration 2     90,422
Calibration 3     90,430
ssj_ops@calibrated=90,426
100% 99.8% 90,426 90,254
90% 91.3% 81,383 82,526
80% 79.7% 72,341 72,030
70% 69.9% 63,298 63,226
60% 59.9% 54,256 54,206
50% 49.7% 45,213 44,914
40% 40.0% 36,170 36,201
30% 29.8% 27,128 26,920
20% 19.6% 18,085 17,715
10% 10.2% 9,043 9,192
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-02.036' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,790
Calibration 2     89,961
Calibration 3     90,168
ssj_ops@calibrated=90,065
100% 99.6% 90,065 89,714
90% 91.1% 81,058 82,083
80% 79.5% 72,052 71,569
70% 70.0% 63,045 63,077
60% 59.9% 54,039 53,927
50% 50.0% 45,032 45,021
40% 40.5% 36,026 36,502
30% 29.7% 27,019 26,719
20% 20.1% 18,013 18,103
10% 10.1% 9,006 9,096
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
