Fujitsu FUJITSU Server PRIMERGY RX2560 M1 SPECpower_ssj2008 = 10,699 overall ssj_ops/watt
Test Sponsor: Fujitsu SPEC License #: 19 Test Method: Single Node
Tested By: Fujitsu Test Location: Paderborn, NRW, Germany Test Date: Mar 9, 2015
Hardware Availability: Apr-2015 Software Availability: Jun-2013 Publication: Apr 1, 2015
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 265 21.3
Calibration 2 267 21.4
Calibration 3 267 21.6
Calibration 4 267 21.9
100% 267 22.1
90% 241 22.3
80% 212 22.1
70% 185 21.6
60% 161 21.6
50% 144 21.5
40% 129 21.4
30% 115 21.4
20% 99.9 21.4
10% 84.5 21.4
Active Idle 40.1 21.4

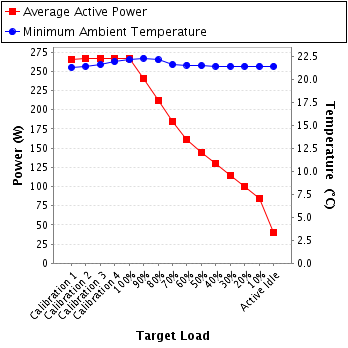

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: ZES Zimmer Electronic Systems GmbH
Model: LMG95
Serial Number: 11210802
Connectivity: RS-232
Input Connection: Default (20A)
Metrology Institute: PTB (Physikalisch Technische Bundesanstalt)
Accredited by: Atlas Copco Tools Central Europe GmbH
Calibration Label: W14113561
Date of Calibration: 21-Nov-2014
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.7.0-538b1562-20140802
Setup Description: Connected to PSU 1
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: Watchport Virtual Port 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm in front of SUT main air intake
Notes
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 230 250.0 1.17 2.5 0.988 265 0.1%
Calibration 2 230 250.0 1.17 2.5 0.987 267 0.1%
Calibration 3 230 250.0 1.17 2.5 0.987 267 0.1%
Calibration 4 230 250.0 1.17 2.5 0.987 267 0.1%
100% 230 250.0 1.17 2.5 0.987 267 0.1%
90% 230 250.0 1.06 1.2 0.987 241 0.1%
80% 230 250.0 0.934 1.2 0.986 212 0.1%
70% 230 250.0 0.814 1.2 0.984 185 0.1%
60% 230 250.0 0.715 1.2 0.979 161 0.1%
50% 230 250.0 0.642 1.2 0.973 144 0.1%
40% 230 250.0 0.581 0.6 0.966 129 0.1%
30% 230 250.0 0.520 0.6 0.957 115 0.1%
20% 231 250.0 0.457 0.6 0.948 99.9 0.1%
10% 231 250.0 0.394 0.6 0.930 84.5 0.1%
Active Idle 231 250.0 0.240 0.6 0.725 40.1 0.2%

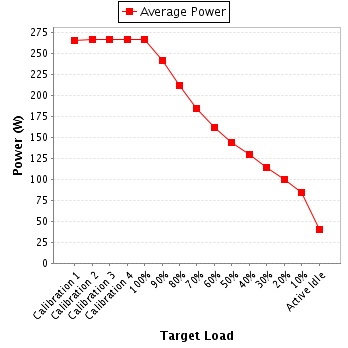

Power details for pwr1
