Dell Inc. PowerEdge R730 (Intel Xeon E5-2699 v3 2.30 GHz) ssj_ops@100% = 3,253,446
ssj_ops@100% per JVM = 90,374
Test Sponsor: Dell Inc. SPEC License #: 55 Test Method: Single Node
Tested By: Dell Inc. Test Location: Round Rock, TX, USA Test Date: Jan 18, 2015
Hardware Availability: Apr-2015 Software Availability: Jun-2013 Publication: Feb 18, 2015
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     3,064,312
Calibration 2     3,246,352
Calibration 3     3,250,479
ssj_ops@calibrated=3,248,415
100% 100.2% 3,248,415 3,253,446
90% 90.9% 2,923,574 2,953,355
80% 80.0% 2,598,732 2,598,913
70% 69.9% 2,273,891 2,272,183
60% 60.0% 1,949,049 1,949,045
50% 50.1% 1,624,208 1,626,010
40% 39.9% 1,299,366 1,297,118
30% 30.0% 974,525 974,218
20% 20.1% 649,683 651,757
10% 10.0% 324,842 324,007
Active Idle   0 0

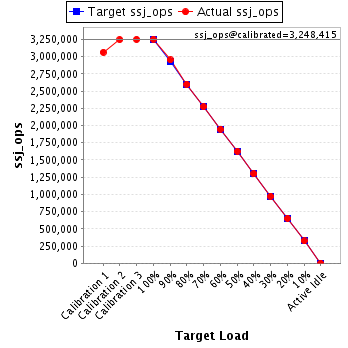

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: PowerEdge R730.
Hardware
Hardware Vendor: Dell Inc.
Model: PowerEdge R730 (Intel Xeon E5-2699 v3 2.30 GHz)
Form Factor: 2U
CPU Name: Intel Xeon E5-2699 v3 2.30 GHz
CPU Characteristics: 18 core, 2.30 GHz, 45 MB L3 Cache
CPU Frequency (MHz): 2300
CPU(s) Enabled: 36 cores, 2 chips, 18 cores/chip
Hardware Threads: 72 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 45 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 64
# and size of DIMM: 8 x 8192 MB
Memory Details: 8GB 2Rx8 PC4-2133P ECC; Dell p/n H8PGN X02, Slots A1-4,B1-4 populated.
Power Supply Quantity and Rating (W): 1 x 750
Power Supply Details: Dell p/n KNHJV
Disk Drive: 1 x 60 GB SATA SSD, Dell p/n WC8RX
Disk Controller: Native chipset SATA
# and type of Network Interface Cards (NICs) Installed: 2 x dual-port Broadcom 5720, Dell P/N FM487
NICs Enabled in Firmware / OS / Connected: 4/4/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power saver power plan in OS
Operating System (OS): Microsoft Windows Server 2008 R2 Enterprise SP1
OS Version: Version 6.1.7601 Service Pack 1 Build 7601
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.6,JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120322_106209 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xmn825m -Xms975m -Xmx975 -XlockReservation -Xnoloa -XtlhPrefetch -Xlp -Xconcurrentlevel0 -Xthr:minimizeusercpu -Xgcthreads2 -Xgcpolicy:gencon
JVM Affinity: start /NODE [0,1,2,3] /AFFINITY [0x3,0xC,0x30,0xC0,0x300,0xC00,0x3000,0xC000,0x30000]
JVM Instances: 36
JVM Initial Heap (MB): 975
JVM Maximum Heap (MB): 975
JVM Address Bits: 64
Boot Firmware Version: 1.2.3
Management Firmware Version: 2.10.10.10
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: IBM WebSphere Application Server V8.5.0.0, Microsoft Hotfix for Windows (KB2510206)
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-02J5MTPIIUM.001 91,297
WIN-02J5MTPIIUM.002 90,837
WIN-02J5MTPIIUM.003 89,772
WIN-02J5MTPIIUM.004 90,279
WIN-02J5MTPIIUM.005 86,636
WIN-02J5MTPIIUM.006 89,670
WIN-02J5MTPIIUM.007 90,886
WIN-02J5MTPIIUM.008 92,030
WIN-02J5MTPIIUM.009 91,354
WIN-02J5MTPIIUM.010 89,503
WIN-02J5MTPIIUM.011 89,907
WIN-02J5MTPIIUM.012 91,313
WIN-02J5MTPIIUM.013 91,000
WIN-02J5MTPIIUM.014 87,246
WIN-02J5MTPIIUM.015 92,093
WIN-02J5MTPIIUM.016 91,883
WIN-02J5MTPIIUM.017 91,913
WIN-02J5MTPIIUM.018 90,958
WIN-02J5MTPIIUM.019 88,726
WIN-02J5MTPIIUM.020 89,557
WIN-02J5MTPIIUM.021 90,523
WIN-02J5MTPIIUM.022 90,783
WIN-02J5MTPIIUM.023 92,058
WIN-02J5MTPIIUM.024 89,905
WIN-02J5MTPIIUM.025 91,205
WIN-02J5MTPIIUM.026 90,703
WIN-02J5MTPIIUM.027 89,216
WIN-02J5MTPIIUM.028 88,916
WIN-02J5MTPIIUM.029 90,025
WIN-02J5MTPIIUM.030 91,508
WIN-02J5MTPIIUM.031 90,432
WIN-02J5MTPIIUM.032 89,224
WIN-02J5MTPIIUM.033 89,952
WIN-02J5MTPIIUM.034 90,601
WIN-02J5MTPIIUM.035 90,657
WIN-02J5MTPIIUM.036 90,875
ssj_ops@100% 3,253,446
ssj_ops@100% per JVM 90,374

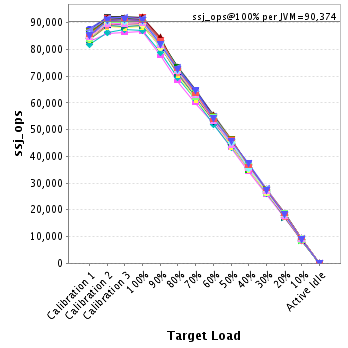

Graph of per-instance results
JVM 'WIN-02J5MTPIIUM.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,555
Calibration 2     90,694
Calibration 3     90,634
ssj_ops@calibrated=90,664
100% 100.7% 90,664 91,297
90% 90.9% 81,597 82,457
80% 79.6% 72,531 72,137
70% 69.1% 63,465 62,660
60% 60.4% 54,398 54,729
50% 49.3% 45,332 44,736
40% 40.1% 36,266 36,315
30% 29.9% 27,199 27,096
20% 19.5% 18,133 17,658
10% 9.7% 9,066 8,800
Active Idle   0 0
Graph of results
JVM 'WIN-02J5MTPIIUM.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,493
Calibration 2     90,785
Calibration 3     90,926
ssj_ops@calibrated=90,855
100% 100.0% 90,855 90,837
90% 91.4% 81,770 83,078
80% 79.6% 72,684 72,329
70% 70.1% 63,599 63,725
60% 60.3% 54,513 54,798
50% 50.2% 45,428 45,617
40% 39.4% 36,342 35,758
30% 29.7% 27,257 26,985
20% 20.3% 18,171 18,462
10% 9.7% 9,086 8,821
Active Idle   0 0
Graph of results
JVM 'WIN-02J5MTPIIUM.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,080
Calibration 2     90,134
Calibration 3     90,257
ssj_ops@calibrated=90,195
100% 99.5% 90,195 89,772
90% 90.1% 81,176 81,289
80% 80.2% 72,156 72,292
70% 70.3% 63,137 63,375
60% 60.1% 54,117 54,171
50% 49.9% 45,098 44,993
40% 40.7% 36,078 36,679
30% 30.2% 27,059 27,235
20% 20.2% 18,039 18,188
10% 10.0% 9,020 9,050
Active Idle   0 0
Graph of results
JVM 'WIN-02J5MTPIIUM.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,366
Calibration 2     90,365
Calibration 3     90,524
ssj_ops@calibrated=90,444
100% 99.8% 90,444 90,279
90% 91.6% 81,400 82,881
80% 81.0% 72,356 73,219
70% 68.8% 63,311 62,194
60% 60.1% 54,267 54,341
50% 50.2% 45,222 45,420
40% 39.2% 36,178 35,447
30% 30.2% 27,133 27,327
20% 20.1% 18,089 18,162
10% 9.6% 9,044 8,661
Active Idle   0 0
Graph of results
JVM 'WIN-02J5MTPIIUM.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,844
Calibration 2     85,956
Calibration 3     86,207
ssj_ops@calibrated=86,081
100% 100.6% 86,081 86,636
90% 90.3% 77,473 77,691
80% 79.2% 68,865 68,171
70% 69.6% 60,257 59,883
60% 60.9% 51,649 52,461
50% 50.0% 43,041 43,078
40% 39.8% 34,432 34,225
30% 29.8% 25,824 25,680
20% 20.1% 17,216 17,304
10% 9.8% 8,608 8,408
Active Idle   0 0
Graph of results
JVM 'WIN-02J5MTPIIUM.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,725
Calibration 2     89,950
Calibration 3     89,703
ssj_ops@calibrated=89,827
100% 99.8% 89,827 89,670
90% 91.0% 80,844 81,743
80% 81.2% 71,861 72,910
70% 69.9% 62,879 62,775
60% 59.9% 53,896 53,812
50% 50.4% 44,913 45,288
40% 40.0% 35,931 35,940
30% 30.2% 26,948 27,124
20% 19.8% 17,965 17,791
10% 9.5% 8,983 8,561
Active Idle   0 0
Graph of results
JVM 'WIN-02J5MTPIIUM.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,444
Calibration 2     90,413
Calibration 3     90,795
ssj_ops@calibrated=90,604
100% 100.3% 90,604 90,886
90% 91.1% 81,544 82,584
80% 79.8% 72,483 72,291
70% 70.2% 63,423 63,644
60% 60.4% 54,363 54,732
50% 49.9% 45,302 45,247
40% 39.4% 36,242 35,679
30% 30.1% 27,181 27,231
20% 19.6% 18,121 17,798
10% 10.0% 9,060 9,047
Active Idle   0 0
Graph of results
JVM 'WIN-02J5MTPIIUM.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,818
Calibration 2     92,003
Calibration 3     91,646
ssj_ops@calibrated=91,825
100% 100.2% 91,825 92,030
90% 90.6% 82,642 83,178
80% 79.4% 73,460 72,879
70% 69.9% 64,277 64,174
60% 60.5% 55,095 55,520
50% 50.2% 45,912 46,135
40% 39.8% 36,730 36,513
30% 30.0% 27,547 27,573
20% 20.1% 18,365 18,425
10% 9.9% 9,182 9,062
Active Idle   0 0
Graph of results
JVM 'WIN-02J5MTPIIUM.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,830
Calibration 2     90,837
Calibration 3     90,938
ssj_ops@calibrated=90,888
100% 100.5% 90,888 91,354
90% 92.0% 81,799 83,583
80% 79.3% 72,710 72,031
70% 70.3% 63,622 63,926
60% 58.8% 54,533 53,433
50% 49.7% 45,444 45,144
40% 40.0% 36,355 36,382
30% 30.0% 27,266 27,308
20% 20.3% 18,178 18,488
10% 10.1% 9,089 9,170
Active Idle   0 0
Graph of results
JVM 'WIN-02J5MTPIIUM.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,176
Calibration 2     89,214
Calibration 3     89,565
ssj_ops@calibrated=89,390
100% 100.1% 89,390 89,503
90% 90.2% 80,451 80,642
80% 80.1% 71,512 71,572
70% 69.6% 62,573 62,248
60% 59.9% 53,634 53,509
50% 49.8% 44,695 44,560
40% 40.0% 35,756 35,774
30% 30.2% 26,817 26,963
20% 19.9% 17,878 17,800
10% 9.7% 8,939 8,700
Active Idle   0 0
Graph of results
JVM 'WIN-02J5MTPIIUM.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,782
Calibration 2     89,912
Calibration 3     89,816
ssj_ops@calibrated=89,864
100% 100.0% 89,864 89,907
90% 90.7% 80,878 81,527
80% 80.9% 71,891 72,663
70% 69.8% 62,905 62,735
60% 59.8% 53,918 53,756
50% 50.2% 44,932 45,120
40% 38.8% 35,946 34,896
30% 30.0% 26,959 26,996
20% 20.0% 17,973 17,929
10% 10.2% 8,986 9,192
Active Idle   0 0
Graph of results
JVM 'WIN-02J5MTPIIUM.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,606
Calibration 2     91,185
Calibration 3     90,924
ssj_ops@calibrated=91,054
100% 100.3% 91,054 91,313
90% 90.6% 81,949 82,471
80% 79.7% 72,843 72,546
70% 70.7% 63,738 64,388
60% 60.2% 54,633 54,783
50% 50.4% 45,527 45,863
40% 40.0% 36,422 36,453
30% 29.1% 27,316 26,470
20% 20.1% 18,211 18,301
10% 9.9% 9,105 8,974
Active Idle   0 0
Graph of results
JVM 'WIN-02J5MTPIIUM.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,052
Calibration 2     90,975
Calibration 3     91,056
ssj_ops@calibrated=91,016
100% 100.0% 91,016 91,000
90% 91.2% 81,914 83,018
80% 80.3% 72,812 73,081
70% 68.9% 63,711 62,752
60% 60.0% 54,609 54,641
50% 50.4% 45,508 45,845
40% 40.4% 36,406 36,739
30% 29.9% 27,305 27,204
20% 20.7% 18,203 18,800
10% 10.1% 9,102 9,195
Active Idle   0 0
Graph of results
JVM 'WIN-02J5MTPIIUM.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,929
Calibration 2     86,180
Calibration 3     87,474
ssj_ops@calibrated=86,827
100% 100.5% 86,827 87,246
90% 90.6% 78,144 78,703
80% 80.0% 69,462 69,438
70% 70.5% 60,779 61,177
60% 59.6% 52,096 51,769
50% 49.9% 43,413 43,360
40% 40.9% 34,731 35,528
30% 30.0% 26,048 26,047
20% 20.5% 17,365 17,821
10% 9.9% 8,683 8,557
Active Idle   0 0
Graph of results
JVM 'WIN-02J5MTPIIUM.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,912
Calibration 2     92,358
Calibration 3     92,120
ssj_ops@calibrated=92,239
100% 99.8% 92,239 92,093
90% 90.4% 83,015 83,374
80% 79.9% 73,791 73,655
70% 70.5% 64,567 65,001
60% 59.9% 55,343 55,273
50% 49.9% 46,120 46,015
40% 40.2% 36,896 37,045
30% 29.7% 27,672 27,412
20% 20.6% 18,448 19,017
10% 10.1% 9,224 9,312
Active Idle   0 0
Graph of results
JVM 'WIN-02J5MTPIIUM.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,764
Calibration 2     91,524
Calibration 3     90,939
ssj_ops@calibrated=91,232
100% 100.7% 91,232 91,883
90% 91.5% 82,108 83,498
80% 79.0% 72,985 72,102
70% 69.8% 63,862 63,702
60% 59.3% 54,739 54,127
50% 49.2% 45,616 44,845
40% 39.6% 36,493 36,111
30% 29.9% 27,369 27,237
20% 19.7% 18,246 17,939
10% 10.2% 9,123 9,306
Active Idle   0 0
Graph of results
JVM 'WIN-02J5MTPIIUM.017' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,993
Calibration 2     91,815
Calibration 3     91,870
ssj_ops@calibrated=91,843
100% 100.1% 91,843 91,913
90% 89.6% 82,658 82,279
80% 79.6% 73,474 73,111
70% 70.4% 64,290 64,633
60% 60.1% 55,106 55,192
50% 50.0% 45,921 45,902
40% 39.6% 36,737 36,339
30% 29.8% 27,553 27,393
20% 20.2% 18,369 18,581
10% 9.9% 9,184 9,102
Active Idle   0 0
Graph of results

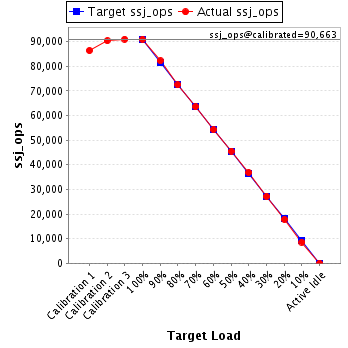

JVM 'WIN-02J5MTPIIUM.018' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,322
Calibration 2     90,343
Calibration 3     90,982
ssj_ops@calibrated=90,663
100% 100.3% 90,663 90,958
90% 90.7% 81,596 82,208
80% 79.9% 72,530 72,432
70% 70.1% 63,464 63,560
60% 59.8% 54,398 54,234
50% 50.2% 45,331 45,509
40% 40.6% 36,265 36,825
30% 30.0% 27,199 27,172
20% 19.6% 18,133 17,765
10% 9.5% 9,066 8,599
Active Idle   0 0
Graph of results
JVM 'WIN-02J5MTPIIUM.019' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,718
Calibration 2     88,422
Calibration 3     88,291
ssj_ops@calibrated=88,357
100% 100.4% 88,357 88,726
90% 92.3% 79,521 81,587
80% 79.9% 70,685 70,633
70% 69.4% 61,850 61,308
60% 60.6% 53,014 53,547
50% 49.5% 44,178 43,716
40% 39.7% 35,343 35,086
30% 30.2% 26,507 26,650
20% 20.1% 17,671 17,796
10% 10.4% 8,836 9,167
Active Idle   0 0
Graph of results
JVM 'WIN-02J5MTPIIUM.020' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,310
Calibration 2     89,666
Calibration 3     89,382
ssj_ops@calibrated=89,524
100% 100.0% 89,524 89,557
90% 91.1% 80,572 81,537
80% 81.0% 71,619 72,529
70% 69.9% 62,667 62,555
60% 60.1% 53,714 53,797
50% 50.0% 44,762 44,737
40% 39.3% 35,810 35,198
30% 30.5% 26,857 27,335
20% 19.9% 17,905 17,819
10% 10.0% 8,952 8,962
Active Idle   0 0
Graph of results
JVM 'WIN-02J5MTPIIUM.021' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,212
Calibration 2     90,177
Calibration 3     90,369
ssj_ops@calibrated=90,273
100% 100.3% 90,273 90,523
90% 91.6% 81,246 82,710
80% 81.0% 72,218 73,117
70% 69.9% 63,191 63,146
60% 59.5% 54,164 53,710
50% 50.1% 45,136 45,257
40% 40.0% 36,109 36,071
30% 29.8% 27,082 26,904
20% 20.4% 18,055 18,429
10% 10.0% 9,027 9,054
Active Idle   0 0
Graph of results
JVM 'WIN-02J5MTPIIUM.022' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,400
Calibration 2     90,236
Calibration 3     90,716
ssj_ops@calibrated=90,476
100% 100.3% 90,476 90,783
90% 91.2% 81,429 82,505
80% 80.2% 72,381 72,553
70% 70.0% 63,333 63,301
60% 60.2% 54,286 54,468
50% 49.4% 45,238 44,707
40% 39.7% 36,190 35,926
30% 29.4% 27,143 26,622
20% 19.8% 18,095 17,913
10% 10.0% 9,048 9,066
Active Idle   0 0
Graph of results
JVM 'WIN-02J5MTPIIUM.023' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,220
Calibration 2     91,679
Calibration 3     91,605
ssj_ops@calibrated=91,642
100% 100.5% 91,642 92,058
90% 92.2% 82,478 84,471
80% 79.0% 73,314 72,437
70% 69.9% 64,149 64,039
60% 60.5% 54,985 55,425
50% 49.8% 45,821 45,635
40% 40.1% 36,657 36,763
30% 30.2% 27,493 27,682
20% 20.1% 18,328 18,404
10% 10.3% 9,164 9,420
Active Idle   0 0
Graph of results
JVM 'WIN-02J5MTPIIUM.024' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,412
Calibration 2     89,555
Calibration 3     90,126
ssj_ops@calibrated=89,841
100% 100.1% 89,841 89,905
90% 90.9% 80,856 81,634
80% 79.5% 71,872 71,414
70% 70.5% 62,888 63,328
60% 59.2% 53,904 53,211
50% 50.1% 44,920 45,013
40% 39.9% 35,936 35,810
30% 29.6% 26,952 26,621
20% 20.0% 17,968 17,991
10% 10.0% 8,984 8,942
Active Idle   0 0
Graph of results
JVM 'WIN-02J5MTPIIUM.025' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,500
Calibration 2     91,323
Calibration 3     91,379
ssj_ops@calibrated=91,351
100% 99.8% 91,351 91,205
90% 91.3% 82,216 83,359
80% 80.7% 73,081 73,742
70% 69.6% 63,946 63,574
60% 60.2% 54,811 55,018
50% 50.1% 45,675 45,749
40% 40.1% 36,540 36,610
30% 29.6% 27,405 27,057
20% 20.3% 18,270 18,536
10% 10.3% 9,135 9,367
Active Idle   0 0
Graph of results
JVM 'WIN-02J5MTPIIUM.026' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,694
Calibration 2     90,279
Calibration 3     90,588
ssj_ops@calibrated=90,434
100% 100.3% 90,434 90,703
90% 90.1% 81,390 81,476
80% 80.2% 72,347 72,533
70% 69.9% 63,304 63,251
60% 60.5% 54,260 54,746
50% 51.0% 45,217 46,126
40% 39.8% 36,173 35,972
30% 30.5% 27,130 27,556
20% 19.9% 18,087 18,009
10% 9.9% 9,043 8,970
Active Idle   0 0
Graph of results
JVM 'WIN-02J5MTPIIUM.027' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,240
Calibration 2     89,314
Calibration 3     89,543
ssj_ops@calibrated=89,428
100% 99.8% 89,428 89,216
90% 90.9% 80,486 81,299
80% 80.2% 71,543 71,715
70% 69.8% 62,600 62,416
60% 60.6% 53,657 54,188
50% 49.6% 44,714 44,362
40% 39.9% 35,771 35,720
30% 30.5% 26,829 27,313
20% 20.6% 17,886 18,390
10% 10.1% 8,943 8,999
Active Idle   0 0
Graph of results
JVM 'WIN-02J5MTPIIUM.028' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,607
Calibration 2     88,948
Calibration 3     88,577
ssj_ops@calibrated=88,763
100% 100.2% 88,763 88,916
90% 91.2% 79,886 80,950
80% 80.1% 71,010 71,111
70% 70.1% 62,134 62,233
60% 60.1% 53,258 53,375
50% 50.4% 44,381 44,767
40% 40.2% 35,505 35,657
30% 30.1% 26,629 26,723
20% 19.2% 17,753 17,054
10% 10.1% 8,876 9,004
Active Idle   0 0
Graph of results
JVM 'WIN-02J5MTPIIUM.029' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,061
Calibration 2     89,108
Calibration 3     90,037
ssj_ops@calibrated=89,573
100% 100.5% 89,573 90,025
90% 90.7% 80,615 81,264
80% 79.7% 71,658 71,431
70% 70.1% 62,701 62,833
60% 60.1% 53,744 53,818
50% 49.8% 44,786 44,637
40% 40.1% 35,829 35,952
30% 29.9% 26,872 26,776
20% 19.5% 17,915 17,433
10% 9.6% 8,957 8,628
Active Idle   0 0
Graph of results
JVM 'WIN-02J5MTPIIUM.030' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,050
Calibration 2     91,591
Calibration 3     91,822
ssj_ops@calibrated=91,707
100% 99.8% 91,707 91,508
90% 90.3% 82,536 82,780
80% 79.8% 73,365 73,174
70% 69.5% 64,195 63,763
60% 59.9% 55,024 54,935
50% 49.7% 45,853 45,559
40% 40.6% 36,683 37,210
30% 30.6% 27,512 28,045
20% 20.2% 18,341 18,518
10% 10.1% 9,171 9,224
Active Idle   0 0
Graph of results
JVM 'WIN-02J5MTPIIUM.031' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,951
Calibration 2     90,069
Calibration 3     89,976
ssj_ops@calibrated=90,023
100% 100.5% 90,023 90,432
90% 90.6% 81,020 81,553
80% 80.4% 72,018 72,398
70% 69.2% 63,016 62,267
60% 60.4% 54,014 54,394
50% 50.9% 45,011 45,785
40% 40.1% 36,009 36,056
30% 29.4% 27,007 26,458
20% 20.7% 18,005 18,654
10% 9.9% 9,002 8,937
Active Idle   0 0
Graph of results

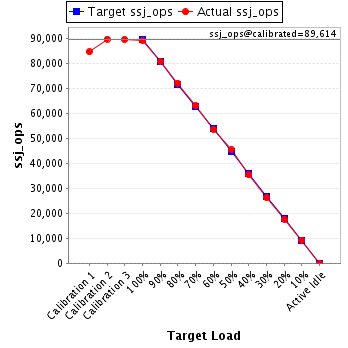

JVM 'WIN-02J5MTPIIUM.032' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,588
Calibration 2     89,683
Calibration 3     89,545
ssj_ops@calibrated=89,614
100% 99.6% 89,614 89,224
90% 90.1% 80,653 80,765
80% 80.4% 71,691 72,093
70% 70.4% 62,730 63,055
60% 59.8% 53,769 53,607
50% 50.7% 44,807 45,421
40% 39.5% 35,846 35,432
30% 29.4% 26,884 26,335
20% 19.7% 17,923 17,683
10% 10.3% 8,961 9,220
Active Idle   0 0
Graph of results
JVM 'WIN-02J5MTPIIUM.033' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,635
Calibration 2     89,568
Calibration 3     89,666
ssj_ops@calibrated=89,617
100% 100.4% 89,617 89,952
90% 91.4% 80,655 81,951
80% 80.5% 71,694 72,115
70% 70.6% 62,732 63,227
60% 59.6% 53,770 53,442
50% 49.7% 44,809 44,495
40% 39.8% 35,847 35,633
30% 30.4% 26,885 27,271
20% 20.1% 17,923 17,980
10% 10.2% 8,962 9,141
Active Idle   0 0
Graph of results
JVM 'WIN-02J5MTPIIUM.034' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,555
Calibration 2     90,471
Calibration 3     90,263
ssj_ops@calibrated=90,367
100% 100.3% 90,367 90,601
90% 90.8% 81,330 82,053
80% 79.7% 72,294 72,001
70% 70.2% 63,257 63,449
60% 60.0% 54,220 54,229
50% 50.1% 45,183 45,259
40% 39.3% 36,147 35,542
30% 30.3% 27,110 27,417
20% 20.0% 18,073 18,054
10% 10.3% 9,037 9,279
Active Idle   0 0
Graph of results
JVM 'WIN-02J5MTPIIUM.035' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,458
Calibration 2     90,920
Calibration 3     91,194
ssj_ops@calibrated=91,057
100% 99.6% 91,057 90,657
90% 91.7% 81,951 83,532
80% 79.7% 72,846 72,606
70% 69.6% 63,740 63,380
60% 58.9% 54,634 53,634
50% 51.0% 45,529 46,431
40% 40.0% 36,423 36,454
30% 30.5% 27,317 27,755
20% 20.3% 18,211 18,504
10% 10.2% 9,106 9,275
Active Idle   0 0
Graph of results
JVM 'WIN-02J5MTPIIUM.036' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,013
Calibration 2     90,698
Calibration 3     91,023
ssj_ops@calibrated=90,860
100% 100.0% 90,860 90,875
90% 89.9% 81,774 81,723
80% 79.7% 72,688 72,454
70% 71.0% 63,602 64,508
60% 59.7% 54,516 54,218
50% 50.3% 45,430 45,677
40% 41.1% 36,344 37,379
30% 30.0% 27,258 27,244
20% 20.2% 18,172 18,358
10% 9.7% 9,086 8,833
Active Idle   0 0
Graph of results
