Dell Inc. PowerEdge R730 (Intel Xeon E5-2699 v3 2.30 GHz) SPECpower_ssj2008 = 10,206 overall ssj_ops/watt
Test Sponsor: Dell Inc. SPEC License #: 55 Test Method: Single Node
Tested By: Dell Inc. Test Location: Round Rock, TX, USA Test Date: Jan 18, 2015
Hardware Availability: Apr-2015 Software Availability: Jun-2013 Publication: Feb 18, 2015
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 273 20.2
Calibration 2 273 20.4
Calibration 3 272 20.6
100% 272 20.7
90% 243 20.9
80% 215 20.7
70% 191 20.8
60% 171 20.6
50% 156 20.7
40% 141 20.6
30% 124 20.6
20% 107 20.5
10% 87.8 20.5
Active Idle 46.9 20.4

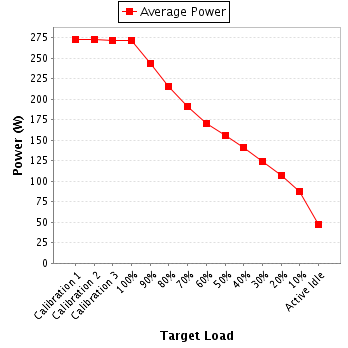

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Meters and Instruments Corporation
Model: WT210
Serial Number: 91HB22770
Connectivity: RS-232
Input Connection: Default
Metrology Institute: NIST
Accredited by: SIMCO
Calibration Label: 6632150
Date of Calibration: 4-Aug-2014
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.7.0-538b1562-20140802
Setup Description: Connected to power supply
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 5.10.26.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 25 mm in front of SUT main airflow intake
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 208 300.0 1.34 2.0 0.980 273 0.4%
Calibration 2 208 300.0 1.34 2.0 0.980 273 0.4%
Calibration 3 208 300.0 1.33 2.0 0.979 272 0.4%
100% 208 300.0 1.33 2.0 0.979 272 0.4%
90% 208 300.0 1.20 2.0 0.975 243 0.4%
80% 208 300.0 1.07 2.0 0.969 215 0.5%
70% 208 300.0 0.953 1.0 0.961 191 0.4%
60% 208 300.0 0.862 1.0 0.951 171 0.4%
50% 208 300.0 0.792 1.0 0.943 156 0.4%
40% 208 300.0 0.724 1.0 0.932 141 0.4%
30% 208 300.0 0.652 1.0 0.914 124 0.5%
20% 208 300.0 0.574 1.0 0.891 107 0.5%
10% 208 300.0 0.496 0.5 0.849 87.8 0.4%
Active Idle 208 300.0 0.340 0.5 0.662 46.9 0.7%
Power details for pwr1
