Fujitsu FUJITSU Server PRIMERGY RX2530 M1 ssj_ops@100% = 90,707
Test Sponsor: Fujitsu SPEC License #: 19 Test Method: Single Node
Tested By: Fujitsu Test Location: Paderborn, NRW, Germany Test Date: Jan 9, 2015
Hardware Availability: Feb-2015 Software Availability: Jun-2013 Publication: Feb 5, 2015
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,399
Calibration 2     89,962
Calibration 3     90,979
Calibration 4     90,858
ssj_ops@calibrated=90,918
100% 99.8% 90,918 90,707
90% 91.1% 81,827 82,805
80% 80.0% 72,735 72,780
70% 70.1% 63,643 63,774
60% 59.8% 54,551 54,409
50% 49.5% 45,459 45,046
40% 40.2% 36,367 36,554
30% 30.0% 27,276 27,308
20% 19.7% 18,184 17,925
10% 9.9% 9,092 8,967
Active Idle   0 0

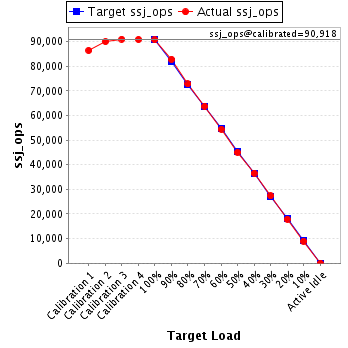

Graph of results
System Under Test
Set: 'RX2530 M1'
Set Identifier: RX2530 M1
Set Description: System Under Test
# of Identical Nodes: 1
Comment: Single Node
Hardware
Hardware Vendor: Fujitsu
Model: FUJITSU Server PRIMERGY RX2530 M1
Form Factor: 1U
CPU Name: Intel Xeon E5-2699 v3
CPU Characteristics: 18-Core, 2.30GHz, 45MB L3 Cache
CPU Frequency (MHz): 2300
CPU(s) Enabled: 36 cores, 2 chips, 18 cores/chip
Hardware Threads: 72 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 45 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 64
# and size of DIMM: 8 x 8192 MB
Memory Details: 8 GB DDR4, registered, ECC, 2133 MHz, PC4-2133R, DIMM, 2Rx8; slots 1A, 1B, 1C, 1D, 1E, 1F, 1G, 1H populated
Power Supply Quantity and Rating (W): 1 x 800
Power Supply Details: Fujitsu Technology Solutions S26113-F615-E10
Disk Drive: 1 x DOM SATA 6G 64GB Main N H-P, S26361-F5522-E64
Disk Controller: Integrated SATA Controller
# and type of Network Interface Cards (NICs) Installed: 1 x PLAN AP 1x1Gbit Cu Intel I210-T1 LP (Copper), S26361-F3852-E201
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled ("Fujitsu Enhanced Power Settings" power plan)
Operating System (OS): Microsoft Windows Server 2008 R2 Enterprise SP1
OS Version: Version 6.1.7601 Service Pack 1 Build 7601
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.6, JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120322_106209 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xmn825m -Xms975m -Xmx975m -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -XlockReservation -Xnoloa -XtlhPrefetch -Xlp -Xconcurrentlevel0 -Xthr:minimizeusercpu -Xgcthreads2 (-Xgcthreads1 for JVM5 and JVM23)
JVM Affinity: start /NODE [0,1,2,3] /AFFINITY [0x3,0xC,0x30,0xC0,0x300,0xC00,0x3000,0xC000,0x30000]
JVM Instances: 36
JVM Initial Heap (MB): 975
JVM Maximum Heap (MB): 975
JVM Address Bits: 64
Boot Firmware Version: R1.11.0
Management Firmware Version: 7.69F
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: IBM WebSphere Application Server V8.5.0.0, Microsoft Hotfix for Windows (KB2510206)
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
Performance Details
Target Load Actual Load Transaction Type Count Total Heap (MB)
Calibration 1 New Order 6,288,195 975
Payment 6,288,190
Order Status 628,818
Delivery 628,819
Stock Level 628,820
Customer Report 6,288,190
Calibration 2 New Order 6,544,503 975
Payment 6,544,502
Order Status 654,450
Delivery 654,449
Stock Level 654,451
Customer Report 6,544,499
Calibration 3 New Order 6,621,807 975
Payment 6,621,806
Order Status 662,181
Delivery 662,180
Stock Level 662,181
Customer Report 6,621,807
Calibration 4 New Order 6,609,063 975
Payment 6,609,063
Order Status 660,906
Delivery 660,906
Stock Level 660,906
Customer Report 6,609,068
100% 99.8% New Order 6,599,293 975
Payment 6,599,296
Order Status 659,930
Delivery 659,928
Stock Level 659,930
Customer Report 6,599,294
90% 91.1% New Order 6,024,014 975
Payment 6,024,023
Order Status 602,401
Delivery 602,402
Stock Level 602,401
Customer Report 6,024,019
80% 80.0% New Order 5,293,136 975
Payment 5,293,138
Order Status 529,313
Delivery 529,314
Stock Level 529,315
Customer Report 5,293,133
70% 70.1% New Order 4,638,462 975
Payment 4,638,463
Order Status 463,847
Delivery 463,847
Stock Level 463,847
Customer Report 4,638,462
60% 59.8% New Order 3,958,055 975
Payment 3,958,055
Order Status 395,807
Delivery 395,806
Stock Level 395,806
Customer Report 3,958,058
50% 49.5% New Order 3,276,255 975
Payment 3,276,256
Order Status 327,627
Delivery 327,625
Stock Level 327,626
Customer Report 3,276,261
40% 40.2% New Order 2,658,515 975
Payment 2,658,515
Order Status 265,853
Delivery 265,851
Stock Level 265,852
Customer Report 2,658,518
30% 30.0% New Order 1,986,060 975
Payment 1,986,061
Order Status 198,606
Delivery 198,606
Stock Level 198,608
Customer Report 1,986,059
20% 19.7% New Order 1,303,640 975
Payment 1,303,633
Order Status 130,364
Delivery 130,364
Stock Level 130,363
Customer Report 1,303,636
10% 9.9% New Order 652,125 975
Payment 652,121
Order Status 65,212
Delivery 65,212
Stock Level 65,212
Customer Report 652,118
Active Idle New Order 0 975
Payment 0
Order Status 0
Delivery 0
Stock Level 0
Customer Report 0
