Fujitsu FUJITSU Server PRIMERGY RX2530 M1 ssj_ops@100% = 90,314
Test Sponsor: Fujitsu SPEC License #: 19 Test Method: Single Node
Tested By: Fujitsu Test Location: Paderborn, NRW, Germany Test Date: Jan 9, 2015
Hardware Availability: Feb-2015 Software Availability: Jun-2013 Publication: Feb 5, 2015
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,100
Calibration 2     90,386
Calibration 3     90,241
Calibration 4     90,817
ssj_ops@calibrated=90,529
100% 99.8% 90,529 90,314
90% 90.2% 81,476 81,648
80% 80.2% 72,423 72,591
70% 70.6% 63,370 63,947
60% 60.1% 54,317 54,378
50% 50.1% 45,264 45,387
40% 40.2% 36,211 36,349
30% 30.5% 27,159 27,607
20% 20.2% 18,106 18,325
10% 10.0% 9,053 9,042
Active Idle   0 0

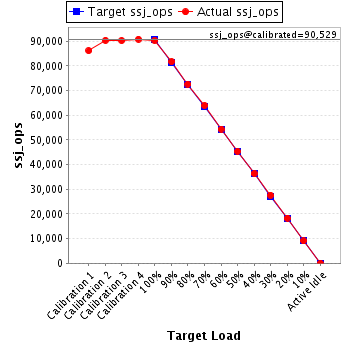

Graph of results
System Under Test
Set: 'RX2530 M1'
Set Identifier: RX2530 M1
Set Description: System Under Test
# of Identical Nodes: 1
Comment: Single Node
Hardware
Hardware Vendor: Fujitsu
Model: FUJITSU Server PRIMERGY RX2530 M1
Form Factor: 1U
CPU Name: Intel Xeon E5-2699 v3
CPU Characteristics: 18-Core, 2.30GHz, 45MB L3 Cache
CPU Frequency (MHz): 2300
CPU(s) Enabled: 36 cores, 2 chips, 18 cores/chip
Hardware Threads: 72 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 45 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 64
# and size of DIMM: 8 x 8192 MB
Memory Details: 8 GB DDR4, registered, ECC, 2133 MHz, PC4-2133R, DIMM, 2Rx8; slots 1A, 1B, 1C, 1D, 1E, 1F, 1G, 1H populated
Power Supply Quantity and Rating (W): 1 x 800
Power Supply Details: Fujitsu Technology Solutions S26113-F615-E10
Disk Drive: 1 x DOM SATA 6G 64GB Main N H-P, S26361-F5522-E64
Disk Controller: Integrated SATA Controller
# and type of Network Interface Cards (NICs) Installed: 1 x PLAN AP 1x1Gbit Cu Intel I210-T1 LP (Copper), S26361-F3852-E201
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled ("Fujitsu Enhanced Power Settings" power plan)
Operating System (OS): Microsoft Windows Server 2008 R2 Enterprise SP1
OS Version: Version 6.1.7601 Service Pack 1 Build 7601
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.6, JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120322_106209 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xmn825m -Xms975m -Xmx975m -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -XlockReservation -Xnoloa -XtlhPrefetch -Xlp -Xconcurrentlevel0 -Xthr:minimizeusercpu -Xgcthreads2 (-Xgcthreads1 for JVM5 and JVM23)
JVM Affinity: start /NODE [0,1,2,3] /AFFINITY [0x3,0xC,0x30,0xC0,0x300,0xC00,0x3000,0xC000,0x30000]
JVM Instances: 36
JVM Initial Heap (MB): 975
JVM Maximum Heap (MB): 975
JVM Address Bits: 64
Boot Firmware Version: R1.11.0
Management Firmware Version: 7.69F
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: IBM WebSphere Application Server V8.5.0.0, Microsoft Hotfix for Windows (KB2510206)
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
Performance Details
Target Load Actual Load Transaction Type Count Total Heap (MB)
Calibration 1 New Order 6,266,810 975
Payment 6,266,813
Order Status 626,682
Delivery 626,682
Stock Level 626,681
Customer Report 6,266,809
Calibration 2 New Order 6,577,856 975
Payment 6,577,855
Order Status 657,785
Delivery 657,784
Stock Level 657,787
Customer Report 6,577,853
Calibration 3 New Order 6,564,275 975
Payment 6,564,274
Order Status 656,428
Delivery 656,428
Stock Level 656,428
Customer Report 6,564,273
Calibration 4 New Order 6,609,595 975
Payment 6,609,600
Order Status 660,960
Delivery 660,959
Stock Level 660,960
Customer Report 6,609,595
100% 99.8% New Order 6,568,713 975
Payment 6,568,711
Order Status 656,871
Delivery 656,873
Stock Level 656,872
Customer Report 6,568,715
90% 90.2% New Order 5,938,423 975
Payment 5,938,427
Order Status 593,843
Delivery 593,842
Stock Level 593,843
Customer Report 5,938,429
80% 80.2% New Order 5,279,383 975
Payment 5,279,385
Order Status 527,937
Delivery 527,939
Stock Level 527,937
Customer Report 5,279,384
70% 70.6% New Order 4,652,540 975
Payment 4,652,538
Order Status 465,254
Delivery 465,255
Stock Level 465,253
Customer Report 4,652,537
60% 60.1% New Order 3,954,944 975
Payment 3,954,944
Order Status 395,495
Delivery 395,495
Stock Level 395,495
Customer Report 3,954,943
50% 50.1% New Order 3,301,044 975
Payment 3,301,047
Order Status 330,106
Delivery 330,104
Stock Level 330,105
Customer Report 3,301,046
40% 40.2% New Order 2,643,704 975
Payment 2,643,707
Order Status 264,370
Delivery 264,370
Stock Level 264,371
Customer Report 2,643,704
30% 30.5% New Order 2,007,790 975
Payment 2,007,788
Order Status 200,779
Delivery 200,779
Stock Level 200,778
Customer Report 2,007,789
20% 20.2% New Order 1,332,730 975
Payment 1,332,724
Order Status 133,272
Delivery 133,272
Stock Level 133,273
Customer Report 1,332,729
10% 10.0% New Order 657,578 975
Payment 657,574
Order Status 65,755
Delivery 65,758
Stock Level 65,758
Customer Report 657,577
Active Idle New Order 0 975
Payment 0
Order Status 0
Delivery 0
Stock Level 0
Customer Report 0
