Fujitsu FUJITSU Server PRIMERGY RX2530 M1 | ssj_ops@100% = 90,397 | ||||
Test Sponsor: | Fujitsu | SPEC License #: | 19 | Test Method: | Single Node |
Tested By: | Fujitsu | Test Location: | Paderborn, NRW, Germany | Test Date: | Jan 9, 2015 |
Hardware Availability: | Feb-2015 | Software Availability: | Jun-2013 | Publication: | Feb 5, 2015 |
System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

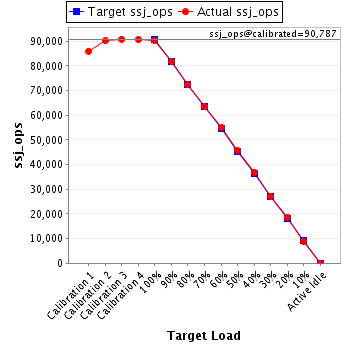

Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 86,044 | ||
Calibration 2 | 90,196 | ||
Calibration 3 | 90,870 | ||
Calibration 4 | 90,705 | ||
ssj_ops@calibrated=90,787 | |||
100% | 99.6% | 90,787 | 90,397 |
90% | 90.0% | 81,709 | 81,730 |
80% | 79.8% | 72,630 | 72,430 |
70% | 70.0% | 63,551 | 63,529 |
60% | 60.7% | 54,472 | 55,111 |
50% | 50.3% | 45,394 | 45,624 |
40% | 40.5% | 36,315 | 36,789 |
30% | 29.7% | 27,236 | 26,958 |
20% | 20.4% | 18,157 | 18,515 |
10% | 9.9% | 9,079 | 8,946 |
Active Idle | 0 | 0 |
Set Identifier: | RX2530 M1 |
Set Description: | System Under Test |
# of Identical Nodes: | 1 |
Comment: | Single Node |
Hardware | |
---|---|
Hardware Vendor: | Fujitsu |
Model: | FUJITSU Server PRIMERGY RX2530 M1 |
Form Factor: | 1U |
CPU Name: | Intel Xeon E5-2699 v3 |
CPU Characteristics: | 18-Core, 2.30GHz, 45MB L3 Cache |
CPU Frequency (MHz): | 2300 |
CPU(s) Enabled: | 36 cores, 2 chips, 18 cores/chip |
Hardware Threads: | 72 (2 / core) |
CPU(s) Orderable: | 1,2 chips |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 256 KB I+D on chip per core |
Tertiary Cache: | 45 MB I+D on chip per chip |
Other Cache: | None |
Memory Amount (GB): | 64 |
# and size of DIMM: | 8 x 8192 MB |
Memory Details: | 8 GB DDR4, registered, ECC, 2133 MHz, PC4-2133R, DIMM, 2Rx8; slots 1A, 1B, 1C, 1D, 1E, 1F, 1G, 1H populated |
Power Supply Quantity and Rating (W): | 1 x 800 |
Power Supply Details: | Fujitsu Technology Solutions S26113-F615-E10 |
Disk Drive: | 1 x DOM SATA 6G 64GB Main N H-P, S26361-F5522-E64 |
Disk Controller: | Integrated SATA Controller |
# and type of Network Interface Cards (NICs) Installed: | 1 x PLAN AP 1x1Gbit Cu Intel I210-T1 LP (Copper), S26361-F3852-E201 |
NICs Enabled in Firmware / OS / Connected: | 1/1/1 |
Network Speed (Mbit): | 1000 |
Keyboard: | None |
Mouse: | None |
Monitor: | None |
Optical Drives: | No |
Other Hardware: | None |
Software | |
---|---|
Power Management: | Enabled ("Fujitsu Enhanced Power Settings" power plan) |
Operating System (OS): | Microsoft Windows Server 2008 R2 Enterprise SP1 |
OS Version: | Version 6.1.7601 Service Pack 1 Build 7601 |
Filesystem: | NTFS |
JVM Vendor: | IBM Corporation |
JVM Version: | IBM J9 VM (build 2.6, JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120322_106209 (JIT enabled, AOT enabled) |
JVM Command-line Options: | -Xmn825m -Xms975m -Xmx975m -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -XlockReservation -Xnoloa -XtlhPrefetch -Xlp -Xconcurrentlevel0 -Xthr:minimizeusercpu -Xgcthreads2 (-Xgcthreads1 for JVM5 and JVM23) |
JVM Affinity: | start /NODE [0,1,2,3] /AFFINITY [0x3,0xC,0x30,0xC0,0x300,0xC00,0x3000,0xC000,0x30000] |
JVM Instances: | 36 |
JVM Initial Heap (MB): | 975 |
JVM Maximum Heap (MB): | 975 |
JVM Address Bits: | 64 |
Boot Firmware Version: | R1.11.0 |
Management Firmware Version: | 7.69F |
Workload Version: | SSJ 1.2.10 |
Director Location: | Controller |
Other Software: | IBM WebSphere Application Server V8.5.0.0, Microsoft Hotfix for Windows (KB2510206) |
Target Load | Actual Load | Transaction Type | Count | Total Heap (MB) |
---|---|---|---|---|
Calibration 1 | New Order | 6,258,943 | 975 | |
Payment | 6,258,943 | |||
Order Status | 625,894 | |||
Delivery | 625,892 | |||
Stock Level | 625,894 | |||
Customer Report | 6,258,944 | |||
Calibration 2 | New Order | 6,561,058 | 975 | |
Payment | 6,561,057 | |||
Order Status | 656,106 | |||
Delivery | 656,107 | |||
Stock Level | 656,106 | |||
Customer Report | 6,561,060 | |||
Calibration 3 | New Order | 6,611,745 | 975 | |
Payment | 6,611,740 | |||
Order Status | 661,174 | |||
Delivery | 661,172 | |||
Stock Level | 661,174 | |||
Customer Report | 6,611,739 | |||
Calibration 4 | New Order | 6,597,179 | 975 | |
Payment | 6,597,177 | |||
Order Status | 659,718 | |||
Delivery | 659,717 | |||
Stock Level | 659,719 | |||
Customer Report | 6,597,181 | |||
100% | 99.6% | New Order | 6,579,059 | 975 |
Payment | 6,579,048 | |||
Order Status | 657,905 | |||
Delivery | 657,905 | |||
Stock Level | 657,905 | |||
Customer Report | 6,579,050 | |||
90% | 90.0% | New Order | 5,944,029 | 975 |
Payment | 5,944,028 | |||
Order Status | 594,404 | |||
Delivery | 594,403 | |||
Stock Level | 594,404 | |||
Customer Report | 5,944,031 | |||
80% | 79.8% | New Order | 5,271,450 | 975 |
Payment | 5,271,451 | |||
Order Status | 527,146 | |||
Delivery | 527,145 | |||
Stock Level | 527,143 | |||
Customer Report | 5,271,448 | |||
70% | 70.0% | New Order | 4,620,332 | 975 |
Payment | 4,620,338 | |||
Order Status | 462,034 | |||
Delivery | 462,034 | |||
Stock Level | 462,033 | |||
Customer Report | 4,620,334 | |||
60% | 60.7% | New Order | 4,008,299 | 975 |
Payment | 4,008,303 | |||
Order Status | 400,832 | |||
Delivery | 400,828 | |||
Stock Level | 400,830 | |||
Customer Report | 4,008,300 | |||
50% | 50.3% | New Order | 3,319,013 | 975 |
Payment | 3,319,012 | |||
Order Status | 331,900 | |||
Delivery | 331,902 | |||
Stock Level | 331,902 | |||
Customer Report | 3,319,014 | |||
40% | 40.5% | New Order | 2,675,583 | 975 |
Payment | 2,675,584 | |||
Order Status | 267,558 | |||
Delivery | 267,557 | |||
Stock Level | 267,559 | |||
Customer Report | 2,675,584 | |||
30% | 29.7% | New Order | 1,960,694 | 975 |
Payment | 1,960,695 | |||
Order Status | 196,070 | |||
Delivery | 196,069 | |||
Stock Level | 196,070 | |||
Customer Report | 1,960,693 | |||
20% | 20.4% | New Order | 1,346,561 | 975 |
Payment | 1,346,568 | |||
Order Status | 134,657 | |||
Delivery | 134,656 | |||
Stock Level | 134,657 | |||
Customer Report | 1,346,568 | |||
10% | 9.9% | New Order | 650,604 | 975 |
Payment | 650,604 | |||
Order Status | 65,062 | |||
Delivery | 65,060 | |||
Stock Level | 65,061 | |||
Customer Report | 650,609 | |||
Active Idle | New Order | 0 | 975 | |
Payment | 0 | |||
Order Status | 0 | |||
Delivery | 0 | |||
Stock Level | 0 | |||
Customer Report | 0 |
