Fujitsu FUJITSU Server PRIMERGY RX2530 M1 ssj_ops@100% = 89,448
Test Sponsor: Fujitsu SPEC License #: 19 Test Method: Single Node
Tested By: Fujitsu Test Location: Paderborn, NRW, Germany Test Date: Jan 9, 2015
Hardware Availability: Feb-2015 Software Availability: Jun-2013 Publication: Feb 5, 2015
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,811
Calibration 2     89,715
Calibration 3     89,638
Calibration 4     89,805
ssj_ops@calibrated=89,721
100% 99.7% 89,721 89,448
90% 90.1% 80,749 80,809
80% 80.6% 71,777 72,327
70% 71.0% 62,805 63,723
60% 59.7% 53,833 53,587
50% 50.1% 44,861 44,908
40% 40.2% 35,888 36,049
30% 30.1% 26,916 27,023
20% 20.4% 17,944 18,283
10% 10.2% 8,972 9,137
Active Idle   0 0

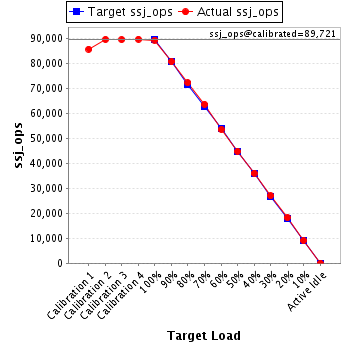

Graph of results
System Under Test
Set: 'RX2530 M1'
Set Identifier: RX2530 M1
Set Description: System Under Test
# of Identical Nodes: 1
Comment: Single Node
Hardware
Hardware Vendor: Fujitsu
Model: FUJITSU Server PRIMERGY RX2530 M1
Form Factor: 1U
CPU Name: Intel Xeon E5-2699 v3
CPU Characteristics: 18-Core, 2.30GHz, 45MB L3 Cache
CPU Frequency (MHz): 2300
CPU(s) Enabled: 36 cores, 2 chips, 18 cores/chip
Hardware Threads: 72 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 45 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 64
# and size of DIMM: 8 x 8192 MB
Memory Details: 8 GB DDR4, registered, ECC, 2133 MHz, PC4-2133R, DIMM, 2Rx8; slots 1A, 1B, 1C, 1D, 1E, 1F, 1G, 1H populated
Power Supply Quantity and Rating (W): 1 x 800
Power Supply Details: Fujitsu Technology Solutions S26113-F615-E10
Disk Drive: 1 x DOM SATA 6G 64GB Main N H-P, S26361-F5522-E64
Disk Controller: Integrated SATA Controller
# and type of Network Interface Cards (NICs) Installed: 1 x PLAN AP 1x1Gbit Cu Intel I210-T1 LP (Copper), S26361-F3852-E201
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled ("Fujitsu Enhanced Power Settings" power plan)
Operating System (OS): Microsoft Windows Server 2008 R2 Enterprise SP1
OS Version: Version 6.1.7601 Service Pack 1 Build 7601
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.6, JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120322_106209 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xmn825m -Xms975m -Xmx975m -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -XlockReservation -Xnoloa -XtlhPrefetch -Xlp -Xconcurrentlevel0 -Xthr:minimizeusercpu -Xgcthreads2 (-Xgcthreads1 for JVM5 and JVM23)
JVM Affinity: start /NODE [0,1,2,3] /AFFINITY [0x3,0xC,0x30,0xC0,0x300,0xC00,0x3000,0xC000,0x30000]
JVM Instances: 36
JVM Initial Heap (MB): 975
JVM Maximum Heap (MB): 975
JVM Address Bits: 64
Boot Firmware Version: R1.11.0
Management Firmware Version: 7.69F
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: IBM WebSphere Application Server V8.5.0.0, Microsoft Hotfix for Windows (KB2510206)
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
Performance Details
Target Load Actual Load Transaction Type Count Total Heap (MB)
Calibration 1 New Order 6,241,998 975
Payment 6,241,995
Order Status 624,199
Delivery 624,198
Stock Level 624,200
Customer Report 6,242,000
Calibration 2 New Order 6,527,411 975
Payment 6,527,413
Order Status 652,742
Delivery 652,741
Stock Level 652,739
Customer Report 6,527,414
Calibration 3 New Order 6,521,611 975
Payment 6,521,606
Order Status 652,161
Delivery 652,160
Stock Level 652,161
Customer Report 6,521,611
Calibration 4 New Order 6,535,118 975
Payment 6,535,116
Order Status 653,512
Delivery 653,512
Stock Level 653,511
Customer Report 6,535,115
100% 99.7% New Order 6,506,626 975
Payment 6,506,631
Order Status 650,663
Delivery 650,662
Stock Level 650,664
Customer Report 6,506,624
90% 90.1% New Order 5,881,391 975
Payment 5,881,393
Order Status 588,138
Delivery 588,138
Stock Level 588,139
Customer Report 5,881,389
80% 80.6% New Order 5,260,180 975
Payment 5,260,180
Order Status 526,017
Delivery 526,018
Stock Level 526,020
Customer Report 5,260,178
70% 71.0% New Order 4,637,037 975
Payment 4,637,036
Order Status 463,704
Delivery 463,705
Stock Level 463,702
Customer Report 4,637,037
60% 59.7% New Order 3,898,781 975
Payment 3,898,784
Order Status 389,878
Delivery 389,878
Stock Level 389,879
Customer Report 3,898,780
50% 50.1% New Order 3,266,071 975
Payment 3,266,067
Order Status 326,606
Delivery 326,607
Stock Level 326,606
Customer Report 3,266,068
40% 40.2% New Order 2,621,958 975
Payment 2,621,958
Order Status 262,195
Delivery 262,195
Stock Level 262,197
Customer Report 2,621,963
30% 30.1% New Order 1,965,450 975
Payment 1,965,456
Order Status 196,546
Delivery 196,545
Stock Level 196,546
Customer Report 1,965,459
20% 20.4% New Order 1,329,696 975
Payment 1,329,695
Order Status 132,970
Delivery 132,970
Stock Level 132,971
Customer Report 1,329,698
10% 10.2% New Order 664,548 975
Payment 664,544
Order Status 66,454
Delivery 66,454
Stock Level 66,454
Customer Report 664,546
Active Idle New Order 0 975
Payment 0
Order Status 0
Delivery 0
Stock Level 0
Customer Report 0
