Fujitsu FUJITSU Server PRIMERGY RX2530 M1 ssj_ops@100% = 88,548
Test Sponsor: Fujitsu SPEC License #: 19 Test Method: Single Node
Tested By: Fujitsu Test Location: Paderborn, NRW, Germany Test Date: Jan 9, 2015
Hardware Availability: Feb-2015 Software Availability: Jun-2013 Publication: Feb 5, 2015
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,786
Calibration 2     88,645
Calibration 3     88,652
Calibration 4     88,860
ssj_ops@calibrated=88,756
100% 99.8% 88,756 88,548
90% 90.3% 79,880 80,113
80% 80.0% 71,005 71,037
70% 70.4% 62,129 62,515
60% 58.9% 53,254 52,308
50% 50.1% 44,378 44,510
40% 40.0% 35,502 35,469
30% 29.9% 26,627 26,529
20% 20.6% 17,751 18,250
10% 9.8% 8,876 8,687
Active Idle   0 0

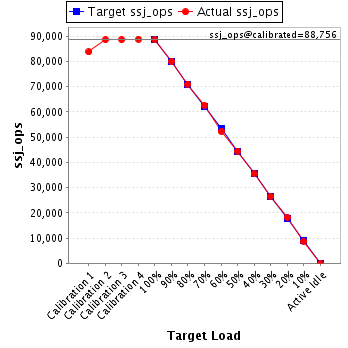

Graph of results
System Under Test
Set: 'RX2530 M1'
Set Identifier: RX2530 M1
Set Description: System Under Test
# of Identical Nodes: 1
Comment: Single Node
Hardware
Hardware Vendor: Fujitsu
Model: FUJITSU Server PRIMERGY RX2530 M1
Form Factor: 1U
CPU Name: Intel Xeon E5-2699 v3
CPU Characteristics: 18-Core, 2.30GHz, 45MB L3 Cache
CPU Frequency (MHz): 2300
CPU(s) Enabled: 36 cores, 2 chips, 18 cores/chip
Hardware Threads: 72 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 45 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 64
# and size of DIMM: 8 x 8192 MB
Memory Details: 8 GB DDR4, registered, ECC, 2133 MHz, PC4-2133R, DIMM, 2Rx8; slots 1A, 1B, 1C, 1D, 1E, 1F, 1G, 1H populated
Power Supply Quantity and Rating (W): 1 x 800
Power Supply Details: Fujitsu Technology Solutions S26113-F615-E10
Disk Drive: 1 x DOM SATA 6G 64GB Main N H-P, S26361-F5522-E64
Disk Controller: Integrated SATA Controller
# and type of Network Interface Cards (NICs) Installed: 1 x PLAN AP 1x1Gbit Cu Intel I210-T1 LP (Copper), S26361-F3852-E201
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled ("Fujitsu Enhanced Power Settings" power plan)
Operating System (OS): Microsoft Windows Server 2008 R2 Enterprise SP1
OS Version: Version 6.1.7601 Service Pack 1 Build 7601
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.6, JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120322_106209 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xmn825m -Xms975m -Xmx975m -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -XlockReservation -Xnoloa -XtlhPrefetch -Xlp -Xconcurrentlevel0 -Xthr:minimizeusercpu -Xgcthreads2 (-Xgcthreads1 for JVM5 and JVM23)
JVM Affinity: start /NODE [0,1,2,3] /AFFINITY [0x3,0xC,0x30,0xC0,0x300,0xC00,0x3000,0xC000,0x30000]
JVM Instances: 36
JVM Initial Heap (MB): 975
JVM Maximum Heap (MB): 975
JVM Address Bits: 64
Boot Firmware Version: R1.11.0
Management Firmware Version: 7.69F
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: IBM WebSphere Application Server V8.5.0.0, Microsoft Hotfix for Windows (KB2510206)
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
Performance Details
Target Load Actual Load Transaction Type Count Total Heap (MB)
Calibration 1 New Order 6,093,964 975
Payment 6,093,967
Order Status 609,397
Delivery 609,396
Stock Level 609,395
Customer Report 6,093,963
Calibration 2 New Order 6,456,677 975
Payment 6,456,677
Order Status 645,667
Delivery 645,667
Stock Level 645,668
Customer Report 6,456,681
Calibration 3 New Order 6,447,681 975
Payment 6,447,683
Order Status 644,767
Delivery 644,769
Stock Level 644,767
Customer Report 6,447,680
Calibration 4 New Order 6,462,986 975
Payment 6,462,984
Order Status 646,299
Delivery 646,298
Stock Level 646,299
Customer Report 6,462,989
100% 99.8% New Order 6,440,280 975
Payment 6,440,282
Order Status 644,028
Delivery 644,029
Stock Level 644,027
Customer Report 6,440,282
90% 90.3% New Order 5,826,407 975
Payment 5,826,407
Order Status 582,643
Delivery 582,641
Stock Level 582,640
Customer Report 5,826,409
80% 80.0% New Order 5,166,659 975
Payment 5,166,661
Order Status 516,666
Delivery 516,666
Stock Level 516,666
Customer Report 5,166,660
70% 70.4% New Order 4,549,042 975
Payment 4,549,042
Order Status 454,905
Delivery 454,905
Stock Level 454,903
Customer Report 4,549,042
60% 58.9% New Order 3,804,573 975
Payment 3,804,570
Order Status 380,458
Delivery 380,456
Stock Level 380,457
Customer Report 3,804,574
50% 50.1% New Order 3,239,393 975
Payment 3,239,401
Order Status 323,939
Delivery 323,939
Stock Level 323,939
Customer Report 3,239,398
40% 40.0% New Order 2,579,582 975
Payment 2,579,584
Order Status 257,959
Delivery 257,959
Stock Level 257,959
Customer Report 2,579,587
30% 29.9% New Order 1,929,395 975
Payment 1,929,391
Order Status 192,940
Delivery 192,941
Stock Level 192,940
Customer Report 1,929,393
20% 20.6% New Order 1,327,271 975
Payment 1,327,275
Order Status 132,727
Delivery 132,726
Stock Level 132,727
Customer Report 1,327,274
10% 9.8% New Order 631,801 975
Payment 631,804
Order Status 63,180
Delivery 63,178
Stock Level 63,181
Customer Report 631,804
Active Idle New Order 0 975
Payment 0
Order Status 0
Delivery 0
Stock Level 0
Customer Report 0
