Fujitsu FUJITSU Server PRIMERGY RX2530 M1 ssj_ops@100% = 90,028
Test Sponsor: Fujitsu SPEC License #: 19 Test Method: Single Node
Tested By: Fujitsu Test Location: Paderborn, NRW, Germany Test Date: Jan 9, 2015
Hardware Availability: Feb-2015 Software Availability: Jun-2013 Publication: Feb 5, 2015
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,380
Calibration 2     89,453
Calibration 3     90,071
Calibration 4     90,255
ssj_ops@calibrated=90,163
100% 99.9% 90,163 90,028
90% 90.6% 81,147 81,709
80% 79.8% 72,130 71,924
70% 69.4% 63,114 62,546
60% 59.8% 54,098 53,897
50% 50.1% 45,082 45,207
40% 39.9% 36,065 36,012
30% 30.4% 27,049 27,444
20% 19.4% 18,033 17,533
10% 10.0% 9,016 9,037
Active Idle   0 0

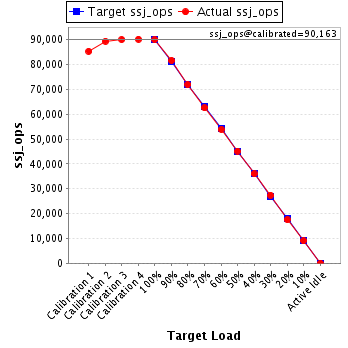

Graph of results
System Under Test
Set: 'RX2530 M1'
Set Identifier: RX2530 M1
Set Description: System Under Test
# of Identical Nodes: 1
Comment: Single Node
Hardware
Hardware Vendor: Fujitsu
Model: FUJITSU Server PRIMERGY RX2530 M1
Form Factor: 1U
CPU Name: Intel Xeon E5-2699 v3
CPU Characteristics: 18-Core, 2.30GHz, 45MB L3 Cache
CPU Frequency (MHz): 2300
CPU(s) Enabled: 36 cores, 2 chips, 18 cores/chip
Hardware Threads: 72 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 45 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 64
# and size of DIMM: 8 x 8192 MB
Memory Details: 8 GB DDR4, registered, ECC, 2133 MHz, PC4-2133R, DIMM, 2Rx8; slots 1A, 1B, 1C, 1D, 1E, 1F, 1G, 1H populated
Power Supply Quantity and Rating (W): 1 x 800
Power Supply Details: Fujitsu Technology Solutions S26113-F615-E10
Disk Drive: 1 x DOM SATA 6G 64GB Main N H-P, S26361-F5522-E64
Disk Controller: Integrated SATA Controller
# and type of Network Interface Cards (NICs) Installed: 1 x PLAN AP 1x1Gbit Cu Intel I210-T1 LP (Copper), S26361-F3852-E201
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled ("Fujitsu Enhanced Power Settings" power plan)
Operating System (OS): Microsoft Windows Server 2008 R2 Enterprise SP1
OS Version: Version 6.1.7601 Service Pack 1 Build 7601
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.6, JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120322_106209 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xmn825m -Xms975m -Xmx975m -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -XlockReservation -Xnoloa -XtlhPrefetch -Xlp -Xconcurrentlevel0 -Xthr:minimizeusercpu -Xgcthreads2 (-Xgcthreads1 for JVM5 and JVM23)
JVM Affinity: start /NODE [0,1,2,3] /AFFINITY [0x3,0xC,0x30,0xC0,0x300,0xC00,0x3000,0xC000,0x30000]
JVM Instances: 36
JVM Initial Heap (MB): 975
JVM Maximum Heap (MB): 975
JVM Address Bits: 64
Boot Firmware Version: R1.11.0
Management Firmware Version: 7.69F
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: IBM WebSphere Application Server V8.5.0.0, Microsoft Hotfix for Windows (KB2510206)
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
Performance Details
Target Load Actual Load Transaction Type Count Total Heap (MB)
Calibration 1 New Order 6,210,748 975
Payment 6,210,744
Order Status 621,075
Delivery 621,075
Stock Level 621,074
Customer Report 6,210,751
Calibration 2 New Order 6,507,846 975
Payment 6,507,847
Order Status 650,784
Delivery 650,785
Stock Level 650,784
Customer Report 6,507,846
Calibration 3 New Order 6,553,169 975
Payment 6,553,169
Order Status 655,315
Delivery 655,317
Stock Level 655,316
Customer Report 6,553,166
Calibration 4 New Order 6,570,892 975
Payment 6,570,889
Order Status 657,089
Delivery 657,088
Stock Level 657,089
Customer Report 6,570,885
100% 99.9% New Order 6,550,962 975
Payment 6,550,959
Order Status 655,096
Delivery 655,095
Stock Level 655,097
Customer Report 6,550,962
90% 90.6% New Order 5,942,894 975
Payment 5,942,895
Order Status 594,290
Delivery 594,290
Stock Level 594,290
Customer Report 5,942,895
80% 79.8% New Order 5,231,187 975
Payment 5,231,188
Order Status 523,118
Delivery 523,118
Stock Level 523,119
Customer Report 5,231,186
70% 69.4% New Order 4,550,657 975
Payment 4,550,653
Order Status 455,065
Delivery 455,065
Stock Level 455,065
Customer Report 4,550,656
60% 59.8% New Order 3,920,405 975
Payment 3,920,406
Order Status 392,039
Delivery 392,041
Stock Level 392,040
Customer Report 3,920,400
50% 50.1% New Order 3,287,808 975
Payment 3,287,808
Order Status 328,782
Delivery 328,781
Stock Level 328,782
Customer Report 3,287,808
40% 39.9% New Order 2,619,047 975
Payment 2,619,049
Order Status 261,904
Delivery 261,904
Stock Level 261,904
Customer Report 2,619,047
30% 30.4% New Order 1,996,051 975
Payment 1,996,047
Order Status 199,605
Delivery 199,605
Stock Level 199,605
Customer Report 1,996,045
20% 19.4% New Order 1,275,151 975
Payment 1,275,152
Order Status 127,515
Delivery 127,514
Stock Level 127,516
Customer Report 1,275,152
10% 10.0% New Order 657,270 975
Payment 657,276
Order Status 65,727
Delivery 65,728
Stock Level 65,728
Customer Report 657,271
Active Idle New Order 0 975
Payment 0
Order Status 0
Delivery 0
Stock Level 0
Customer Report 0
