Fujitsu FUJITSU Server PRIMERGY RX2530 M1 ssj_ops@100% = 88,323
Test Sponsor: Fujitsu SPEC License #: 19 Test Method: Single Node
Tested By: Fujitsu Test Location: Paderborn, NRW, Germany Test Date: Jan 9, 2015
Hardware Availability: Feb-2015 Software Availability: Jun-2013 Publication: Feb 5, 2015
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,702
Calibration 2     88,269
Calibration 3     88,164
Calibration 4     88,836
ssj_ops@calibrated=88,500
100% 99.8% 88,500 88,323
90% 90.0% 79,650 79,668
80% 80.7% 70,800 71,451
70% 69.9% 61,950 61,851
60% 60.0% 53,100 53,139
50% 50.5% 44,250 44,685
40% 39.7% 35,400 35,103
30% 30.0% 26,550 26,560
20% 19.4% 17,700 17,204
10% 10.1% 8,850 8,975
Active Idle   0 0

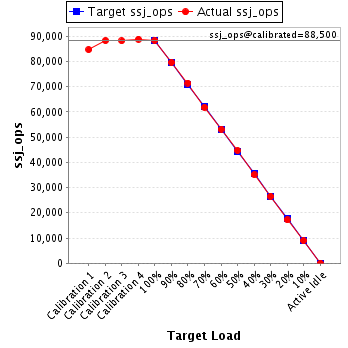

Graph of results
System Under Test
Set: 'RX2530 M1'
Set Identifier: RX2530 M1
Set Description: System Under Test
# of Identical Nodes: 1
Comment: Single Node
Hardware
Hardware Vendor: Fujitsu
Model: FUJITSU Server PRIMERGY RX2530 M1
Form Factor: 1U
CPU Name: Intel Xeon E5-2699 v3
CPU Characteristics: 18-Core, 2.30GHz, 45MB L3 Cache
CPU Frequency (MHz): 2300
CPU(s) Enabled: 36 cores, 2 chips, 18 cores/chip
Hardware Threads: 72 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 45 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 64
# and size of DIMM: 8 x 8192 MB
Memory Details: 8 GB DDR4, registered, ECC, 2133 MHz, PC4-2133R, DIMM, 2Rx8; slots 1A, 1B, 1C, 1D, 1E, 1F, 1G, 1H populated
Power Supply Quantity and Rating (W): 1 x 800
Power Supply Details: Fujitsu Technology Solutions S26113-F615-E10
Disk Drive: 1 x DOM SATA 6G 64GB Main N H-P, S26361-F5522-E64
Disk Controller: Integrated SATA Controller
# and type of Network Interface Cards (NICs) Installed: 1 x PLAN AP 1x1Gbit Cu Intel I210-T1 LP (Copper), S26361-F3852-E201
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled ("Fujitsu Enhanced Power Settings" power plan)
Operating System (OS): Microsoft Windows Server 2008 R2 Enterprise SP1
OS Version: Version 6.1.7601 Service Pack 1 Build 7601
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.6, JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120322_106209 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xmn825m -Xms975m -Xmx975m -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -XlockReservation -Xnoloa -XtlhPrefetch -Xlp -Xconcurrentlevel0 -Xthr:minimizeusercpu -Xgcthreads2 (-Xgcthreads1 for JVM5 and JVM23)
JVM Affinity: start /NODE [0,1,2,3] /AFFINITY [0x3,0xC,0x30,0xC0,0x300,0xC00,0x3000,0xC000,0x30000]
JVM Instances: 36
JVM Initial Heap (MB): 975
JVM Maximum Heap (MB): 975
JVM Address Bits: 64
Boot Firmware Version: R1.11.0
Management Firmware Version: 7.69F
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: IBM WebSphere Application Server V8.5.0.0, Microsoft Hotfix for Windows (KB2510206)
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
Performance Details
Target Load Actual Load Transaction Type Count Total Heap (MB)
Calibration 1 New Order 6,162,802 975
Payment 6,162,806
Order Status 616,279
Delivery 616,279
Stock Level 616,281
Customer Report 6,162,801
Calibration 2 New Order 6,421,383 975
Payment 6,421,386
Order Status 642,138
Delivery 642,139
Stock Level 642,139
Customer Report 6,421,381
Calibration 3 New Order 6,414,550 975
Payment 6,414,547
Order Status 641,454
Delivery 641,454
Stock Level 641,456
Customer Report 6,414,549
Calibration 4 New Order 6,461,081 975
Payment 6,461,078
Order Status 646,108
Delivery 646,108
Stock Level 646,108
Customer Report 6,461,074
100% 99.8% New Order 6,424,387 975
Payment 6,424,384
Order Status 642,439
Delivery 642,438
Stock Level 642,438
Customer Report 6,424,387
90% 90.0% New Order 5,794,057 975
Payment 5,794,059
Order Status 579,406
Delivery 579,405
Stock Level 579,405
Customer Report 5,794,057
80% 80.7% New Order 5,197,822 975
Payment 5,197,823
Order Status 519,782
Delivery 519,782
Stock Level 519,781
Customer Report 5,197,818
70% 69.9% New Order 4,499,125 975
Payment 4,499,127
Order Status 449,911
Delivery 449,912
Stock Level 449,912
Customer Report 4,499,125
60% 60.0% New Order 3,865,397 975
Payment 3,865,402
Order Status 386,539
Delivery 386,541
Stock Level 386,540
Customer Report 3,865,395
50% 50.5% New Order 3,250,182 975
Payment 3,250,181
Order Status 325,018
Delivery 325,017
Stock Level 325,019
Customer Report 3,250,183
40% 39.7% New Order 2,552,992 975
Payment 2,552,997
Order Status 255,298
Delivery 255,299
Stock Level 255,299
Customer Report 2,552,994
30% 30.0% New Order 1,931,672 975
Payment 1,931,666
Order Status 193,165
Delivery 193,168
Stock Level 193,166
Customer Report 1,931,672
20% 19.4% New Order 1,251,214 975
Payment 1,251,209
Order Status 125,121
Delivery 125,120
Stock Level 125,120
Customer Report 1,251,216
10% 10.1% New Order 652,728 975
Payment 652,728
Order Status 65,274
Delivery 65,272
Stock Level 65,271
Customer Report 652,727
Active Idle New Order 0 975
Payment 0
Order Status 0
Delivery 0
Stock Level 0
Customer Report 0
