Fujitsu FUJITSU Server PRIMERGY RX2530 M1 ssj_ops@100% = 87,012
Test Sponsor: Fujitsu SPEC License #: 19 Test Method: Single Node
Tested By: Fujitsu Test Location: Paderborn, NRW, Germany Test Date: Jan 9, 2015
Hardware Availability: Feb-2015 Software Availability: Jun-2013 Publication: Feb 5, 2015
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,342
Calibration 2     86,597
Calibration 3     86,954
Calibration 4     87,349
ssj_ops@calibrated=87,152
100% 99.8% 87,152 87,012
90% 90.8% 78,437 79,094
80% 79.3% 69,721 69,150
70% 69.6% 61,006 60,684
60% 60.3% 52,291 52,595
50% 50.3% 43,576 43,877
40% 39.9% 34,861 34,807
30% 30.9% 26,146 26,924
20% 20.3% 17,430 17,700
10% 9.6% 8,715 8,381
Active Idle   0 0

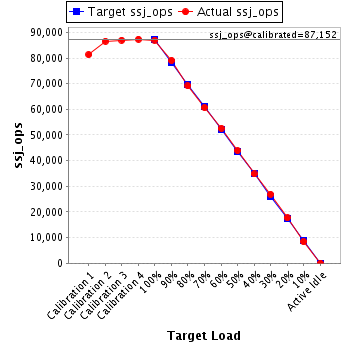

Graph of results
System Under Test
Set: 'RX2530 M1'
Set Identifier: RX2530 M1
Set Description: System Under Test
# of Identical Nodes: 1
Comment: Single Node
Hardware
Hardware Vendor: Fujitsu
Model: FUJITSU Server PRIMERGY RX2530 M1
Form Factor: 1U
CPU Name: Intel Xeon E5-2699 v3
CPU Characteristics: 18-Core, 2.30GHz, 45MB L3 Cache
CPU Frequency (MHz): 2300
CPU(s) Enabled: 36 cores, 2 chips, 18 cores/chip
Hardware Threads: 72 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 45 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 64
# and size of DIMM: 8 x 8192 MB
Memory Details: 8 GB DDR4, registered, ECC, 2133 MHz, PC4-2133R, DIMM, 2Rx8; slots 1A, 1B, 1C, 1D, 1E, 1F, 1G, 1H populated
Power Supply Quantity and Rating (W): 1 x 800
Power Supply Details: Fujitsu Technology Solutions S26113-F615-E10
Disk Drive: 1 x DOM SATA 6G 64GB Main N H-P, S26361-F5522-E64
Disk Controller: Integrated SATA Controller
# and type of Network Interface Cards (NICs) Installed: 1 x PLAN AP 1x1Gbit Cu Intel I210-T1 LP (Copper), S26361-F3852-E201
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled ("Fujitsu Enhanced Power Settings" power plan)
Operating System (OS): Microsoft Windows Server 2008 R2 Enterprise SP1
OS Version: Version 6.1.7601 Service Pack 1 Build 7601
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.6, JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120322_106209 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xmn825m -Xms975m -Xmx975m -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -XlockReservation -Xnoloa -XtlhPrefetch -Xlp -Xconcurrentlevel0 -Xthr:minimizeusercpu -Xgcthreads2 (-Xgcthreads1 for JVM5 and JVM23)
JVM Affinity: start /NODE [0,1,2,3] /AFFINITY [0x3,0xC,0x30,0xC0,0x300,0xC00,0x3000,0xC000,0x30000]
JVM Instances: 36
JVM Initial Heap (MB): 975
JVM Maximum Heap (MB): 975
JVM Address Bits: 64
Boot Firmware Version: R1.11.0
Management Firmware Version: 7.69F
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: IBM WebSphere Application Server V8.5.0.0, Microsoft Hotfix for Windows (KB2510206)
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
Performance Details
Target Load Actual Load Transaction Type Count Total Heap (MB)
Calibration 1 New Order 5,918,628 975
Payment 5,918,628
Order Status 591,863
Delivery 591,863
Stock Level 591,863
Customer Report 5,918,626
Calibration 2 New Order 6,298,523 975
Payment 6,298,525
Order Status 629,852
Delivery 629,851
Stock Level 629,851
Customer Report 6,298,526
Calibration 3 New Order 6,328,930 975
Payment 6,328,929
Order Status 632,892
Delivery 632,894
Stock Level 632,894
Customer Report 6,328,925
Calibration 4 New Order 6,353,114 975
Payment 6,353,105
Order Status 635,312
Delivery 635,311
Stock Level 635,313
Customer Report 6,353,111
100% 99.8% New Order 6,329,039 975
Payment 6,329,039
Order Status 632,905
Delivery 632,904
Stock Level 632,904
Customer Report 6,329,037
90% 90.8% New Order 5,754,546 975
Payment 5,754,547
Order Status 575,455
Delivery 575,454
Stock Level 575,456
Customer Report 5,754,548
80% 79.3% New Order 5,033,198 975
Payment 5,033,204
Order Status 503,320
Delivery 503,322
Stock Level 503,321
Customer Report 5,033,203
70% 69.6% New Order 4,413,542 975
Payment 4,413,546
Order Status 441,356
Delivery 441,354
Stock Level 441,354
Customer Report 4,413,546
60% 60.3% New Order 3,826,128 975
Payment 3,826,140
Order Status 382,613
Delivery 382,614
Stock Level 382,613
Customer Report 3,826,132
50% 50.3% New Order 3,191,124 975
Payment 3,191,122
Order Status 319,112
Delivery 319,113
Stock Level 319,112
Customer Report 3,191,115
40% 39.9% New Order 2,531,420 975
Payment 2,531,418
Order Status 253,144
Delivery 253,141
Stock Level 253,142
Customer Report 2,531,422
30% 30.9% New Order 1,958,175 975
Payment 1,958,171
Order Status 195,818
Delivery 195,818
Stock Level 195,818
Customer Report 1,958,174
20% 20.3% New Order 1,287,301 975
Payment 1,287,299
Order Status 128,730
Delivery 128,729
Stock Level 128,730
Customer Report 1,287,294
10% 9.6% New Order 609,542 975
Payment 609,543
Order Status 60,956
Delivery 60,953
Stock Level 60,954
Customer Report 609,539
Active Idle New Order 0 975
Payment 0
Order Status 0
Delivery 0
Stock Level 0
Customer Report 0
