Supermicro Inc. SYS-1028R-WC1RT SPECpower_ssj2008 = 8,004 overall ssj_ops/watt
Test Sponsor: Supermicro Inc. SPEC License #: 1176 Test Method: Single Node
Tested By: Supermicro Inc. Test Location: Chung-Ho Dist,TW, R.O.C Test Date: Sep 25, 2014
Hardware Availability: Jan-2015 Software Availability: Sep-2012 Publication: Feb 11, 2015
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Active Power (W)
100% 99.6% 2,935,596 302 9,723
90% 89.9% 2,649,490 272 9,753
80% 80.1% 2,359,135 246 9,592
70% 69.9% 2,059,455 221 9,303
60% 60.0% 1,767,074 198 8,914
50% 50.1% 1,475,925 178 8,306
40% 40.1% 1,181,345 159 7,434
30% 30.0% 883,970 140 6,300
20% 20.1% 591,825 124 4,777
10% 10.0% 294,178 108 2,730
Active Idle 0 75.9 0
∑ssj_ops / ∑power = 8,004

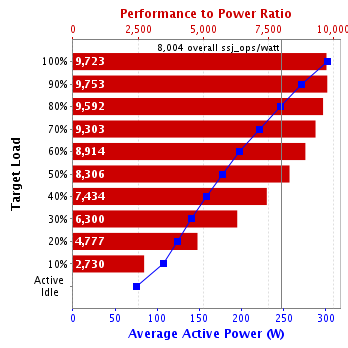

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Supermicro Inc.
Model: SYS-1028R-WC1RT
Form Factor: 1U
CPU Name: Intel Xeon E5-2699 v3
CPU Characteristics: 18-Core, 2.3GHz, 45MB L3 cache
CPU Frequency (MHz): 2300
CPU(s) Enabled: 36 cores, 2 chips, 18 cores/chip
Hardware Threads: 72 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 45 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 32
# and size of DIMM: 8 x 4096 MB
Memory Details: 4GB 1Rx4 PC3L-12800R; A1,B1,C1,D1,E1,F1,G1,H1 populated.
Power Supply Quantity and Rating (W): 1 x 700
Power Supply Details: PWS-704P-1R
Disk Drive: 1 x Seagate SATA III 100 GB SSD 9XW152-003
Disk Controller: onboard SCU controller
# and type of Network Interface Cards (NICs) Installed: 1 x Dual-port Onboard Intel I350 Gigabit Ethernet controller
NICs Enabled in Firmware / OS / Connected: 2/1/1
Network Speed (Mbit): 1000
Keyboard: KVM
Mouse: KVM
Monitor: KVM
Optical Drives: No
Other Hardware: None
Software
Power Management: Power Saver
Operating System (OS): Microsoft Windows Server Enterprise 2008 R2 SP1
OS Version: 6.1.7601 Build 7601 (64-bit)
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.6, JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120322_106209 (JIT enabled, AOT enabled))
JVM Command-line Options: -Xtune:virtualized -server -showversion-Xmx1500m -Xms1500m -Xmn1300m -Xaggressive -Xcompressedrefs XlockReservation -Xnoloa -XtlhPrefetch -Xlp -Xthr:minimizeusercpu -Xconcurrentlevel16 -Xgcthreads8 -Xfastresolve -Xgcpolicy:gencon -Xcompactgc -Xgc:preferredHeapBase=0x80000000
JVM Affinity: start /affinity [F,F0,F00,F000,F0000,F00000,F000000,F0000000,F00000000,F000000000,F0000000000,F00000000000,F000000000000,F0000000000000,F00000000000000,F000000000000000,F0000000000000000,F00000000000000000]
JVM Instances: 18
JVM Initial Heap (MB): 1500
JVM Maximum Heap (MB): 1500
JVM Address Bits: 64
Boot Firmware Version: X10DRW4.821
Management Firmware Version: 01.67
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: IBM WebSphere Application Server V8.5.0.0
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Controller System
Hardware
Hardware Vendor: Supermicro Inc.
Model: X8SIA
CPU Description: I7 880 3.07G
Memory amount (GB): 8
Software
Operating System (OS): Windows Server 2008 R2 Enterprise Edition
JVM Vendor: Oracle Corporation
JVM Version: Jave(TM) SE Runtime Environment (build 1.7.0_04-b22) Java HotSpot(TM) 64-Bit Server VM(build 23.0-b21)
CCS Version: 1.2.6
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Meters and Instruments Corporation
Model: WT210
Serial Number: 91M620744
Connectivity: Serial
Input Connection: Default
Metrology Institute: NML (National Measurement Laboratory)
Accredited by: Omnio Calibration Lab. Co., Ltd.
Calibration Label: OCL-2351403T19C1
Date of Calibration: 20-Mar-2014
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.7.0-538b1562-20140802
Setup Description: Connected to PSU
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 5.10.26.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 10 mm in front of SUT main air intake
Notes
None
Aggregate Electrical and Environmental Data
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
100% 302 29.1
90% 272 28.8
80% 246 28.5
70% 221 28.2
60% 198 28.0
50% 178 27.7
40% 159 27.5
30% 140 27.3
20% 124 27.1
10% 108 27.1
Active Idle 75.9 27.0
Line Standard Minimum Temperature (°C) Elevation (m)
220V / 60 Hz / 1 phase / 2 wires 27.0 10
See the Power/Temperature Details Report for additional details.
Aggregate Performance Data
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     2,865,073
Calibration 2     2,944,612
Calibration 3     2,948,357
ssj_ops@calibrated=2,946,485
100% 99.6% 2,946,485 2,935,596
90% 89.9% 2,651,836 2,649,490
80% 80.1% 2,357,188 2,359,135
70% 69.9% 2,062,539 2,059,455
60% 60.0% 1,767,891 1,767,074
50% 50.1% 1,473,242 1,475,925
40% 40.1% 1,178,594 1,181,345
30% 30.0% 883,945 883,970
20% 20.1% 589,297 591,825
10% 10.0% 294,648 294,178
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
