Quanta Computer Inc. QuantaGrid D51B-2U SPECpower_ssj2008 = 10,238 overall ssj_ops/watt
Test Sponsor: Quanta Computer Inc. SPEC License #: 9050 Test Method: Single Node
Tested By: Quanta Computer Inc. Test Location: Taoyuan, TW, R.O.C Test Date: Nov 22, 2014
Hardware Availability: Sep-2014 Software Availability: Jun-2013 Publication: Dec 10, 2014
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 271 20.4
Calibration 2 272 20.4
Calibration 3 273 20.5
100% 272 20.6
90% 245 20.6
80% 217 20.7
70% 190 20.7
60% 169 20.8
50% 148 20.8
40% 137 20.8
30% 120 20.8
20% 104 20.8
10% 88.0 20.7
Active Idle 49.6 20.7

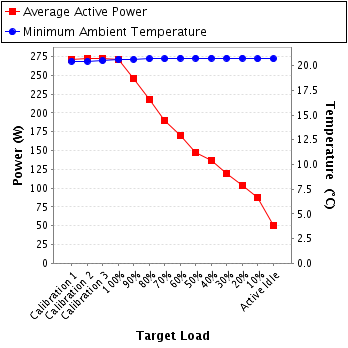

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Meters and Instruments Corporation
Model: WT210
Serial Number: 91H326073
Connectivity: RS-232
Input Connection: Default
Metrology Institute: NML (National Measurement Laboratory)
Accredited by: Tai Yi Electronics & Surveillance Co., Ltd.
Calibration Label: Y1312180102
Date of Calibration: 19-Dec-2013
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.7.0-538b1562-20140802
Setup Description: Connected to power supply
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 25 mm in front of SUT main airflow intake
Notes
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 220 300.0 1.27 2.0 0.970 271 0.4%
Calibration 2 220 300.0 1.27 2.0 0.971 272 0.4%
Calibration 3 220 300.0 1.28 2.0 0.971 273 0.4%
100% 220 300.0 1.27 2.0 0.971 272 0.4%
90% 220 300.0 1.15 2.0 0.965 245 0.4%
80% 220 300.0 1.03 2.0 0.957 217 0.4%
70% 220 300.0 0.897 2.0 0.961 190 0.5%
60% 220 300.0 0.808 1.0 0.954 169 0.3%
50% 220 300.0 0.710 1.0 0.948 148 0.4%
40% 220 300.0 0.667 1.0 0.936 137 0.4%
30% 220 300.0 0.591 1.0 0.922 120 0.4%
20% 220 300.0 0.522 1.0 0.907 104 0.5%
10% 220 300.0 0.450 0.5 0.892 88.0 0.4%
Active Idle 220 300.0 0.284 0.5 0.793 49.6 0.5%

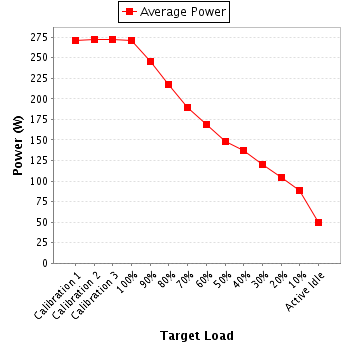

Power details for pwr1
