SPECpower_ssj2008
Host 'WIN-GAN8D6T7L09' Performance Report
Copyright © 2007-2014 Standard Performance Evaluation Corporation
| Huawei Technologies Co., Ltd RH2288H V2 | ssj_ops@100% = 543,919 ssj_ops@100% per JVM = 271,960 |
||||
| Test Sponsor: | Huawei Technologies Co., Ltd | SPEC License #: | 3175 | Test Method: | Single Node |
| Tested By: | Huawei Technologies Co., Ltd | Test Location: | Shenzhen, Guangdong, China | Test Date: | Mar 8, 2014 |
| Hardware Availability: | Sep-2013 | Software Availability: | Jun-2013 | Publication: | May 7, 2014 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 543,301 | ||
| Calibration 2 | 550,143 | ||
| Calibration 3 | 553,024 | ||
| ssj_ops@calibrated=551,584 | |||
| 100% | 98.6% | 551,584 | 543,919 |
| 90% | 89.6% | 496,425 | 494,156 |
| 80% | 80.4% | 441,267 | 443,307 |
| 70% | 69.9% | 386,109 | 385,578 |
| 60% | 60.2% | 330,950 | 332,290 |
| 50% | 50.1% | 275,792 | 276,202 |
| 40% | 39.8% | 220,633 | 219,623 |
| 30% | 29.8% | 165,475 | 164,479 |
| 20% | 20.1% | 110,317 | 110,882 |
| 10% | 9.9% | 55,158 | 54,808 |
| Active Idle | 0 | 0 | |
| Set Identifier: | sut |
| Set Description: | System Under Test |
| # of Identical Nodes: | 1 |
| Comment: | Here is a comment for this set. |
| Software | |
|---|---|
| Power Management: | Power Saver Mode enabled in OS |
| Operating System (OS): | Microsoft Windows Server 2008 Enterprise x64 Edition |
| OS Version: | R2 SP1 (64-bit) |
| Filesystem: | NTFS |
| JVM Vendor: | IBM Corporation |
| JVM Version: | IBM J9 VM (build 2.6,JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120322_106209 (JIT enabled, AOT enabled) |
| JVM Command-line Options: | -Xaggressive -Xcompressedrefs -Xmx1875m -Xms1875m -Xmn1400m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp -Xconcurrentlevel0 |
| JVM Affinity: | start /affinity [F,F0] |
| JVM Instances: | 2 |
| JVM Initial Heap (MB): | 1875 |
| JVM Maximum Heap (MB): | 1875 |
| JVM Address Bits: | 64 |
| Boot Firmware Version: | V372 |
| Management Firmware Version: | 5.88 |
| Workload Version: | SSJ 1.2.10 |
| Director Location: | Controller |
| Other Software: | IBM SDK Java Technology Edition Version 7.0 for windows x64 |

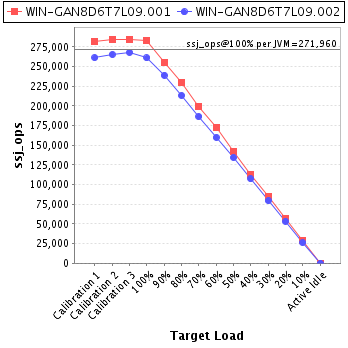

| JVM Instance | ssj_ops@100% |
|---|---|
| WIN-GAN8D6T7L09.001 | 282,909 |
| WIN-GAN8D6T7L09.002 | 261,010 |
| ssj_ops@100% | 543,919 |
| ssj_ops@100% per JVM | 271,960 |

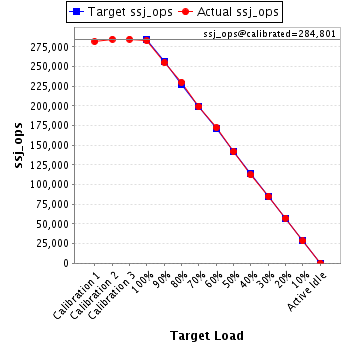

| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 281,986 | ||
| Calibration 2 | 284,709 | ||
| Calibration 3 | 284,893 | ||
| ssj_ops@calibrated=284,801 | |||
| 100% | 99.3% | 284,801 | 282,909 |
| 90% | 89.6% | 256,321 | 255,119 |
| 80% | 80.8% | 227,841 | 230,055 |
| 70% | 69.9% | 199,361 | 199,086 |
| 60% | 60.5% | 170,881 | 172,410 |
| 50% | 49.8% | 142,401 | 141,765 |
| 40% | 39.4% | 113,920 | 112,285 |
| 30% | 29.8% | 85,440 | 85,007 |
| 20% | 20.2% | 56,960 | 57,539 |
| 10% | 10.0% | 28,480 | 28,364 |
| Active Idle | 0 | 0 | |

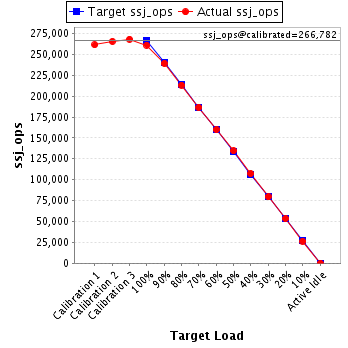

| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 261,315 | ||
| Calibration 2 | 265,434 | ||
| Calibration 3 | 268,131 | ||
| ssj_ops@calibrated=266,782 | |||
| 100% | 97.8% | 266,782 | 261,010 |
| 90% | 89.6% | 240,104 | 239,036 |
| 80% | 79.9% | 213,426 | 213,252 |
| 70% | 69.9% | 186,748 | 186,493 |
| 60% | 59.9% | 160,069 | 159,880 |
| 50% | 50.4% | 133,391 | 134,437 |
| 40% | 40.2% | 106,713 | 107,337 |
| 30% | 29.8% | 80,035 | 79,473 |
| 20% | 20.0% | 53,356 | 53,343 |
| 10% | 9.9% | 26,678 | 26,444 |
| Active Idle | 0 | 0 | |
