Huawei Technologies Co., Ltd RH2288H V2 SPECpower_ssj2008 = 2,716 overall ssj_ops/watt
Test Sponsor: Huawei Technologies Co., Ltd SPEC License #: 3175 Test Method: Single Node
Tested By: Huawei Technologies Co., Ltd Test Location: Shenzhen, Guangdong, China Test Date: Mar 8, 2014
Hardware Availability: Sep-2013 Software Availability: Jun-2013 Publication: May 7, 2014
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 137 23.9
Calibration 2 138 23.9
Calibration 3 139 23.9
100% 137 24.0
90% 131 24.0
80% 121 23.9
70% 111 23.9
60% 104 23.9
50% 97.3 23.9
40% 92.5 23.9
30% 88.4 23.9
20% 84.0 23.9
10% 78.3 23.9
Active Idle 68.7 23.8

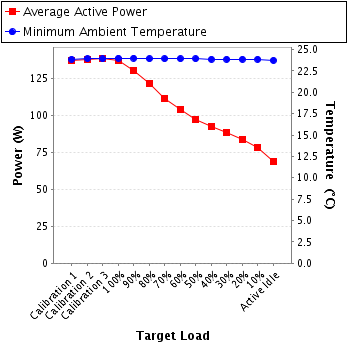

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Meters and Instruments Corporation
Model: WT210
Serial Number: 91M412343
Connectivity: GPIB
Input Connection: Default
Metrology Institute: CNAS (China National Accreditation Service for Conformity Assessment)
Accredited by: Calibration and Testing Center of CEPREI
Calibration Label: "2GB13002877-0010"
Date of Calibration: 23-Apr-2013
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.6.2-1746a8d2-20131204
Setup Description: None
Temperature Sensor temp1
Hardware Vendor: Temperature@lert
Model: TM-STD30
Driver Version: 3.1.0.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: Use a 2 meters USB extension cable to connect to the controller. And placed in front the main airflow inlet of the SUT less than 50mm.
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 224 300.0 0.620 1.0 0.985 137 0.4%
Calibration 2 225 300.0 0.623 1.0 0.985 138 0.4%
Calibration 3 225 300.0 0.627 1.0 0.985 139 0.4%
100% 225 300.0 0.621 1.0 0.984 137 0.4%
90% 225 300.0 0.591 1.0 0.984 131 0.4%
80% 224 300.0 0.552 1.0 0.985 121 0.4%
70% 223 300.0 0.508 0.5 0.984 111 0.3%
60% 222 300.0 0.477 0.5 0.982 104 0.3%
50% 222 300.0 0.446 0.5 0.980 97.3 0.3%
40% 223 300.0 0.424 0.5 0.978 92.5 0.4%
30% 223 300.0 0.405 0.5 0.977 88.4 0.4%
20% 223 300.0 0.386 0.5 0.975 84.0 0.4%
10% 223 300.0 0.360 0.5 0.972 78.3 0.4%
Active Idle 223 300.0 0.319 0.5 0.964 68.7 0.4%
Power details for pwr1
