Huawei Technologies Co., Ltd Tecal CH121 ssj_ops@100% = 1,723,109
ssj_ops@100% per JVM = 172,311
Test Sponsor: Huawei Technologies Co., Ltd SPEC License #: 3175 Test Method: Multi Node
Tested By: Huawei Technologies Co., Ltd Test Location: Shenzhen, Guangdong, China Test Date: Sep 6, 2013
Hardware Availability: Sep-2013 Software Availability: Jan-2012 Publication: Oct 21, 2013
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,697,264
Calibration 2     1,726,925
Calibration 3     1,729,831
ssj_ops@calibrated=1,728,378
100% 99.7% 1,728,378 1,723,109
90% 89.9% 1,555,540 1,554,123
80% 80.2% 1,382,702 1,386,823
70% 69.9% 1,209,865 1,207,988
60% 60.1% 1,037,027 1,038,136
50% 50.0% 864,189 865,040
40% 40.1% 691,351 692,640
30% 30.1% 518,513 520,253
20% 20.0% 345,676 345,699
10% 10.1% 172,838 173,815
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 8
Comment: None
Hardware
Hardware Vendor: Huawei Technologies Co., Ltd
Model: Tecal CH121
Form Factor: Blade
CPU Name: Intel Xeon E5-2660 v2
CPU Characteristics: 10-Core, 2.2GHz, 25MB L3 Cache (Intel Turbo Boost Technology up to 3.0GHz)
CPU Frequency (MHz): 2200
CPU(s) Enabled: 20 cores, 2 chips, 10 cores/chip
Hardware Threads: 40 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 25 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 24
# and size of DIMM: 6 x 4 GB
Memory Details: 4GB 2Rx8 PC3L-10600R ECC RDIMM,Slots 1A1 1B1, 1C1,2A1,2B1,2C1 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 240GB SSD 2.5" SATA Huawei P/N 02310MMT
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Dual-port Intel 82580 Gigabit Ethernet controller
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power Saver Mode enabled in OS
Operating System (OS): Microsoft Windows Server 2008 Enterprise x64 Edition
OS Version: R2 SP1 (64-bit)
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.6,JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120322_106209 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xmx1875m -Xms1875m -Xmn1400m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp -Xconcurrentlevel0
JVM Affinity: start /affinity [F,F0,F00,F000,F0000,F00000,F000000,F0000000,F00000000,F000000000]
JVM Instances: 10
JVM Initial Heap (MB): 1875
JVM Maximum Heap (MB): 1500
JVM Address Bits: 64
Boot Firmware Version: V063
Management Firmware Version: 3.35
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: IBM SDK Java Technology Edition Version 7.0 for windows x64
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-Q4POSRLKNCI.001 169,742
WIN-Q4POSRLKNCI.002 171,381
WIN-Q4POSRLKNCI.003 169,981
WIN-Q4POSRLKNCI.004 172,771
WIN-Q4POSRLKNCI.005 173,547
WIN-Q4POSRLKNCI.006 171,485
WIN-Q4POSRLKNCI.007 173,690
WIN-Q4POSRLKNCI.008 173,106
WIN-Q4POSRLKNCI.009 173,599
WIN-Q4POSRLKNCI.010 173,807
ssj_ops@100% 1,723,109
ssj_ops@100% per JVM 172,311

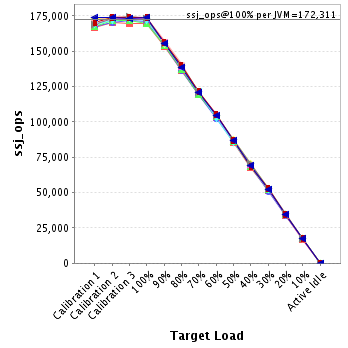

Graph of per-instance results
JVM 'WIN-Q4POSRLKNCI.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     166,716
Calibration 2     170,318
Calibration 3     169,980
ssj_ops@calibrated=170,149
100% 99.8% 170,149 169,742
90% 90.2% 153,134 153,418
80% 80.3% 136,119 136,603
70% 70.4% 119,105 119,719
60% 60.4% 102,090 102,844
50% 50.2% 85,075 85,338
40% 39.8% 68,060 67,722
30% 30.1% 51,045 51,252
20% 19.9% 34,030 33,788
10% 9.9% 17,015 16,766
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-Q4POSRLKNCI.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     167,286
Calibration 2     170,652
Calibration 3     171,616
ssj_ops@calibrated=171,134
100% 100.1% 171,134 171,381
90% 90.0% 154,021 154,100
80% 79.9% 136,907 136,683
70% 69.8% 119,794 119,382
60% 59.7% 102,680 102,099
50% 50.3% 85,567 86,131
40% 40.1% 68,454 68,582
30% 29.7% 51,340 50,795
20% 19.9% 34,227 34,126
10% 10.1% 17,113 17,355
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-Q4POSRLKNCI.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     167,566
Calibration 2     172,135
Calibration 3     171,691
ssj_ops@calibrated=171,913
100% 98.9% 171,913 169,981
90% 89.8% 154,722 154,298
80% 79.8% 137,530 137,133
70% 69.4% 120,339 119,358
60% 60.5% 103,148 104,061
50% 50.3% 85,956 86,513
40% 39.9% 68,765 68,663
30% 30.2% 51,574 51,841
20% 20.0% 34,383 34,433
10% 10.4% 17,191 17,812
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-Q4POSRLKNCI.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     173,371
Calibration 2     173,102
Calibration 3     173,765
ssj_ops@calibrated=173,433
100% 99.6% 173,433 172,771
90% 89.4% 156,090 155,080
80% 80.1% 138,747 139,004
70% 69.9% 121,403 121,250
60% 60.0% 104,060 104,101
50% 50.4% 86,717 87,409
40% 40.6% 69,373 70,401
30% 30.3% 52,030 52,604
20% 20.0% 34,687 34,675
10% 10.1% 17,343 17,525
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-Q4POSRLKNCI.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     169,088
Calibration 2     173,391
Calibration 3     173,496
ssj_ops@calibrated=173,444
100% 100.1% 173,444 173,547
90% 90.6% 156,099 157,133
80% 79.6% 138,755 138,105
70% 70.2% 121,411 121,746
60% 59.9% 104,066 103,893
50% 49.8% 86,722 86,330
40% 39.7% 69,377 68,918
30% 29.8% 52,033 51,680
20% 19.9% 34,689 34,490
10% 9.9% 17,344 17,108
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-Q4POSRLKNCI.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     168,789
Calibration 2     171,627
Calibration 3     173,081
ssj_ops@calibrated=172,354
100% 99.5% 172,354 171,485
90% 90.2% 155,119 155,388
80% 80.8% 137,883 139,256
70% 70.6% 120,648 121,667
60% 59.5% 103,413 102,478
50% 49.4% 86,177 85,128
40% 40.1% 68,942 69,191
30% 30.3% 51,706 52,155
20% 19.8% 34,471 34,161
10% 10.2% 17,235 17,517
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-Q4POSRLKNCI.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     171,627
Calibration 2     174,721
Calibration 3     174,521
ssj_ops@calibrated=174,621
100% 99.5% 174,621 173,690
90% 90.1% 157,159 157,361
80% 80.7% 139,697 141,005
70% 69.1% 122,235 120,728
60% 59.7% 104,773 104,308
50% 49.9% 87,310 87,204
40% 40.3% 69,848 70,394
30% 29.8% 52,386 52,094
20% 20.3% 34,924 35,506
10% 10.0% 17,462 17,495
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-Q4POSRLKNCI.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     168,782
Calibration 2     173,216
Calibration 3     174,634
ssj_ops@calibrated=173,925
100% 99.5% 173,925 173,106
90% 89.6% 156,532 155,853
80% 80.5% 139,140 139,941
70% 69.7% 121,747 121,298
60% 60.2% 104,355 104,764
50% 50.2% 86,962 87,267
40% 40.7% 69,570 70,724
30% 30.3% 52,177 52,645
20% 20.3% 34,785 35,279
10% 10.1% 17,392 17,512
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-Q4POSRLKNCI.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     170,378
Calibration 2     174,015
Calibration 3     173,621
ssj_ops@calibrated=173,818
100% 99.9% 173,818 173,599
90% 89.7% 156,437 155,978
80% 80.7% 139,055 140,279
70% 70.0% 121,673 121,742
60% 60.5% 104,291 105,206
50% 49.9% 86,909 86,670
40% 39.6% 69,527 68,774
30% 30.4% 52,146 52,839
20% 19.9% 34,764 34,583
10% 10.0% 17,382 17,427
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-Q4POSRLKNCI.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     173,660
Calibration 2     173,748
Calibration 3     173,425
ssj_ops@calibrated=173,586
100% 100.1% 173,586 173,807
90% 89.6% 156,228 155,516
80% 80.0% 138,869 138,813
70% 69.8% 121,510 121,099
60% 60.1% 104,152 104,382
50% 50.1% 86,793 87,051
40% 39.9% 69,434 69,271
30% 30.2% 52,076 52,348
20% 20.0% 34,717 34,658
10% 10.0% 17,359 17,298
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
