Huawei Technologies Co., Ltd Tecal CH121 SPECpower_ssj2008 = 6,453 overall ssj_ops/watt
Test Sponsor: Huawei Technologies Co., Ltd SPEC License #: 3175 Test Method: Multi Node
Tested By: Huawei Technologies Co., Ltd Test Location: Shenzhen, Guangdong, China Test Date: Sep 6, 2013
Hardware Availability: Sep-2013 Software Availability: Jan-2012 Publication: Oct 21, 2013
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 1,731 22.4
Calibration 2 1,733 22.4
Calibration 3 1,735 22.4
100% 1,732 22.4
90% 1,577 22.4
80% 1,315 22.4
70% 1,233 22.4
60% 1,151 22.4
50% 1,063 22.4
40% 970 22.4
30% 876 22.4
20% 784 22.4
10% 696 22.4
Active Idle 417 22.4

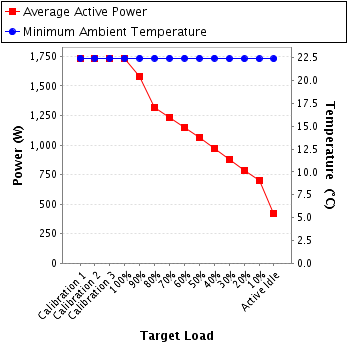

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Meters and Instruments Corporation
Model: WT210
Serial Number: 91K630156
Connectivity: RS-232
Input Connection: Default
Metrology Institute: CNAS (China National Accreditation Service for Conformity Assessment)
Accredited by: Calibration and Testing Center of CEPREI
Calibration Label: 2GB13002877-0009
Date of Calibration: 25-Apr-2013
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.6.0-7f9b1b00-20130314
Setup Description: none
Temperature Sensor temp1
Hardware Vendor: Temperature@lert
Model: TM-STD30
Driver Version: 3.1.0.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: Use a 2 meters USB extension cable to connect to the controller. And placed in front the main airflow inlet of the SUT less than 50mm.
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 221 300.0 7.86 10.0 0.996 1,731 0.3%
Calibration 2 221 300.0 7.88 10.0 0.996 1,733 0.3%
Calibration 3 220 300.0 7.90 10.0 0.996 1,735 0.3%
100% 220 300.0 7.91 10.0 0.996 1,732 0.3%
90% 220 300.0 7.22 10.0 0.995 1,577 0.4%
80% 219 300.0 6.03 10.0 0.994 1,315 0.4%
70% 220 300.0 5.65 10.0 0.993 1,233 0.4%
60% 220 300.0 5.27 10.0 0.993 1,151 0.4%
50% 220 300.0 4.87 10.0 0.991 1,063 0.5%
40% 220 300.0 4.45 10.0 0.990 970 0.5%
30% 220 300.0 4.03 5.0 0.988 876 0.4%
20% 221 300.0 3.59 5.0 0.986 784 0.4%
10% 222 300.0 3.19 5.0 0.983 696 0.4%
Active Idle 223 300.0 1.94 2.0 0.962 417 0.4%
Power details for pwr1
