Huawei Technologies Co., Ltd Tecal CH121 ssj_ops@100% = 1,735,664
ssj_ops@100% per JVM = 173,566
Test Sponsor: Huawei Technologies Co., Ltd SPEC License #: 3175 Test Method: Multi Node
Tested By: Huawei Technologies Co., Ltd Test Location: Shenzhen, Guangdong, China Test Date: Sep 2, 2013
Hardware Availability: Sep-2013 Software Availability: Jan-2012 Publication: Oct 21, 2013
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,703,540
Calibration 2     1,739,121
Calibration 3     1,740,349
ssj_ops@calibrated=1,739,735
100% 99.8% 1,739,735 1,735,664
90% 89.9% 1,565,762 1,564,478
80% 80.3% 1,391,788 1,397,215
70% 70.1% 1,217,815 1,218,712
60% 60.0% 1,043,841 1,043,247
50% 50.1% 869,868 871,955
40% 39.9% 695,894 694,550
30% 30.1% 521,921 523,103
20% 20.0% 347,947 348,812
10% 10.1% 173,974 175,830
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 6
Comment: None
Hardware
Hardware Vendor: Huawei Technologies Co., Ltd
Model: Tecal CH121
Form Factor: Blade
CPU Name: Intel Xeon E5-2660 v2
CPU Characteristics: 10-Core, 2.2GHz, 25MB L3 Cache (Intel Turbo Boost Technology up to 3.0GHz)
CPU Frequency (MHz): 2200
CPU(s) Enabled: 20 cores, 2 chips, 10 cores/chip
Hardware Threads: 40 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 25 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 24
# and size of DIMM: 6 x 4 GB
Memory Details: 4GB 2Rx8 PC3L-10600R ECC RDIMM,Slots 1A1 1B1, 1C1,2A1,2B1,2C1 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 240GB SSD 2.5" SATA Huawei P/N 02310MMT
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Dual-port Intel 82580 Gigabit Ethernet controller
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power Saver Mode enabled in OS
Operating System (OS): Microsoft Windows Server 2008 Enterprise x64 Edition
OS Version: R2 SP1 (64-bit)
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.6,JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120322_106209 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xmx1875m -Xms1875m -Xmn1400m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp -Xconcurrentlevel0
JVM Affinity: start /affinity [F,F0,F00,F000,F0000,F00000,F000000,F0000000,F00000000,F000000000]
JVM Instances: 10
JVM Initial Heap (MB): 1875
JVM Maximum Heap (MB): 1875
JVM Address Bits: 64
Boot Firmware Version: V063
Management Firmware Version: 3.35
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: IBM SDK Java Technology Edition Version 7.0 for windows x64
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-L5GJVQGBAGG.001 174,514
WIN-L5GJVQGBAGG.002 173,997
WIN-L5GJVQGBAGG.003 174,694
WIN-L5GJVQGBAGG.004 172,606
WIN-L5GJVQGBAGG.005 173,299
WIN-L5GJVQGBAGG.006 172,675
WIN-L5GJVQGBAGG.007 171,122
WIN-L5GJVQGBAGG.008 174,167
WIN-L5GJVQGBAGG.009 174,878
WIN-L5GJVQGBAGG.010 173,711
ssj_ops@100% 1,735,664
ssj_ops@100% per JVM 173,566

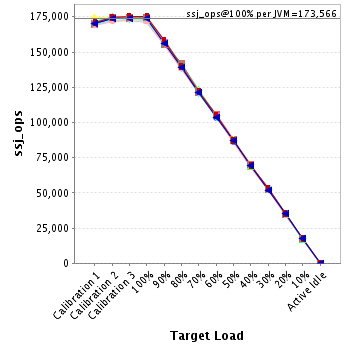

Graph of per-instance results
JVM 'WIN-L5GJVQGBAGG.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     169,518
Calibration 2     174,531
Calibration 3     174,545
ssj_ops@calibrated=174,538
100% 100.0% 174,538 174,514
90% 89.2% 157,084 155,606
80% 81.5% 139,630 142,197
70% 69.5% 122,177 121,230
60% 60.4% 104,723 105,483
50% 50.5% 87,269 88,171
40% 40.3% 69,815 70,253
30% 30.0% 52,361 52,370
20% 19.8% 34,908 34,574
10% 10.0% 17,454 17,537
Active Idle   0 0
Graph of results

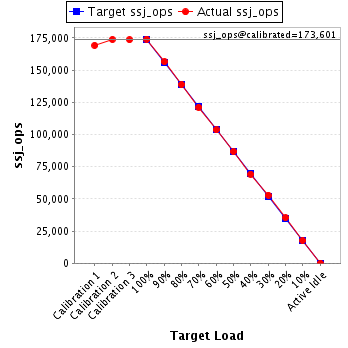

JVM 'WIN-L5GJVQGBAGG.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     169,223
Calibration 2     173,741
Calibration 3     173,461
ssj_ops@calibrated=173,601
100% 100.2% 173,601 173,997
90% 90.1% 156,241 156,426
80% 79.9% 138,881 138,745
70% 69.8% 121,521 121,124
60% 59.7% 104,161 103,574
50% 50.0% 86,800 86,745
40% 39.9% 69,440 69,257
30% 30.5% 52,080 52,917
20% 20.3% 34,720 35,253
10% 10.2% 17,360 17,651
Active Idle   0 0
Graph of results
JVM 'WIN-L5GJVQGBAGG.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     171,331
Calibration 2     174,918
Calibration 3     175,328
ssj_ops@calibrated=175,123
100% 99.8% 175,123 174,694
90% 90.4% 157,611 158,320
80% 80.5% 140,098 140,919
70% 70.6% 122,586 123,711
60% 59.8% 105,074 104,801
50% 49.9% 87,561 87,400
40% 39.4% 70,049 68,970
30% 29.7% 52,537 52,098
20% 19.9% 35,025 34,884
10% 9.8% 17,512 17,154
Active Idle   0 0
Graph of results

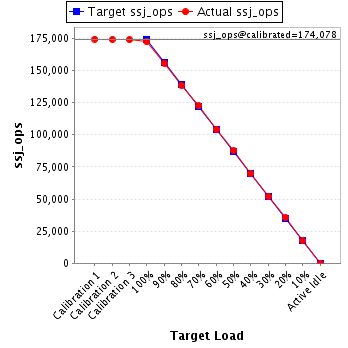

JVM 'WIN-L5GJVQGBAGG.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     174,445
Calibration 2     174,186
Calibration 3     173,970
ssj_ops@calibrated=174,078
100% 99.2% 174,078 172,606
90% 89.6% 156,670 155,891
80% 79.6% 139,262 138,618
70% 70.4% 121,854 122,604
60% 59.9% 104,447 104,302
50% 50.3% 87,039 87,645
40% 40.1% 69,631 69,724
30% 29.9% 52,223 52,058
20% 20.3% 34,816 35,400
10% 10.0% 17,408 17,412
Active Idle   0 0
Graph of results
JVM 'WIN-L5GJVQGBAGG.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     170,405
Calibration 2     174,974
Calibration 3     174,492
ssj_ops@calibrated=174,733
100% 99.2% 174,733 173,299
90% 90.4% 157,259 157,877
80% 80.3% 139,786 140,288
70% 69.9% 122,313 122,130
60% 60.1% 104,840 105,069
50% 50.0% 87,366 87,334
40% 39.9% 69,893 69,670
30% 30.1% 52,420 52,516
20% 20.4% 34,947 35,658
10% 10.2% 17,473 17,904
Active Idle   0 0
Graph of results

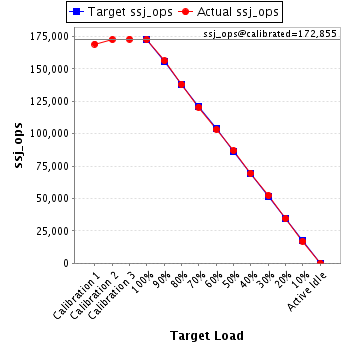

JVM 'WIN-L5GJVQGBAGG.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     169,255
Calibration 2     172,692
Calibration 3     173,018
ssj_ops@calibrated=172,855
100% 99.9% 172,855 172,675
90% 90.4% 155,569 156,336
80% 80.0% 138,284 138,223
70% 69.8% 120,998 120,597
60% 59.8% 103,713 103,418
50% 50.3% 86,427 86,919
40% 40.2% 69,142 69,467
30% 30.3% 51,856 52,348
20% 20.0% 34,571 34,526
10% 9.8% 17,285 16,996
Active Idle   0 0
Graph of results
JVM 'WIN-L5GJVQGBAGG.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     168,585
Calibration 2     171,381
Calibration 3     172,556
ssj_ops@calibrated=171,968
100% 99.5% 171,968 171,122
90% 90.0% 154,771 154,764
80% 80.1% 137,575 137,805
70% 70.5% 120,378 121,308
60% 60.2% 103,181 103,534
50% 50.1% 85,984 86,100
40% 39.7% 68,787 68,243
30% 30.0% 51,590 51,620
20% 19.6% 34,394 33,781
10% 10.5% 17,197 18,053
Active Idle   0 0
Graph of results
JVM 'WIN-L5GJVQGBAGG.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     169,994
Calibration 2     174,192
Calibration 3     174,042
ssj_ops@calibrated=174,117
100% 100.0% 174,117 174,167
90% 89.2% 156,705 155,238
80% 81.3% 139,293 141,612
70% 70.6% 121,882 123,002
60% 60.1% 104,470 104,694
50% 49.9% 87,058 86,970
40% 40.3% 69,647 70,126
30% 30.1% 52,235 52,379
20% 19.9% 34,823 34,672
10% 10.2% 17,412 17,746
Active Idle   0 0
Graph of results

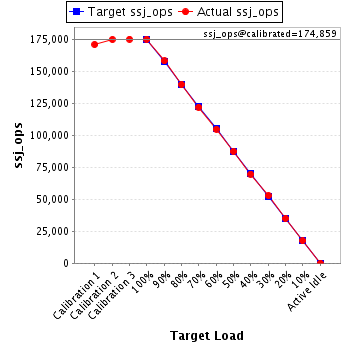

JVM 'WIN-L5GJVQGBAGG.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     170,851
Calibration 2     174,728
Calibration 3     174,990
ssj_ops@calibrated=174,859
100% 100.0% 174,859 174,878
90% 90.3% 157,373 157,977
80% 79.8% 139,887 139,599
70% 69.7% 122,401 121,919
60% 59.9% 104,915 104,754
50% 50.0% 87,429 87,471
40% 39.9% 69,944 69,691
30% 30.2% 52,458 52,839
20% 20.0% 34,972 35,038
10% 10.1% 17,486 17,581
Active Idle   0 0
Graph of results
JVM 'WIN-L5GJVQGBAGG.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     169,933
Calibration 2     173,779
Calibration 3     173,950
ssj_ops@calibrated=173,865
100% 99.9% 173,865 173,711
90% 89.8% 156,478 156,044
80% 80.1% 139,092 139,210
70% 69.6% 121,705 121,086
60% 59.6% 104,319 103,619
50% 50.2% 86,932 87,200
40% 39.8% 69,546 69,149
30% 29.9% 52,159 51,959
20% 20.1% 34,773 35,025
10% 10.2% 17,386 17,795
Active Idle   0 0
Graph of results
