Huawei Technologies Co., Ltd Tecal CH121 ssj_ops@100% = 1,720,699
ssj_ops@100% per JVM = 172,070
Test Sponsor: Huawei Technologies Co., Ltd SPEC License #: 3175 Test Method: Multi Node
Tested By: Huawei Technologies Co., Ltd Test Location: Shenzhen, Guangdong, China Test Date: Sep 2, 2013
Hardware Availability: Sep-2013 Software Availability: Jan-2012 Publication: Oct 21, 2013
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,686,021
Calibration 2     1,726,067
Calibration 3     1,726,970
ssj_ops@calibrated=1,726,519
100% 99.7% 1,726,519 1,720,699
90% 90.1% 1,553,867 1,555,482
80% 80.1% 1,381,215 1,383,794
70% 70.2% 1,208,563 1,212,674
60% 60.2% 1,035,911 1,039,308
50% 50.1% 863,259 864,506
40% 39.9% 690,608 688,114
30% 30.0% 517,956 517,645
20% 19.9% 345,304 344,002
10% 10.0% 172,652 172,966
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 6
Comment: None
Hardware
Hardware Vendor: Huawei Technologies Co., Ltd
Model: Tecal CH121
Form Factor: Blade
CPU Name: Intel Xeon E5-2660 v2
CPU Characteristics: 10-Core, 2.2GHz, 25MB L3 Cache (Intel Turbo Boost Technology up to 3.0GHz)
CPU Frequency (MHz): 2200
CPU(s) Enabled: 20 cores, 2 chips, 10 cores/chip
Hardware Threads: 40 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 25 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 24
# and size of DIMM: 6 x 4 GB
Memory Details: 4GB 2Rx8 PC3L-10600R ECC RDIMM,Slots 1A1 1B1, 1C1,2A1,2B1,2C1 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 240GB SSD 2.5" SATA Huawei P/N 02310MMT
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Dual-port Intel 82580 Gigabit Ethernet controller
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power Saver Mode enabled in OS
Operating System (OS): Microsoft Windows Server 2008 Enterprise x64 Edition
OS Version: R2 SP1 (64-bit)
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.6,JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120322_106209 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xmx1875m -Xms1875m -Xmn1400m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp -Xconcurrentlevel0
JVM Affinity: start /affinity [F,F0,F00,F000,F0000,F00000,F000000,F0000000,F00000000,F000000000]
JVM Instances: 10
JVM Initial Heap (MB): 1875
JVM Maximum Heap (MB): 1875
JVM Address Bits: 64
Boot Firmware Version: V063
Management Firmware Version: 3.35
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: IBM SDK Java Technology Edition Version 7.0 for windows x64
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-B44R29Q23JP.001 174,307
WIN-B44R29Q23JP.002 173,414
WIN-B44R29Q23JP.003 174,382
WIN-B44R29Q23JP.004 170,874
WIN-B44R29Q23JP.005 171,074
WIN-B44R29Q23JP.006 170,375
WIN-B44R29Q23JP.007 169,167
WIN-B44R29Q23JP.008 175,907
WIN-B44R29Q23JP.009 171,441
WIN-B44R29Q23JP.010 169,758
ssj_ops@100% 1,720,699
ssj_ops@100% per JVM 172,070

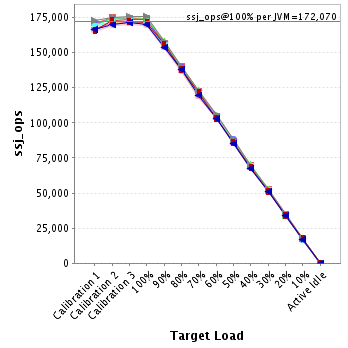

Graph of per-instance results
JVM 'WIN-B44R29Q23JP.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     171,034
Calibration 2     175,080
Calibration 3     174,019
ssj_ops@calibrated=174,549
100% 99.9% 174,549 174,307
90% 89.7% 157,094 156,503
80% 80.5% 139,639 140,524
70% 70.3% 122,185 122,707
60% 59.7% 104,730 104,232
50% 49.5% 87,275 86,483
40% 39.9% 69,820 69,622
30% 30.1% 52,365 52,597
20% 20.0% 34,910 34,847
10% 10.1% 17,455 17,695
Active Idle   0 0
Graph of results
JVM 'WIN-B44R29Q23JP.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     170,179
Calibration 2     174,206
Calibration 3     173,728
ssj_ops@calibrated=173,967
100% 99.7% 173,967 173,414
90% 89.5% 156,570 155,663
80% 80.2% 139,174 139,600
70% 70.2% 121,777 122,196
60% 60.2% 104,380 104,715
50% 50.5% 86,984 87,839
40% 39.9% 69,587 69,340
30% 29.8% 52,190 51,873
20% 20.1% 34,793 35,000
10% 9.9% 17,397 17,241
Active Idle   0 0
Graph of results
JVM 'WIN-B44R29Q23JP.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     169,628
Calibration 2     174,622
Calibration 3     174,900
ssj_ops@calibrated=174,761
100% 99.8% 174,761 174,382
90% 90.5% 157,285 158,121
80% 79.5% 139,809 138,895
70% 70.4% 122,332 123,014
60% 59.7% 104,856 104,405
50% 49.9% 87,380 87,269
40% 40.4% 69,904 70,532
30% 30.2% 52,428 52,776
20% 19.7% 34,952 34,356
10% 10.1% 17,476 17,661
Active Idle   0 0
Graph of results

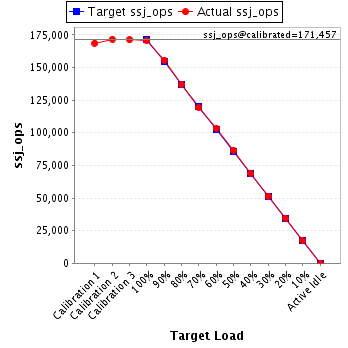

JVM 'WIN-B44R29Q23JP.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     168,681
Calibration 2     171,708
Calibration 3     171,206
ssj_ops@calibrated=171,457
100% 99.7% 171,457 170,874
90% 90.8% 154,312 155,687
80% 80.0% 137,166 137,088
70% 69.7% 120,020 119,514
60% 60.3% 102,874 103,308
50% 50.5% 85,729 86,634
40% 40.2% 68,583 68,979
30% 30.0% 51,437 51,501
20% 20.2% 34,291 34,629
10% 10.1% 17,146 17,400
Active Idle   0 0
Graph of results
JVM 'WIN-B44R29Q23JP.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     167,065
Calibration 2     170,982
Calibration 3     171,790
ssj_ops@calibrated=171,386
100% 99.8% 171,386 171,074
90% 89.8% 154,247 153,925
80% 80.0% 137,109 137,116
70% 71.0% 119,970 121,624
60% 60.8% 102,832 104,280
50% 49.8% 85,693 85,425
40% 39.7% 68,554 68,041
30% 29.8% 51,416 51,044
20% 19.9% 34,277 34,166
10% 10.0% 17,139 17,106
Active Idle   0 0
Graph of results
JVM 'WIN-B44R29Q23JP.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     168,378
Calibration 2     172,242
Calibration 3     172,283
ssj_ops@calibrated=172,262
100% 98.9% 172,262 170,375
90% 90.0% 155,036 154,962
80% 79.9% 137,810 137,713
70% 70.3% 120,584 121,054
60% 60.2% 103,357 103,714
50% 49.9% 86,131 85,904
40% 40.2% 68,905 69,201
30% 30.1% 51,679 51,806
20% 19.7% 34,452 33,906
10% 9.8% 17,226 16,935
Active Idle   0 0
Graph of results
JVM 'WIN-B44R29Q23JP.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     165,457
Calibration 2     169,364
Calibration 3     170,269
ssj_ops@calibrated=169,816
100% 99.6% 169,816 169,167
90% 90.2% 152,835 153,205
80% 80.3% 135,853 136,283
70% 69.7% 118,871 118,333
60% 60.5% 101,890 102,809
50% 50.6% 84,908 85,929
40% 39.9% 67,927 67,780
30% 30.0% 50,945 50,920
20% 20.1% 33,963 34,055
10% 10.3% 16,982 17,444
Active Idle   0 0
Graph of results
JVM 'WIN-B44R29Q23JP.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     172,825
Calibration 2     175,309
Calibration 3     175,552
ssj_ops@calibrated=175,430
100% 100.3% 175,430 175,907
90% 90.1% 157,887 158,121
80% 79.9% 140,344 140,183
70% 70.0% 122,801 122,879
60% 60.4% 105,258 105,913
50% 50.2% 87,715 88,000
40% 39.5% 70,172 69,373
30% 30.1% 52,629 52,737
20% 20.2% 35,086 35,412
10% 9.9% 17,543 17,350
Active Idle   0 0
Graph of results

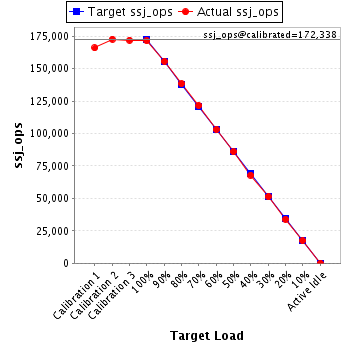

JVM 'WIN-B44R29Q23JP.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     165,893
Calibration 2     172,689
Calibration 3     171,988
ssj_ops@calibrated=172,338
100% 99.5% 172,338 171,441
90% 90.3% 155,104 155,675
80% 80.3% 137,870 138,365
70% 70.6% 120,637 121,603
60% 59.9% 103,403 103,149
50% 49.9% 86,169 85,937
40% 39.4% 68,935 67,955
30% 29.8% 51,701 51,325
20% 19.7% 34,468 33,890
10% 10.1% 17,234 17,491
Active Idle   0 0
Graph of results
JVM 'WIN-B44R29Q23JP.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     166,880
Calibration 2     169,866
Calibration 3     171,237
ssj_ops@calibrated=170,551
100% 99.5% 170,551 169,758
90% 90.1% 153,496 153,620
80% 80.9% 136,441 138,028
70% 70.2% 119,386 119,750
60% 60.3% 102,331 102,782
50% 49.9% 85,276 85,085
40% 39.5% 68,221 67,291
30% 29.9% 51,165 51,067
20% 19.8% 34,110 33,740
10% 9.8% 17,055 16,642
Active Idle   0 0
Graph of results
