SPECpower_ssj2008
Copyright © 2007-2013 Standard Performance Evaluation Corporation
| Acer Incorporated Altos R360 F2 | SPECpower_ssj2008 = 4,893 overall ssj_ops/watt | ||||
| Test Sponsor: | Acer Incorporated | SPEC License #: | 97 | Test Method: | Single Node |
| Tested By: | Acer Incorporated | Test Location: | Taipei, R.O.C. | Test Date: | Jan 1, 2005 |
| Hardware Availability: | May-2013 | Software Availability: | Jun-2012 | Publication: | Jul 16, 2013 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

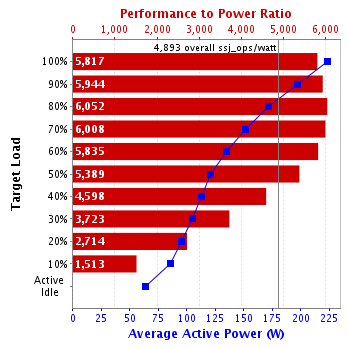

| Performance | Power | Performance to Power Ratio | ||
|---|---|---|---|---|
| Target Load | Actual Load | ssj_ops | Average Active Power (W) | |
| 100% | 100.0% | 1,297,515 | 223 | 5,817 |
| 90% | 90.1% | 1,169,391 | 197 | 5,944 |
| 80% | 80.1% | 1,039,352 | 172 | 6,052 |
| 70% | 70.1% | 910,168 | 151 | 6,008 |
| 60% | 60.6% | 785,842 | 135 | 5,835 |
| 50% | 50.0% | 649,412 | 121 | 5,389 |
| 40% | 40.0% | 518,669 | 113 | 4,598 |
| 30% | 30.0% | 389,890 | 105 | 3,723 |
| 20% | 20.0% | 259,391 | 95.6 | 2,714 |
| 10% | 10.0% | 129,791 | 85.8 | 1,513 |
| Active Idle | 0 | 64.0 | 0 | |
| ∑ssj_ops / ∑power = | 4,893 | |||
| Set Identifier: | sut |
| Set Description: | System Under Test |
| # of Identical Nodes: | 1 |
| Comment: | Here is a comment for this set. |
| Hardware | |
|---|---|
| Hardware Vendor: | Acer Incorporated |
| Model: | Altos R360 F2 |
| Form Factor: | 1U |
| CPU Name: | Intel Xeon E5-2650 2.0 GHz (Intel Turbo Boost Technology up to 2.80 GHz) |
| CPU Characteristics: | 8 core, 2.00 GHz, 20MB L3 Cache |
| CPU Frequency (MHz): | 2000 |
| CPU(s) Enabled: | 16 cores, 2 chips, 8 cores/chip |
| Hardware Threads: | 32 (2 / core) |
| CPU(s) Orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per chip |
| Tertiary Cache: | 20 MB I+D on chip per chip |
| Other Cache: | None |
| Memory Amount (GB): | 24 |
| # and size of DIMM: | 6 x 4096 MB |
| Memory Details: | 4GB 2Rx8 PC3L-10600E; slots A1, B1, C1, E1, F1 and G1 populated |
| Power Supply Quantity and Rating (W): | 1 x 460 |
| Power Supply Details: | Acer P/N SC.46017.001 |
| Disk Drive: | 1 x 160GB SSD 2.5" SATA, Acer part KN.1600N.001 |
| Disk Controller: | onboard SCU controller |
| # and type of Network Interface Cards (NICs) Installed: | 2 x Intel I350 dual-port Gigabit Ethernet controller |
| NICs Enabled in Firmware / OS / Connected: | 1/1/1 |
| Network Speed (Mbit): | 1000 |
| Keyboard: | None |
| Mouse: | None |
| Monitor: | None |
| Optical Drives: | No |
| Other Hardware: | None |
| Software | |
|---|---|
| Power Management: | Power Saver Mode enabled in OS |
| Operating System (OS): | Windows Server 2008, Enterprise Edition |
| OS Version: | R2 SP1 |
| Filesystem: | NTFS |
| JVM Vendor: | IBM Corporation |
| JVM Version: | IBM J9 VM (build 2.6, JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120322_106209 JIT enabled, AOT enabled) |
| JVM Command-line Options: | -Xaggressive -Xcompressedrefs -Xmx1600m -Xms1600m -Xmn1200m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp -Xconcurrentlevel0 |
| JVM Affinity: | start /affinity [F,F0,F00,F000,F0000,F00000,F000000,F0000000] |
| JVM Instances: | 8 |
| JVM Initial Heap (MB): | 1600 |
| JVM Maximum Heap (MB): | 1600 |
| JVM Address Bits: | 64 |
| Boot Firmware Version: | 01.08.0003 |
| Management Firmware Version: | 1.17.4207 |
| Workload Version: | SSJ 1.2.10 |
| Director Location: | Controller |
| Other Software: | IBM SDK Java Technology Edition Version 7.0 for Windows x64 |
| Hardware | |
|---|---|
| Hardware Vendor: | Acer Incorporated |
| Model: | Acer AR160 F1 |
| CPU Description: | Xeon L5520 |
| Memory amount (GB): | 3 |
| Software | |
|---|---|
| Operating System (OS): | Windows Server 2003 R2, Enterprise Edition SP2 |
| JVM Vendor: | Oracle Corporation |
| JVM Version: | Oracle JRockit(R) (build R27.5.0-110_o-99226-1.6.0_03-20080528-1505-windows-ia32, compiled mode) |
| CCS Version: | 1.2.6 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Electric International Pte. Ltd. |
| Model: | WT210 |
| Serial Number: | 91H534921 |
| Connectivity: | RS232 |
| Input Connection: | Default |
| Metrology Institute: | NML (National Measurement Laboratory, R.O.C.) |
| Accredited by: | ETC, Taiwan |
| Calibration Label: | 13-04-BAC-380-01 |
| Date of Calibration: | 9-May-2013 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.6.0-7f9b1b00-20130314 |
| Setup Description: | None |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | Watchport Virtual Port 5.0.0.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 5 mm in front of SUT airflow intake |
| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| 100% | 223 | 24.1 |
| 90% | 197 | 24.1 |
| 80% | 172 | 24.6 |
| 70% | 151 | 25.5 |
| 60% | 135 | 26.3 |
| 50% | 121 | 26.3 |
| 40% | 113 | 26.1 |
| 30% | 105 | 25.8 |
| 20% | 95.6 | 25.8 |
| 10% | 85.8 | 25.6 |
| Active Idle | 64.0 | 25.5 |
| Line Standard | Minimum Temperature (°C) | Elevation (m) |
|---|---|---|
| 220V / 60 Hz / 1 phase / 2 wires | 24.1 | 132 |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 1,259,305 | ||
| Calibration 2 | 1,296,389 | ||
| Calibration 3 | 1,299,053 | ||
| ssj_ops@calibrated=1,297,721 | |||
| 100% | 100.0% | 1,297,721 | 1,297,515 |
| 90% | 90.1% | 1,167,949 | 1,169,391 |
| 80% | 80.1% | 1,038,177 | 1,039,352 |
| 70% | 70.1% | 908,405 | 910,168 |
| 60% | 60.6% | 778,633 | 785,842 |
| 50% | 50.0% | 648,861 | 649,412 |
| 40% | 40.0% | 519,089 | 518,669 |
| 30% | 30.0% | 389,316 | 389,890 |
| 20% | 20.0% | 259,544 | 259,391 |
| 10% | 10.0% | 129,772 | 129,791 |
| Active Idle | 0 | 0 | |
