Acer Incorporated Acer AR585 F1 ssj_ops@100% = 2,482,740
ssj_ops@100% per JVM = 155,171
Test Sponsor: Acer Incorporated SPEC License #: 97 Test Method: Single Node
Tested By: Acer Incorporated Test Location: Taipei, R.O.C. Test Date: May 27, 2013
Hardware Availability: Nov-2012 Software Availability: Mar-2012 Publication: Jun 26, 2013
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     2,378,826
Calibration 2     2,489,994
Calibration 3     2,488,735
ssj_ops@calibrated=2,489,364
100% 99.7% 2,489,364 2,482,740
90% 90.2% 2,240,428 2,244,573
80% 79.9% 1,991,491 1,987,997
70% 69.7% 1,742,555 1,736,263
60% 60.0% 1,493,618 1,493,750
50% 50.0% 1,244,682 1,245,761
40% 40.0% 995,746 994,817
30% 30.0% 746,809 746,737
20% 19.9% 497,873 496,447
10% 10.0% 248,936 248,830
Active Idle   0 0

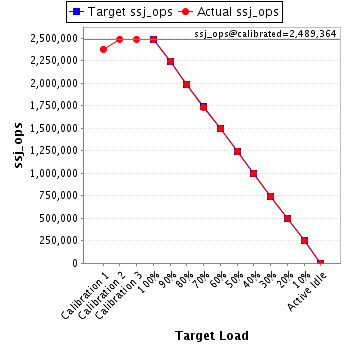

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: Here is a comment for this set.
Hardware
Hardware Vendor: Acer Incorporated
Model: Acer AR585 F1
Form Factor: 2U
CPU Name: AMD Opteron 6344
CPU Characteristics: 12 core, 2.60 GHz (AMD Turbo CORE up to 3.2GHz)
CPU Frequency (MHz): 2600
CPU(s) Enabled: 48 cores, 4 chips, 12 cores/chip
Hardware Threads: 48 (1 / core)
CPU(s) Orderable: 2,4 chips
Primary Cache: 384 KB I + 192 KB D on chip per chip
Secondary Cache: 12 MB I+D on chip per chip, 2 MB shared / 2 cores
Tertiary Cache: 16 MB I+D on chip per chip, 8 MB shared / 6 cores
Other Cache: None
Memory Amount (GB): 64
# and size of DIMM: 16 x 4096 MB
Memory Details: 4GB 2Rx8 PC3L-10600E; slots 1A, 2A, 3A and 4A are populated on each processor
Power Supply Quantity and Rating (W): 1 x 1400
Power Supply Details: PWS-1K41F-1R
Disk Drive: 1 x 500GB 7200 RPM SATA, Acer P/N KH.500W8.019
Disk Controller: onboard SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x dual-port Intel 82576 Gigabit Ethernet controller
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power Saver Mode enabled in OS
Operating System (OS): Windows Server 2008, Enterprise Edition
OS Version: R2 SP1
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.6, JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120322_106209 JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedresf-Xmx1875m -Xms1875m -Xmn1400m -xlockReservation -xnoloa -xlp -Xgcpolicy:gencon - Xthr:minimizeUserCPU -Xgcthreads2
JVM Affinity: start /affinity [7, 38, 1C0, E00, 7000, 38000,1C0000, E00000, 7000000, 38000000, 1C0000000, E00000000, 7000000000, 38000000000, 1C0000000000, E00000000000]
JVM Instances: 16
JVM Initial Heap (MB): 1875
JVM Maximum Heap (MB): 1875
JVM Address Bits: 64
Boot Firmware Version: P09
Management Firmware Version: 1.40
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: IBM SDK Java Technology Edition Version 7.0 for Windows x64
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-DUGA8S2L06E.001 155,809
WIN-DUGA8S2L06E.002 156,060
WIN-DUGA8S2L06E.003 156,457
WIN-DUGA8S2L06E.004 155,081
WIN-DUGA8S2L06E.005 155,835
WIN-DUGA8S2L06E.006 155,246
WIN-DUGA8S2L06E.007 153,143
WIN-DUGA8S2L06E.008 154,884
WIN-DUGA8S2L06E.009 152,786
WIN-DUGA8S2L06E.010 156,486
WIN-DUGA8S2L06E.011 155,616
WIN-DUGA8S2L06E.012 155,088
WIN-DUGA8S2L06E.013 155,739
WIN-DUGA8S2L06E.014 153,748
WIN-DUGA8S2L06E.015 155,288
WIN-DUGA8S2L06E.016 155,474
ssj_ops@100% 2,482,740
ssj_ops@100% per JVM 155,171
Graph of per-instance results
JVM 'WIN-DUGA8S2L06E.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     149,027
Calibration 2     155,873
Calibration 3     155,642
ssj_ops@calibrated=155,758
100% 100.0% 155,758 155,809
90% 89.9% 140,182 139,995
80% 79.2% 124,606 123,300
70% 69.1% 109,030 107,630
60% 59.9% 93,455 93,353
50% 49.9% 77,879 77,764
40% 40.1% 62,303 62,420
30% 30.3% 46,727 47,239
20% 19.6% 31,152 30,603
10% 9.9% 15,576 15,350
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-DUGA8S2L06E.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     147,549
Calibration 2     155,618
Calibration 3     155,889
ssj_ops@calibrated=155,753
100% 100.2% 155,753 156,060
90% 90.8% 140,178 141,455
80% 79.7% 124,603 124,158
70% 70.5% 109,027 109,744
60% 59.9% 93,452 93,303
50% 50.0% 77,877 77,828
40% 40.2% 62,301 62,622
30% 29.9% 46,726 46,568
20% 19.9% 31,151 31,019
10% 10.1% 15,575 15,739
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-DUGA8S2L06E.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     149,293
Calibration 2     155,597
Calibration 3     155,594
ssj_ops@calibrated=155,596
100% 100.6% 155,596 156,457
90% 90.7% 140,036 141,147
80% 79.5% 124,477 123,721
70% 70.0% 108,917 108,972
60% 58.9% 93,357 91,656
50% 50.0% 77,798 77,863
40% 40.3% 62,238 62,663
30% 30.1% 46,679 46,882
20% 19.6% 31,119 30,549
10% 10.2% 15,560 15,828
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-DUGA8S2L06E.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     148,213
Calibration 2     156,135
Calibration 3     155,430
ssj_ops@calibrated=155,783
100% 99.5% 155,783 155,081
90% 90.3% 140,204 140,732
80% 79.9% 124,626 124,453
70% 69.3% 109,048 108,002
60% 59.7% 93,470 92,938
50% 50.0% 77,891 77,835
40% 39.7% 62,313 61,841
30% 30.2% 46,735 47,072
20% 20.3% 31,157 31,552
10% 9.8% 15,578 15,279
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

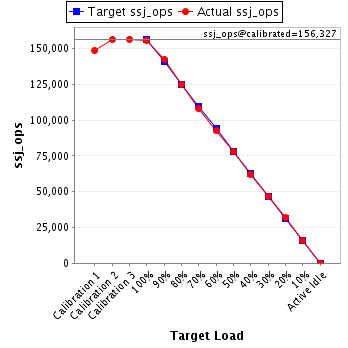

JVM 'WIN-DUGA8S2L06E.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     148,496
Calibration 2     156,167
Calibration 3     156,488
ssj_ops@calibrated=156,327
100% 99.7% 156,327 155,835
90% 91.1% 140,695 142,361
80% 79.8% 125,062 124,758
70% 68.9% 109,429 107,777
60% 59.1% 93,796 92,361
50% 49.8% 78,164 77,886
40% 39.8% 62,531 62,149
30% 29.9% 46,898 46,796
20% 20.3% 31,265 31,763
10% 10.0% 15,633 15,677
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

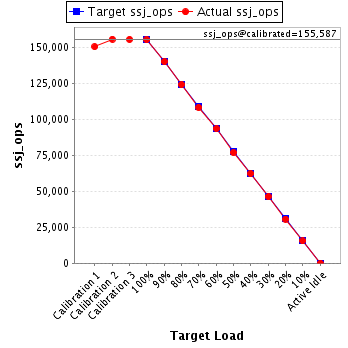

JVM 'WIN-DUGA8S2L06E.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     150,425
Calibration 2     155,662
Calibration 3     155,513
ssj_ops@calibrated=155,587
100% 99.8% 155,587 155,246
90% 90.0% 140,029 140,042
80% 79.7% 124,470 123,990
70% 69.6% 108,911 108,217
60% 60.1% 93,352 93,558
50% 49.4% 77,794 76,866
40% 40.0% 62,235 62,283
30% 29.8% 46,676 46,304
20% 19.7% 31,117 30,712
10% 10.0% 15,559 15,487
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-DUGA8S2L06E.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     148,923
Calibration 2     154,880
Calibration 3     154,670
ssj_ops@calibrated=154,775
100% 98.9% 154,775 153,143
90% 89.7% 139,298 138,799
80% 79.7% 123,820 123,319
70% 69.8% 108,343 108,006
60% 60.3% 92,865 93,404
50% 49.9% 77,388 77,162
40% 39.5% 61,910 61,193
30% 30.2% 46,433 46,691
20% 19.9% 30,955 30,760
10% 9.8% 15,478 15,225
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-DUGA8S2L06E.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     148,642
Calibration 2     155,113
Calibration 3     155,421
ssj_ops@calibrated=155,267
100% 99.8% 155,267 154,884
90% 90.0% 139,740 139,760
80% 80.5% 124,213 124,930
70% 69.7% 108,687 108,235
60% 60.2% 93,160 93,471
50% 50.0% 77,633 77,564
40% 40.1% 62,107 62,326
30% 29.9% 46,580 46,414
20% 20.0% 31,053 31,083
10% 10.0% 15,527 15,532
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-DUGA8S2L06E.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     148,219
Calibration 2     154,149
Calibration 3     153,899
ssj_ops@calibrated=154,024
100% 99.2% 154,024 152,786
90% 89.8% 138,621 138,330
80% 80.1% 123,219 123,434
70% 69.5% 107,817 107,054
60% 60.5% 92,414 93,150
50% 50.4% 77,012 77,578
40% 39.8% 61,610 61,296
30% 29.7% 46,207 45,730
20% 19.4% 30,805 29,954
10% 9.9% 15,402 15,233
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-DUGA8S2L06E.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     149,928
Calibration 2     157,084
Calibration 3     157,066
ssj_ops@calibrated=157,075
100% 99.6% 157,075 156,486
90% 90.4% 141,368 141,975
80% 80.2% 125,660 126,022
70% 69.9% 109,953 109,849
60% 59.9% 94,245 94,067
50% 50.3% 78,538 79,009
40% 39.5% 62,830 62,103
30% 29.7% 47,123 46,614
20% 20.3% 31,415 31,839
10% 10.2% 15,708 16,058
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-DUGA8S2L06E.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     148,383
Calibration 2     156,108
Calibration 3     156,338
ssj_ops@calibrated=156,223
100% 99.6% 156,223 155,616
90% 89.9% 140,601 140,441
80% 79.9% 124,978 124,793
70% 69.4% 109,356 108,379
60% 60.1% 93,734 93,924
50% 50.0% 78,112 78,114
40% 40.4% 62,489 63,138
30% 30.0% 46,867 46,839
20% 20.2% 31,245 31,578
10% 9.9% 15,622 15,521
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-DUGA8S2L06E.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     148,255
Calibration 2     155,996
Calibration 3     156,102
ssj_ops@calibrated=156,049
100% 99.4% 156,049 155,088
90% 90.0% 140,444 140,398
80% 80.3% 124,839 125,289
70% 70.5% 109,234 110,037
60% 60.4% 93,630 94,201
50% 50.6% 78,025 78,949
40% 40.0% 62,420 62,459
30% 30.3% 46,815 47,217
20% 20.2% 31,210 31,589
10% 10.1% 15,605 15,800
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-DUGA8S2L06E.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     149,800
Calibration 2     156,333
Calibration 3     156,450
ssj_ops@calibrated=156,391
100% 99.6% 156,391 155,739
90% 89.5% 140,752 140,031
80% 79.7% 125,113 124,669
70% 69.9% 109,474 109,380
60% 60.6% 93,835 94,743
50% 50.0% 78,196 78,184
40% 40.3% 62,557 62,997
30% 29.9% 46,917 46,695
20% 19.8% 31,278 30,903
10% 10.1% 15,639 15,824
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-DUGA8S2L06E.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     148,035
Calibration 2     154,948
Calibration 3     154,091
ssj_ops@calibrated=154,520
100% 99.5% 154,520 153,748
90% 89.6% 139,068 138,498
80% 80.7% 123,616 124,738
70% 69.8% 108,164 107,895
60% 60.1% 92,712 92,941
50% 49.9% 77,260 77,065
40% 39.9% 61,808 61,697
30% 29.8% 46,356 46,094
20% 19.8% 30,904 30,596
10% 10.1% 15,452 15,583
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-DUGA8S2L06E.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     146,206
Calibration 2     154,885
Calibration 3     154,374
ssj_ops@calibrated=154,630
100% 100.4% 154,630 155,288
90% 89.8% 139,167 138,901
80% 79.5% 123,704 122,899
70% 70.4% 108,241 108,907
60% 60.3% 92,778 93,275
50% 50.4% 77,315 77,881
40% 39.8% 61,852 61,475
30% 30.3% 46,389 46,783
20% 20.2% 30,926 31,280
10% 9.9% 15,463 15,308
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-DUGA8S2L06E.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     149,433
Calibration 2     155,445
Calibration 3     155,766
ssj_ops@calibrated=155,605
100% 99.9% 155,605 155,474
90% 91.1% 140,045 141,707
80% 79.4% 124,484 123,524
70% 69.5% 108,924 108,179
60% 60.0% 93,363 93,406
50% 50.3% 77,803 78,212
40% 39.9% 62,242 62,157
30% 30.1% 46,682 46,799
20% 19.7% 31,121 30,667
10% 9.9% 15,561 15,387
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
