Acer Incorporated Acer AR585 F1 SPECpower_ssj2008 = 3,739 overall ssj_ops/watt
Test Sponsor: Acer Incorporated SPEC License #: 97 Test Method: Single Node
Tested By: Acer Incorporated Test Location: Taipei, R.O.C. Test Date: May 27, 2013
Hardware Availability: Nov-2012 Software Availability: Mar-2012 Publication: Jun 26, 2013
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 506 21.5
Calibration 2 512 21.7
Calibration 3 513 22.0
100% 511 21.9
90% 475 22.1
80% 425 22.1
70% 385 22.1
60% 354 22.2
50% 328 21.8
40% 301 21.8
30% 274 21.9
20% 246 21.6
10% 214 21.4
Active Idle 145 21.5

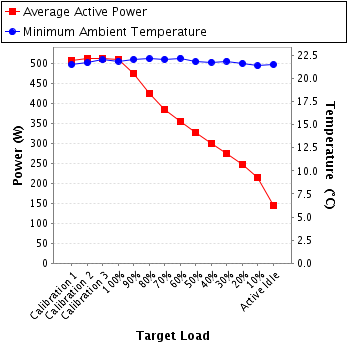

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Electric International Pte. Ltd.
Model: WT210
Serial Number: 91H534921
Connectivity: RS232
Input Connection: Default
Metrology Institute: NML (National Measurement Laboratory, R.O.C.)
Accredited by: ETC, Taiwan
Calibration Label: 13-04-BAC-380-01
Date of Calibration: 09-May-2013
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.6.0-7f9b1b00-20130314
Setup Description: None
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: Watchport Virtual Port 5.0.0.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm in front of SUT airflow intake
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 222 300.0 2.37 5.0 0.961 506 0.5%
Calibration 2 221 300.0 2.41 5.0 0.962 512 0.5%
Calibration 3 220 300.0 2.42 5.0 0.962 513 0.5%
100% 220 300.0 2.41 5.0 0.962 511 0.5%
90% 220 300.0 2.25 5.0 0.960 475 0.5%
80% 220 300.0 2.02 5.0 0.955 425 0.6%
70% 220 300.0 1.84 5.0 0.951 385 0.6%
60% 220 300.0 1.70 2.0 0.946 354 0.4%
50% 220 300.0 1.58 2.0 0.942 328 0.4%
40% 221 300.0 1.46 2.0 0.936 301 0.4%
30% 221 300.0 1.34 2.0 0.929 274 0.4%
20% 221 300.0 1.21 2.0 0.920 246 0.5%
10% 221 300.0 1.07 2.0 0.906 214 0.5%
Active Idle 221 300.0 0.772 1.0 0.849 145 0.5%

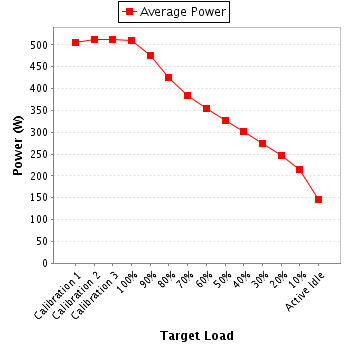

Power details for pwr1
