SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2013 Standard Performance Evaluation Corporation
| Dell Inc. PowerEdge C5220 (Intel Xeon E3-1265LV2) | SPECpower_ssj2008 = 6,000 overall ssj_ops/watt | ||||
| Test Sponsor: | Dell Inc. | SPEC License #: | 55 | Test Method: | Multi Node |
| Tested By: | Dell Inc. | Test Location: | Round Rock, TX, USA | Test Date: | Mar 15, 2013 |
| Hardware Availability: | Jan-2013 | Software Availability: | Jun-2012 | Publication: | Apr 19, 2013 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

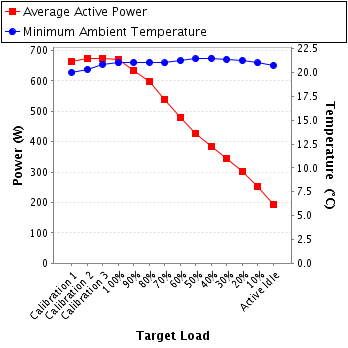

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 664 | 20.0 |
| Calibration 2 | 675 | 20.3 |
| Calibration 3 | 672 | 20.9 |
| 100% | 672 | 21.0 |
| 90% | 635 | 21.1 |
| 80% | 597 | 21.1 |
| 70% | 539 | 21.0 |
| 60% | 481 | 21.2 |
| 50% | 427 | 21.4 |
| 40% | 386 | 21.5 |
| 30% | 345 | 21.4 |
| 20% | 303 | 21.2 |
| 10% | 254 | 21.0 |
| Active Idle | 194 | 20.8 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Meters and Instruments Corporation |
| Model: | WT210 |
| Serial Number: | 91HB227700 |
| Connectivity: | RS-232 |
| Input Connection: | Default |
| Metrology Institute: | NIST |
| Accredited by: | Simco Electronics |
| Calibration Label: | 5696169 |
| Date of Calibration: | 19-Jun-2012 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.4.2-bc965ca0-20120417 |
| Setup Description: | SUT Power Supply 1 and 2 |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International, Inc. |
| Model: | Watchport/H |
| Driver Version: | 5.3.20.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 50 mm in front of SUT main airflow intake |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 208 | 300.0 | 3.23 | 5.0 | 0.987 | 664 | 0.4% |
| Calibration 2 | 208 | 300.0 | 3.28 | 5.0 | 0.988 | 675 | 0.4% |
| Calibration 3 | 208 | 300.0 | 3.27 | 5.0 | 0.988 | 672 | 0.4% |
| 100% | 208 | 300.0 | 3.27 | 5.0 | 0.988 | 672 | 0.4% |
| 90% | 208 | 300.0 | 3.09 | 5.0 | 0.987 | 635 | 0.4% |
| 80% | 208 | 300.0 | 2.91 | 5.0 | 0.985 | 597 | 0.4% |
| 70% | 208 | 300.0 | 2.63 | 5.0 | 0.983 | 539 | 0.5% |
| 60% | 208 | 300.0 | 2.36 | 5.0 | 0.981 | 481 | 0.5% |
| 50% | 208 | 300.0 | 2.10 | 5.0 | 0.977 | 427 | 0.5% |
| 40% | 208 | 300.0 | 1.90 | 2.0 | 0.973 | 386 | 0.4% |
| 30% | 208 | 300.0 | 1.71 | 2.0 | 0.968 | 345 | 0.4% |
| 20% | 208 | 300.0 | 1.52 | 2.0 | 0.961 | 303 | 0.4% |
| 10% | 208 | 300.0 | 1.31 | 2.0 | 0.929 | 254 | 0.5% |
| Active Idle | 208 | 300.0 | 1.04 | 2.0 | 0.894 | 194 | 0.6% |
