Dell Inc. PowerEdge M620 (Intel Xeon E5-2670, 2.60 GHz) ssj_ops@100% = 22,753,179
ssj_ops@100% per Host = 1,422,074
ssj_ops@100% per JVM = 88,880
Test Sponsor: Dell Inc. SPEC License #: 55 Test Method: Multi Node
Tested By: Dell Inc. Test Location: Round Rock, TX, USA Test Date: Jan 11, 2013
Hardware Availability: Dec-2012 Software Availability: Jun-2012 Publication: Feb 20, 2013
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     21,483,209
Calibration 2     22,781,733
Calibration 3     22,789,473
ssj_ops@calibrated=22,785,603
100% 99.9% 22,785,603 22,753,179
90% 89.9% 20,507,043 20,490,561
80% 80.0% 18,228,483 18,231,702
70% 70.0% 15,949,922 15,952,554
60% 60.0% 13,671,362 13,661,290
50% 50.0% 11,392,802 11,392,255
40% 40.0% 9,114,241 9,116,120
30% 30.0% 6,835,681 6,841,628
20% 20.0% 4,557,121 4,559,162
10% 10.0% 2,278,560 2,270,775
Active Idle   0 0
Graph of results
Aggregate SUT Data
# of Nodes # of Chips # of Cores # of Threads Total RAM (GB) # of OS Images # of JVM Instances
16 32 256 512 384 16 256
System Under Test
Shared Hardware
Shared Hardware
Enclosure: Dell PowerEdge M1000e
Form Factor: 10U
Power Supply Quantity and Rating (W): 3 x 2700
Power Supply Details: Dell PN G803N
Network Switch: Dell PowerConnect 6248
Network Switch Details: 48 Port 1Gb Ethernet Switch
KVM Switch: None
KVM Switch Details: N/A
Other Hardware: Dell M1000e Chassis Management Controller, Dell P/N: JV95D; Dell 16-Port Gigabit Ethernet Pass-Through Module, Dell P/N: WW060
Comment: Network switch not measured for power
Set: 'sut'
Set Identifier: sut
Set Description: M620
# of Identical Nodes: 16
Comment: None
Hardware per Node
Hardware Vendor: Dell Inc.
Model: PowerEdge M620 (Intel Xeon E5-2670, 2.60 GHz)
Form Factor: Blade
CPU Name: Intel Xeon E5-2670 2.60 GHz
CPU Characteristics: 8 Core, 2.60 GHz, 20MB L3 Cache
CPU Frequency (MHz): 2600
CPU(s) Enabled: 16 cores, 2 chips, 8 cores/chip
Hardware Threads: 32 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per chip
Tertiary Cache: 20 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 24
# and size of DIMM: 6 x 4096 MB
Memory Details: 4GB 2Rx8 PC3L-10600E-9 ECC, Slots A1-3, B1-3 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 100 GB 2.5" SATA SSD, Dell P/N: DYW42
Disk Controller: Integrated PERC S110
# and type of Network Interface Cards (NICs) Installed: 1 x Onboard Dual-Port Intel X520-k Gigabit Ethernet
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software per Node
Power Management: Power Saver Mode in OS (See Notes)
Operating System (OS): Microsoft Windows Server 2008 Enterprise x64 Edition
OS Version: R2 SP1
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.6, JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120322_106209 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xmn800m -Xms1024m -Xmx1024m -XlockReservation -Xnoloa -Xlp -Xconcurrentlevel0 -XtlhPrefetch -Xthr:minimizeusercpu -Xgcthreads4
JVM Affinity: start /affinity [3, C, 30, C0, 300, C00, 3000, C000, 30000, C0000, 300000, C00000, 3000000, C0000000, 30000000, C0000000]
JVM Instances: 16
JVM Initial Heap (MB): 1024
JVM Maximum Heap (MB): 1024
JVM Address Bits: 64
Boot Firmware Version: 1.4.9
Management Firmware Version: iDRAC7 1.30.30 (Build 39)
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: IBM SDK Java Technology Edition Version 7.0 for Windows x64
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
None
Host Instance Summary
Host ssj_ops@100%
M620-01 1,421,039
M620-02 1,427,921
M620-03 1,422,260
M620-04 1,426,445
M620-05 1,422,283
M620-06 1,419,561
M620-07 1,418,496
M620-08 1,412,297
M620-09 1,425,718
M620-10 1,416,732
M620-11 1,425,270
M620-12 1,417,933
M620-13 1,422,629
M620-14 1,424,412
M620-15 1,425,583
M620-16 1,424,600
ssj_ops@100% 22,753,179
ssj_ops@100% per Host 1,422,074
ssj_ops@100% per JVM 88,880

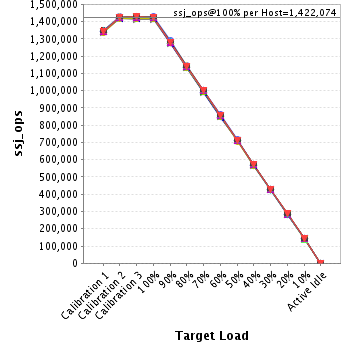

Graph of per-host results
Host 'M620-01' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,341,274
Calibration 2     1,422,663
Calibration 3     1,425,366
ssj_ops@calibrated=1,424,014
100% 99.8% 1,424,014 1,421,039
90% 89.9% 1,281,613 1,280,573
80% 80.2% 1,139,212 1,141,398
70% 69.9% 996,810 995,123
60% 59.7% 854,409 850,679
50% 50.0% 712,007 712,181
40% 40.0% 569,606 569,585
30% 29.9% 427,204 425,899
20% 20.1% 284,803 285,733
10% 10.0% 142,401 142,829
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'M620-02' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,347,584
Calibration 2     1,429,058
Calibration 3     1,430,988
ssj_ops@calibrated=1,430,023
100% 99.9% 1,430,023 1,427,921
90% 90.2% 1,287,021 1,289,263
80% 80.0% 1,144,018 1,144,704
70% 69.9% 1,001,016 999,837
60% 60.1% 858,014 859,464
50% 50.1% 715,011 715,753
40% 40.0% 572,009 572,232
30% 30.0% 429,007 428,961
20% 20.0% 286,005 285,315
10% 10.0% 143,002 142,297
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'M620-03' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,341,273
Calibration 2     1,422,866
Calibration 3     1,421,918
ssj_ops@calibrated=1,422,392
100% 100.0% 1,422,392 1,422,260
90% 89.9% 1,280,153 1,278,177
80% 80.0% 1,137,914 1,137,231
70% 69.8% 995,675 993,036
60% 59.9% 853,435 852,442
50% 50.1% 711,196 712,016
40% 39.9% 568,957 567,208
30% 30.2% 426,718 428,985
20% 20.0% 284,478 284,392
10% 9.8% 142,239 139,623
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'M620-04' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,343,221
Calibration 2     1,427,720
Calibration 3     1,426,730
ssj_ops@calibrated=1,427,225
100% 99.9% 1,427,225 1,426,445
90% 89.9% 1,284,503 1,283,538
80% 80.2% 1,141,780 1,144,282
70% 70.1% 999,058 1,000,302
60% 59.9% 856,335 854,532
50% 50.0% 713,613 714,019
40% 40.1% 570,890 572,307
30% 29.9% 428,168 427,105
20% 20.0% 285,445 285,467
10% 10.0% 142,723 142,692
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'M620-05' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,343,363
Calibration 2     1,428,188
Calibration 3     1,425,064
ssj_ops@calibrated=1,426,626
100% 99.7% 1,426,626 1,422,283
90% 89.9% 1,283,964 1,282,543
80% 80.1% 1,141,301 1,142,767
70% 70.0% 998,638 998,877
60% 60.0% 855,976 856,370
50% 50.0% 713,313 713,816
40% 39.8% 570,650 567,248
30% 30.1% 427,988 428,891
20% 20.0% 285,325 285,549
10% 10.0% 142,663 142,146
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'M620-06' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,340,911
Calibration 2     1,421,775
Calibration 3     1,422,865
ssj_ops@calibrated=1,422,320
100% 99.8% 1,422,320 1,419,561
90% 89.8% 1,280,088 1,276,720
80% 79.9% 1,137,856 1,136,250
70% 70.2% 995,624 997,866
60% 59.8% 853,392 850,767
50% 50.2% 711,160 713,919
40% 39.9% 568,928 566,951
30% 29.8% 426,696 424,427
20% 19.9% 284,464 283,298
10% 9.9% 142,232 141,206
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'M620-07' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,340,451
Calibration 2     1,419,714
Calibration 3     1,419,970
ssj_ops@calibrated=1,419,842
100% 99.9% 1,419,842 1,418,496
90% 89.8% 1,277,858 1,274,382
80% 80.0% 1,135,874 1,136,456
70% 70.0% 993,889 993,759
60% 60.0% 851,905 852,356
50% 49.9% 709,921 708,700
40% 40.0% 567,937 568,429
30% 30.0% 425,953 425,830
20% 20.0% 283,968 283,344
10% 10.0% 141,984 141,409
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'M620-08' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,337,365
Calibration 2     1,416,942
Calibration 3     1,414,816
ssj_ops@calibrated=1,415,879
100% 99.7% 1,415,879 1,412,297
90% 90.0% 1,274,291 1,274,218
80% 80.1% 1,132,703 1,134,066
70% 70.0% 991,116 991,770
60% 60.1% 849,528 850,501
50% 50.1% 707,940 708,980
40% 40.1% 566,352 567,908
30% 30.1% 424,764 426,020
20% 20.1% 283,176 284,533
10% 10.0% 141,588 141,200
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'M620-09' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,346,660
Calibration 2     1,425,809
Calibration 3     1,427,655
ssj_ops@calibrated=1,426,732
100% 99.9% 1,426,732 1,425,718
90% 89.9% 1,284,059 1,282,284
80% 79.9% 1,141,386 1,140,185
70% 69.8% 998,712 995,691
60% 60.0% 856,039 855,349
50% 49.9% 713,366 712,341
40% 40.0% 570,693 569,994
30% 30.0% 428,020 427,467
20% 19.9% 285,346 284,589
10% 9.9% 142,673 141,333
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'M620-10' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,342,154
Calibration 2     1,417,425
Calibration 3     1,418,492
ssj_ops@calibrated=1,417,958
100% 99.9% 1,417,958 1,416,732
90% 89.9% 1,276,163 1,275,144
80% 79.9% 1,134,367 1,132,848
70% 69.8% 992,571 990,307
60% 59.7% 850,775 846,391
50% 50.1% 708,979 710,471
40% 40.0% 567,183 566,759
30% 30.1% 425,388 426,190
20% 20.0% 283,592 283,763
10% 10.0% 141,796 142,385
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'M620-11' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,343,653
Calibration 2     1,426,809
Calibration 3     1,427,691
ssj_ops@calibrated=1,427,250
100% 99.9% 1,427,250 1,425,270
90% 89.8% 1,284,525 1,281,786
80% 79.8% 1,141,800 1,139,194
70% 69.9% 999,075 998,251
60% 60.0% 856,350 856,490
50% 50.0% 713,625 713,957
40% 40.0% 570,900 571,112
30% 30.1% 428,175 429,113
20% 20.2% 285,450 288,286
10% 10.0% 142,725 142,943
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'M620-12' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,338,674
Calibration 2     1,420,517
Calibration 3     1,421,035
ssj_ops@calibrated=1,420,776
100% 99.8% 1,420,776 1,417,933
90% 90.0% 1,278,698 1,278,569
80% 80.1% 1,136,620 1,137,346
70% 70.1% 994,543 995,600
60% 59.9% 852,465 850,965
50% 49.9% 710,388 708,297
40% 39.9% 568,310 566,286
30% 30.0% 426,233 426,193
20% 19.8% 284,155 281,552
10% 9.9% 142,078 140,759
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'M620-13' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,341,481
Calibration 2     1,423,077
Calibration 3     1,423,165
ssj_ops@calibrated=1,423,121
100% 100.0% 1,423,121 1,422,629
90% 90.1% 1,280,809 1,281,617
80% 80.0% 1,138,497 1,138,829
70% 70.2% 996,185 998,351
60% 60.2% 853,873 857,024
50% 49.9% 711,561 710,434
40% 40.3% 569,248 573,082
30% 30.1% 426,936 427,971
20% 20.0% 284,624 285,117
10% 10.0% 142,312 142,659
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'M620-14' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,346,824
Calibration 2     1,425,441
Calibration 3     1,427,440
ssj_ops@calibrated=1,426,441
100% 99.9% 1,426,441 1,424,412
90% 90.0% 1,283,797 1,284,006
80% 80.0% 1,141,152 1,141,140
70% 70.1% 998,508 999,763
60% 59.9% 855,864 854,006
50% 49.9% 713,220 711,950
40% 40.0% 570,576 570,669
30% 30.1% 427,932 429,879
20% 20.0% 285,288 285,438
10% 10.0% 142,644 142,493
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'M620-15' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,344,483
Calibration 2     1,426,927
Calibration 3     1,428,517
ssj_ops@calibrated=1,427,722
100% 99.9% 1,427,722 1,425,583
90% 90.2% 1,284,950 1,287,205
80% 80.2% 1,142,178 1,145,282
70% 70.2% 999,405 1,002,654
60% 60.1% 856,633 858,657
50% 49.9% 713,861 712,965
40% 40.2% 571,089 574,400
30% 30.1% 428,317 429,168
20% 20.1% 285,544 287,248
10% 10.0% 142,772 142,210
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'M620-16' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,343,837
Calibration 2     1,426,804
Calibration 3     1,427,759
ssj_ops@calibrated=1,427,281
100% 99.8% 1,427,281 1,424,600
90% 89.7% 1,284,553 1,280,537
80% 79.9% 1,141,825 1,139,723
70% 70.2% 999,097 1,001,367
60% 59.9% 856,369 855,298
50% 49.9% 713,641 712,457
40% 40.1% 570,912 571,949
30% 30.1% 428,184 429,530
20% 20.0% 285,456 285,539
10% 10.0% 142,728 142,588
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
