Acer Incorporated Acer AR580 F2 ssj_ops@100% = 2,980,035
ssj_ops@100% per JVM = 186,252
Test Sponsor: Acer Incorporated SPEC License #: 97 Test Method: Single Node
Tested By: Acer Incorporated Test Location: Taipei, R.O.C. Test Date: Dec 13, 2012
Hardware Availability: Jan-2013 Software Availability: Oct-2012 Publication: Jan 9, 2013
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     2,928,074
Calibration 2     2,986,743
Calibration 3     2,987,377
ssj_ops@calibrated=2,987,060
100% 99.8% 2,987,060 2,980,035
90% 90.1% 2,688,354 2,691,001
80% 80.1% 2,389,648 2,391,552
70% 70.0% 2,090,942 2,090,600
60% 60.1% 1,792,236 1,796,087
50% 50.1% 1,493,530 1,497,013
40% 39.9% 1,194,824 1,193,160
30% 29.9% 896,118 894,034
20% 20.0% 597,412 596,972
10% 10.0% 298,706 298,175
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Acer Incorporated
Model: Acer AR580 F2
Form Factor: 2U
CPU Name: Intel Xeon E5-4650 2.7 GHz (Intel Turbo Boost Technology up to 3.30 GHz)
CPU Characteristics: 8 core, 2.7GHz, 20MB L3 Cache
CPU Frequency (MHz): 2700
CPU(s) Enabled: 32 cores, 4 chips, 8 cores/chip
Hardware Threads: 64 (2 / core)
CPU(s) Orderable: 2,4 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 20 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 32
# and size of DIMM: 8 x 4096 MB
Memory Details: 4GB 2Rx8 PC3L-10600E; Slots A1, B1, E1, F1, J1, K1, N1, P1 are populated
Power Supply Quantity and Rating (W): 1 x 1600
Power Supply Details: Acer P/N SC.16M17.002
Disk Drive: 1 x 500GB 7.2K RPM SATA 2.5" HDD, Acer part #KH.50001.041
Disk Controller: onboard SAS controller
# and type of Network Interface Cards (NICs) Installed: 1 x dual-port Intel X540-T2 10 Gigabit Ethernet Controller
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power save enabled in OS
Operating System (OS): Windows Server 2008, Enterprise Edition
OS Version: R2 SP1
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.6, JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120322_106209 JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xmx1600m -Xms1600m -Xmn1200m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp -Xconcurrentlevel0
JVM Affinity: start /affinity [0F,F0,F00,F000,F0000,F00000,F000000,F0000000,F00000000,F000000000,F0000000000,F00000000000,F000000000000,F0000000000000,F00000000000000,F000000000000000]
JVM Instances: 16
JVM Initial Heap (MB): 1600
JVM Maximum Heap (MB): 1600
JVM Address Bits: 64
Boot Firmware Version: x058
Management Firmware Version: 1.15.3885
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: IBM SDK Java Technology Edition Version 7.0 for Windows x64
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
AR580F2.001 186,543
AR580F2.002 186,310
AR580F2.003 185,016
AR580F2.004 185,145
AR580F2.005 187,335
AR580F2.006 186,456
AR580F2.007 188,620
AR580F2.008 187,457
AR580F2.009 191,113
AR580F2.010 185,948
AR580F2.011 188,031
AR580F2.012 188,716
AR580F2.013 182,841
AR580F2.014 184,301
AR580F2.015 185,886
AR580F2.016 180,316
ssj_ops@100% 2,980,035
ssj_ops@100% per JVM 186,252

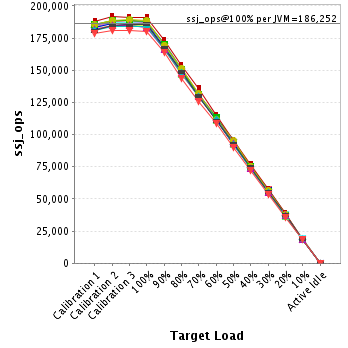

Graph of per-instance results
JVM 'AR580F2.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     183,213
Calibration 2     188,234
Calibration 3     188,533
ssj_ops@calibrated=188,384
100% 99.0% 188,384 186,543
90% 90.2% 169,545 169,987
80% 79.8% 150,707 150,402
70% 69.5% 131,869 130,899
60% 59.9% 113,030 112,927
50% 49.9% 94,192 94,095
40% 39.4% 75,353 74,140
30% 30.3% 56,515 56,991
20% 20.0% 37,677 37,681
10% 10.1% 18,838 18,933
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'AR580F2.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     183,643
Calibration 2     186,687
Calibration 3     187,112
ssj_ops@calibrated=186,900
100% 99.7% 186,900 186,310
90% 89.6% 168,210 167,476
80% 79.7% 149,520 148,910
70% 70.3% 130,830 131,300
60% 60.0% 112,140 112,207
50% 50.4% 93,450 94,267
40% 39.6% 74,760 74,005
30% 29.6% 56,070 55,302
20% 20.0% 37,380 37,446
10% 10.1% 18,690 18,789
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'AR580F2.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     181,624
Calibration 2     185,067
Calibration 3     185,106
ssj_ops@calibrated=185,087
100% 100.0% 185,087 185,016
90% 89.9% 166,578 166,340
80% 79.1% 148,069 146,475
70% 70.3% 129,561 130,196
60% 60.0% 111,052 111,123
50% 50.0% 92,543 92,517
40% 40.4% 74,035 74,758
30% 29.8% 55,526 55,206
20% 19.5% 37,017 36,177
10% 9.9% 18,509 18,383
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'AR580F2.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     182,326
Calibration 2     184,901
Calibration 3     185,568
ssj_ops@calibrated=185,234
100% 100.0% 185,234 185,145
90% 90.2% 166,711 167,161
80% 80.3% 148,188 148,813
70% 70.0% 129,664 129,626
60% 60.7% 111,141 112,450
50% 50.1% 92,617 92,813
40% 40.0% 74,094 74,043
30% 30.0% 55,570 55,635
20% 19.8% 37,047 36,751
10% 10.3% 18,523 19,005
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'AR580F2.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     182,836
Calibration 2     187,232
Calibration 3     187,306
ssj_ops@calibrated=187,269
100% 100.0% 187,269 187,335
90% 89.8% 168,542 168,119
80% 81.0% 149,815 151,703
70% 69.6% 131,088 130,280
60% 60.5% 112,361 113,389
50% 50.6% 93,634 94,837
40% 40.0% 74,907 74,874
30% 30.2% 56,181 56,529
20% 20.0% 37,454 37,507
10% 9.9% 18,727 18,546
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'AR580F2.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     182,238
Calibration 2     186,728
Calibration 3     186,906
ssj_ops@calibrated=186,817
100% 99.8% 186,817 186,456
90% 90.3% 168,135 168,639
80% 80.1% 149,454 149,596
70% 70.4% 130,772 131,493
60% 60.7% 112,090 113,374
50% 49.8% 93,409 93,099
40% 40.1% 74,727 74,984
30% 29.9% 56,045 55,875
20% 20.1% 37,363 37,612
10% 10.1% 18,682 18,861
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'AR580F2.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     184,135
Calibration 2     188,865
Calibration 3     188,904
ssj_ops@calibrated=188,884
100% 99.9% 188,884 188,620
90% 90.0% 169,996 169,920
80% 79.8% 151,108 150,815
70% 69.5% 132,219 131,300
60% 60.7% 113,331 114,574
50% 49.9% 94,442 94,273
40% 40.1% 75,554 75,687
30% 29.9% 56,665 56,458
20% 20.1% 37,777 38,024
10% 10.2% 18,888 19,182
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'AR580F2.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     184,913
Calibration 2     188,179
Calibration 3     188,747
ssj_ops@calibrated=188,463
100% 99.5% 188,463 187,457
90% 90.4% 169,617 170,427
80% 80.5% 150,771 151,682
70% 70.0% 131,924 131,875
60% 59.5% 113,078 112,077
50% 50.9% 94,232 96,022
40% 39.8% 75,385 74,928
30% 30.3% 56,539 57,037
20% 20.4% 37,693 38,513
10% 9.7% 18,846 18,325
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'AR580F2.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     187,850
Calibration 2     191,876
Calibration 3     191,293
ssj_ops@calibrated=191,584
100% 99.8% 191,584 191,113
90% 90.3% 172,426 173,052
80% 80.3% 153,267 153,794
70% 70.8% 134,109 135,737
60% 59.9% 114,951 114,666
50% 49.6% 95,792 95,066
40% 40.0% 76,634 76,580
30% 29.7% 57,475 56,985
20% 20.0% 38,317 38,346
10% 9.8% 19,158 18,687
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'AR580F2.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     183,135
Calibration 2     186,091
Calibration 3     185,724
ssj_ops@calibrated=185,907
100% 100.0% 185,907 185,948
90% 90.1% 167,317 167,504
80% 80.2% 148,726 149,090
70% 70.2% 130,135 130,508
60% 59.8% 111,544 111,194
50% 49.6% 92,954 92,179
40% 40.0% 74,363 74,352
30% 30.2% 55,772 56,189
20% 19.9% 37,181 37,052
10% 10.1% 18,591 18,733
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

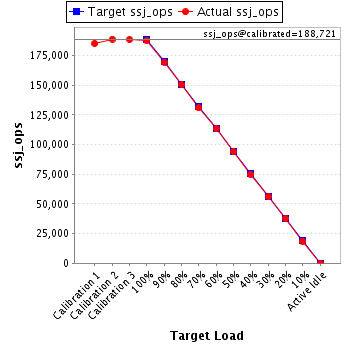

JVM 'AR580F2.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     185,195
Calibration 2     188,896
Calibration 3     188,546
ssj_ops@calibrated=188,721
100% 99.6% 188,721 188,031
90% 89.9% 169,849 169,635
80% 79.7% 150,977 150,417
70% 69.5% 132,105 131,148
60% 60.1% 113,233 113,467
50% 49.9% 94,360 94,133
40% 39.7% 75,488 74,983
30% 29.6% 56,616 55,933
20% 19.9% 37,744 37,476
10% 9.9% 18,872 18,721
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'AR580F2.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     185,192
Calibration 2     188,819
Calibration 3     189,166
ssj_ops@calibrated=188,992
100% 99.9% 188,992 188,716
90% 89.6% 170,093 169,428
80% 80.2% 151,194 151,619
70% 69.8% 132,295 131,837
60% 59.2% 113,395 111,805
50% 50.3% 94,496 95,049
40% 39.9% 75,597 75,470
30% 30.1% 56,698 56,842
20% 20.0% 37,798 37,765
10% 9.8% 18,899 18,557
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

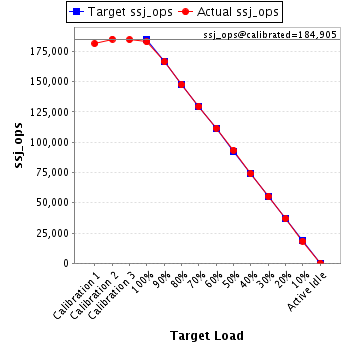

JVM 'AR580F2.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     181,411
Calibration 2     185,137
Calibration 3     184,674
ssj_ops@calibrated=184,905
100% 98.9% 184,905 182,841
90% 90.0% 166,415 166,473
80% 79.8% 147,924 147,495
70% 70.0% 129,434 129,503
60% 60.4% 110,943 111,624
50% 50.5% 92,453 93,321
40% 40.0% 73,962 73,949
30% 29.9% 55,472 55,300
20% 19.9% 36,981 36,854
10% 9.9% 18,491 18,315
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'AR580F2.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     180,952
Calibration 2     184,344
Calibration 3     183,707
ssj_ops@calibrated=184,025
100% 100.1% 184,025 184,301
90% 90.2% 165,623 165,924
80% 80.4% 147,220 147,953
70% 70.3% 128,818 129,318
60% 60.6% 110,415 111,519
50% 50.2% 92,013 92,442
40% 40.1% 73,610 73,741
30% 29.9% 55,208 54,935
20% 19.7% 36,805 36,301
10% 9.8% 18,403 18,114
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'AR580F2.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     180,706
Calibration 2     184,879
Calibration 3     185,514
ssj_ops@calibrated=185,196
100% 100.4% 185,196 185,886
90% 90.1% 166,677 166,916
80% 80.5% 148,157 149,015
70% 70.0% 129,638 129,624
60% 59.9% 111,118 110,923
50% 50.1% 92,598 92,826
40% 40.2% 74,079 74,462
30% 29.8% 55,559 55,139
20% 20.3% 37,039 37,627
10% 10.0% 18,520 18,558
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'AR580F2.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     178,705
Calibration 2     180,807
Calibration 3     180,573
ssj_ops@calibrated=180,690
100% 99.8% 180,690 180,316
90% 90.8% 162,621 163,999
80% 79.6% 144,552 143,773
70% 69.7% 126,483 125,958
60% 60.2% 108,414 108,767
50% 49.9% 90,345 90,074
40% 40.0% 72,276 72,203
30% 29.7% 54,207 53,678
20% 19.8% 36,138 35,839
10% 10.2% 18,069 18,466
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
