Dell Inc. PowerEdge C6145 (AMD Opteron 6380, 2.50 GHz) ssj_ops@100% = 6,175,935
ssj_ops@100% per Host = 3,087,968
ssj_ops@100% per JVM = 192,998
Test Sponsor: Dell Inc. SPEC License #: 55 Test Method: Multi Node
Tested By: Dell Inc. Test Location: Round Rock, TX, USA Test Date: Oct 11, 2012
Hardware Availability: Feb-2013 Software Availability: Jun-2012 Publication: Jan 9, 2013
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     6,044,416
Calibration 2     6,197,211
Calibration 3     6,196,686
ssj_ops@calibrated=6,196,948
100% 99.7% 6,196,948 6,175,935
90% 90.1% 5,577,253 5,581,622
80% 80.0% 4,957,559 4,956,293
70% 69.9% 4,337,864 4,329,738
60% 60.0% 3,718,169 3,715,392
50% 50.0% 3,098,474 3,100,961
40% 39.9% 2,478,779 2,475,257
30% 29.9% 1,859,084 1,855,965
20% 20.0% 1,239,390 1,241,035
10% 10.0% 619,695 616,627
Active Idle   0 0
Graph of results
Aggregate SUT Data
# of Nodes # of Chips # of Cores # of Threads Total RAM (GB) # of OS Images # of JVM Instances
2 8 128 128 128 2 32
System Under Test
Shared Hardware
Shared Hardware
Enclosure: PowerEdge C6145
Form Factor: 2U
Power Supply Quantity and Rating (W): 2 x 1400
Power Supply Details: Dell PN RN0HH
Network Switch: PowerConnect 6224
Network Switch Details: The network switch was not measured for power
KVM Switch: None
KVM Switch Details: N/A
Other Hardware: None
Comment: None
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 2
Comment: None
Hardware per Node
Hardware Vendor: Dell Inc.
Model: PowerEdge C6145 (AMD Opteron 6380, 2.50 GHz)
Form Factor: Blade
CPU Name: AMD Opteron 6380 (2.50GHz)
CPU Characteristics: 16-Core, 2.50GHz, 16MB L3 Cache
CPU Frequency (MHz): 2500
CPU(s) Enabled: 64 cores, 4 chips, 16 cores/chip
Hardware Threads: 64 (1 / core)
CPU(s) Orderable: 2,4 chips
Primary Cache: 512 KB I + 256 KB D on chip per chip
Secondary Cache: 16 MB I+D on chip per chip, 2 MB shared / 2 cores
Tertiary Cache: 16 MB I+D on chip per chip, 8MB shared / 8 cores
Other Cache: None
Memory Amount (GB): 64
# and size of DIMM: 16 x 4096 MB
Memory Details: 4GB 2Rx8 PC3L-10600R ECC ; Slots A1-A4, B1-B4, C1-C4, D1-D4 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: N/A
Disk Drive: 1 x 500GB 2.5" SATA 7200 RPM (Dell PN: TH2NR)
Disk Controller: Onboard SATA
# and type of Network Interface Cards (NICs) Installed: 1 x Intel(R) 82576 Gigabit Dual Port Network Connection
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software per Node
Power Management: Power Saver plan in OS
Operating System (OS): Microsoft Windows 2008 Enterprise x64 Edition
OS Version: R2 SP1 (64-bit)
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.6, JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120322_106209 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xmn1400m -Xms1875m -Xmx1875m -XlockReservation -Xnoloa -Xlp -Xconcurrentlevel0 -Xthr:minimizeusercpu
JVM Affinity: start /affinity [F, F0, F00, F000, F0000,F00000, F000000, F0000000, F00000000,F000000000, F0000000000, F00000000000,F000000000000, F0000000000000,F00000000000000, F000000000000000]
JVM Instances: 16
JVM Initial Heap (MB): 1875
JVM Maximum Heap (MB): 1875
JVM Address Bits: 64
Boot Firmware Version: 3.0.0
Management Firmware Version: 1.11
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: IBM SDK Java Technology Edition Version 7.0 for Windows
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
None
Host Instance Summary
Host ssj_ops@100%
WIN-UEMOG929OQ1node4 3,087,521
WIN-UEMOG929Onode1 3,088,414
ssj_ops@100% 6,175,935
ssj_ops@100% per Host 3,087,968
ssj_ops@100% per JVM 192,998

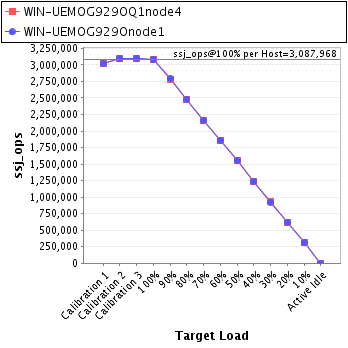

Graph of per-host results

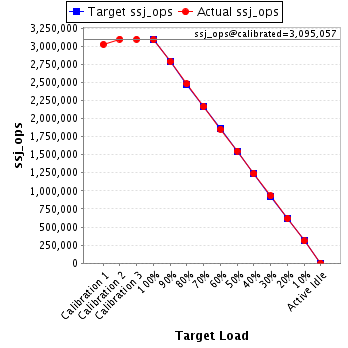

Host 'WIN-UEMOG929OQ1node4' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     3,023,353
Calibration 2     3,095,788
Calibration 3     3,094,326
ssj_ops@calibrated=3,095,057
100% 99.8% 3,095,057 3,087,521
90% 90.0% 2,785,552 2,786,043
80% 80.0% 2,476,046 2,477,312
70% 69.9% 2,166,540 2,164,891
60% 59.8% 1,857,034 1,852,370
50% 50.1% 1,547,529 1,550,622
40% 39.9% 1,238,023 1,235,901
30% 30.0% 928,517 929,349
20% 20.0% 619,011 620,234
10% 10.0% 309,506 308,718
Active Idle   0 0
Graph of results
Host 'WIN-UEMOG929Onode1' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     3,021,063
Calibration 2     3,101,423
Calibration 3     3,102,359
ssj_ops@calibrated=3,101,891
100% 99.6% 3,101,891 3,088,414
90% 90.1% 2,791,702 2,795,579
80% 79.9% 2,481,513 2,478,981
70% 69.8% 2,171,324 2,164,848
60% 60.1% 1,861,135 1,863,022
50% 50.0% 1,550,945 1,550,340
40% 40.0% 1,240,756 1,239,356
30% 29.9% 930,567 926,616
20% 20.0% 620,378 620,801
10% 9.9% 310,189 307,910
Active Idle   0 0
Graph of results
