Dell Inc. PowerEdge C6105 (AMD Opteron 4376HE, 2.6 GHz) ssj_ops@100% = 3,209,556
ssj_ops@100% per Host = 802,389
ssj_ops@100% per JVM = 200,597
Test Sponsor: Dell Inc. SPEC License #: 55 Test Method: Multi Node
Tested By: Dell Inc. Test Location: Round Rock, TX, USA Test Date: Sep 14, 2012
Hardware Availability: Feb-2013 Software Availability: Jun-2012 Publication: Jan 9, 2013
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     3,160,427
Calibration 2     3,222,321
Calibration 3     3,221,298
ssj_ops@calibrated=3,221,810
100% 99.6% 3,221,810 3,209,556
90% 90.0% 2,899,629 2,898,296
80% 79.8% 2,577,448 2,571,228
70% 70.1% 2,255,267 2,259,275
60% 59.9% 1,933,086 1,930,703
50% 49.9% 1,610,905 1,606,151
40% 40.0% 1,288,724 1,287,163
30% 30.0% 966,543 965,335
20% 20.1% 644,362 647,289
10% 10.0% 322,181 320,668
Active Idle   0 0
Graph of results
Aggregate SUT Data
# of Nodes # of Chips # of Cores # of Threads Total RAM (GB) # of OS Images # of JVM Instances
4 8 64 64 64.0 4 16
System Under Test
Shared Hardware
Shared Hardware
Enclosure: PowerEdge C6105
Form Factor: 2U
Power Supply Quantity and Rating (W): 2 x 1400
Power Supply Details: Dell PN RN0HH
Network Switch: PowerConnect 6224
Network Switch Details: The network switch was not measured for power
KVM Switch: None
KVM Switch Details: N/A
Other Hardware: None
Comment: None
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 4
Comment: None
Hardware per Node
Hardware Vendor: Dell Inc.
Model: PowerEdge C6105 (AMD Opteron 4376HE, 2.6 GHz)
Form Factor: Blade
CPU Name: AMD Opteron 4376HE
CPU Characteristics: 8-Core, 2.6GHz, 8MB L3 Cache
CPU Frequency (MHz): 2600
CPU(s) Enabled: 16 cores, 2 chips, 8 cores/chip
Hardware Threads: 16 (1 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 256 KB I + 128 KB D on chip per chip
Secondary Cache: 8 MB I+D on chip per chip, 2 MB shared / 2 cores
Tertiary Cache: 8 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 16
# and size of DIMM: 4 x 4096 MB
Memory Details: 4GB 2Rx8 PC3L-10600R ECC ; slots A0,A1,B0,B1 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: N/A
Disk Drive: 1 x 500GB 2.5" SATA 7200RPM (Dell PN: TH2NR)
Disk Controller: Onboard SATA
# and type of Network Interface Cards (NICs) Installed: 1 x Intel(R) 82576 Gigabit Dual Port Network Connection
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software per Node
Power Management: Power Saver Plan in OS
Operating System (OS): Microsoft Windows 2008 Enterprise x64 Edition
OS Version: R2 SP1 (64-bit)
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.6, JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120322_106209 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xmn1400m -Xms1875m -Xmx1875m -XlockReservation -Xnoloa -Xlp -Xconcurrentlevel0 -Xthr:minimizeusercpu
JVM Affinity: start /affinity [F,F0,F00,F000]
JVM Instances: 4
JVM Initial Heap (MB): 1875
JVM Maximum Heap (MB): 1875
JVM Address Bits: 64
Boot Firmware Version: 2.1.7
Management Firmware Version: 1.28
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: IBM SDK Java Technology Edition Version 7.0 for Windows
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
None
Host Instance Summary
Host ssj_ops@100%
WIN-UEMOG929OQ1node4 794,440
WIN-UEMOG929Onode1 805,561
WIN-UEMOG929Onode2 802,370
WIN-UEMOG929Onode3 807,186
ssj_ops@100% 3,209,556
ssj_ops@100% per Host 802,389
ssj_ops@100% per JVM 200,597

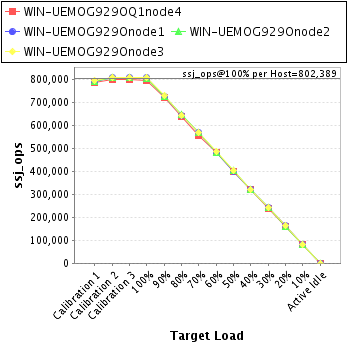

Graph of per-host results
Host 'WIN-UEMOG929OQ1node4' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     784,649
Calibration 2     799,138
Calibration 3     799,631
ssj_ops@calibrated=799,384
100% 99.4% 799,384 794,440
90% 90.1% 719,446 720,246
80% 80.0% 639,508 639,213
70% 69.4% 559,569 554,970
60% 60.0% 479,631 479,672
50% 50.0% 399,692 399,321
40% 40.1% 319,754 320,891
30% 30.0% 239,815 239,879
20% 20.2% 159,877 161,484
10% 10.0% 79,938 80,152
Active Idle   0 0
Graph of results
Host 'WIN-UEMOG929Onode1' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     791,091
Calibration 2     807,157
Calibration 3     807,779
ssj_ops@calibrated=807,468
100% 99.8% 807,468 805,561
90% 89.9% 726,721 726,128
80% 79.6% 645,974 643,018
70% 70.4% 565,228 568,746
60% 59.8% 484,481 482,751
50% 49.6% 403,734 400,842
40% 39.9% 322,987 322,524
30% 29.9% 242,240 241,508
20% 20.1% 161,494 162,311
10% 9.9% 80,747 79,557
Active Idle   0 0
Graph of results
Host 'WIN-UEMOG929Onode2' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     789,831
Calibration 2     807,192
Calibration 3     805,392
ssj_ops@calibrated=806,292
100% 99.5% 806,292 802,370
90% 89.8% 725,663 724,147
80% 80.0% 645,034 644,771
70% 70.4% 564,404 567,247
60% 59.9% 483,775 483,216
50% 49.9% 403,146 402,292
40% 40.0% 322,517 322,735
30% 30.0% 241,888 241,885
20% 19.9% 161,258 160,821
10% 9.9% 80,629 80,026
Active Idle   0 0
Graph of results

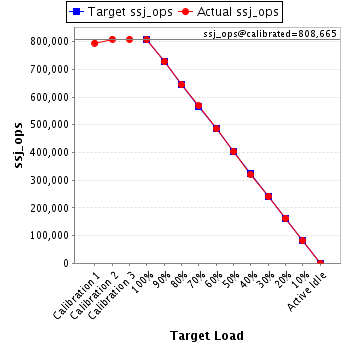

Host 'WIN-UEMOG929Onode3' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     794,855
Calibration 2     808,833
Calibration 3     808,497
ssj_ops@calibrated=808,665
100% 99.8% 808,665 807,186
90% 90.0% 727,799 727,775
80% 79.7% 646,932 644,226
70% 70.3% 566,066 568,311
60% 60.0% 485,199 485,065
50% 49.9% 404,333 403,695
40% 39.7% 323,466 321,013
30% 29.9% 242,600 242,064
20% 20.1% 161,733 162,672
10% 10.0% 80,867 80,933
Active Idle   0 0
Graph of results
