IBM Corporation IBM System x3630 M4 ssj_ops@100% = 1,461,469
ssj_ops@100% per JVM = 182,684
Test Sponsor: IBM Corporation SPEC License #: 11 Test Method: Single Node
Tested By: IBM Corporation Test Location: Taipei, Taiwan Test Date: Oct 24, 2012
Hardware Availability: Dec-2012 Software Availability: Dec-2012 Publication: Nov 14, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,432,858
Calibration 2     1,470,590
Calibration 3     1,463,017
ssj_ops@calibrated=1,466,804
100% 99.6% 1,466,804 1,461,469
90% 90.1% 1,320,123 1,322,117
80% 80.2% 1,173,443 1,176,756
70% 70.2% 1,026,762 1,029,840
60% 59.7% 880,082 875,182
50% 50.0% 733,402 732,858
40% 39.9% 586,721 585,267
30% 30.1% 440,041 442,141
20% 20.0% 293,361 293,144
10% 10.0% 146,680 146,707
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: IBM Corporation
Model: IBM System x3630 M4
Form Factor: 2U
CPU Name: Intel Xeon E5-2470 2.30 GHz (Intel Turbo Boost Technology up to 3.10 GHz)
CPU Characteristics: 8 core, 2.30GHz, 20MB L3 Cache
CPU Frequency (MHz): 2300
CPU(s) Enabled: 16 cores, 2 chips, 8 cores/chip
Hardware Threads: 32 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 20 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 24
# and size of DIMM: 6 x 4096 MB
Memory Details: 4GB 2Rx8 PC3L-10600E; slots 1, 3, 5, 7, 9 and 11 populated
Power Supply Quantity and Rating (W): 1 x 550
Power Supply Details: IBM 550w PSU(94Y8074)
Disk Drive: 1 x 500GB 3.5 SATA(IBM P/N: 81Y9802)
Disk Controller: Integrated SAS/SATA Controller
# and type of Network Interface Cards (NICs) Installed: 4 x Integrated Intel I350 Gigabit Ethernet Controller
NICs Enabled in Firmware / OS / Connected: 4/4/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: IBM Power Profile
Operating System (OS): Microsoft Windows Server 2008 Enterprise Edition x64
OS Version: R2 SP1
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.6, JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120322_106209 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xmn1100m -Xms1500m -Xmx1500m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp -Xconcurrentlevel0
JVM Affinity: start /affinity [F,F0,F00,F000,F0000,F00000,F000000,F0000000]
JVM Instances: 8
JVM Initial Heap (MB): 1500
JVM Maximum Heap (MB): 1500
JVM Address Bits: 64
Boot Firmware Version: BEE123F
Management Firmware Version: 1AOO31M
Workload Version: SSJ 1.2.9
Director Location: Controller
Other Software: IBM SDK Java Technology Edition Version 7.0 for Windows x64
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-x3530M4.001 181,789
WIN-x3530M4.002 180,835
WIN-x3530M4.003 182,396
WIN-x3530M4.004 181,720
WIN-x3530M4.005 185,866
WIN-x3530M4.006 184,517
WIN-x3530M4.007 184,228
WIN-x3530M4.008 180,118
ssj_ops@100% 1,461,469
ssj_ops@100% per JVM 182,684

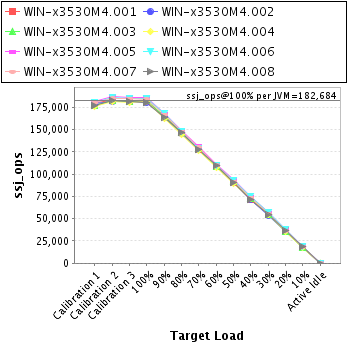

Graph of per-instance results
JVM 'WIN-x3530M4.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     179,962
Calibration 2     182,242
Calibration 3     181,251
ssj_ops@calibrated=181,746
100% 100.0% 181,746 181,789
90% 90.4% 163,572 164,379
80% 81.1% 145,397 147,386
70% 70.0% 127,222 127,166
60% 59.9% 109,048 108,939
50% 50.0% 90,873 90,784
40% 39.6% 72,699 72,006
30% 30.1% 54,524 54,618
20% 20.0% 36,349 36,355
10% 10.0% 18,175 18,220
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-x3530M4.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     179,117
Calibration 2     181,872
Calibration 3     181,712
ssj_ops@calibrated=181,792
100% 99.5% 181,792 180,835
90% 90.2% 163,613 163,917
80% 80.3% 145,433 146,069
70% 70.4% 127,254 127,919
60% 60.0% 109,075 109,078
50% 49.9% 90,896 90,762
40% 39.5% 72,717 71,897
30% 29.8% 54,538 54,116
20% 19.9% 36,358 36,208
10% 10.1% 18,179 18,272
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-x3530M4.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     177,575
Calibration 2     182,876
Calibration 3     181,600
ssj_ops@calibrated=182,238
100% 100.1% 182,238 182,396
90% 90.4% 164,014 164,684
80% 80.5% 145,790 146,768
70% 71.0% 127,567 129,322
60% 59.5% 109,343 108,483
50% 50.3% 91,119 91,728
40% 40.1% 72,895 73,160
30% 29.9% 54,671 54,550
20% 19.7% 36,448 35,988
10% 9.8% 18,224 17,949
Active Idle   0 0

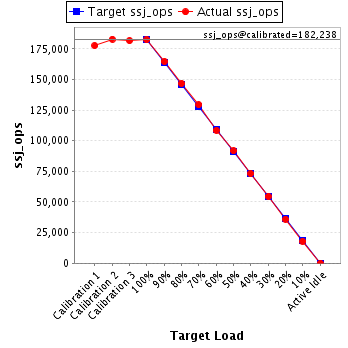

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-x3530M4.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     176,258
Calibration 2     181,167
Calibration 3     180,244
ssj_ops@calibrated=180,706
100% 100.6% 180,706 181,720
90% 90.0% 162,635 162,638
80% 80.3% 144,564 145,043
70% 70.1% 126,494 126,718
60% 59.6% 108,423 107,648
50% 49.8% 90,353 89,963
40% 40.1% 72,282 72,401
30% 30.5% 54,212 55,056
20% 19.9% 36,141 36,032
10% 9.9% 18,071 17,845
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-x3530M4.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     182,086
Calibration 2     187,549
Calibration 3     186,418
ssj_ops@calibrated=186,983
100% 99.4% 186,983 185,866
90% 89.8% 168,285 167,957
80% 79.9% 149,587 149,456
70% 70.4% 130,888 131,565
60% 59.5% 112,190 111,218
50% 50.2% 93,492 93,849
40% 40.1% 74,793 74,932
30% 30.5% 56,095 56,978
20% 20.0% 37,397 37,475
10% 10.2% 18,698 18,983
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-x3530M4.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     180,923
Calibration 2     186,608
Calibration 3     185,144
ssj_ops@calibrated=185,876
100% 99.3% 185,876 184,517
90% 90.4% 167,289 167,999
80% 79.3% 148,701 147,366
70% 69.6% 130,113 129,350
60% 59.2% 111,526 110,011
50% 50.3% 92,938 93,421
40% 40.6% 74,351 75,470
30% 30.5% 55,763 56,717
20% 20.4% 37,175 37,856
10% 10.0% 18,588 18,506
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-x3530M4.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     179,969
Calibration 2     185,255
Calibration 3     184,795
ssj_ops@calibrated=185,025
100% 99.6% 185,025 184,228
90% 90.0% 166,523 166,531
80% 79.7% 148,020 147,462
70% 70.3% 129,518 130,034
60% 59.5% 111,015 110,097
50% 49.6% 92,513 91,683
40% 39.8% 74,010 73,675
30% 30.2% 55,508 55,863
20% 19.9% 37,005 36,751
10% 10.1% 18,503 18,603
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-x3530M4.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     176,968
Calibration 2     183,019
Calibration 3     181,854
ssj_ops@calibrated=182,437
100% 98.7% 182,437 180,118
90% 89.9% 164,193 164,013
80% 80.7% 145,949 147,207
70% 70.0% 127,706 127,767
60% 60.1% 109,462 109,709
50% 49.7% 91,218 90,668
40% 39.3% 72,975 71,725
30% 29.7% 54,731 54,243
20% 20.0% 36,487 36,479
10% 10.0% 18,244 18,329
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
