IBM Corporation IBM System x3530 M4 ssj_ops@100% = 1,463,219
ssj_ops@100% per JVM = 182,902
Test Sponsor: IBM Corporation SPEC License #: 11 Test Method: Single Node
Tested By: IBM Corporation Test Location: Taipei, Taiwan Test Date: Oct 26, 2012
Hardware Availability: Dec-2012 Software Availability: Dec-2012 Publication: Nov 14, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,442,167
Calibration 2     1,467,994
Calibration 3     1,466,093
ssj_ops@calibrated=1,467,043
100% 99.7% 1,467,043 1,463,219
90% 90.2% 1,320,339 1,323,006
80% 80.0% 1,173,635 1,173,186
70% 70.2% 1,026,930 1,029,217
60% 60.0% 880,226 880,317
50% 49.9% 733,522 732,166
40% 40.1% 586,817 588,035
30% 30.0% 440,113 440,440
20% 20.0% 293,409 293,903
10% 10.1% 146,704 147,486
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: IBM Corporation
Model: IBM System x3530 M4
Form Factor: 1U
CPU Name: Intel Xeon E5-2470 2.30 GHz (Intel Turbo Boost Technology up to 3.10 GHz)
CPU Characteristics: 8 core, 2.30GHz, 20MB L3 Cache
CPU Frequency (MHz): 2300
CPU(s) Enabled: 16 cores, 2 chips, 8 cores/chip
Hardware Threads: 32 (2 / core)
CPU(s) Orderable: 1, 2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 20 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 24
# and size of DIMM: 6 x 4096 MB
Memory Details: 4GB 2Rx8 PC3L-10600E; slots 1, 3, 5, 7, 9 and 11 populated
Power Supply Quantity and Rating (W): 1 x 675
Power Supply Details: IBM 675w PSU(39Y7216)
Disk Drive: 1 x 250GB 2.5 SATA(IBM P/N: 81Y9722)
Disk Controller: Integrated SAS/SATA Controller
# and type of Network Interface Cards (NICs) Installed: 4 x Integrated Intel I350 Gigabit Ethernet Controller
NICs Enabled in Firmware / OS / Connected: 4/4/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: IBM Power Profile
Operating System (OS): Microsoft Windows Server 2008 Enterprise Edition x64
OS Version: R2 SP1
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.6, JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120322_106209 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xmn1100m -Xms1500m -Xmx1500m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp -Xconcurrentlevel0
JVM Affinity: start /affinity [F,F0,F00,F000,F0000,F00000,F000000,F0000000]
JVM Instances: 8
JVM Initial Heap (MB): 1500
JVM Maximum Heap (MB): 1500
JVM Address Bits: 64
Boot Firmware Version: BEE123F
Management Firmware Version: 1AOO31M
Workload Version: SSJ 1.2.9
Director Location: Controller
Other Software: IBM SDK Java Technology Edition Version 7.0 for Windows x64
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-H2RRMJRR630.001 185,369
WIN-H2RRMJRR630.002 183,066
WIN-H2RRMJRR630.003 182,256
WIN-H2RRMJRR630.004 187,186
WIN-H2RRMJRR630.005 184,266
WIN-H2RRMJRR630.006 178,957
WIN-H2RRMJRR630.007 180,941
WIN-H2RRMJRR630.008 181,179
ssj_ops@100% 1,463,219
ssj_ops@100% per JVM 182,902

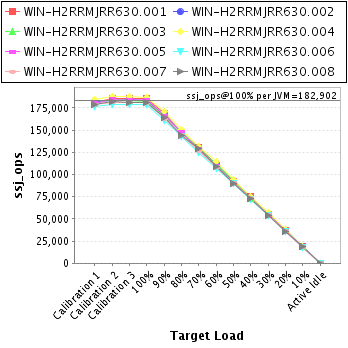

Graph of per-instance results
JVM 'WIN-H2RRMJRR630.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     181,253
Calibration 2     185,232
Calibration 3     185,484
ssj_ops@calibrated=185,358
100% 100.0% 185,358 185,369
90% 90.7% 166,823 168,166
80% 79.5% 148,287 147,316
70% 70.2% 129,751 130,152
60% 60.0% 111,215 111,215
50% 49.7% 92,679 92,083
40% 40.4% 74,143 74,892
30% 29.9% 55,608 55,376
20% 20.1% 37,072 37,346
10% 10.0% 18,536 18,531
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-H2RRMJRR630.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     181,747
Calibration 2     183,169
Calibration 3     184,474
ssj_ops@calibrated=183,821
100% 99.6% 183,821 183,066
90% 90.3% 165,439 165,967
80% 80.1% 147,057 147,266
70% 70.4% 128,675 129,383
60% 60.7% 110,293 111,501
50% 49.8% 91,911 91,533
40% 40.0% 73,529 73,567
30% 30.0% 55,146 55,065
20% 19.9% 36,764 36,619
10% 10.2% 18,382 18,745
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-H2RRMJRR630.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     180,428
Calibration 2     184,718
Calibration 3     183,831
ssj_ops@calibrated=184,274
100% 98.9% 184,274 182,256
90% 89.9% 165,847 165,676
80% 80.6% 147,419 148,527
70% 70.1% 128,992 129,205
60% 60.3% 110,565 111,206
50% 50.6% 92,137 93,273
40% 39.8% 73,710 73,256
30% 30.3% 55,282 55,872
20% 20.5% 36,855 37,716
10% 9.9% 18,427 18,324
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-H2RRMJRR630.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     184,796
Calibration 2     188,139
Calibration 3     187,749
ssj_ops@calibrated=187,944
100% 99.6% 187,944 187,186
90% 90.7% 169,150 170,420
80% 80.4% 150,355 151,044
70% 69.9% 131,561 131,398
60% 60.7% 112,767 114,074
50% 50.0% 93,972 93,889
40% 39.9% 75,178 74,975
30% 30.2% 56,383 56,786
20% 20.1% 37,589 37,781
10% 10.1% 18,794 18,898
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-H2RRMJRR630.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     180,378
Calibration 2     184,504
Calibration 3     183,449
ssj_ops@calibrated=183,977
100% 100.2% 183,977 184,266
90% 90.3% 165,579 166,057
80% 80.1% 147,181 147,292
70% 69.8% 128,784 128,414
60% 59.3% 110,386 109,176
50% 49.6% 91,988 91,304
40% 39.8% 73,591 73,220
30% 29.8% 55,193 54,775
20% 20.1% 36,795 36,928
10% 10.0% 18,398 18,407
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-H2RRMJRR630.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     176,538
Calibration 2     179,170
Calibration 3     178,845
ssj_ops@calibrated=179,007
100% 100.0% 179,007 178,957
90% 89.6% 161,106 160,456
80% 80.0% 143,206 143,168
70% 69.8% 125,305 124,898
60% 59.4% 107,404 106,265
50% 50.3% 89,504 90,067
40% 40.4% 71,603 72,246
30% 29.9% 53,702 53,496
20% 20.0% 35,801 35,761
10% 10.1% 17,901 18,094
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-H2RRMJRR630.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     178,530
Calibration 2     181,386
Calibration 3     181,086
ssj_ops@calibrated=181,236
100% 99.8% 181,236 180,941
90% 89.7% 163,113 162,609
80% 79.5% 144,989 144,130
70% 70.0% 126,865 126,895
60% 59.6% 108,742 108,007
50% 50.0% 90,618 90,529
40% 40.5% 72,494 73,423
30% 30.3% 54,371 54,866
20% 19.8% 36,247 35,882
10% 10.0% 18,124 18,169
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-H2RRMJRR630.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     178,495
Calibration 2     181,675
Calibration 3     181,174
ssj_ops@calibrated=181,425
100% 99.9% 181,425 181,179
90% 90.2% 163,282 163,656
80% 79.6% 145,140 144,444
70% 71.0% 126,997 128,872
60% 60.0% 108,855 108,873
50% 49.3% 90,712 89,488
40% 39.9% 72,570 72,456
30% 29.9% 54,427 54,205
20% 19.8% 36,285 35,870
10% 10.1% 18,142 18,319
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
