IBM Corporation IBM System x3300 M4 ssj_ops@100% = 1,482,687
ssj_ops@100% per JVM = 185,336
Test Sponsor: IBM Corporation SPEC License #: 11 Test Method: Single Node
Tested By: IBM Corporation Test Location: Taipei, Taiwan Test Date: Oct 23, 2012
Hardware Availability: Sep-2012 Software Availability: Dec-2012 Publication: Nov 14, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,460,241
Calibration 2     1,480,787
Calibration 3     1,484,854
ssj_ops@calibrated=1,482,820
100% 100.0% 1,482,820 1,482,687
90% 90.1% 1,334,538 1,336,505
80% 80.2% 1,186,256 1,189,523
70% 70.1% 1,037,974 1,038,932
60% 59.8% 889,692 887,078
50% 50.0% 741,410 741,414
40% 40.0% 593,128 593,478
30% 30.1% 444,846 446,310
20% 19.9% 296,564 295,453
10% 10.0% 148,282 147,933
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: IBM Corporation
Model: IBM System x3300 M4
Form Factor: Tower
CPU Name: Intel Xeon E5-2470 2.30 GHz (Intel Turbo Boost Technology up to 3.10 GHz)
CPU Characteristics: 8 core, 2.30GHz, 20MB L3 Cache
CPU Frequency (MHz): 2300
CPU(s) Enabled: 16 cores, 2 chips, 8 cores/chip
Hardware Threads: 32 (2 / core)
CPU(s) Orderable: 1, 2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 20 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 24
# and size of DIMM: 6 x 4096 MB
Memory Details: 4GB 2Rx8 PC3L-10600E; slots 1, 3, 5, 7, 9 and 11 populated
Power Supply Quantity and Rating (W): 1 x 550
Power Supply Details: IBM 550w PSU(94Y6668)
Disk Drive: 1 x 256GB SSD(IBM Feature Code: A2U3)
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 4 x Integrated Intel I350 Gigabit Ethernet Controller
NICs Enabled in Firmware / OS / Connected: 4/4/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: IBM Power Profile
Operating System (OS): Microsoft Windows Server 2008 Enterprise Edition x64
OS Version: R2 SP1
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.6, JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120322_106209 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xmn1100m -Xms1500m -Xmx1500m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp -Xconcurrentlevel0
JVM Affinity: start /affinity [F,F0,F00,F000,F0000,F00000,F000000,F0000000]
JVM Instances: 8
JVM Initial Heap (MB): 1500
JVM Maximum Heap (MB): 1500
JVM Address Bits: 64
Boot Firmware Version: YAE123F
Management Firmware Version: 1AOO31M
Workload Version: SSJ 1.2.9
Director Location: Controller
Other Software: IBM SDK Java Technology Edition Version 7.0 for Windows x64
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-5RIF9S0O7F2.001 187,167
WIN-5RIF9S0O7F2.002 186,037
WIN-5RIF9S0O7F2.003 185,607
WIN-5RIF9S0O7F2.004 188,842
WIN-5RIF9S0O7F2.005 183,263
WIN-5RIF9S0O7F2.006 183,269
WIN-5RIF9S0O7F2.007 185,604
WIN-5RIF9S0O7F2.008 182,896
ssj_ops@100% 1,482,687
ssj_ops@100% per JVM 185,336

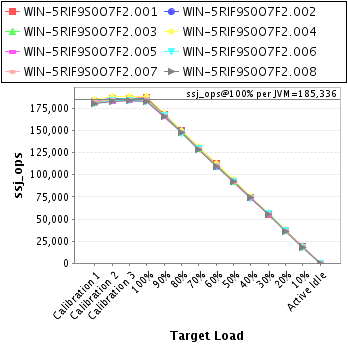

Graph of per-instance results
JVM 'WIN-5RIF9S0O7F2.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     183,350
Calibration 2     186,392
Calibration 3     186,779
ssj_ops@calibrated=186,585
100% 100.3% 186,585 187,167
90% 90.3% 167,927 168,425
80% 80.2% 149,268 149,554
70% 69.6% 130,610 129,823
60% 60.2% 111,951 112,417
50% 49.8% 93,293 92,962
40% 40.0% 74,634 74,687
30% 29.7% 55,976 55,397
20% 20.1% 37,317 37,421
10% 9.9% 18,659 18,474
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-5RIF9S0O7F2.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     184,093
Calibration 2     186,008
Calibration 3     186,601
ssj_ops@calibrated=186,304
100% 99.9% 186,304 186,037
90% 89.8% 167,674 167,325
80% 80.5% 149,043 149,963
70% 69.8% 130,413 130,099
60% 58.9% 111,783 109,771
50% 50.0% 93,152 93,145
40% 39.7% 74,522 73,984
30% 29.9% 55,891 55,766
20% 19.9% 37,261 37,092
10% 10.0% 18,630 18,562
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-5RIF9S0O7F2.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     182,268
Calibration 2     185,126
Calibration 3     186,013
ssj_ops@calibrated=185,569
100% 100.0% 185,569 185,607
90% 90.0% 167,013 167,040
80% 80.4% 148,456 149,212
70% 70.1% 129,899 130,042
60% 60.0% 111,342 111,426
50% 49.9% 92,785 92,645
40% 40.2% 74,228 74,665
30% 30.6% 55,671 56,808
20% 19.7% 37,114 36,549
10% 10.0% 18,557 18,549
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

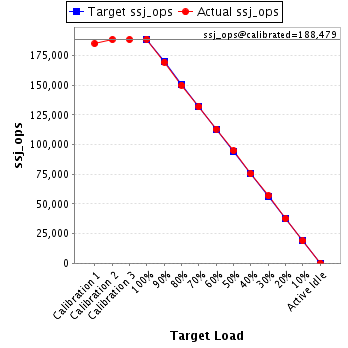

JVM 'WIN-5RIF9S0O7F2.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     185,051
Calibration 2     188,508
Calibration 3     188,449
ssj_ops@calibrated=188,479
100% 100.2% 188,479 188,842
90% 89.9% 169,631 169,451
80% 79.6% 150,783 149,989
70% 70.0% 131,935 131,854
60% 60.0% 113,087 113,123
50% 50.3% 94,239 94,835
40% 40.0% 75,391 75,339
30% 30.1% 56,544 56,768
20% 20.0% 37,696 37,656
10% 10.0% 18,848 18,905
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-5RIF9S0O7F2.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     181,521
Calibration 2     182,780
Calibration 3     183,937
ssj_ops@calibrated=183,359
100% 99.9% 183,359 183,263
90% 89.9% 165,023 164,816
80% 80.9% 146,687 148,276
70% 70.3% 128,351 128,911
60% 60.2% 110,015 110,344
50% 50.0% 91,679 91,592
40% 39.6% 73,344 72,652
30% 29.9% 55,008 54,735
20% 20.1% 36,672 36,854
10% 10.1% 18,336 18,437
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-5RIF9S0O7F2.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     180,438
Calibration 2     183,865
Calibration 3     184,296
ssj_ops@calibrated=184,080
100% 99.6% 184,080 183,269
90% 90.9% 165,672 167,391
80% 79.7% 147,264 146,771
70% 70.7% 128,856 130,148
60% 59.6% 110,448 109,794
50% 50.2% 92,040 92,409
40% 39.9% 73,632 73,363
30% 30.5% 55,224 56,212
20% 19.9% 36,816 36,571
10% 9.9% 18,408 18,314
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-5RIF9S0O7F2.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     183,026
Calibration 2     184,787
Calibration 3     185,109
ssj_ops@calibrated=184,948
100% 100.4% 184,948 185,604
90% 89.8% 166,453 165,998
80% 80.1% 147,959 148,229
70% 70.0% 129,464 129,449
60% 60.0% 110,969 110,886
50% 49.7% 92,474 91,828
40% 40.4% 73,979 74,783
30% 29.9% 55,484 55,284
20% 20.0% 36,990 37,033
10% 10.1% 18,495 18,594
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-5RIF9S0O7F2.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     180,494
Calibration 2     183,321
Calibration 3     183,669
ssj_ops@calibrated=183,495
100% 99.7% 183,495 182,896
90% 90.5% 165,146 166,060
80% 80.4% 146,796 147,528
70% 70.1% 128,447 128,606
60% 59.6% 110,097 109,317
50% 50.1% 91,748 91,999
40% 40.3% 73,398 74,004
30% 30.2% 55,049 55,339
20% 19.8% 36,699 36,276
10% 9.9% 18,350 18,099
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
