Dell Inc. PowerEdge M520 (Intel Xeon E5-2470 (2.30 GHz) ssj_ops@100% = 1,470,496
ssj_ops@100% per JVM = 91,906
Test Sponsor: Dell Inc. SPEC License #: 55 Test Method: Multi Node
Tested By: Dell Inc. Test Location: Round Rock, TX, USA Test Date: Oct 25, 2012
Hardware Availability: Oct-2012 Software Availability: Jun-2012 Publication: Nov 14, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,407,415
Calibration 2     1,480,057
Calibration 3     1,481,263
ssj_ops@calibrated=1,480,660
100% 99.3% 1,480,660 1,470,496
90% 89.7% 1,332,594 1,328,366
80% 79.9% 1,184,528 1,182,655
70% 70.0% 1,036,462 1,036,548
60% 60.1% 888,396 889,530
50% 50.2% 740,330 743,184
40% 40.1% 592,264 593,475
30% 30.1% 444,198 445,265
20% 20.1% 296,132 297,575
10% 10.0% 148,066 148,596
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: M520
# of Identical Nodes: 16
Comment: None
Hardware
Hardware Vendor: Dell Inc.
Model: PowerEdge M520 (Intel Xeon E5-2470 (2.30 GHz)
Form Factor: Blade
CPU Name: Intel Xeon E5-2470 (2.30 GHz)
CPU Characteristics: 8 Core, 2.30 GHz
CPU Frequency (MHz): 2300
CPU(s) Enabled: 16 cores, 2 chips, 8 cores/chip
Hardware Threads: 32 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 20 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 24
# and size of DIMM: 6 x 4096 MB
Memory Details: 4GB 2Rx8 PC3L-10600E ECC, Slots A1-A3, B1-B3 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 100 GB 2.5" SATA SSD, Dell P/N: DYW42
Disk Controller: Integrated PERC S110
# and type of Network Interface Cards (NICs) Installed: 2 x Onboard dual-port Broadcom 5720 Gigabit Ethernet
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power Saver Mode in OS (See Notes)
Operating System (OS): Microsoft Windows 2008 Server Enterprise x64 Edition
OS Version: R2 SP1
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.6, JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120322_106209 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xmn800m -Xms1024m -Xmx1024m -XlockReservation -Xnoloa -Xlp -Xconcurrentlevel0 -XtlhPrefetch -Xthr:minimizeusercpu -Xgcthreads4
JVM Affinity: start /affinity [3, C, 30, C0, 300, C00, 3000, C000, 30000, C0000, 300000, C00000, 3000000, C0000000, 30000000, C0000000]
JVM Instances: 16
JVM Initial Heap (MB): 1024
JVM Maximum Heap (MB): 1024
JVM Address Bits: 64
Boot Firmware Version: 1.3.5
Management Firmware Version: iDRAC7 1.23.23 Build 1
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: IBM SDK Java Technology Edition Version 7.0 for Windows x64
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
M520-15.001 91,846
M520-15.002 90,948
M520-15.003 91,246
M520-15.004 91,522
M520-15.005 91,234
M520-15.006 91,558
M520-15.007 91,274
M520-15.008 90,236
M520-15.009 92,316
M520-15.010 92,963
M520-15.011 93,098
M520-15.012 93,087
M520-15.013 91,182
M520-15.014 91,954
M520-15.015 93,988
M520-15.016 92,042
ssj_ops@100% 1,470,496
ssj_ops@100% per JVM 91,906
Graph of per-instance results
JVM 'M520-15.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,168
Calibration 2     92,643
Calibration 3     92,490
ssj_ops@calibrated=92,566
100% 99.2% 92,566 91,846
90% 89.9% 83,310 83,224
80% 79.7% 74,053 73,772
70% 70.2% 64,796 64,968
60% 60.4% 55,540 55,876
50% 50.3% 46,283 46,559
40% 39.6% 37,026 36,638
30% 30.2% 27,770 27,985
20% 19.8% 18,513 18,345
10% 10.1% 9,257 9,304
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-15.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,434
Calibration 2     91,579
Calibration 3     90,998
ssj_ops@calibrated=91,289
100% 99.6% 91,289 90,948
90% 89.3% 82,160 81,565
80% 79.7% 73,031 72,767
70% 69.9% 63,902 63,783
60% 60.4% 54,773 55,133
50% 50.4% 45,644 45,997
40% 40.2% 36,516 36,705
30% 30.2% 27,387 27,553
20% 20.3% 18,258 18,493
10% 10.0% 9,129 9,120
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-15.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,481
Calibration 2     91,355
Calibration 3     92,075
ssj_ops@calibrated=91,715
100% 99.5% 91,715 91,246
90% 90.3% 82,543 82,817
80% 79.5% 73,372 72,925
70% 69.8% 64,200 63,996
60% 60.8% 55,029 55,766
50% 49.9% 45,857 45,746
40% 39.8% 36,686 36,508
30% 30.2% 27,514 27,686
20% 19.6% 18,343 18,003
10% 10.0% 9,171 9,183
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-15.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,165
Calibration 2     92,582
Calibration 3     92,418
ssj_ops@calibrated=92,500
100% 98.9% 92,500 91,522
90% 90.0% 83,250 83,293
80% 80.5% 74,000 74,455
70% 69.2% 64,750 63,986
60% 59.8% 55,500 55,344
50% 50.0% 46,250 46,211
40% 40.3% 37,000 37,304
30% 29.8% 27,750 27,520
20% 20.3% 18,500 18,795
10% 9.9% 9,250 9,145
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-15.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,504
Calibration 2     92,336
Calibration 3     92,640
ssj_ops@calibrated=92,488
100% 98.6% 92,488 91,234
90% 90.5% 83,239 83,689
80% 80.6% 73,990 74,506
70% 71.0% 64,742 65,626
60% 59.5% 55,493 55,050
50% 50.6% 46,244 46,771
40% 39.2% 36,995 36,289
30% 30.1% 27,746 27,798
20% 20.1% 18,498 18,586
10% 10.3% 9,249 9,569
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-15.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,058
Calibration 2     92,598
Calibration 3     92,704
ssj_ops@calibrated=92,651
100% 98.8% 92,651 91,558
90% 91.1% 83,386 84,384
80% 79.3% 74,121 73,439
70% 70.6% 64,856 65,429
60% 59.8% 55,591 55,372
50% 50.3% 46,326 46,620
40% 40.9% 37,060 37,866
30% 29.8% 27,795 27,619
20% 19.5% 18,530 18,078
10% 9.8% 9,265 9,112
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-15.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,412
Calibration 2     92,403
Calibration 3     92,260
ssj_ops@calibrated=92,331
100% 98.9% 92,331 91,274
90% 88.9% 83,098 82,119
80% 79.3% 73,865 73,224
70% 70.4% 64,632 65,026
60% 59.7% 55,399 55,080
50% 50.3% 46,166 46,477
40% 40.1% 36,933 37,002
30% 30.2% 27,699 27,927
20% 20.0% 18,466 18,427
10% 10.4% 9,233 9,599
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-15.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,550
Calibration 2     91,137
Calibration 3     90,769
ssj_ops@calibrated=90,953
100% 99.2% 90,953 90,236
90% 89.0% 81,857 80,982
80% 80.5% 72,762 73,254
70% 70.0% 63,667 63,684
60% 61.0% 54,572 55,447
50% 50.6% 45,476 46,010
40% 40.0% 36,381 36,384
30% 30.5% 27,286 27,715
20% 20.2% 18,191 18,379
10% 10.2% 9,095 9,304
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-15.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,714
Calibration 2     93,264
Calibration 3     93,213
ssj_ops@calibrated=93,238
100% 99.0% 93,238 92,316
90% 90.1% 83,915 84,014
80% 79.6% 74,591 74,221
70% 69.8% 65,267 65,061
60% 60.8% 55,943 56,713
50% 50.4% 46,619 46,946
40% 40.0% 37,295 37,281
30% 30.4% 27,972 28,305
20% 20.6% 18,648 19,188
10% 10.1% 9,324 9,449
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-15.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,136
Calibration 2     92,886
Calibration 3     93,440
ssj_ops@calibrated=93,163
100% 99.8% 93,163 92,963
90% 90.2% 83,847 84,078
80% 80.0% 74,530 74,556
70% 68.9% 65,214 64,175
60% 59.5% 55,898 55,456
50% 49.8% 46,582 46,364
40% 39.9% 37,265 37,158
30% 30.3% 27,949 28,219
20% 20.5% 18,633 19,078
10% 10.2% 9,316 9,528
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

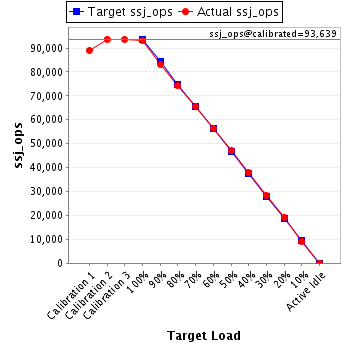

JVM 'M520-15.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,997
Calibration 2     93,714
Calibration 3     93,565
ssj_ops@calibrated=93,639
100% 99.4% 93,639 93,098
90% 88.8% 84,275 83,177
80% 79.3% 74,911 74,213
70% 70.1% 65,547 65,604
60% 60.2% 56,183 56,386
50% 50.2% 46,820 47,001
40% 40.6% 37,456 37,976
30% 30.2% 28,092 28,239
20% 20.3% 18,728 18,990
10% 9.8% 9,364 9,195
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-15.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,366
Calibration 2     93,448
Calibration 3     94,231
ssj_ops@calibrated=93,839
100% 99.2% 93,839 93,087
90% 89.3% 84,455 83,834
80% 80.2% 75,071 75,241
70% 70.0% 65,687 65,684
60% 60.1% 56,304 56,355
50% 49.9% 46,920 46,791
40% 39.7% 37,536 37,232
30% 30.1% 28,152 28,247
20% 19.8% 18,768 18,590
10% 9.7% 9,384 9,090
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-15.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,058
Calibration 2     91,444
Calibration 3     91,765
ssj_ops@calibrated=91,604
100% 99.5% 91,604 91,182
90% 90.0% 82,444 82,454
80% 80.8% 73,283 74,060
70% 70.8% 64,123 64,837
60% 59.9% 54,962 54,906
50% 50.1% 45,802 45,877
40% 39.7% 36,642 36,322
30% 29.6% 27,481 27,097
20% 20.1% 18,321 18,405
10% 10.0% 9,160 9,179
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-15.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,301
Calibration 2     93,092
Calibration 3     92,656
ssj_ops@calibrated=92,874
100% 99.0% 92,874 91,954
90% 89.5% 83,586 83,163
80% 79.7% 74,299 73,979
70% 70.5% 65,012 65,431
60% 59.6% 55,724 55,354
50% 49.9% 46,437 46,330
40% 40.9% 37,150 37,954
30% 29.7% 27,862 27,590
20% 20.3% 18,575 18,830
10% 10.1% 9,287 9,408
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

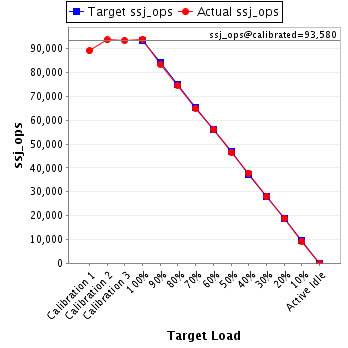

JVM 'M520-15.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,151
Calibration 2     93,715
Calibration 3     93,445
ssj_ops@calibrated=93,580
100% 100.4% 93,580 93,988
90% 89.2% 84,222 83,471
80% 79.8% 74,864 74,701
70% 69.5% 65,506 65,013
60% 60.0% 56,148 56,135
50% 49.8% 46,790 46,593
40% 40.4% 37,432 37,794
30% 29.9% 28,074 27,942
20% 20.0% 18,716 18,711
10% 9.9% 9,358 9,287
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-15.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,923
Calibration 2     91,862
Calibration 3     92,597
ssj_ops@calibrated=92,230
100% 99.8% 92,230 92,042
90% 89.0% 83,007 82,099
80% 79.5% 73,784 73,343
70% 69.7% 64,561 64,244
60% 59.8% 55,338 55,157
50% 50.8% 46,115 46,892
40% 40.2% 36,892 37,063
30% 30.2% 27,669 27,822
20% 20.2% 18,446 18,675
10% 9.9% 9,223 9,125
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
