Dell Inc. PowerEdge M520 (Intel Xeon E5-2470 (2.30 GHz) ssj_ops@100% = 1,470,018
ssj_ops@100% per JVM = 91,876
Test Sponsor: Dell Inc. SPEC License #: 55 Test Method: Multi Node
Tested By: Dell Inc. Test Location: Round Rock, TX, USA Test Date: Oct 25, 2012
Hardware Availability: Oct-2012 Software Availability: Jun-2012 Publication: Nov 14, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,403,815
Calibration 2     1,472,571
Calibration 3     1,472,965
ssj_ops@calibrated=1,472,768
100% 99.8% 1,472,768 1,470,018
90% 89.9% 1,325,491 1,323,773
80% 80.2% 1,178,214 1,180,803
70% 70.0% 1,030,938 1,030,704
60% 59.9% 883,661 881,850
50% 50.0% 736,384 736,052
40% 40.1% 589,107 590,119
30% 30.0% 441,830 442,560
20% 19.8% 294,554 291,909
10% 10.1% 147,277 148,067
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: M520
# of Identical Nodes: 16
Comment: None
Hardware
Hardware Vendor: Dell Inc.
Model: PowerEdge M520 (Intel Xeon E5-2470 (2.30 GHz)
Form Factor: Blade
CPU Name: Intel Xeon E5-2470 (2.30 GHz)
CPU Characteristics: 8 Core, 2.30 GHz
CPU Frequency (MHz): 2300
CPU(s) Enabled: 16 cores, 2 chips, 8 cores/chip
Hardware Threads: 32 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 20 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 24
# and size of DIMM: 6 x 4096 MB
Memory Details: 4GB 2Rx8 PC3L-10600E ECC, Slots A1-A3, B1-B3 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 100 GB 2.5" SATA SSD, Dell P/N: DYW42
Disk Controller: Integrated PERC S110
# and type of Network Interface Cards (NICs) Installed: 2 x Onboard dual-port Broadcom 5720 Gigabit Ethernet
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power Saver Mode in OS (See Notes)
Operating System (OS): Microsoft Windows 2008 Server Enterprise x64 Edition
OS Version: R2 SP1
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.6, JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120322_106209 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xmn800m -Xms1024m -Xmx1024m -XlockReservation -Xnoloa -Xlp -Xconcurrentlevel0 -XtlhPrefetch -Xthr:minimizeusercpu -Xgcthreads4
JVM Affinity: start /affinity [3, C, 30, C0, 300, C00, 3000, C000, 30000, C0000, 300000, C00000, 3000000, C0000000, 30000000, C0000000]
JVM Instances: 16
JVM Initial Heap (MB): 1024
JVM Maximum Heap (MB): 1024
JVM Address Bits: 64
Boot Firmware Version: 1.3.5
Management Firmware Version: iDRAC7 1.23.23 Build 1
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: IBM SDK Java Technology Edition Version 7.0 for Windows x64
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
M520-13.001 94,650
M520-13.002 92,089
M520-13.003 92,174
M520-13.004 92,338
M520-13.005 93,016
M520-13.006 93,030
M520-13.007 93,307
M520-13.008 92,105
M520-13.009 91,063
M520-13.010 90,853
M520-13.011 91,881
M520-13.012 89,664
M520-13.013 90,132
M520-13.014 91,195
M520-13.015 91,023
M520-13.016 91,498
ssj_ops@100% 1,470,018
ssj_ops@100% per JVM 91,876
Graph of per-instance results
JVM 'M520-13.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,575
Calibration 2     95,223
Calibration 3     95,051
ssj_ops@calibrated=95,137
100% 99.5% 95,137 94,650
90% 89.8% 85,623 85,445
80% 80.6% 76,109 76,640
70% 70.7% 66,596 67,237
60% 59.8% 57,082 56,936
50% 49.6% 47,568 47,232
40% 40.4% 38,055 38,422
30% 30.6% 28,541 29,076
20% 19.8% 19,027 18,863
10% 9.8% 9,514 9,312
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-13.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,460
Calibration 2     92,814
Calibration 3     92,902
ssj_ops@calibrated=92,858
100% 99.2% 92,858 92,089
90% 89.3% 83,572 82,883
80% 80.7% 74,286 74,972
70% 69.3% 65,001 64,369
60% 61.0% 55,715 56,661
50% 50.0% 46,429 46,418
40% 40.0% 37,143 37,122
30% 29.9% 27,857 27,744
20% 19.6% 18,572 18,216
10% 9.6% 9,286 8,952
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-13.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,936
Calibration 2     92,440
Calibration 3     92,337
ssj_ops@calibrated=92,389
100% 99.8% 92,389 92,174
90% 90.6% 83,150 83,709
80% 80.8% 73,911 74,643
70% 69.8% 64,672 64,518
60% 59.8% 55,433 55,216
50% 50.3% 46,194 46,492
40% 39.5% 36,956 36,506
30% 29.6% 27,717 27,307
20% 19.6% 18,478 18,078
10% 10.1% 9,239 9,365
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-13.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,451
Calibration 2     92,867
Calibration 3     92,865
ssj_ops@calibrated=92,866
100% 99.4% 92,866 92,338
90% 89.8% 83,579 83,350
80% 80.0% 74,293 74,265
70% 70.5% 65,006 65,453
60% 60.2% 55,719 55,874
50% 49.8% 46,433 46,237
40% 40.5% 37,146 37,577
30% 29.8% 27,860 27,636
20% 19.9% 18,573 18,437
10% 9.7% 9,287 8,970
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-13.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,437
Calibration 2     93,681
Calibration 3     93,822
ssj_ops@calibrated=93,752
100% 99.2% 93,752 93,016
90% 89.9% 84,376 84,248
80% 80.4% 75,001 75,399
70% 70.8% 65,626 66,348
60% 59.4% 56,251 55,680
50% 50.0% 46,876 46,857
40% 39.7% 37,501 37,206
30% 29.7% 28,125 27,833
20% 20.1% 18,750 18,880
10% 10.1% 9,375 9,454
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

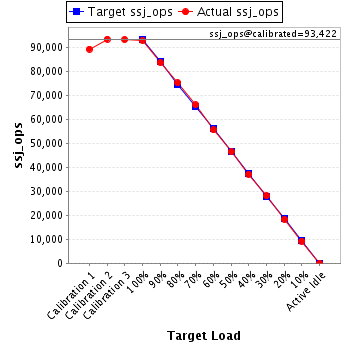

JVM 'M520-13.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,408
Calibration 2     93,514
Calibration 3     93,331
ssj_ops@calibrated=93,422
100% 99.6% 93,422 93,030
90% 89.6% 84,080 83,734
80% 80.6% 74,738 75,280
70% 70.7% 65,396 66,083
60% 59.5% 56,053 55,615
50% 49.8% 46,711 46,500
40% 39.8% 37,369 37,210
30% 30.1% 28,027 28,097
20% 19.6% 18,684 18,347
10% 9.9% 9,342 9,253
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-13.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,570
Calibration 2     93,351
Calibration 3     93,716
ssj_ops@calibrated=93,534
100% 99.8% 93,534 93,307
90% 90.2% 84,180 84,354
80% 79.3% 74,827 74,216
70% 70.2% 65,474 65,672
60% 59.3% 56,120 55,434
50% 50.0% 46,767 46,721
40% 39.8% 37,414 37,216
30% 30.1% 28,060 28,133
20% 20.2% 18,707 18,938
10% 10.2% 9,353 9,499
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

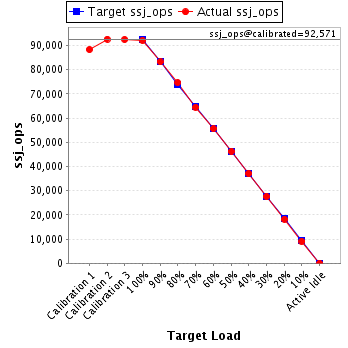

JVM 'M520-13.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,306
Calibration 2     92,628
Calibration 3     92,514
ssj_ops@calibrated=92,571
100% 99.5% 92,571 92,105
90% 89.9% 83,314 83,231
80% 80.6% 74,057 74,645
70% 69.7% 64,800 64,513
60% 60.1% 55,542 55,613
50% 49.9% 46,285 46,224
40% 40.0% 37,028 37,064
30% 29.9% 27,771 27,647
20% 19.7% 18,514 18,211
10% 9.8% 9,257 9,067
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-13.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,464
Calibration 2     91,355
Calibration 3     91,212
ssj_ops@calibrated=91,284
100% 99.8% 91,284 91,063
90% 89.8% 82,155 82,002
80% 79.4% 73,027 72,521
70% 69.2% 63,899 63,146
60% 60.3% 54,770 55,027
50% 50.0% 45,642 45,613
40% 41.3% 36,513 37,728
30% 30.3% 27,385 27,682
20% 19.7% 18,257 17,990
10% 10.6% 9,128 9,635
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-13.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,604
Calibration 2     90,522
Calibration 3     90,873
ssj_ops@calibrated=90,697
100% 100.2% 90,697 90,853
90% 89.4% 81,628 81,061
80% 79.7% 72,558 72,270
70% 69.3% 63,488 62,815
60% 59.0% 54,418 53,483
50% 49.9% 45,349 45,221
40% 39.4% 36,279 35,697
30% 30.4% 27,209 27,570
20% 19.9% 18,139 18,066
10% 10.1% 9,070 9,124
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-13.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,944
Calibration 2     91,472
Calibration 3     91,766
ssj_ops@calibrated=91,619
100% 100.3% 91,619 91,881
90% 90.0% 82,457 82,466
80% 81.2% 73,295 74,438
70% 70.1% 64,133 64,225
60% 60.7% 54,971 55,614
50% 49.7% 45,809 45,560
40% 39.8% 36,648 36,469
30% 30.0% 27,486 27,498
20% 20.1% 18,324 18,407
10% 10.6% 9,162 9,747
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-13.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,062
Calibration 2     89,607
Calibration 3     89,533
ssj_ops@calibrated=89,570
100% 100.1% 89,570 89,664
90% 90.2% 80,613 80,772
80% 79.6% 71,656 71,259
70% 69.7% 62,699 62,423
60% 58.5% 53,742 52,397
50% 50.9% 44,785 45,610
40% 40.0% 35,828 35,839
30% 29.9% 26,871 26,767
20% 19.9% 17,914 17,857
10% 9.7% 8,957 8,670
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-13.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,836
Calibration 2     90,012
Calibration 3     89,818
ssj_ops@calibrated=89,915
100% 100.2% 89,915 90,132
90% 89.0% 80,924 80,061
80% 80.0% 71,932 71,961
70% 68.7% 62,941 61,744
60% 60.1% 53,949 54,064
50% 50.0% 44,958 44,952
40% 39.9% 35,966 35,907
30% 30.0% 26,975 26,972
20% 19.4% 17,983 17,407
10% 10.2% 8,992 9,212
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-13.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,519
Calibration 2     91,154
Calibration 3     91,051
ssj_ops@calibrated=91,102
100% 100.1% 91,102 91,195
90% 90.5% 81,992 82,444
80% 80.0% 72,882 72,919
70% 70.1% 63,772 63,855
60% 59.5% 54,661 54,233
50% 49.6% 45,551 45,206
40% 39.7% 36,441 36,199
30% 30.1% 27,331 27,376
20% 19.7% 18,220 17,947
10% 10.3% 9,110 9,341
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-13.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,385
Calibration 2     90,804
Calibration 3     90,729
ssj_ops@calibrated=90,766
100% 100.3% 90,766 91,023
90% 89.8% 81,690 81,497
80% 79.5% 72,613 72,137
70% 71.0% 63,537 64,481
60% 60.6% 54,460 55,021
50% 50.2% 45,383 45,544
40% 40.4% 36,307 36,698
30% 30.8% 27,230 27,925
20% 20.0% 18,153 18,111
10% 10.1% 9,077 9,149
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-13.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,857
Calibration 2     91,127
Calibration 3     91,446
ssj_ops@calibrated=91,286
100% 100.2% 91,286 91,498
90% 90.4% 82,158 82,515
80% 80.2% 73,029 73,235
70% 69.9% 63,900 63,821
60% 60.2% 54,772 54,983
50% 50.0% 45,643 45,666
40% 40.8% 36,515 37,260
30% 29.9% 27,386 27,298
20% 19.9% 18,257 18,155
10% 10.2% 9,129 9,316
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
