Dell Inc. PowerEdge M520 (Intel Xeon E5-2470 (2.30 GHz) ssj_ops@100% = 1,486,256
ssj_ops@100% per JVM = 92,891
Test Sponsor: Dell Inc. SPEC License #: 55 Test Method: Multi Node
Tested By: Dell Inc. Test Location: Round Rock, TX, USA Test Date: Oct 25, 2012
Hardware Availability: Oct-2012 Software Availability: Jun-2012 Publication: Nov 14, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,419,201
Calibration 2     1,491,533
Calibration 3     1,491,429
ssj_ops@calibrated=1,491,481
100% 99.6% 1,491,481 1,486,256
90% 89.8% 1,342,333 1,339,616
80% 79.9% 1,193,185 1,191,821
70% 70.1% 1,044,037 1,045,624
60% 59.9% 894,889 892,658
50% 49.8% 745,741 743,440
40% 39.9% 596,593 595,750
30% 30.0% 447,444 447,656
20% 20.1% 298,296 299,536
10% 9.9% 149,148 148,061
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: M520
# of Identical Nodes: 16
Comment: None
Hardware
Hardware Vendor: Dell Inc.
Model: PowerEdge M520 (Intel Xeon E5-2470 (2.30 GHz)
Form Factor: Blade
CPU Name: Intel Xeon E5-2470 (2.30 GHz)
CPU Characteristics: 8 Core, 2.30 GHz
CPU Frequency (MHz): 2300
CPU(s) Enabled: 16 cores, 2 chips, 8 cores/chip
Hardware Threads: 32 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 20 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 24
# and size of DIMM: 6 x 4096 MB
Memory Details: 4GB 2Rx8 PC3L-10600E ECC, Slots A1-A3, B1-B3 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 100 GB 2.5" SATA SSD, Dell P/N: DYW42
Disk Controller: Integrated PERC S110
# and type of Network Interface Cards (NICs) Installed: 2 x Onboard dual-port Broadcom 5720 Gigabit Ethernet
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power Saver Mode in OS (See Notes)
Operating System (OS): Microsoft Windows 2008 Server Enterprise x64 Edition
OS Version: R2 SP1
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.6, JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120322_106209 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xmn800m -Xms1024m -Xmx1024m -XlockReservation -Xnoloa -Xlp -Xconcurrentlevel0 -XtlhPrefetch -Xthr:minimizeusercpu -Xgcthreads4
JVM Affinity: start /affinity [3, C, 30, C0, 300, C00, 3000, C000, 30000, C0000, 300000, C00000, 3000000, C0000000, 30000000, C0000000]
JVM Instances: 16
JVM Initial Heap (MB): 1024
JVM Maximum Heap (MB): 1024
JVM Address Bits: 64
Boot Firmware Version: 1.3.5
Management Firmware Version: iDRAC7 1.23.23 Build 1
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: IBM SDK Java Technology Edition Version 7.0 for Windows x64
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
M520-11.001 93,557
M520-11.002 94,146
M520-11.003 93,085
M520-11.004 94,351
M520-11.005 92,502
M520-11.006 93,761
M520-11.007 94,044
M520-11.008 95,231
M520-11.009 92,292
M520-11.010 92,556
M520-11.011 91,987
M520-11.012 91,219
M520-11.013 91,711
M520-11.014 91,064
M520-11.015 92,402
M520-11.016 92,347
ssj_ops@100% 1,486,256
ssj_ops@100% per JVM 92,891

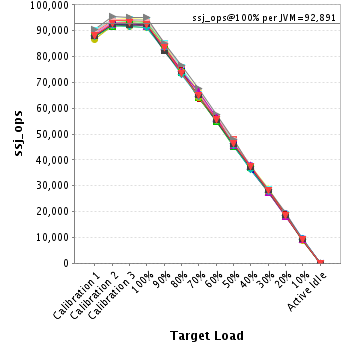

Graph of per-instance results

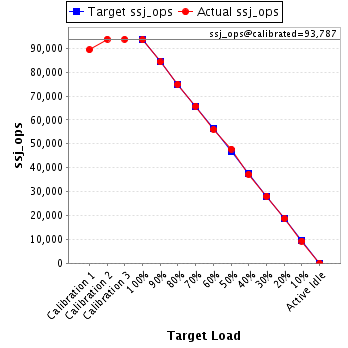

JVM 'M520-11.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,303
Calibration 2     93,804
Calibration 3     93,770
ssj_ops@calibrated=93,787
100% 99.8% 93,787 93,557
90% 89.8% 84,408 84,258
80% 79.8% 75,029 74,885
70% 70.2% 65,651 65,805
60% 59.7% 56,272 56,037
50% 51.0% 46,893 47,809
40% 39.7% 37,515 37,194
30% 29.9% 28,136 28,025
20% 19.9% 18,757 18,661
10% 9.9% 9,379 9,317
Active Idle   0 0
Graph of results
JVM 'M520-11.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,035
Calibration 2     94,425
Calibration 3     94,487
ssj_ops@calibrated=94,456
100% 99.7% 94,456 94,146
90% 90.1% 85,010 85,073
80% 79.4% 75,565 75,034
70% 70.4% 66,119 66,527
60% 59.4% 56,674 56,153
50% 50.0% 47,228 47,235
40% 40.2% 37,782 37,952
30% 29.3% 28,337 27,645
20% 20.3% 18,891 19,131
10% 10.1% 9,446 9,537
Active Idle   0 0
Graph of results

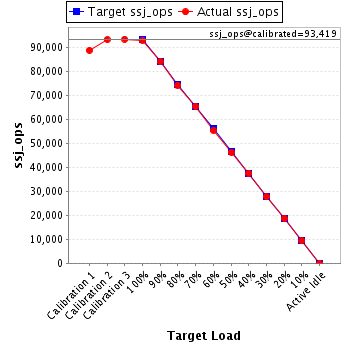

JVM 'M520-11.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,862
Calibration 2     93,335
Calibration 3     93,502
ssj_ops@calibrated=93,419
100% 99.6% 93,419 93,085
90% 90.1% 84,077 84,192
80% 79.6% 74,735 74,334
70% 70.1% 65,393 65,467
60% 59.4% 56,051 55,477
50% 49.5% 46,709 46,262
40% 40.3% 37,367 37,640
30% 29.7% 28,026 27,700
20% 20.1% 18,684 18,791
10% 10.0% 9,342 9,379
Active Idle   0 0
Graph of results
JVM 'M520-11.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,021
Calibration 2     94,161
Calibration 3     94,605
ssj_ops@calibrated=94,383
100% 100.0% 94,383 94,351
90% 89.7% 84,945 84,680
80% 79.3% 75,506 74,836
70% 70.9% 66,068 66,871
60% 59.2% 56,630 55,900
50% 49.8% 47,191 46,978
40% 40.0% 37,753 37,794
30% 30.5% 28,315 28,830
20% 19.9% 18,877 18,758
10% 9.9% 9,438 9,387
Active Idle   0 0
Graph of results
JVM 'M520-11.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,980
Calibration 2     93,153
Calibration 3     92,733
ssj_ops@calibrated=92,943
100% 99.5% 92,943 92,502
90% 89.5% 83,649 83,164
80% 79.5% 74,354 73,903
70% 70.1% 65,060 65,111
60% 60.3% 55,766 56,090
50% 49.6% 46,472 46,114
40% 40.2% 37,177 37,362
30% 30.2% 27,883 28,073
20% 20.2% 18,589 18,732
10% 9.9% 9,294 9,200
Active Idle   0 0
Graph of results

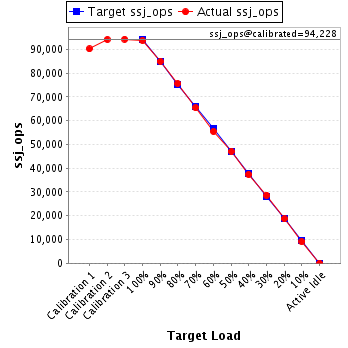

JVM 'M520-11.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,181
Calibration 2     94,148
Calibration 3     94,307
ssj_ops@calibrated=94,228
100% 99.5% 94,228 93,761
90% 90.2% 84,805 84,963
80% 80.3% 75,382 75,626
70% 69.4% 65,959 65,400
60% 58.9% 56,537 55,469
50% 49.9% 47,114 47,045
40% 39.7% 37,691 37,380
30% 30.4% 28,268 28,665
20% 19.9% 18,846 18,705
10% 9.7% 9,423 9,095
Active Idle   0 0
Graph of results

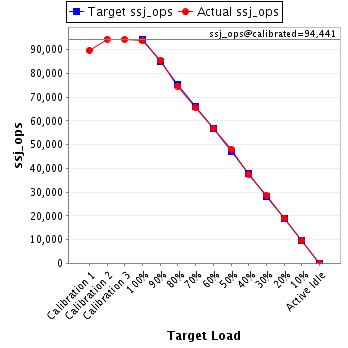

JVM 'M520-11.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,799
Calibration 2     94,485
Calibration 3     94,396
ssj_ops@calibrated=94,441
100% 99.6% 94,441 94,044
90% 90.5% 84,997 85,436
80% 79.1% 75,552 74,671
70% 69.5% 66,108 65,672
60% 60.1% 56,664 56,748
50% 50.9% 47,220 48,071
40% 39.6% 37,776 37,416
30% 30.2% 28,332 28,481
20% 20.2% 18,888 19,050
10% 10.1% 9,444 9,529
Active Idle   0 0
Graph of results
JVM 'M520-11.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,334
Calibration 2     95,559
Calibration 3     95,285
ssj_ops@calibrated=95,422
100% 99.8% 95,422 95,231
90% 89.3% 85,880 85,169
80% 80.3% 76,338 76,663
70% 70.9% 66,795 67,690
60% 60.2% 57,253 57,443
50% 50.2% 47,711 47,925
40% 39.3% 38,169 37,496
30% 29.9% 28,627 28,571
20% 20.5% 19,084 19,576
10% 9.7% 9,542 9,295
Active Idle   0 0
Graph of results
JVM 'M520-11.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,971
Calibration 2     92,450
Calibration 3     92,682
ssj_ops@calibrated=92,566
100% 99.7% 92,566 92,292
90% 89.9% 83,309 83,252
80% 80.6% 74,053 74,644
70% 68.7% 64,796 63,598
60% 60.7% 55,540 56,214
50% 49.2% 46,283 45,508
40% 39.6% 37,026 36,623
30% 30.3% 27,770 28,073
20% 20.5% 18,513 18,935
10% 10.1% 9,257 9,346
Active Idle   0 0
Graph of results
JVM 'M520-11.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,977
Calibration 2     92,527
Calibration 3     92,214
ssj_ops@calibrated=92,371
100% 100.2% 92,371 92,556
90% 89.7% 83,134 82,881
80% 80.5% 73,897 74,390
70% 69.7% 64,660 64,373
60% 59.5% 55,423 54,943
50% 50.0% 46,185 46,213
40% 39.3% 36,948 36,325
30% 29.5% 27,711 27,273
20% 20.1% 18,474 18,533
10% 10.0% 9,237 9,246
Active Idle   0 0
Graph of results
JVM 'M520-11.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,859
Calibration 2     91,710
Calibration 3     92,414
ssj_ops@calibrated=92,062
100% 99.9% 92,062 91,987
90% 89.9% 82,856 82,789
80% 80.0% 73,650 73,633
70% 69.8% 64,444 64,245
60% 59.5% 55,237 54,762
50% 49.2% 46,031 45,253
40% 40.2% 36,825 37,042
30% 29.9% 27,619 27,505
20% 20.1% 18,412 18,512
10% 10.0% 9,206 9,204
Active Idle   0 0
Graph of results
JVM 'M520-11.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,621
Calibration 2     91,866
Calibration 3     91,590
ssj_ops@calibrated=91,728
100% 99.4% 91,728 91,219
90% 90.0% 82,555 82,566
80% 80.8% 73,382 74,142
70% 69.8% 64,210 64,016
60% 60.2% 55,037 55,226
50% 49.6% 45,864 45,471
40% 40.1% 36,691 36,794
30% 29.9% 27,518 27,385
20% 20.2% 18,346 18,550
10% 9.7% 9,173 8,860
Active Idle   0 0
Graph of results

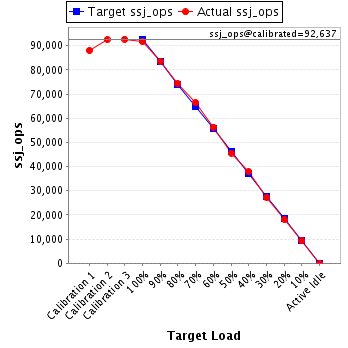

JVM 'M520-11.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,070
Calibration 2     92,536
Calibration 3     92,737
ssj_ops@calibrated=92,637
100% 99.0% 92,637 91,711
90% 90.3% 83,373 83,654
80% 80.2% 74,109 74,336
70% 71.7% 64,846 66,447
60% 60.9% 55,582 56,371
50% 49.2% 46,318 45,623
40% 40.9% 37,055 37,862
30% 29.5% 27,791 27,352
20% 19.6% 18,527 18,159
10% 10.0% 9,264 9,279
Active Idle   0 0
Graph of results
JVM 'M520-11.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,645
Calibration 2     92,087
Calibration 3     91,546
ssj_ops@calibrated=91,816
100% 99.2% 91,816 91,064
90% 89.7% 82,635 82,322
80% 79.7% 73,453 73,217
70% 70.3% 64,271 64,531
60% 60.3% 55,090 55,329
50% 49.7% 45,908 45,636
40% 39.5% 36,727 36,310
30% 30.3% 27,545 27,820
20% 20.1% 18,363 18,442
10% 10.3% 9,182 9,442
Active Idle   0 0
Graph of results
JVM 'M520-11.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,585
Calibration 2     92,307
Calibration 3     91,937
ssj_ops@calibrated=92,122
100% 100.3% 92,122 92,402
90% 88.9% 82,909 81,853
80% 80.2% 73,697 73,882
70% 70.3% 64,485 64,756
60% 59.6% 55,273 54,922
50% 49.8% 46,061 45,914
40% 40.1% 36,849 36,971
30% 30.3% 27,636 27,932
20% 20.0% 18,424 18,390
10% 9.6% 9,212 8,825
Active Idle   0 0
Graph of results
JVM 'M520-11.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,960
Calibration 2     92,981
Calibration 3     93,224
ssj_ops@calibrated=93,102
100% 99.2% 93,102 92,347
90% 89.5% 83,792 83,364
80% 79.1% 74,482 73,625
70% 69.9% 65,172 65,114
60% 59.7% 55,861 55,573
50% 49.8% 46,551 46,383
40% 40.4% 37,241 37,591
30% 30.4% 27,931 28,326
20% 20.0% 18,620 18,611
10% 9.8% 9,310 9,121
Active Idle   0 0
Graph of results
