Dell Inc. PowerEdge M520 (Intel Xeon E5-2470 (2.30 GHz) ssj_ops@100% = 1,484,807
ssj_ops@100% per JVM = 92,800
Test Sponsor: Dell Inc. SPEC License #: 55 Test Method: Multi Node
Tested By: Dell Inc. Test Location: Round Rock, TX, USA Test Date: Oct 25, 2012
Hardware Availability: Oct-2012 Software Availability: Jun-2012 Publication: Nov 14, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,411,694
Calibration 2     1,486,790
Calibration 3     1,487,285
ssj_ops@calibrated=1,487,038
100% 99.9% 1,487,038 1,484,807
90% 89.8% 1,338,334 1,335,279
80% 80.0% 1,189,630 1,189,237
70% 70.0% 1,040,926 1,040,450
60% 59.9% 892,223 891,204
50% 50.1% 743,519 745,126
40% 40.0% 594,815 595,391
30% 30.0% 446,111 446,116
20% 20.0% 297,408 296,749
10% 10.1% 148,704 149,582
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: M520
# of Identical Nodes: 16
Comment: None
Hardware
Hardware Vendor: Dell Inc.
Model: PowerEdge M520 (Intel Xeon E5-2470 (2.30 GHz)
Form Factor: Blade
CPU Name: Intel Xeon E5-2470 (2.30 GHz)
CPU Characteristics: 8 Core, 2.30 GHz
CPU Frequency (MHz): 2300
CPU(s) Enabled: 16 cores, 2 chips, 8 cores/chip
Hardware Threads: 32 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 20 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 24
# and size of DIMM: 6 x 4096 MB
Memory Details: 4GB 2Rx8 PC3L-10600E ECC, Slots A1-A3, B1-B3 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 100 GB 2.5" SATA SSD, Dell P/N: DYW42
Disk Controller: Integrated PERC S110
# and type of Network Interface Cards (NICs) Installed: 2 x Onboard dual-port Broadcom 5720 Gigabit Ethernet
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power Saver Mode in OS (See Notes)
Operating System (OS): Microsoft Windows 2008 Server Enterprise x64 Edition
OS Version: R2 SP1
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.6, JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120322_106209 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xmn800m -Xms1024m -Xmx1024m -XlockReservation -Xnoloa -Xlp -Xconcurrentlevel0 -XtlhPrefetch -Xthr:minimizeusercpu -Xgcthreads4
JVM Affinity: start /affinity [3, C, 30, C0, 300, C00, 3000, C000, 30000, C0000, 300000, C00000, 3000000, C0000000, 30000000, C0000000]
JVM Instances: 16
JVM Initial Heap (MB): 1024
JVM Maximum Heap (MB): 1024
JVM Address Bits: 64
Boot Firmware Version: 1.3.5
Management Firmware Version: iDRAC7 1.23.23 Build 1
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: IBM SDK Java Technology Edition Version 7.0 for Windows x64
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
M520-10.001 91,844
M520-10.002 93,300
M520-10.003 93,463
M520-10.004 92,542
M520-10.005 92,227
M520-10.006 93,028
M520-10.007 92,135
M520-10.008 93,262
M520-10.009 92,803
M520-10.010 93,613
M520-10.011 93,158
M520-10.012 93,528
M520-10.013 92,307
M520-10.014 93,238
M520-10.015 92,442
M520-10.016 91,919
ssj_ops@100% 1,484,807
ssj_ops@100% per JVM 92,800
Graph of per-instance results
JVM 'M520-10.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,096
Calibration 2     91,858
Calibration 3     91,656
ssj_ops@calibrated=91,757
100% 100.1% 91,757 91,844
90% 90.3% 82,581 82,872
80% 80.5% 73,405 73,839
70% 70.0% 64,230 64,238
60% 59.4% 55,054 54,549
50% 50.5% 45,878 46,368
40% 39.2% 36,703 35,972
30% 30.5% 27,527 27,947
20% 20.1% 18,351 18,448
10% 10.5% 9,176 9,599
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-10.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,600
Calibration 2     93,014
Calibration 3     93,286
ssj_ops@calibrated=93,150
100% 100.2% 93,150 93,300
90% 90.3% 83,835 84,117
80% 80.3% 74,520 74,790
70% 69.4% 65,205 64,668
60% 60.4% 55,890 56,238
50% 50.3% 46,575 46,819
40% 39.9% 37,260 37,204
30% 29.3% 27,945 27,315
20% 20.2% 18,630 18,812
10% 10.0% 9,315 9,337
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-10.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,793
Calibration 2     93,358
Calibration 3     93,266
ssj_ops@calibrated=93,312
100% 100.2% 93,312 93,463
90% 89.8% 83,981 83,749
80% 80.1% 74,650 74,772
70% 68.5% 65,318 63,887
60% 59.8% 55,987 55,788
50% 50.2% 46,656 46,836
40% 39.9% 37,325 37,203
30% 29.8% 27,994 27,776
20% 20.3% 18,662 18,987
10% 9.8% 9,331 9,158
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-10.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,243
Calibration 2     92,510
Calibration 3     92,933
ssj_ops@calibrated=92,722
100% 99.8% 92,722 92,542
90% 90.2% 83,449 83,668
80% 80.2% 74,177 74,320
70% 70.3% 64,905 65,180
60% 59.8% 55,633 55,438
50% 49.2% 46,361 45,637
40% 40.6% 37,089 37,649
30% 30.4% 27,816 28,177
20% 19.5% 18,544 18,084
10% 10.3% 9,272 9,570
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-10.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,256
Calibration 2     92,506
Calibration 3     92,423
ssj_ops@calibrated=92,464
100% 99.7% 92,464 92,227
90% 89.1% 83,218 82,379
80% 80.0% 73,971 73,940
70% 70.9% 64,725 65,600
60% 59.4% 55,479 54,951
50% 50.8% 46,232 46,979
40% 40.4% 36,986 37,314
30% 30.1% 27,739 27,862
20% 19.9% 18,493 18,403
10% 10.2% 9,246 9,408
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-10.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,535
Calibration 2     92,587
Calibration 3     93,571
ssj_ops@calibrated=93,079
100% 99.9% 93,079 93,028
90% 89.1% 83,771 82,956
80% 79.4% 74,463 73,910
70% 70.2% 65,155 65,328
60% 59.9% 55,848 55,740
50% 49.9% 46,540 46,456
40% 39.8% 37,232 37,075
30% 30.4% 27,924 28,283
20% 19.6% 18,616 18,207
10% 10.1% 9,308 9,358
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-10.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,941
Calibration 2     92,165
Calibration 3     92,454
ssj_ops@calibrated=92,310
100% 99.8% 92,310 92,135
90% 89.2% 83,079 82,385
80% 80.8% 73,848 74,551
70% 69.5% 64,617 64,115
60% 60.3% 55,386 55,624
50% 49.6% 46,155 45,752
40% 40.4% 36,924 37,264
30% 30.1% 27,693 27,797
20% 19.6% 18,462 18,111
10% 10.2% 9,231 9,380
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-10.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,566
Calibration 2     92,965
Calibration 3     93,406
ssj_ops@calibrated=93,186
100% 100.1% 93,186 93,262
90% 89.0% 83,867 82,923
80% 79.9% 74,549 74,417
70% 70.4% 65,230 65,635
60% 60.3% 55,912 56,196
50% 50.4% 46,593 46,995
40% 40.2% 37,274 37,487
30% 29.5% 27,956 27,505
20% 20.3% 18,637 18,940
10% 9.6% 9,319 8,958
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-10.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,786
Calibration 2     93,268
Calibration 3     93,108
ssj_ops@calibrated=93,188
100% 99.6% 93,188 92,803
90% 89.8% 83,869 83,672
80% 79.0% 74,550 73,636
70% 69.7% 65,231 64,964
60% 59.7% 55,913 55,655
50% 50.8% 46,594 47,379
40% 40.0% 37,275 37,308
30% 29.9% 27,956 27,895
20% 19.6% 18,638 18,311
10% 9.8% 9,319 9,090
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-10.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,987
Calibration 2     94,008
Calibration 3     93,788
ssj_ops@calibrated=93,898
100% 99.7% 93,898 93,613
90% 90.3% 84,508 84,783
80% 79.9% 75,118 74,999
70% 69.8% 65,729 65,569
60% 60.1% 56,339 56,461
50% 50.0% 46,949 46,959
40% 40.1% 37,559 37,610
30% 29.5% 28,169 27,690
20% 20.3% 18,780 19,072
10% 10.1% 9,390 9,441
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-10.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,114
Calibration 2     93,211
Calibration 3     93,205
ssj_ops@calibrated=93,208
100% 99.9% 93,208 93,158
90% 89.7% 83,887 83,649
80% 79.4% 74,567 74,023
70% 70.1% 65,246 65,327
60% 59.2% 55,925 55,185
50% 50.3% 46,604 46,880
40% 39.7% 37,283 37,038
30% 30.0% 27,962 27,940
20% 20.0% 18,642 18,607
10% 10.1% 9,321 9,412
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-10.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,992
Calibration 2     93,709
Calibration 3     93,344
ssj_ops@calibrated=93,526
100% 100.0% 93,526 93,528
90% 89.7% 84,174 83,881
80% 79.7% 74,821 74,528
70% 70.3% 65,468 65,719
60% 59.8% 56,116 55,926
50% 48.7% 46,763 45,591
40% 39.4% 37,411 36,840
30% 30.2% 28,058 28,206
20% 20.1% 18,705 18,764
10% 10.3% 9,353 9,627
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

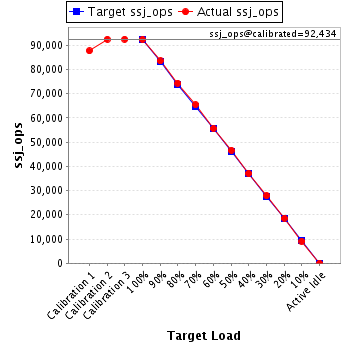

JVM 'M520-10.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,588
Calibration 2     92,419
Calibration 3     92,450
ssj_ops@calibrated=92,434
100% 99.9% 92,434 92,307
90% 90.3% 83,191 83,456
80% 80.4% 73,947 74,309
70% 70.7% 64,704 65,382
60% 60.2% 55,461 55,658
50% 50.4% 46,217 46,632
40% 40.1% 36,974 37,055
30% 30.1% 27,730 27,840
20% 20.1% 18,487 18,609
10% 9.8% 9,243 9,092
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-10.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,626
Calibration 2     93,421
Calibration 3     93,133
ssj_ops@calibrated=93,277
100% 100.0% 93,277 93,238
90% 90.0% 83,949 83,943
80% 80.0% 74,622 74,621
70% 69.7% 65,294 65,049
60% 59.9% 55,966 55,885
50% 49.9% 46,638 46,590
40% 40.8% 37,311 38,075
30% 30.6% 27,983 28,577
20% 19.5% 18,655 18,144
10% 10.1% 9,328 9,382
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

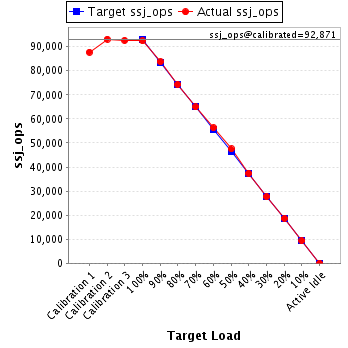

JVM 'M520-10.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,759
Calibration 2     93,130
Calibration 3     92,611
ssj_ops@calibrated=92,871
100% 99.5% 92,871 92,442
90% 90.2% 83,584 83,726
80% 80.0% 74,297 74,271
70% 69.9% 65,010 64,948
60% 60.6% 55,723 56,288
50% 51.2% 46,435 47,507
40% 40.3% 37,148 37,417
30% 29.7% 27,861 27,626
20% 20.1% 18,574 18,675
10% 10.1% 9,287 9,362
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-10.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,812
Calibration 2     92,660
Calibration 3     92,651
ssj_ops@calibrated=92,655
100% 99.2% 92,655 91,919
90% 89.7% 83,390 83,121
80% 80.2% 74,124 74,310
70% 70.0% 64,859 64,841
60% 60.0% 55,593 55,621
50% 49.4% 46,328 45,744
40% 39.8% 37,062 36,879
30% 29.9% 27,797 27,681
20% 20.0% 18,531 18,575
10% 10.2% 9,266 9,408
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
