Dell Inc. PowerEdge M520 (Intel Xeon E5-2470 (2.30 GHz) ssj_ops@100% = 1,479,948
ssj_ops@100% per JVM = 92,497
Test Sponsor: Dell Inc. SPEC License #: 55 Test Method: Multi Node
Tested By: Dell Inc. Test Location: Round Rock, TX, USA Test Date: Oct 25, 2012
Hardware Availability: Oct-2012 Software Availability: Jun-2012 Publication: Nov 14, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,416,137
Calibration 2     1,493,514
Calibration 3     1,491,625
ssj_ops@calibrated=1,492,570
100% 99.2% 1,492,570 1,479,948
90% 89.7% 1,343,313 1,338,403
80% 79.8% 1,194,056 1,190,896
70% 69.9% 1,044,799 1,043,919
60% 59.8% 895,542 892,290
50% 49.9% 746,285 745,420
40% 40.0% 597,028 597,119
30% 30.0% 447,771 447,429
20% 19.9% 298,514 296,960
10% 10.0% 149,257 148,563
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: M520
# of Identical Nodes: 16
Comment: None
Hardware
Hardware Vendor: Dell Inc.
Model: PowerEdge M520 (Intel Xeon E5-2470 (2.30 GHz)
Form Factor: Blade
CPU Name: Intel Xeon E5-2470 (2.30 GHz)
CPU Characteristics: 8 Core, 2.30 GHz
CPU Frequency (MHz): 2300
CPU(s) Enabled: 16 cores, 2 chips, 8 cores/chip
Hardware Threads: 32 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 20 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 24
# and size of DIMM: 6 x 4096 MB
Memory Details: 4GB 2Rx8 PC3L-10600E ECC, Slots A1-A3, B1-B3 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 100 GB 2.5" SATA SSD, Dell P/N: DYW42
Disk Controller: Integrated PERC S110
# and type of Network Interface Cards (NICs) Installed: 2 x Onboard dual-port Broadcom 5720 Gigabit Ethernet
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power Saver Mode in OS (See Notes)
Operating System (OS): Microsoft Windows 2008 Server Enterprise x64 Edition
OS Version: R2 SP1
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.6, JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120322_106209 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xmn800m -Xms1024m -Xmx1024m -XlockReservation -Xnoloa -Xlp -Xconcurrentlevel0 -XtlhPrefetch -Xthr:minimizeusercpu -Xgcthreads4
JVM Affinity: start /affinity [3, C, 30, C0, 300, C00, 3000, C000, 30000, C0000, 300000, C00000, 3000000, C0000000, 30000000, C0000000]
JVM Instances: 16
JVM Initial Heap (MB): 1024
JVM Maximum Heap (MB): 1024
JVM Address Bits: 64
Boot Firmware Version: 1.3.5
Management Firmware Version: iDRAC7 1.23.23 Build 1
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: IBM SDK Java Technology Edition Version 7.0 for Windows x64
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
M520-07.001 91,998
M520-07.002 91,394
M520-07.003 90,850
M520-07.004 89,959
M520-07.005 91,115
M520-07.006 89,785
M520-07.007 90,126
M520-07.008 90,317
M520-07.009 93,061
M520-07.010 94,688
M520-07.011 94,700
M520-07.012 94,967
M520-07.013 93,541
M520-07.014 94,544
M520-07.015 94,693
M520-07.016 94,211
ssj_ops@100% 1,479,948
ssj_ops@100% per JVM 92,497

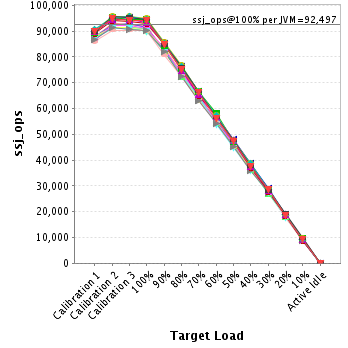

Graph of per-instance results

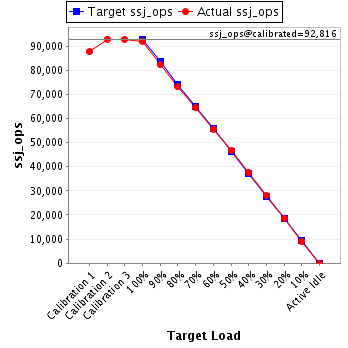

JVM 'M520-07.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,656
Calibration 2     92,854
Calibration 3     92,777
ssj_ops@calibrated=92,816
100% 99.1% 92,816 91,998
90% 88.6% 83,534 82,226
80% 78.8% 74,253 73,098
70% 69.5% 64,971 64,461
60% 59.9% 55,689 55,611
50% 50.4% 46,408 46,779
40% 40.3% 37,126 37,410
30% 30.2% 27,845 27,993
20% 20.0% 18,563 18,520
10% 9.8% 9,282 9,120
Active Idle   0 0
Graph of results
JVM 'M520-07.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,058
Calibration 2     92,096
Calibration 3     92,855
ssj_ops@calibrated=92,476
100% 98.8% 92,476 91,394
90% 89.1% 83,228 82,383
80% 80.0% 73,980 74,008
70% 69.5% 64,733 64,288
60% 59.4% 55,485 54,902
50% 50.1% 46,238 46,367
40% 40.0% 36,990 36,952
30% 30.0% 27,743 27,786
20% 19.6% 18,495 18,132
10% 9.9% 9,248 9,133
Active Idle   0 0
Graph of results
JVM 'M520-07.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,649
Calibration 2     91,543
Calibration 3     91,606
ssj_ops@calibrated=91,574
100% 99.2% 91,574 90,850
90% 89.7% 82,417 82,127
80% 79.1% 73,259 72,456
70% 70.6% 64,102 64,635
60% 59.4% 54,945 54,430
50% 50.0% 45,787 45,818
40% 39.8% 36,630 36,458
30% 29.6% 27,472 27,128
20% 19.9% 18,315 18,195
10% 9.9% 9,157 9,028
Active Idle   0 0
Graph of results
JVM 'M520-07.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,834
Calibration 2     91,497
Calibration 3     91,337
ssj_ops@calibrated=91,417
100% 98.4% 91,417 89,959
90% 91.5% 82,275 83,620
80% 80.9% 73,133 73,957
70% 69.5% 63,992 63,566
60% 59.8% 54,850 54,704
50% 49.6% 45,708 45,343
40% 40.0% 36,567 36,554
30% 30.2% 27,425 27,563
20% 20.1% 18,283 18,401
10% 10.1% 9,142 9,251
Active Idle   0 0
Graph of results
JVM 'M520-07.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,442
Calibration 2     92,064
Calibration 3     92,035
ssj_ops@calibrated=92,049
100% 99.0% 92,049 91,115
90% 90.4% 82,844 83,213
80% 79.9% 73,639 73,531
70% 71.1% 64,434 65,433
60% 59.0% 55,230 54,307
50% 50.3% 46,025 46,341
40% 40.7% 36,820 37,478
30% 29.7% 27,615 27,383
20% 20.2% 18,410 18,622
10% 10.8% 9,205 9,912
Active Idle   0 0
Graph of results
JVM 'M520-07.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,141
Calibration 2     91,063
Calibration 3     91,172
ssj_ops@calibrated=91,118
100% 98.5% 91,118 89,785
90% 90.2% 82,006 82,223
80% 80.1% 72,894 72,984
70% 71.0% 63,782 64,735
60% 59.2% 54,671 53,918
50% 49.4% 45,559 45,001
40% 39.6% 36,447 36,040
30% 30.0% 27,335 27,315
20% 19.5% 18,224 17,798
10% 10.0% 9,112 9,095
Active Idle   0 0
Graph of results
JVM 'M520-07.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,899
Calibration 2     90,419
Calibration 3     90,298
ssj_ops@calibrated=90,359
100% 99.7% 90,359 90,126
90% 89.4% 81,323 80,743
80% 80.2% 72,287 72,473
70% 70.0% 63,251 63,248
60% 60.2% 54,215 54,399
50% 50.1% 45,179 45,273
40% 39.9% 36,143 36,048
30% 30.6% 27,108 27,690
20% 19.8% 18,072 17,899
10% 9.8% 9,036 8,829
Active Idle   0 0
Graph of results
JVM 'M520-07.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,611
Calibration 2     91,314
Calibration 3     90,819
ssj_ops@calibrated=91,067
100% 99.2% 91,067 90,317
90% 90.1% 81,960 82,023
80% 79.7% 72,853 72,587
70% 69.1% 63,747 62,938
60% 59.5% 54,640 54,171
50% 49.5% 45,533 45,114
40% 39.6% 36,427 36,091
30% 30.3% 27,320 27,556
20% 20.3% 18,213 18,449
10% 9.9% 9,107 9,004
Active Idle   0 0
Graph of results
JVM 'M520-07.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,281
Calibration 2     94,297
Calibration 3     93,782
ssj_ops@calibrated=94,039
100% 99.0% 94,039 93,061
90% 90.0% 84,635 84,678
80% 79.8% 75,231 75,045
70% 69.1% 65,828 65,022
60% 60.4% 56,424 56,785
50% 50.2% 47,020 47,182
40% 39.4% 37,616 37,096
30% 29.5% 28,212 27,747
20% 19.6% 18,808 18,459
10% 9.6% 9,404 9,020
Active Idle   0 0
Graph of results
JVM 'M520-07.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,687
Calibration 2     94,857
Calibration 3     95,416
ssj_ops@calibrated=95,137
100% 99.5% 95,137 94,688
90% 89.4% 85,623 85,053
80% 80.1% 76,109 76,218
70% 70.2% 66,596 66,787
60% 59.7% 57,082 56,800
50% 50.4% 47,568 47,938
40% 40.6% 38,055 38,666
30% 30.3% 28,541 28,844
20% 19.7% 19,027 18,725
10% 9.8% 9,514 9,321
Active Idle   0 0
Graph of results
JVM 'M520-07.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,670
Calibration 2     95,400
Calibration 3     94,468
ssj_ops@calibrated=94,934
100% 99.8% 94,934 94,700
90% 88.9% 85,441 84,412
80% 79.7% 75,947 75,671
70% 70.3% 66,454 66,736
60% 61.0% 56,961 57,946
50% 49.7% 47,467 47,144
40% 40.1% 37,974 38,069
30% 30.3% 28,480 28,766
20% 19.8% 18,987 18,820
10% 10.1% 9,493 9,545
Active Idle   0 0
Graph of results
JVM 'M520-07.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,173
Calibration 2     95,751
Calibration 3     95,694
ssj_ops@calibrated=95,723
100% 99.2% 95,723 94,967
90% 89.6% 86,150 85,783
80% 80.2% 76,578 76,807
70% 69.7% 67,006 66,697
60% 60.0% 57,434 57,470
50% 49.7% 47,861 47,584
40% 40.3% 38,289 38,612
30% 29.4% 28,717 28,131
20% 19.7% 19,145 18,890
10% 10.0% 9,572 9,529
Active Idle   0 0
Graph of results
JVM 'M520-07.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,844
Calibration 2     94,625
Calibration 3     94,401
ssj_ops@calibrated=94,513
100% 99.0% 94,513 93,541
90% 90.1% 85,062 85,141
80% 78.9% 75,610 74,608
70% 69.4% 66,159 65,628
60% 60.2% 56,708 56,920
50% 50.2% 47,256 47,435
40% 39.8% 37,805 37,659
30% 30.0% 28,354 28,386
20% 20.2% 18,903 19,057
10% 9.7% 9,451 9,162
Active Idle   0 0
Graph of results
JVM 'M520-07.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,613
Calibration 2     95,354
Calibration 3     95,586
ssj_ops@calibrated=95,470
100% 99.0% 95,470 94,544
90% 89.3% 85,923 85,267
80% 79.9% 76,376 76,245
70% 69.8% 66,829 66,642
60% 60.0% 57,282 57,290
50% 49.4% 47,735 47,188
40% 40.4% 38,188 38,615
30% 29.9% 28,641 28,530
20% 20.0% 19,094 19,053
10% 9.8% 9,547 9,382
Active Idle   0 0
Graph of results
JVM 'M520-07.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,613
Calibration 2     95,595
Calibration 3     95,398
ssj_ops@calibrated=95,497
100% 99.2% 95,497 94,693
90% 88.8% 85,947 84,779
80% 79.8% 76,397 76,204
70% 69.9% 66,848 66,728
60% 59.3% 57,298 56,675
50% 49.9% 47,748 47,663
40% 39.7% 38,199 37,882
30% 29.5% 28,649 28,171
20% 20.3% 19,099 19,359
10% 10.3% 9,550 9,829
Active Idle   0 0
Graph of results
JVM 'M520-07.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,965
Calibration 2     94,787
Calibration 3     93,980
ssj_ops@calibrated=94,383
100% 99.8% 94,383 94,211
90% 89.8% 84,945 84,733
80% 79.5% 75,507 75,004
70% 70.3% 66,068 66,375
60% 59.3% 56,630 55,962
50% 50.1% 47,192 47,247
40% 39.7% 37,753 37,487
30% 30.1% 28,315 28,440
20% 19.7% 18,877 18,582
10% 10.0% 9,438 9,404
Active Idle   0 0
Graph of results
