Dell Inc. PowerEdge M520 (Intel Xeon E5-2470 (2.30 GHz) ssj_ops@100% = 1,466,407
ssj_ops@100% per JVM = 91,650
Test Sponsor: Dell Inc. SPEC License #: 55 Test Method: Multi Node
Tested By: Dell Inc. Test Location: Round Rock, TX, USA Test Date: Oct 25, 2012
Hardware Availability: Oct-2012 Software Availability: Jun-2012 Publication: Nov 14, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,402,325
Calibration 2     1,477,937
Calibration 3     1,479,936
ssj_ops@calibrated=1,478,936
100% 99.2% 1,478,936 1,466,407
90% 90.0% 1,331,043 1,331,623
80% 80.1% 1,183,149 1,184,166
70% 69.9% 1,035,256 1,034,104
60% 60.0% 887,362 886,857
50% 49.9% 739,468 738,135
40% 39.9% 591,575 589,698
30% 29.9% 443,681 442,262
20% 20.0% 295,787 295,966
10% 10.0% 147,894 148,310
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: M520
# of Identical Nodes: 16
Comment: None
Hardware
Hardware Vendor: Dell Inc.
Model: PowerEdge M520 (Intel Xeon E5-2470 (2.30 GHz)
Form Factor: Blade
CPU Name: Intel Xeon E5-2470 (2.30 GHz)
CPU Characteristics: 8 Core, 2.30 GHz
CPU Frequency (MHz): 2300
CPU(s) Enabled: 16 cores, 2 chips, 8 cores/chip
Hardware Threads: 32 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 20 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 24
# and size of DIMM: 6 x 4096 MB
Memory Details: 4GB 2Rx8 PC3L-10600E ECC, Slots A1-A3, B1-B3 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 100 GB 2.5" SATA SSD, Dell P/N: DYW42
Disk Controller: Integrated PERC S110
# and type of Network Interface Cards (NICs) Installed: 2 x Onboard dual-port Broadcom 5720 Gigabit Ethernet
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power Saver Mode in OS (See Notes)
Operating System (OS): Microsoft Windows 2008 Server Enterprise x64 Edition
OS Version: R2 SP1
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.6, JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120322_106209 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xmn800m -Xms1024m -Xmx1024m -XlockReservation -Xnoloa -Xlp -Xconcurrentlevel0 -XtlhPrefetch -Xthr:minimizeusercpu -Xgcthreads4
JVM Affinity: start /affinity [3, C, 30, C0, 300, C00, 3000, C000, 30000, C0000, 300000, C00000, 3000000, C0000000, 30000000, C0000000]
JVM Instances: 16
JVM Initial Heap (MB): 1024
JVM Maximum Heap (MB): 1024
JVM Address Bits: 64
Boot Firmware Version: 1.3.5
Management Firmware Version: iDRAC7 1.23.23 Build 1
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: IBM SDK Java Technology Edition Version 7.0 for Windows x64
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
M520-01.001 91,570
M520-01.002 91,499
M520-01.003 91,055
M520-01.004 91,156
M520-01.005 90,948
M520-01.006 91,761
M520-01.007 91,855
M520-01.008 93,461
M520-01.009 91,410
M520-01.010 91,831
M520-01.011 91,849
M520-01.012 91,627
M520-01.013 91,401
M520-01.014 92,674
M520-01.015 91,170
M520-01.016 91,140
ssj_ops@100% 1,466,407
ssj_ops@100% per JVM 91,650

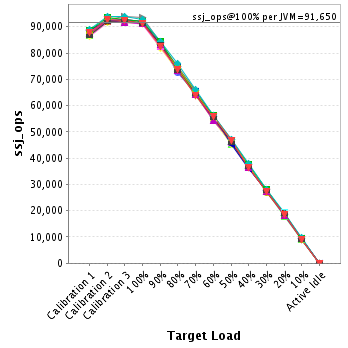

Graph of per-instance results
JVM 'M520-01.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,238
Calibration 2     92,107
Calibration 3     92,135
ssj_ops@calibrated=92,121
100% 99.4% 92,121 91,570
90% 90.2% 82,909 83,086
80% 81.1% 73,696 74,701
70% 70.0% 64,484 64,485
60% 59.7% 55,272 55,017
50% 49.6% 46,060 45,717
40% 39.9% 36,848 36,749
30% 30.2% 27,636 27,846
20% 20.1% 18,424 18,544
10% 10.1% 9,212 9,304
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

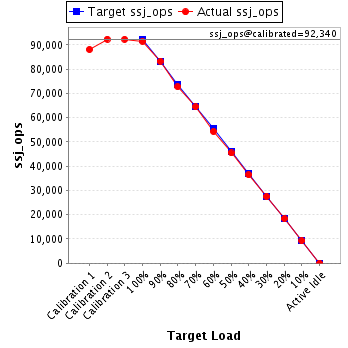

JVM 'M520-01.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,081
Calibration 2     92,357
Calibration 3     92,323
ssj_ops@calibrated=92,340
100% 99.1% 92,340 91,499
90% 90.2% 83,106 83,289
80% 78.8% 73,872 72,745
70% 69.8% 64,638 64,476
60% 58.8% 55,404 54,321
50% 49.2% 46,170 45,464
40% 39.5% 36,936 36,443
30% 29.8% 27,702 27,548
20% 19.9% 18,468 18,386
10% 10.0% 9,234 9,266
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

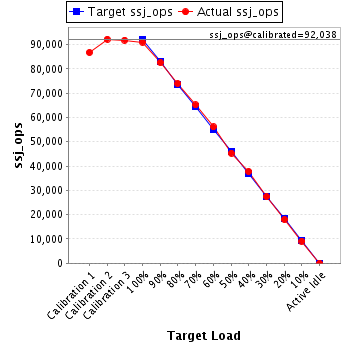

JVM 'M520-01.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,749
Calibration 2     92,221
Calibration 3     91,855
ssj_ops@calibrated=92,038
100% 98.9% 92,038 91,055
90% 89.7% 82,834 82,585
80% 80.4% 73,630 73,989
70% 70.8% 64,427 65,151
60% 60.9% 55,223 56,083
50% 49.2% 46,019 45,317
40% 41.0% 36,815 37,737
30% 29.8% 27,611 27,422
20% 19.5% 18,408 17,962
10% 9.9% 9,204 9,097
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-01.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,282
Calibration 2     91,620
Calibration 3     91,724
ssj_ops@calibrated=91,672
100% 99.4% 91,672 91,156
90% 89.2% 82,505 81,733
80% 79.9% 73,338 73,285
70% 69.7% 64,171 63,871
60% 59.1% 55,003 54,188
50% 49.2% 45,836 45,125
40% 40.1% 36,669 36,726
30% 29.8% 27,502 27,296
20% 19.7% 18,334 18,034
10% 10.4% 9,167 9,529
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

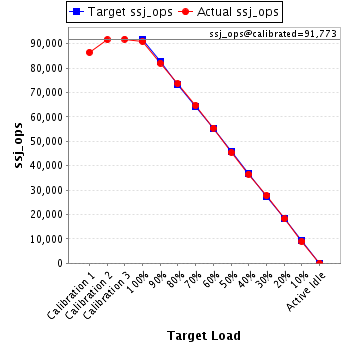

JVM 'M520-01.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,455
Calibration 2     91,686
Calibration 3     91,860
ssj_ops@calibrated=91,773
100% 99.1% 91,773 90,948
90% 89.4% 82,596 82,044
80% 80.2% 73,418 73,618
70% 70.5% 64,241 64,695
60% 60.4% 55,064 55,442
50% 49.5% 45,886 45,387
40% 39.8% 36,709 36,517
30% 30.2% 27,532 27,739
20% 19.9% 18,355 18,235
10% 9.7% 9,177 8,936
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-01.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,692
Calibration 2     92,138
Calibration 3     92,732
ssj_ops@calibrated=92,435
100% 99.3% 92,435 91,761
90% 90.0% 83,191 83,237
80% 79.8% 73,948 73,728
70% 68.9% 64,704 63,681
60% 60.2% 55,461 55,609
50% 50.7% 46,217 46,887
40% 39.8% 36,974 36,787
30% 30.2% 27,730 27,939
20% 20.7% 18,487 19,133
10% 9.7% 9,243 8,966
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-01.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,454
Calibration 2     92,366
Calibration 3     92,895
ssj_ops@calibrated=92,630
100% 99.2% 92,630 91,855
90% 90.7% 83,367 84,021
80% 79.7% 74,104 73,798
70% 69.0% 64,841 63,885
60% 60.6% 55,578 56,127
50% 49.9% 46,315 46,205
40% 39.8% 37,052 36,866
30% 30.1% 27,789 27,856
20% 20.1% 18,526 18,598
10% 9.9% 9,263 9,179
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-01.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,402
Calibration 2     92,836
Calibration 3     93,837
ssj_ops@calibrated=93,336
100% 100.1% 93,336 93,461
90% 89.8% 84,003 83,840
80% 80.1% 74,669 74,748
70% 70.4% 65,335 65,676
60% 59.8% 56,002 55,784
50% 50.4% 46,668 47,086
40% 40.1% 37,335 37,406
30% 30.0% 28,001 27,997
20% 19.9% 18,667 18,553
10% 10.0% 9,334 9,299
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-01.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,262
Calibration 2     92,054
Calibration 3     92,422
ssj_ops@calibrated=92,238
100% 99.1% 92,238 91,410
90% 90.4% 83,014 83,346
80% 80.4% 73,790 74,186
70% 69.8% 64,567 64,378
60% 59.4% 55,343 54,803
50% 50.5% 46,119 46,537
40% 39.4% 36,895 36,342
30% 29.9% 27,671 27,543
20% 20.3% 18,448 18,770
10% 10.1% 9,224 9,334
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-01.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,493
Calibration 2     92,288
Calibration 3     92,890
ssj_ops@calibrated=92,589
100% 99.2% 92,589 91,831
90% 90.1% 83,330 83,429
80% 80.6% 74,071 74,603
70% 70.7% 64,812 65,503
60% 60.4% 55,553 55,960
50% 48.8% 46,294 45,196
40% 39.1% 37,036 36,184
30% 30.0% 27,777 27,797
20% 19.7% 18,518 18,233
10% 10.3% 9,259 9,567
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-01.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,686
Calibration 2     93,593
Calibration 3     92,855
ssj_ops@calibrated=93,224
100% 98.5% 93,224 91,849
90% 90.6% 83,901 84,440
80% 79.4% 74,579 74,065
70% 69.3% 65,257 64,591
60% 60.4% 55,934 56,312
50% 50.2% 46,612 46,835
40% 40.2% 37,289 37,498
30% 30.1% 27,967 28,089
20% 20.1% 18,645 18,745
10% 10.2% 9,322 9,491
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

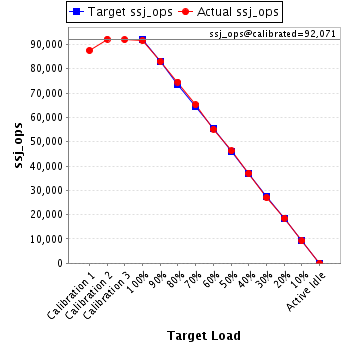

JVM 'M520-01.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,515
Calibration 2     92,163
Calibration 3     91,978
ssj_ops@calibrated=92,071
100% 99.5% 92,071 91,627
90% 90.1% 82,864 82,969
80% 81.0% 73,657 74,536
70% 70.8% 64,450 65,207
60% 59.9% 55,243 55,148
50% 50.2% 46,035 46,204
40% 40.2% 36,828 37,016
30% 29.3% 27,621 27,017
20% 20.2% 18,414 18,588
10% 10.0% 9,207 9,212
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-01.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,585
Calibration 2     92,191
Calibration 3     91,729
ssj_ops@calibrated=91,960
100% 99.4% 91,960 91,401
90% 90.4% 82,764 83,095
80% 79.6% 73,568 73,227
70% 70.0% 64,372 64,344
60% 59.1% 55,176 54,371
50% 50.5% 45,980 46,480
40% 39.7% 36,784 36,468
30% 29.5% 27,588 27,123
20% 19.7% 18,392 18,111
10% 10.2% 9,196 9,374
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-01.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,965
Calibration 2     93,792
Calibration 3     93,959
ssj_ops@calibrated=93,876
100% 98.7% 93,876 92,674
90% 90.0% 84,488 84,484
80% 81.0% 75,101 76,040
70% 70.3% 65,713 65,965
60% 60.0% 56,326 56,336
50% 50.3% 46,938 47,182
40% 40.3% 37,550 37,789
30% 30.0% 28,163 28,142
20% 20.3% 18,775 19,041
10% 10.4% 9,388 9,762
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

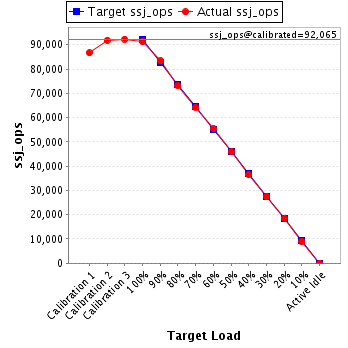

JVM 'M520-01.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,600
Calibration 2     91,842
Calibration 3     92,288
ssj_ops@calibrated=92,065
100% 99.0% 92,065 91,170
90% 90.5% 82,858 83,357
80% 79.5% 73,652 73,222
70% 69.8% 64,445 64,255
60% 60.2% 55,239 55,459
50% 49.9% 46,032 45,918
40% 39.7% 36,826 36,546
30% 29.8% 27,619 27,467
20% 20.2% 18,413 18,600
10% 9.8% 9,206 8,994
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-01.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,867
Calibration 2     92,683
Calibration 3     92,455
ssj_ops@calibrated=92,569
100% 98.5% 92,569 91,140
90% 89.3% 83,312 82,671
80% 79.6% 74,055 73,675
70% 69.1% 64,798 63,941
60% 60.4% 55,541 55,898
50% 50.3% 46,284 46,593
40% 39.6% 37,028 36,625
30% 29.6% 27,771 27,443
20% 19.9% 18,514 18,432
10% 9.7% 9,257 8,999
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
