SPECpower_ssj2008
Copyright © 2007-2012 Standard Performance Evaluation Corporation
| Dell Inc. PowerEdge R720 (Intel Xeon E5-2660, 2.20 GHz) | SPECpower_ssj2008 = 5,497 overall ssj_ops/watt | ||||
| Test Sponsor: | Dell Inc. | SPEC License #: | 55 | Test Method: | Single Node |
| Tested By: | Dell Inc. | Test Location: | Round Rock, TX, USA | Test Date: | Oct 24, 2012 |
| Hardware Availability: | Dec-2012 | Software Availability: | Jun-2012 | Publication: | Nov 14, 2012 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |
| Performance | Power | Performance to Power Ratio | ||
|---|---|---|---|---|
| Target Load | Actual Load | ssj_ops | Average Active Power (W) | |
| 100% | 99.2% | 1,447,466 | 230 | 6,305 |
| 90% | 89.5% | 1,306,322 | 199 | 6,557 |
| 80% | 80.0% | 1,167,089 | 177 | 6,606 |
| 70% | 70.0% | 1,021,464 | 160 | 6,375 |
| 60% | 59.9% | 874,048 | 140 | 6,263 |
| 50% | 50.0% | 729,614 | 122 | 5,968 |
| 40% | 40.1% | 584,498 | 112 | 5,215 |
| 30% | 29.9% | 436,744 | 98.4 | 4,438 |
| 20% | 20.0% | 291,791 | 87.4 | 3,340 |
| 10% | 10.0% | 146,131 | 77.1 | 1,896 |
| Active Idle | 0 | 53.8 | 0 | |
| ∑ssj_ops / ∑power = | 5,497 | |||
| Set Identifier: | sut |
| Set Description: | System Under Test |
| # of Identical Nodes: | 1 |
| Comment: | PowerEdge R720. |
| Hardware | |
|---|---|
| Hardware Vendor: | Dell Inc. |
| Model: | PowerEdge R720 (Intel Xeon E5-2660, 2.20 GHz) |
| Form Factor: | 2U |
| CPU Name: | Intel Xeon E5-2660 2.20 GHz (Intel Turbo Boost Technology up to 3.00 GHz) |
| CPU Characteristics: | 8 core, 2.20 GHz, 20MB L3 Cache |
| CPU Frequency (MHz): | 2200 |
| CPU(s) Enabled: | 16 cores, 2 chips, 8 cores/chip |
| Hardware Threads: | 32 (2 / core) |
| CPU(s) Orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| Tertiary Cache: | 20 MB I+D on chip per chip |
| Other Cache: | None |
| Memory Amount (GB): | 24 |
| # and size of DIMM: | 6 x 4096 MB |
| Memory Details: | 4GB 2Rx8 PC3L-10600E-9 ECC; Slots A1-3,B1-3 populated. |
| Power Supply Quantity and Rating (W): | 1 x 750 |
| Power Supply Details: | Dell P/N XYXMG |
| Disk Drive: | 1 x 200GB SATA SSD, Dell P/N 24XV8 |
| Disk Controller: | Integrated PERC S110 |
| # and type of Network Interface Cards (NICs) Installed: | 2 x dual-port Broadcom 5720, Dell P/N FM487 |
| NICs Enabled in Firmware / OS / Connected: | 4/4/1 |
| Network Speed (Mbit): | 1000 |
| Keyboard: | None |
| Mouse: | None |
| Monitor: | None |
| Optical Drives: | No |
| Other Hardware: | None |
| Software | |
|---|---|
| Power Management: | Power Saver plan in OS |
| Operating System (OS): | Microsoft Windows Server 2008 x64 Enterprise Edition |
| OS Version: | R2 SP1 |
| Filesystem: | NTFS |
| JVM Vendor: | IBM Corporation |
| JVM Version: | IBM J9 VM (build 2.6,JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120322_106209 (JIT enabled, AOT enabled) |
| JVM Command-line Options: | -Xaggressive -Xcompressedrefs -Xmx1500m -Xms1500m -Xmn1100m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp -Xconcurrentlevel0 -Xthr:minimizeusercpu -Xgcthreads4 |
| JVM Affinity: | start /affinity [F,F0,F00,F000,F0000,F00000,F000000,F0000000] |
| JVM Instances: | 8 |
| JVM Initial Heap (MB): | 1500 |
| JVM Maximum Heap (MB): | 1500 |
| JVM Address Bits: | 64 |
| Boot Firmware Version: | 1.3.6 |
| Management Firmware Version: | 1.30.30 (Build 37) |
| Workload Version: | SSJ 1.2.10 |
| Director Location: | Controller |
| Other Software: | IBM SDK Java Technology Edition Version 7.0 for Windows x64 |
| Hardware | |
|---|---|
| Hardware Vendor: | Dell Inc |
| Model: | Poweredge 1950 |
| CPU Description: | Intel Xeon E5160, 3.00 GHz |
| Memory amount (GB): | 8.0 |
| Software | |
|---|---|
| Operating System (OS): | Microsoft Windows Server 2008 R2 Enterprise Edition Service Pack 1 |
| JVM Vendor: | Oracle Corporation |
| JVM Version: | Hotspot(TM) Client VM, version 1.6.0_32 |
| CCS Version: | 1.2.6 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Meters and Instruments Corporation |
| Model: | WT210 |
| Serial Number: | 91KA21979 |
| Connectivity: | RS-232 |
| Input Connection: | Default |
| Metrology Institute: | NIST |
| Accredited by: | SIMCO |
| Calibration Label: | 4985255 |
| Date of Calibration: | 28-Jun-2012 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.4.2-bc965ca0-20120417 |
| Setup Description: | Connected to power supply |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | 5.10.26.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 25 mm in front of SUT main airflow intake |
| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| 100% | 230 | 20.9 |
| 90% | 199 | 20.9 |
| 80% | 177 | 20.9 |
| 70% | 160 | 20.9 |
| 60% | 140 | 20.9 |
| 50% | 122 | 20.9 |
| 40% | 112 | 20.9 |
| 30% | 98.4 | 20.9 |
| 20% | 87.4 | 20.9 |
| 10% | 77.1 | 20.8 |
| Active Idle | 53.8 | 20.8 |
| Line Standard | Minimum Temperature (°C) | Elevation (m) |
|---|---|---|
| 208V / 60 Hz / 1 phase / 2 wires | 20.8 | 255 |

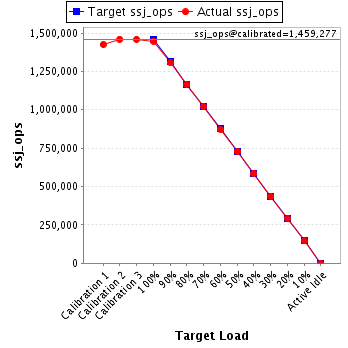

| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 1,425,094 | ||
| Calibration 2 | 1,459,841 | ||
| Calibration 3 | 1,458,713 | ||
| ssj_ops@calibrated=1,459,277 | |||
| 100% | 99.2% | 1,459,277 | 1,447,466 |
| 90% | 89.5% | 1,313,349 | 1,306,322 |
| 80% | 80.0% | 1,167,421 | 1,167,089 |
| 70% | 70.0% | 1,021,494 | 1,021,464 |
| 60% | 59.9% | 875,566 | 874,048 |
| 50% | 50.0% | 729,638 | 729,614 |
| 40% | 40.1% | 583,711 | 584,498 |
| 30% | 29.9% | 437,783 | 436,744 |
| 20% | 20.0% | 291,855 | 291,791 |
| 10% | 10.0% | 145,928 | 146,131 |
| Active Idle | 0 | 0 | |
