IBM Corporation IBM System x iDataPlex dx360 M4 ssj_ops@100% = 1,445,985
ssj_ops@100% per JVM = 180,748
Test Sponsor: IBM Corporation SPEC License #: 11 Test Method: Multi Node
Tested By: IBM Corporation Test Location: Taipei, Taiwan Test Date: Aug 23, 2012
Hardware Availability: Apr-2012 Software Availability: Dec-2012 Publication: Oct 31, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,413,526
Calibration 2     1,450,455
Calibration 3     1,451,603
ssj_ops@calibrated=1,451,029
100% 99.7% 1,451,029 1,445,985
90% 90.3% 1,305,926 1,309,679
80% 79.9% 1,160,823 1,159,215
70% 70.1% 1,015,720 1,017,230
60% 60.2% 870,617 873,902
50% 50.1% 725,514 727,242
40% 39.9% 580,412 579,007
30% 30.0% 435,309 435,561
20% 20.0% 290,206 290,306
10% 10.0% 145,103 144,649
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 2
Comment: None
Hardware
Hardware Vendor: IBM Corporation
Model: IBM System x iDataPlex dx360 M4
Form Factor: 2U
CPU Name: Intel Xeon E5-2660 2.20 GHz (Intel Turbo Boost Technology up to 3.00 GHz)
CPU Characteristics: 8-Core, 2.20 GHz, 20MB L3 Cache
CPU Frequency (MHz): 2200
CPU(s) Enabled: 16 cores, 2 chips, 8 cores/chip
Hardware Threads: 32 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 20 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 24
# and size of DIMM: 6 x 4096 MB
Memory Details: 4GB 2Rx8 PC3L-10600E ECC CL9; slots 1, 3, 8, 9 11 and 16 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: N/A
Disk Drive: 1 x 200 GB SATA SSD, IBM P/N: 43W7742
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 2 x Integrated Intel I350 Gigabit Ethernet Controller
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: IBM Power Profile
Operating System (OS): Microsoft Windows Server 2008 Enterprise Edition x64
OS Version: R2 SP1
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.6, JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120322_106209 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xmn1100m -Xms1500m -Xmx1500m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp -Xconcurrentlevel0
JVM Affinity: start /affinity [F,F0,F00,F000,F0000,F00000,F000000,F0000000]
JVM Instances: 8
JVM Initial Heap (MB): 1500
JVM Maximum Heap (MB): 1500
JVM Address Bits: 64
Boot Firmware Version: TDE115J
Management Firmware Version: 1AOO25K
Workload Version: SSJ 1.2.9
Director Location: Controller
Other Software: IBM SDK Java Technology Edition Version 7.0 for Windows x64
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-KDRK08S3VO1.001 180,887
WIN-KDRK08S3VO1.002 181,132
WIN-KDRK08S3VO1.003 179,934
WIN-KDRK08S3VO1.004 181,534
WIN-KDRK08S3VO1.005 180,852
WIN-KDRK08S3VO1.006 181,032
WIN-KDRK08S3VO1.007 179,431
WIN-KDRK08S3VO1.008 181,183
ssj_ops@100% 1,445,985
ssj_ops@100% per JVM 180,748

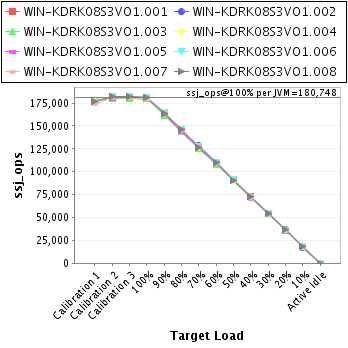

Graph of per-instance results
JVM 'WIN-KDRK08S3VO1.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     176,881
Calibration 2     180,580
Calibration 3     181,413
ssj_ops@calibrated=180,997
100% 99.9% 180,997 180,887
90% 89.6% 162,897 162,109
80% 79.3% 144,797 143,537
70% 70.2% 126,698 127,066
60% 59.7% 108,598 107,974
50% 50.5% 90,498 91,337
40% 40.4% 72,399 73,208
30% 30.0% 54,299 54,387
20% 19.7% 36,199 35,664
10% 10.0% 18,100 18,124
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-KDRK08S3VO1.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     177,125
Calibration 2     182,014
Calibration 3     181,744
ssj_ops@calibrated=181,879
100% 99.6% 181,879 181,132
90% 90.5% 163,691 164,606
80% 79.6% 145,503 144,780
70% 70.7% 127,315 128,542
60% 60.6% 109,127 110,242
50% 50.1% 90,940 91,155
40% 39.8% 72,752 72,394
30% 30.1% 54,564 54,750
20% 20.1% 36,376 36,476
10% 9.7% 18,188 17,728
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-KDRK08S3VO1.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     176,293
Calibration 2     179,938
Calibration 3     180,550
ssj_ops@calibrated=180,244
100% 99.8% 180,244 179,934
90% 89.9% 162,220 161,970
80% 80.0% 144,195 144,233
70% 69.8% 126,171 125,878
60% 60.0% 108,146 108,188
50% 50.6% 90,122 91,159
40% 40.4% 72,098 72,859
30% 30.1% 54,073 54,287
20% 20.4% 36,049 36,715
10% 10.0% 18,024 18,004
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-KDRK08S3VO1.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     178,667
Calibration 2     182,446
Calibration 3     181,771
ssj_ops@calibrated=182,109
100% 99.7% 182,109 181,534
90% 90.2% 163,898 164,282
80% 80.1% 145,687 145,926
70% 69.6% 127,476 126,743
60% 60.5% 109,265 110,205
50% 49.9% 91,054 90,863
40% 39.8% 72,843 72,539
30% 30.0% 54,633 54,653
20% 19.8% 36,422 36,141
10% 9.8% 18,211 17,927
Active Idle   0 0

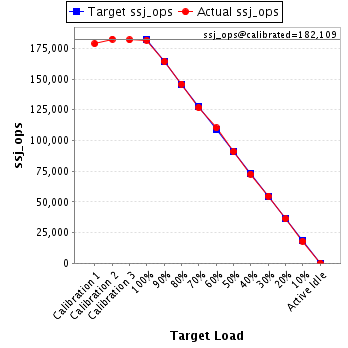

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-KDRK08S3VO1.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     177,687
Calibration 2     179,910
Calibration 3     181,907
ssj_ops@calibrated=180,908
100% 100.0% 180,908 180,852
90% 90.3% 162,818 163,440
80% 79.1% 144,727 143,168
70% 70.1% 126,636 126,858
60% 59.7% 108,545 108,024
50% 50.1% 90,454 90,633
40% 39.7% 72,363 71,837
30% 29.7% 54,273 53,708
20% 20.2% 36,182 36,498
10% 10.0% 18,091 18,135
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-KDRK08S3VO1.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     175,795
Calibration 2     182,558
Calibration 3     181,988
ssj_ops@calibrated=182,273
100% 99.3% 182,273 181,032
90% 90.3% 164,046 164,588
80% 80.2% 145,818 146,160
70% 70.2% 127,591 128,005
60% 60.4% 109,364 110,059
50% 50.0% 91,137 91,150
40% 39.4% 72,909 71,834
30% 29.9% 54,682 54,564
20% 19.6% 36,455 35,667
10% 10.1% 18,227 18,383
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-KDRK08S3VO1.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     173,865
Calibration 2     180,690
Calibration 3     180,107
ssj_ops@calibrated=180,398
100% 99.5% 180,398 179,431
90% 91.4% 162,359 164,854
80% 80.7% 144,319 145,517
70% 70.8% 126,279 127,709
60% 60.5% 108,239 109,080
50% 50.1% 90,199 90,329
40% 39.7% 72,159 71,571
30% 30.2% 54,120 54,454
20% 20.1% 36,080 36,211
10% 10.0% 18,040 18,119
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-KDRK08S3VO1.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     177,213
Calibration 2     182,319
Calibration 3     182,122
ssj_ops@calibrated=182,220
100% 99.4% 182,220 181,183
90% 89.9% 163,998 163,830
80% 80.1% 145,776 145,894
70% 69.4% 127,554 126,429
60% 60.4% 109,332 110,130
50% 49.7% 91,110 90,615
40% 39.9% 72,888 72,766
30% 30.1% 54,666 54,757
20% 20.3% 36,444 36,933
10% 10.0% 18,222 18,228
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
