Supermicro Computer, Inc. 1022G-NTF ssj_ops@100% = 1,219,688
ssj_ops@100% per JVM = 76,231
Test Sponsor: Advanced Micro Devices SPEC License #: 49 Test Method: Single Node
Tested By: Advanced Micro Devices Test Location: Austin, TX USA Test Date: Oct 15, 2012
Hardware Availability: Nov-2012 Software Availability: Apr-2012 Publication: Nov 7, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,109,364
Calibration 2     1,221,815
Calibration 3     1,223,086
ssj_ops@calibrated=1,222,451
100% 99.8% 1,222,451 1,219,688
90% 90.0% 1,100,206 1,100,113
80% 79.9% 977,961 977,189
70% 69.9% 855,715 854,715
60% 59.9% 733,470 732,785
50% 50.1% 611,225 612,331
40% 40.1% 488,980 490,367
30% 29.9% 366,735 365,006
20% 20.0% 244,490 244,433
10% 10.0% 122,245 121,714
Active Idle   0 0

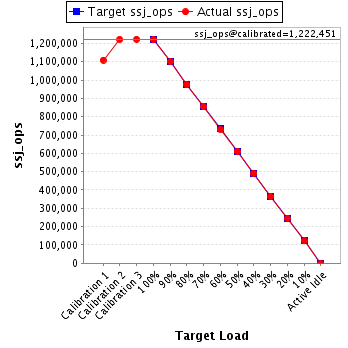

Graph of results
System Under Test
Set: 'sm1022g'
Set Identifier: sm1022g
Set Description: System Under Test
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Supermicro Computer, Inc.
Model: 1022G-NTF
Form Factor: 1U
CPU Name: AMD Opteron 6366 HE (AMD Turbo CORE Technology up to 3.10GHz)
CPU Characteristics: 16 Core, 1.8GHz, 16MB L3 Cache
CPU Frequency (MHz): 1800
CPU(s) Enabled: 32 cores, 2 chips, 16 cores/chip
Hardware Threads: 32 (1 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 512 KB I + 256 KB D on chip per chip
Secondary Cache: 16 MB I+D on chip per chip, 2 MB shared / 2 cores
Tertiary Cache: 16 MB I+D on chip per chip, 8 MB shared / 8 cores
Other Cache: None
Memory Amount (GB): 64
# and size of DIMM: 8 x 8 GB
Memory Details: 8GB 2Rx4 PC3L-12800R-11-11; slots 1a, 2a, 3a, 4a populated per socket
Power Supply Quantity and Rating (W): 1 x 560
Power Supply Details: Supermicro PWS-563-1H20
Disk Drive: 1 x 240 GB Corsair F240 SATA SSD
Disk Controller: Integrated SATA Controller
# and type of Network Interface Cards (NICs) Installed: 2 x Intel 82576 Gigabit Dual Port Ethernet
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: Yes
Other Hardware: None
Software
Power Management: Balanced Power profile
Operating System (OS): Windows Server 2008 R2 Enterprise
OS Version: SP1
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.6, JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120322_106209(JIT enabled, AOT enabled))
JVM Command-line Options: -Xms1875m -Xmn1400m -Xmx1875m -Xlp -Xaggressive -XlockReservation -Xcompressedrefs -Xnoloa -Xgcpolicy:gencon -Xthr:minimizeUserCPU -Xgcthreads2
JVM Affinity: start /affinity [03,0C,30,C0] /node [0|1|2|3]
JVM Instances: 16
JVM Initial Heap (MB): 1875
JVM Maximum Heap (MB): 1875
JVM Address Bits: 64
Boot Firmware Version: 3.0a 10/3/2012
Management Firmware Version: v2.36
Workload Version: SSJ 1.2.9
Director Location: SUT
Other Software: IBM SDK Java Technology Edition Version 7.0 for Windows x64
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
svrpwr-sm2.001 75,428
svrpwr-sm2.002 77,441
svrpwr-sm2.003 77,846
svrpwr-sm2.004 76,766
svrpwr-sm2.005 76,190
svrpwr-sm2.006 76,776
svrpwr-sm2.007 76,302
svrpwr-sm2.008 76,491
svrpwr-sm2.009 75,505
svrpwr-sm2.010 76,829
svrpwr-sm2.011 76,567
svrpwr-sm2.012 75,878
svrpwr-sm2.013 76,274
svrpwr-sm2.014 75,239
svrpwr-sm2.015 74,977
svrpwr-sm2.016 75,179
ssj_ops@100% 1,219,688
ssj_ops@100% per JVM 76,231

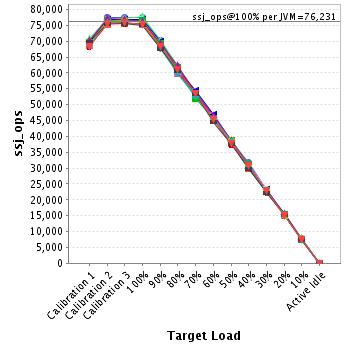

Graph of per-instance results
JVM 'svrpwr-sm2.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     68,696
Calibration 2     75,406
Calibration 3     75,471
ssj_ops@calibrated=75,438
100% 100.0% 75,438 75,428
90% 90.1% 67,895 67,979
80% 79.2% 60,351 59,761
70% 70.3% 52,807 53,059
60% 61.7% 45,263 46,517
50% 49.9% 37,719 37,613
40% 39.8% 30,175 30,012
30% 29.9% 22,632 22,562
20% 19.9% 15,088 14,982
10% 10.0% 7,544 7,510
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'svrpwr-sm2.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     69,804
Calibration 2     77,639
Calibration 3     77,457
ssj_ops@calibrated=77,548
100% 99.9% 77,548 77,441
90% 90.6% 69,793 70,272
80% 79.9% 62,038 61,948
70% 69.5% 54,283 53,897
60% 59.7% 46,529 46,330
50% 49.6% 38,774 38,487
40% 40.8% 31,019 31,616
30% 29.9% 23,264 23,193
20% 20.0% 15,510 15,520
10% 10.1% 7,755 7,802
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

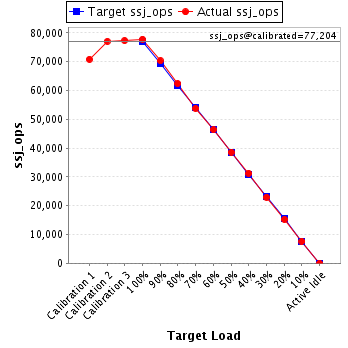

JVM 'svrpwr-sm2.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     70,873
Calibration 2     77,086
Calibration 3     77,322
ssj_ops@calibrated=77,204
100% 100.8% 77,204 77,846
90% 91.2% 69,484 70,380
80% 80.8% 61,763 62,416
70% 69.7% 54,043 53,816
60% 60.1% 46,322 46,362
50% 50.0% 38,602 38,593
40% 40.5% 30,882 31,272
30% 29.8% 23,161 22,978
20% 19.7% 15,441 15,202
10% 9.9% 7,720 7,608
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'svrpwr-sm2.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     69,296
Calibration 2     76,538
Calibration 3     76,371
ssj_ops@calibrated=76,454
100% 100.4% 76,454 76,766
90% 89.7% 68,809 68,571
80% 80.4% 61,163 61,442
70% 69.8% 53,518 53,380
60% 58.8% 45,872 44,935
50% 50.1% 38,227 38,288
40% 40.4% 30,582 30,918
30% 30.4% 22,936 23,232
20% 20.2% 15,291 15,469
10% 10.5% 7,645 8,029
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'svrpwr-sm2.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     68,904
Calibration 2     75,910
Calibration 3     76,129
ssj_ops@calibrated=76,020
100% 100.2% 76,020 76,190
90% 89.9% 68,418 68,304
80% 78.6% 60,816 59,787
70% 69.8% 53,214 53,066
60% 60.0% 45,612 45,607
50% 50.2% 38,010 38,183
40% 40.2% 30,408 30,570
30% 30.3% 22,806 23,068
20% 20.1% 15,204 15,271
10% 9.8% 7,602 7,462
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'svrpwr-sm2.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     69,222
Calibration 2     76,764
Calibration 3     76,722
ssj_ops@calibrated=76,743
100% 100.0% 76,743 76,776
90% 89.5% 69,069 68,704
80% 80.4% 61,395 61,676
70% 69.9% 53,720 53,645
60% 60.2% 46,046 46,192
50% 49.5% 38,372 38,003
40% 40.1% 30,697 30,755
30% 30.3% 23,023 23,250
20% 19.6% 15,349 15,053
10% 9.9% 7,674 7,575
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'svrpwr-sm2.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     69,390
Calibration 2     76,540
Calibration 3     76,991
ssj_ops@calibrated=76,765
100% 99.4% 76,765 76,302
90% 89.0% 69,089 68,338
80% 79.0% 61,412 60,607
70% 69.6% 53,736 53,442
60% 60.4% 46,059 46,383
50% 50.5% 38,383 38,750
40% 39.8% 30,706 30,537
30% 29.9% 23,030 22,946
20% 20.1% 15,353 15,410
10% 9.5% 7,677 7,313
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'svrpwr-sm2.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     69,138
Calibration 2     76,983
Calibration 3     76,974
ssj_ops@calibrated=76,979
100% 99.4% 76,979 76,491
90% 88.7% 69,281 68,244
80% 80.6% 61,583 62,015
70% 70.4% 53,885 54,182
60% 59.5% 46,187 45,816
50% 50.2% 38,489 38,666
40% 40.3% 30,792 30,985
30% 29.6% 23,094 22,781
20% 19.9% 15,396 15,304
10% 9.7% 7,698 7,504
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

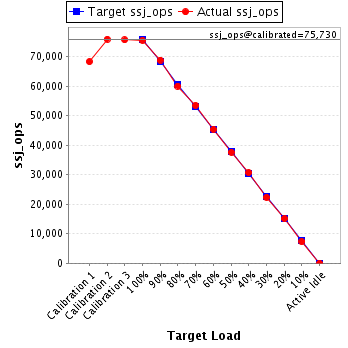

JVM 'svrpwr-sm2.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     68,228
Calibration 2     75,864
Calibration 3     75,597
ssj_ops@calibrated=75,730
100% 99.7% 75,730 75,505
90% 90.9% 68,157 68,808
80% 79.2% 60,584 59,990
70% 70.6% 53,011 53,465
60% 59.9% 45,438 45,359
50% 49.6% 37,865 37,580
40% 40.5% 30,292 30,676
30% 29.5% 22,719 22,339
20% 20.0% 15,146 15,118
10% 9.7% 7,573 7,346
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'svrpwr-sm2.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     69,768
Calibration 2     76,725
Calibration 3     76,930
ssj_ops@calibrated=76,827
100% 100.0% 76,827 76,829
90% 91.1% 69,145 70,028
80% 79.4% 61,462 60,980
70% 70.8% 53,779 54,391
60% 61.0% 46,096 46,859
50% 49.9% 38,414 38,303
40% 38.9% 30,731 29,916
30% 30.1% 23,048 23,120
20% 19.9% 15,365 15,263
10% 9.9% 7,683 7,574
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

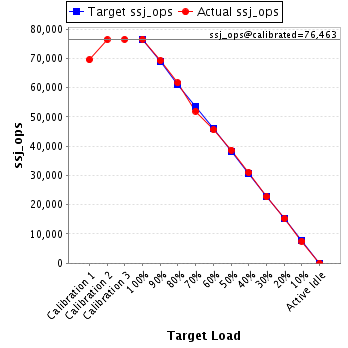

JVM 'svrpwr-sm2.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     69,511
Calibration 2     76,424
Calibration 3     76,502
ssj_ops@calibrated=76,463
100% 100.1% 76,463 76,567
90% 90.6% 68,817 69,254
80% 80.6% 61,170 61,648
70% 68.0% 53,524 51,974
60% 59.6% 45,878 45,601
50% 50.6% 38,232 38,672
40% 40.5% 30,585 30,996
30% 29.7% 22,939 22,678
20% 20.0% 15,293 15,272
10% 9.8% 7,646 7,521
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'svrpwr-sm2.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     69,553
Calibration 2     76,136
Calibration 3     76,420
ssj_ops@calibrated=76,278
100% 99.5% 76,278 75,878
90% 89.8% 68,650 68,460
80% 79.8% 61,023 60,859
70% 69.9% 53,395 53,342
60% 59.0% 45,767 45,019
50% 50.8% 38,139 38,727
40% 39.9% 30,511 30,462
30% 30.0% 22,883 22,880
20% 19.9% 15,256 15,201
10% 10.1% 7,628 7,712
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'svrpwr-sm2.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     70,222
Calibration 2     77,126
Calibration 3     76,948
ssj_ops@calibrated=77,037
100% 99.0% 77,037 76,274
90% 89.8% 69,333 69,215
80% 80.9% 61,630 62,354
70% 69.4% 53,926 53,485
60% 60.3% 46,222 46,481
50% 50.1% 38,518 38,615
40% 39.9% 30,815 30,704
30% 29.2% 23,111 22,520
20% 20.2% 15,407 15,566
10% 10.1% 7,704 7,816
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

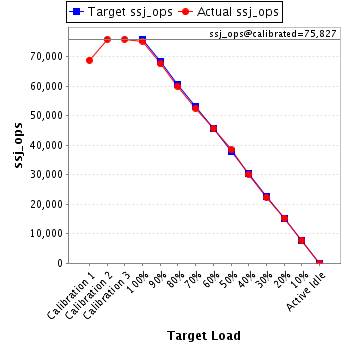

JVM 'svrpwr-sm2.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     68,763
Calibration 2     75,791
Calibration 3     75,863
ssj_ops@calibrated=75,827
100% 99.2% 75,827 75,239
90% 89.1% 68,245 67,562
80% 79.0% 60,662 59,911
70% 69.3% 53,079 52,534
60% 60.2% 45,496 45,650
50% 50.7% 37,914 38,409
40% 39.8% 30,331 30,187
30% 29.5% 22,748 22,388
20% 20.2% 15,165 15,287
10% 10.2% 7,583 7,719
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'svrpwr-sm2.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     69,767
Calibration 2     75,433
Calibration 3     75,508
ssj_ops@calibrated=75,470
100% 99.3% 75,470 74,977
90% 89.5% 67,923 67,575
80% 80.3% 60,376 60,616
70% 70.9% 52,829 53,499
60% 58.8% 45,282 44,406
50% 49.7% 37,735 37,542
40% 39.6% 30,188 29,858
30% 29.4% 22,641 22,206
20% 20.6% 15,094 15,566
10% 10.1% 7,547 7,628
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'svrpwr-sm2.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     68,230
Calibration 2     75,450
Calibration 3     75,881
ssj_ops@calibrated=75,665
100% 99.4% 75,665 75,179
90% 90.4% 68,099 68,419
80% 80.9% 60,532 61,178
70% 70.8% 52,966 53,538
60% 59.8% 45,399 45,267
50% 50.1% 37,833 37,899
40% 40.8% 30,266 30,905
30% 30.2% 22,700 22,863
20% 19.8% 15,133 14,949
10% 10.0% 7,567 7,596
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
