Huawei Technologies Co., Ltd RH2288 V2 ssj_ops@100% = 1,445,741
ssj_ops@100% per JVM = 180,718
Test Sponsor: Huawei Technologies Co., Ltd SPEC License #: 3175 Test Method: Single Node
Tested By: Huawei Technologies Co., Ltd Test Location: Shenzhen, Guangdong, China Test Date: Oct 13, 2012
Hardware Availability: Aug-2012 Software Availability: Jun-2012 Publication: Oct 31, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,306,639
Calibration 2     1,445,087
Calibration 3     1,447,401
ssj_ops@calibrated=1,446,244
100% 100.0% 1,446,244 1,445,741
90% 89.8% 1,301,620 1,299,178
80% 80.0% 1,156,995 1,156,638
70% 69.9% 1,012,371 1,010,701
60% 59.9% 867,746 866,974
50% 50.0% 723,122 723,736
40% 40.1% 578,498 579,900
30% 30.0% 433,873 434,347
20% 20.0% 289,249 288,645
10% 10.0% 144,624 144,142
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Huawei Technologies Co., Ltd
Model: RH2288 V2
Form Factor: 2U
CPU Name: Intel Xeon E5-2660
CPU Characteristics: 8-Core, 2.20 GHz, 20 MB L3 Cache (Intel Turbo Boost Technology up to 3.00 GHz)
CPU Frequency (MHz): 2200
CPU(s) Enabled: 16 cores, 2 chips, 8 cores/chip
Hardware Threads: 32 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 20 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 24
# and size of DIMM: 6 x 4 GB
Memory Details: 4GB 2Rx8 PC3L-10600R ECC RDIMM, Slots A1 B1,C1, D1, E1,F1,populated
Power Supply Quantity and Rating (W): 1 x 460
Power Supply Details: Huawei P/N PW98080438
Disk Drive: 1 x 160GB SSD 2.5" SATA Huawei P/N 02310KSX
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Dual-port Intel 82580 Gigabit Ethernet controller
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power Saver enabled in OS
Operating System (OS): Microsoft Windows Server 2008 Enterprise x64 Edition
OS Version: R2 SP1
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.6,JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120322_106209 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xmx1500m -Xms1500m -Xmn1100m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp -Xconcurrentlevel0
JVM Affinity: start /affinity [0x0F,0xF0,0xF00,0xF000,0xF0000,0xF00000,0xF000000,0xF0000000]
JVM Instances: 8
JVM Initial Heap (MB): 1500
JVM Maximum Heap (MB): 1500
JVM Address Bits: 64
Boot Firmware Version: V030
Management Firmware Version: 3.02
Workload Version: SSJ 1.2.9
Director Location: Controller
Other Software: IBM WebSphere Application Server V7.0 for Windows on x86-64bit
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-PHJ991KS3BE.001 181,366
WIN-PHJ991KS3BE.002 179,541
WIN-PHJ991KS3BE.003 179,009
WIN-PHJ991KS3BE.004 180,897
WIN-PHJ991KS3BE.005 180,970
WIN-PHJ991KS3BE.006 180,505
WIN-PHJ991KS3BE.007 180,949
WIN-PHJ991KS3BE.008 182,504
ssj_ops@100% 1,445,741
ssj_ops@100% per JVM 180,718
Graph of per-instance results
JVM 'WIN-PHJ991KS3BE.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     165,802
Calibration 2     181,183
Calibration 3     180,442
ssj_ops@calibrated=180,812
100% 100.3% 180,812 181,366
90% 90.1% 162,731 162,978
80% 79.9% 144,650 144,526
70% 70.4% 126,569 127,375
60% 60.8% 108,487 109,851
50% 49.9% 90,406 90,177
40% 39.7% 72,325 71,755
30% 30.3% 54,244 54,839
20% 19.9% 36,162 35,984
10% 10.1% 18,081 18,328
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-PHJ991KS3BE.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     160,293
Calibration 2     179,433
Calibration 3     179,308
ssj_ops@calibrated=179,370
100% 100.1% 179,370 179,541
90% 89.8% 161,433 161,023
80% 79.6% 143,496 142,765
70% 70.2% 125,559 125,943
60% 60.1% 107,622 107,859
50% 49.4% 89,685 88,680
40% 40.0% 71,748 71,715
30% 30.4% 53,811 54,462
20% 20.2% 35,874 36,186
10% 10.3% 17,937 18,467
Active Idle   0 0

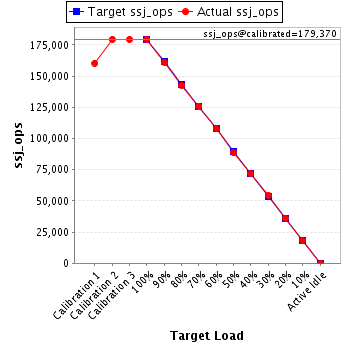

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-PHJ991KS3BE.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     162,056
Calibration 2     180,462
Calibration 3     180,287
ssj_ops@calibrated=180,375
100% 99.2% 180,375 179,009
90% 89.9% 162,337 162,150
80% 79.7% 144,300 143,746
70% 70.1% 126,262 126,483
60% 59.8% 108,225 107,855
50% 50.2% 90,187 90,498
40% 40.7% 72,150 73,337
30% 30.2% 54,112 54,395
20% 20.0% 36,075 36,130
10% 9.9% 18,037 17,779
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-PHJ991KS3BE.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     162,744
Calibration 2     179,478
Calibration 3     181,024
ssj_ops@calibrated=180,251
100% 100.4% 180,251 180,897
90% 90.1% 162,226 162,411
80% 79.3% 144,201 142,924
70% 69.5% 126,176 125,290
60% 59.7% 108,150 107,658
50% 50.3% 90,125 90,583
40% 40.1% 72,100 72,366
30% 30.4% 54,075 54,830
20% 19.8% 36,050 35,689
10% 9.9% 18,025 17,766
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-PHJ991KS3BE.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     163,538
Calibration 2     180,541
Calibration 3     181,039
ssj_ops@calibrated=180,790
100% 100.1% 180,790 180,970
90% 89.5% 162,711 161,717
80% 80.0% 144,632 144,707
70% 69.6% 126,553 125,911
60% 60.2% 108,474 108,834
50% 50.0% 90,395 90,392
40% 40.0% 72,316 72,348
30% 29.4% 54,237 53,101
20% 20.0% 36,158 36,129
10% 10.1% 18,079 18,250
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-PHJ991KS3BE.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     163,409
Calibration 2     180,535
Calibration 3     181,297
ssj_ops@calibrated=180,916
100% 99.8% 180,916 180,505
90% 89.7% 162,824 162,266
80% 80.2% 144,733 145,023
70% 69.7% 126,641 126,168
60% 59.8% 108,550 108,190
50% 50.6% 90,458 91,490
40% 40.3% 72,366 72,947
30% 29.6% 54,275 53,575
20% 20.1% 36,183 36,300
10% 9.7% 18,092 17,575
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-PHJ991KS3BE.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     162,846
Calibration 2     181,072
Calibration 3     181,463
ssj_ops@calibrated=181,268
100% 99.8% 181,268 180,949
90% 90.2% 163,141 163,496
80% 80.8% 145,014 146,495
70% 69.9% 126,887 126,734
60% 59.8% 108,761 108,470
50% 50.1% 90,634 90,819
40% 40.0% 72,507 72,559
30% 29.9% 54,380 54,214
20% 19.6% 36,254 35,604
10% 9.9% 18,127 17,867
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-PHJ991KS3BE.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     165,952
Calibration 2     182,384
Calibration 3     182,540
ssj_ops@calibrated=182,462
100% 100.0% 182,462 182,504
90% 89.4% 164,216 163,137
80% 80.3% 145,970 146,452
70% 69.5% 127,723 126,798
60% 59.3% 109,477 108,259
50% 49.9% 91,231 91,096
40% 39.9% 72,985 72,874
30% 30.1% 54,739 54,931
20% 20.1% 36,492 36,623
10% 9.9% 18,246 18,111
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
