SGI Rackable C2112-4RP4 ssj_ops@100% = 5,800,642
ssj_ops@100% per Host = 1,450,160
ssj_ops@100% per JVM = 181,270
Test Sponsor: SGI SPEC License #: 4 Test Method: Multi Node
Tested By: SGI Test Location: Fremont, CA, USA Test Date: Oct 2, 2012
Hardware Availability: Aug-2012 Software Availability: Jun-2012 Publication: Oct 17, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,708,585
Calibration 2     5,816,935
Calibration 3     5,822,880
ssj_ops@calibrated=5,819,907
100% 99.7% 5,819,907 5,800,642
90% 90.0% 5,237,917 5,236,161
80% 80.1% 4,655,926 4,662,915
70% 69.9% 4,073,935 4,070,095
60% 60.1% 3,491,944 3,496,434
50% 50.0% 2,909,954 2,910,205
40% 40.0% 2,327,963 2,329,313
30% 30.0% 1,745,972 1,747,753
20% 20.0% 1,163,981 1,163,094
10% 10.0% 581,991 582,335
Active Idle   0 0
Graph of results
Aggregate SUT Data
# of Nodes # of Chips # of Cores # of Threads Total RAM (GB) # of OS Images # of JVM Instances
4 8 64 128 96.0 4 32
System Under Test
Shared Hardware
Shared Hardware
Enclosure: Rackable C2112
Form Factor: 2U
Power Supply Quantity and Rating (W): 2 x 1200
Power Supply Details: SGI P/N 060-0303-001
Network Switch: 24 port Gigabit Ethernet switch
Network Switch Details: SMC8824M SMC Tigerstack II
KVM Switch: None
KVM Switch Details: N/A
Other Hardware: None
Comment: Network switch is a standalone device and is not included in the measured power.
Set: 'sut'
Set Identifier: sut
Set Description: Rackable C2112-4RP4
# of Identical Nodes: 4
Comment: None
Hardware per Node
Hardware Vendor: SGI
Model: Rackable C2112-4RP4
Form Factor: Blade
CPU Name: Intel Xeon E5-2660
CPU Characteristics: 8-Core, 2.20 GHz, 20 MB L3 Cache (Turbo Boost Technology up to 3.0 GHz)
CPU Frequency (MHz): 2200
CPU(s) Enabled: 16 cores, 2 chips, 8 cores/chip
Hardware Threads: 32 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 20 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 24
# and size of DIMM: 6 x 4096 MB
Memory Details: 4 GB 2Rx8 PC3L-10600R slots A1,B1 C1,E1,F1 and G1 are populated.
Power Supply Quantity and Rating (W): None
Power Supply Details: N/A
Disk Drive: 1 x 120 GB 2.5" SSD SATA (SGI PN LSX-SSD25-120G-I)
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Dual port Integrated Intel(R) I350 Gigabit Ethernet Controller
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software per Node
Power Management: Power Saver Enabled in OS
Operating System (OS): Microsoft Windows Server 2008 Datacenter Edition
OS Version: R2
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.6,JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120322_106209 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xmx1600m -Xms1600m -Xmn1200m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp -Xconcurrentlevel0
JVM Affinity: start /affinity [F, F0, F00, F000, F0000, F00000, F000000, F0000000]
JVM Instances: 8
JVM Initial Heap (MB): 1600
JVM Maximum Heap (MB): 1600
JVM Address Bits: 64
Boot Firmware Version: SE5C600.86B.01.03.0002 dt 06/20/2012
Management Firmware Version: none
Workload Version: SSJ 1.2.9
Director Location: Controller
Other Software: IBM SDK Java Technology Edition Version 7.0 for Windows x64
Boot Firmware Settings
Management Firmware Settings
02.01.05.107
System Under Test Notes
Notes
None
Host Instance Summary
Host ssj_ops@100%
steel1 1,454,026
steel2 1,452,523
steel3 1,447,159
steel4 1,446,934
ssj_ops@100% 5,800,642
ssj_ops@100% per Host 1,450,160
ssj_ops@100% per JVM 181,270

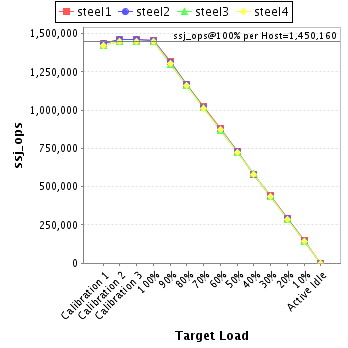

Graph of per-host results
Host 'steel1' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,434,451
Calibration 2     1,460,759
Calibration 3     1,463,997
ssj_ops@calibrated=1,462,378
100% 99.4% 1,462,378 1,454,026
90% 90.1% 1,316,140 1,318,314
80% 80.0% 1,169,902 1,170,580
70% 69.8% 1,023,665 1,021,047
60% 60.2% 877,427 880,917
50% 50.0% 731,189 731,147
40% 39.9% 584,951 582,784
30% 30.1% 438,713 439,631
20% 20.1% 292,476 293,284
10% 10.0% 146,238 146,937
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'steel2' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,432,645
Calibration 2     1,459,519
Calibration 3     1,459,060
ssj_ops@calibrated=1,459,290
100% 99.5% 1,459,290 1,452,523
90% 90.0% 1,313,361 1,313,617
80% 80.1% 1,167,432 1,169,484
70% 69.8% 1,021,503 1,019,221
60% 60.1% 875,574 876,619
50% 50.0% 729,645 730,176
40% 39.9% 583,716 582,770
30% 30.1% 437,787 438,577
20% 20.0% 291,858 291,942
10% 10.0% 145,929 145,233
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'steel3' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,421,305
Calibration 2     1,448,155
Calibration 3     1,450,056
ssj_ops@calibrated=1,449,106
100% 99.9% 1,449,106 1,447,159
90% 89.7% 1,304,195 1,300,188
80% 80.3% 1,159,285 1,163,003
70% 70.2% 1,014,374 1,016,776
60% 59.9% 869,463 868,289
50% 50.0% 724,553 723,880
40% 40.3% 579,642 583,575
30% 30.0% 434,732 434,544
20% 19.9% 289,821 289,095
10% 10.0% 144,911 144,883
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'steel4' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,420,184
Calibration 2     1,448,502
Calibration 3     1,449,766
ssj_ops@calibrated=1,449,134
100% 99.8% 1,449,134 1,446,934
90% 90.0% 1,304,221 1,304,042
80% 80.0% 1,159,307 1,159,848
70% 69.9% 1,014,394 1,013,052
60% 60.1% 869,480 870,608
50% 50.0% 724,567 725,003
40% 40.0% 579,654 580,184
30% 30.0% 434,740 435,000
20% 19.9% 289,827 288,773
10% 10.0% 144,913 145,281
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
