IBM Corporation IBM Flex System x440 Compute Node ssj_ops@100% = 2,699,138
ssj_ops@100% per JVM = 168,696
Test Sponsor: IBM Corporation SPEC License #: 11 Test Method: Multi Node
Tested By: IBM Corporation Test Location: RTP, NC, USA Test Date: Sep 23, 2012
Hardware Availability: Dec-2012 Software Availability: Dec-2012 Publication: Oct 17, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     2,613,899
Calibration 2     2,705,076
Calibration 3     2,703,447
ssj_ops@calibrated=2,704,261
100% 99.8% 2,704,261 2,699,138
90% 89.9% 2,433,835 2,431,331
80% 79.9% 2,163,409 2,161,652
70% 70.0% 1,892,983 1,892,108
60% 60.0% 1,622,557 1,623,828
50% 50.0% 1,352,131 1,351,523
40% 40.1% 1,081,705 1,083,517
30% 30.1% 811,278 812,710
20% 20.0% 540,852 540,079
10% 10.0% 270,426 271,679
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: x440
# of Identical Nodes: 7
Comment: None
Hardware
Hardware Vendor: IBM Corporation
Model: IBM Flex System x440 Compute Node
Form Factor: Blade
CPU Name: Intel Xeon E5-4640 (Intel Turbo Boost Technology up to 2.80 GHz)
CPU Characteristics: 8-core, 2.4GHz, 20MB L3 Cache (Turbo Boost Technology up to 2.8GHz)
CPU Frequency (MHz): 2400
CPU(s) Enabled: 32 cores, 4 chips, 8 cores/chip
Hardware Threads: 64 (2 / core)
CPU(s) Orderable: 2,4 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 MB I+D on chip per core
Tertiary Cache: 20 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 48
# and size of DIMM: 12 x 4096 MB
Memory Details: 4GB 2Rx8 PC3L-10600E ECC CL9; slots 1, 4, 9, 13, 16, 21, 25, 28, 33, 37, 40, and 45 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: N/A
Disk Drive: 1 x 200GB SATA SSD (Feature Code: A2FN)
Disk Controller: Integrated SAS controller
# and type of Network Interface Cards (NICs) Installed: 2 x Dual-Port Emulex BE3 10Gb (onboard)
NICs Enabled in Firmware / OS / Connected: 2/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: IBM Power Profile
Operating System (OS): Windows Server 2008 R2 Enterprise
OS Version: SP1
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 JVM (build 2.6, JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120322_106209 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xmn1100m -Xms1500m -Xmx1500m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp -Xconcurrentlevel0
JVM Affinity: start /affinity [0F,F0,F00,F000,F0000,F00000,F000000,F0000000,F00000000,F000000000,F0000000000,F00000000000,F000000000000,F0000000000000,F00000000000000,F000000000000000]
JVM Instances: 16
JVM Initial Heap (MB): 1500
JVM Maximum Heap (MB): 1500
JVM Address Bits: 64
Boot Firmware Version: CNE115M
Management Firmware Version: 1AOO31l
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: IBM SDK Java Technology Edition Version 7.0 for Windows x64
Boot Firmware Settings
Management Firmware Settings
Acoustic Attenuation set to 1
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
EP4S-06.001 168,983
EP4S-06.002 171,416
EP4S-06.003 170,415
EP4S-06.004 163,046
EP4S-06.005 169,845
EP4S-06.006 168,995
EP4S-06.007 168,296
EP4S-06.008 167,226
EP4S-06.009 167,585
EP4S-06.010 168,332
EP4S-06.011 168,901
EP4S-06.012 169,486
EP4S-06.013 169,902
EP4S-06.014 167,595
EP4S-06.015 169,769
EP4S-06.016 169,344
ssj_ops@100% 2,699,138
ssj_ops@100% per JVM 168,696

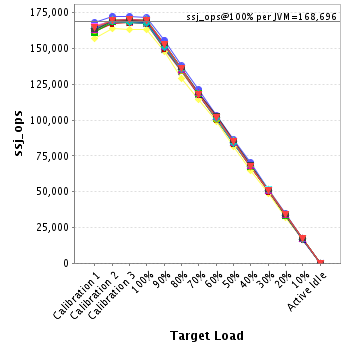

Graph of per-instance results
JVM 'EP4S-06.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     164,963
Calibration 2     169,786
Calibration 3     168,483
ssj_ops@calibrated=169,134
100% 99.9% 169,134 168,983
90% 90.9% 152,221 153,790
80% 79.9% 135,308 135,128
70% 70.1% 118,394 118,622
60% 60.1% 101,481 101,639
50% 49.9% 84,567 84,404
40% 39.7% 67,654 67,149
30% 30.3% 50,740 51,326
20% 19.9% 33,827 33,700
10% 10.1% 16,913 17,121
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'EP4S-06.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     168,089
Calibration 2     172,530
Calibration 3     172,360
ssj_ops@calibrated=172,445
100% 99.4% 172,445 171,416
90% 90.4% 155,201 155,879
80% 80.0% 137,956 137,877
70% 70.3% 120,712 121,219
60% 59.8% 103,467 103,166
50% 50.1% 86,223 86,313
40% 40.7% 68,978 70,165
30% 29.7% 51,734 51,298
20% 20.1% 34,489 34,685
10% 9.9% 17,245 17,067
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'EP4S-06.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     164,778
Calibration 2     170,399
Calibration 3     170,438
ssj_ops@calibrated=170,419
100% 100.0% 170,419 170,415
90% 89.6% 153,377 152,622
80% 79.7% 136,335 135,741
70% 69.9% 119,293 119,204
60% 60.0% 102,251 102,177
50% 50.2% 85,209 85,591
40% 39.5% 68,167 67,352
30% 30.4% 51,126 51,885
20% 20.0% 34,084 34,119
10% 10.3% 17,042 17,596
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'EP4S-06.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     157,076
Calibration 2     163,741
Calibration 3     163,155
ssj_ops@calibrated=163,448
100% 99.8% 163,448 163,046
90% 90.5% 147,103 147,908
80% 79.0% 130,758 129,102
70% 70.1% 114,413 114,614
60% 60.7% 98,069 99,187
50% 50.0% 81,724 81,724
40% 39.6% 65,379 64,644
30% 29.7% 49,034 48,571
20% 19.7% 32,690 32,155
10% 10.0% 16,345 16,284
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'EP4S-06.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     166,383
Calibration 2     169,198
Calibration 3     169,309
ssj_ops@calibrated=169,253
100% 100.3% 169,253 169,845
90% 89.7% 152,328 151,799
80% 79.8% 135,403 135,078
70% 69.5% 118,477 117,635
60% 60.1% 101,552 101,728
50% 50.5% 84,627 85,470
40% 39.9% 67,701 67,542
30% 30.5% 50,776 51,541
20% 20.1% 33,851 34,074
10% 9.9% 16,925 16,752
Active Idle   0 0

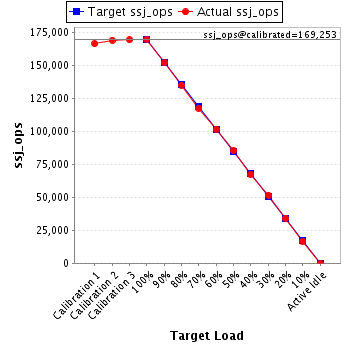

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'EP4S-06.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     162,182
Calibration 2     168,976
Calibration 3     169,174
ssj_ops@calibrated=169,075
100% 100.0% 169,075 168,995
90% 90.4% 152,167 152,765
80% 80.5% 135,260 136,067
70% 69.9% 118,352 118,183
60% 60.0% 101,445 101,515
50% 49.6% 84,537 83,863
40% 40.3% 67,630 68,130
30% 30.4% 50,722 51,332
20% 19.9% 33,815 33,594
10% 10.1% 16,907 17,066
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'EP4S-06.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     163,911
Calibration 2     168,590
Calibration 3     168,964
ssj_ops@calibrated=168,777
100% 99.7% 168,777 168,296
90% 89.7% 151,899 151,413
80% 79.5% 135,021 134,144
70% 69.4% 118,144 117,157
60% 60.4% 101,266 101,918
50% 49.8% 84,388 84,052
40% 40.2% 67,511 67,850
30% 29.8% 50,633 50,273
20% 20.1% 33,755 33,963
10% 10.2% 16,878 17,203
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'EP4S-06.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     163,148
Calibration 2     168,363
Calibration 3     167,996
ssj_ops@calibrated=168,180
100% 99.4% 168,180 167,226
90% 88.9% 151,362 149,532
80% 79.5% 134,544 133,772
70% 70.3% 117,726 118,227
60% 60.4% 100,908 101,511
50% 50.5% 84,090 84,872
40% 40.2% 67,272 67,620
30% 30.2% 50,454 50,841
20% 19.9% 33,636 33,505
10% 10.4% 16,818 17,529
Active Idle   0 0

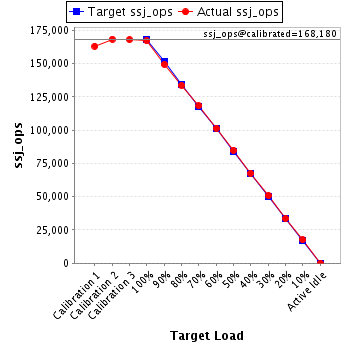

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'EP4S-06.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     161,670
Calibration 2     167,815
Calibration 3     167,963
ssj_ops@calibrated=167,889
100% 99.8% 167,889 167,585
90% 89.6% 151,100 150,345
80% 80.3% 134,311 134,863
70% 70.3% 117,522 118,048
60% 59.9% 100,733 100,534
50% 49.7% 83,944 83,432
40% 40.1% 67,155 67,302
30% 30.0% 50,367 50,320
20% 20.0% 33,578 33,522
10% 9.8% 16,789 16,461
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'EP4S-06.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     163,960
Calibration 2     168,993
Calibration 3     168,961
ssj_ops@calibrated=168,977
100% 99.6% 168,977 168,332
90% 89.8% 152,079 151,809
80% 80.1% 135,182 135,281
70% 69.9% 118,284 118,175
60% 59.4% 101,386 100,377
50% 49.9% 84,488 84,268
40% 39.9% 67,591 67,346
30% 30.1% 50,693 50,788
20% 19.6% 33,795 33,203
10% 10.0% 16,898 16,848
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'EP4S-06.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     160,909
Calibration 2     169,271
Calibration 3     169,330
ssj_ops@calibrated=169,301
100% 99.8% 169,301 168,901
90% 90.4% 152,371 152,978
80% 80.6% 135,440 136,387
70% 69.9% 118,510 118,339
60% 59.9% 101,580 101,404
50% 50.1% 84,650 84,873
40% 40.0% 67,720 67,759
30% 29.9% 50,790 50,630
20% 19.7% 33,860 33,417
10% 10.0% 16,930 16,972
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'EP4S-06.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     162,498
Calibration 2     169,433
Calibration 3     168,594
ssj_ops@calibrated=169,014
100% 100.3% 169,014 169,486
90% 90.3% 152,112 152,602
80% 79.6% 135,211 134,462
70% 70.1% 118,310 118,518
60% 59.4% 101,408 100,335
50% 49.7% 84,507 84,083
40% 39.9% 67,605 67,364
30% 30.0% 50,704 50,631
20% 20.1% 33,803 34,013
10% 10.1% 16,901 17,097
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'EP4S-06.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     163,087
Calibration 2     169,936
Calibration 3     170,367
ssj_ops@calibrated=170,152
100% 99.9% 170,152 169,902
90% 89.0% 153,137 151,454
80% 79.6% 136,122 135,523
70% 70.0% 119,106 119,055
60% 60.1% 102,091 102,303
50% 49.4% 85,076 84,035
40% 40.1% 68,061 68,217
30% 29.9% 51,046 50,909
20% 19.9% 34,030 33,894
10% 10.0% 17,015 16,991
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'EP4S-06.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     163,784
Calibration 2     168,750
Calibration 3     168,403
ssj_ops@calibrated=168,576
100% 99.4% 168,576 167,595
90% 89.5% 151,719 150,862
80% 80.4% 134,861 135,549
70% 70.2% 118,003 118,314
60% 59.9% 101,146 100,999
50% 49.8% 84,288 83,984
40% 40.5% 67,430 68,310
30% 30.0% 50,573 50,520
20% 20.2% 33,715 34,046
10% 9.7% 16,858 16,367
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'EP4S-06.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     162,811
Calibration 2     169,750
Calibration 3     169,908
ssj_ops@calibrated=169,829
100% 100.0% 169,829 169,769
90% 90.0% 152,846 152,925
80% 80.3% 135,863 136,363
70% 70.0% 118,880 118,880
60% 60.8% 101,897 103,327
50% 50.3% 84,914 85,497
40% 40.8% 67,932 69,267
30% 30.1% 50,949 51,075
20% 20.0% 33,966 34,004
10% 10.1% 16,983 17,164
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'EP4S-06.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     164,650
Calibration 2     169,545
Calibration 3     170,043
ssj_ops@calibrated=169,794
100% 99.7% 169,794 169,344
90% 89.9% 152,815 152,647
80% 80.3% 135,835 136,313
70% 69.4% 118,856 117,919
60% 59.9% 101,877 101,710
50% 50.1% 84,897 85,064
40% 39.8% 67,918 67,499
30% 29.9% 50,938 50,769
20% 20.1% 33,959 34,184
10% 10.1% 16,979 17,160
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
